Product Description

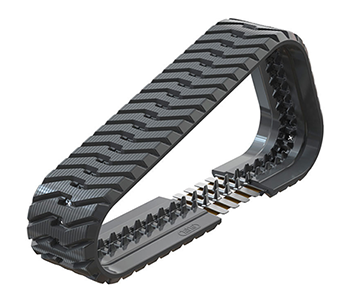

The loader track is the key part of the loader travel device, which is mainly composed of the track chain, track pin, rubber shoe (or metal shoe teeth) and other components. The track chain is the basic skeleton of the track, and a number of chain links are connected through the track pin to form a circular track. The ring structure can be wrapped around the driving wheel, guide wheel and support wheel of the loader to realize the movement of the loader. From the appearance, the loader track is usually relatively thick to adapt to the weight of the loader and the working environment. Its width can effectively distribute the weight of the loader, reduce the pressure on the ground per unit area, and prevent the loader from sinking.
Product parameters
| Track Size (WidthxPitch) | Inner Guide Width (A) | Outer Guide Width(B) | Inner Height (C) | Outer Height (D) | Track Thickness (E) | Lug Pattern | Section View | Gude Type | Range ofLink No. | Remarks |
| 320x86TK | 38 | 87 | 41 | 30 | 60 | B/C | Fig 2 | C | 48-52 | Takeuchi-type |
| 320x86B | 47 | 96 | 43 | 33 | 71 | B/C/Z/L | Fig 1 | B | 49-60 | Bobcat-type |
| 400x86B | 48 | 97 | 44 | 33 | 75 | B/C/Z/L | Fig 1 | B | 49-60 | Bobcat-type |
| 450x86B | 48 | 97 | 44 | 33 | 76 | B/C/Z/L | Fig 1 | B | 60-65 | Bobcat-type |
| 450x100TK | 47 | 102 | 48 | 44.5 | 77 | B/C | Fig 1 | C | 48-52 | Takeuchi-type |

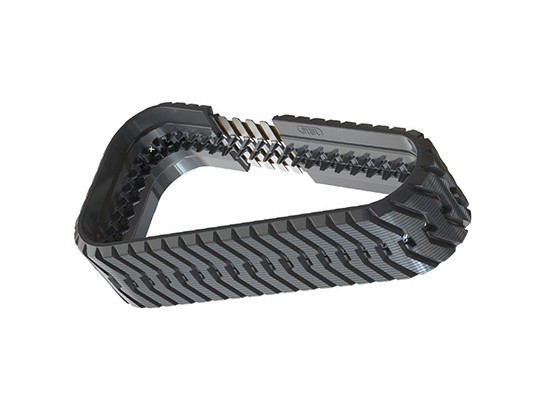

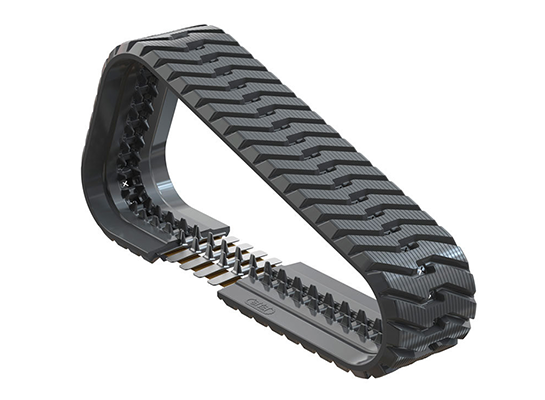

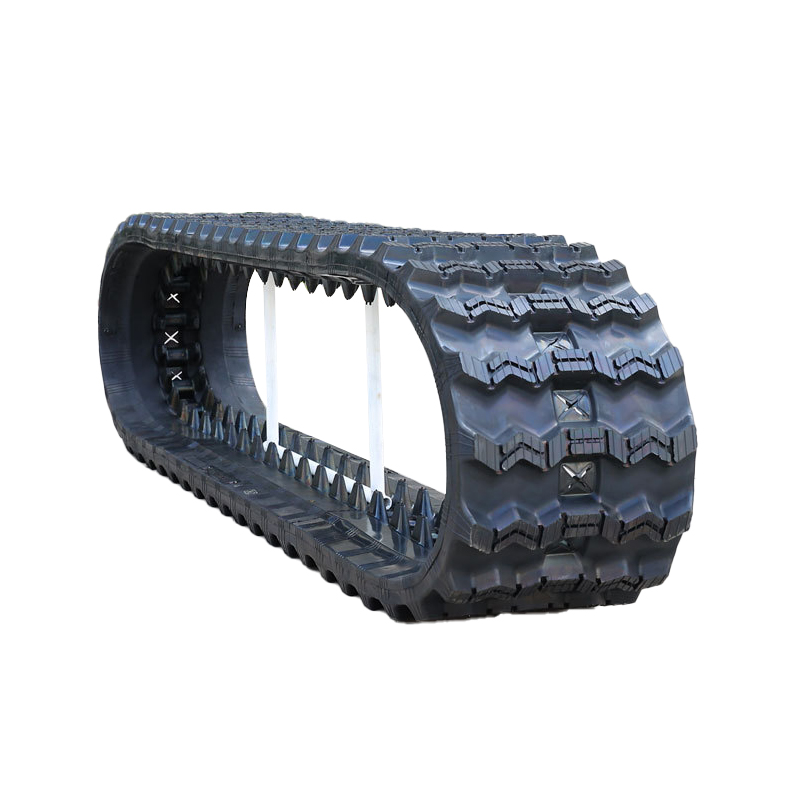

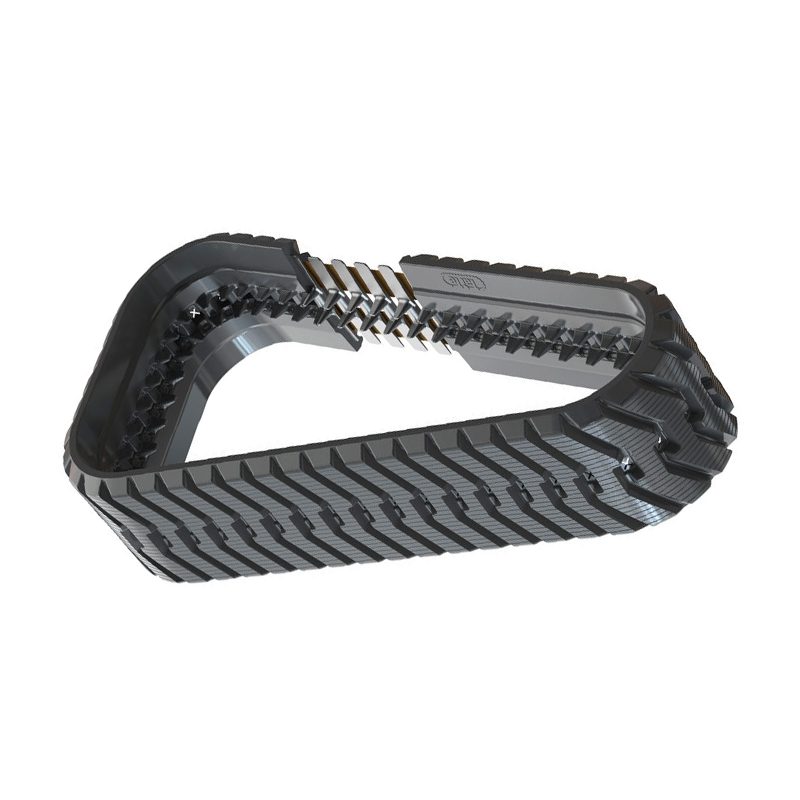

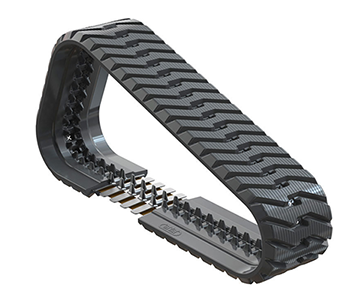

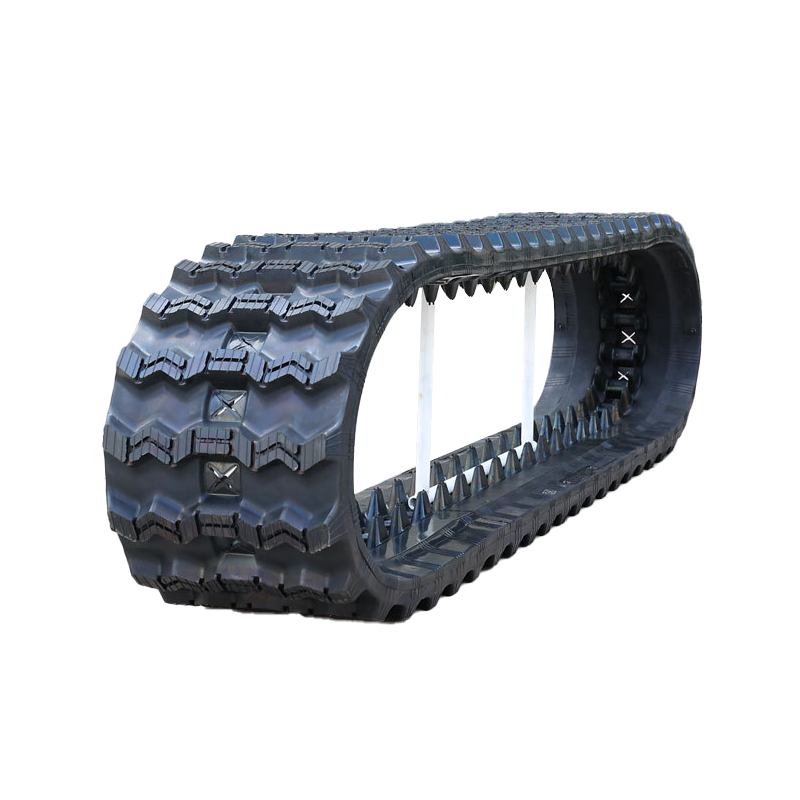

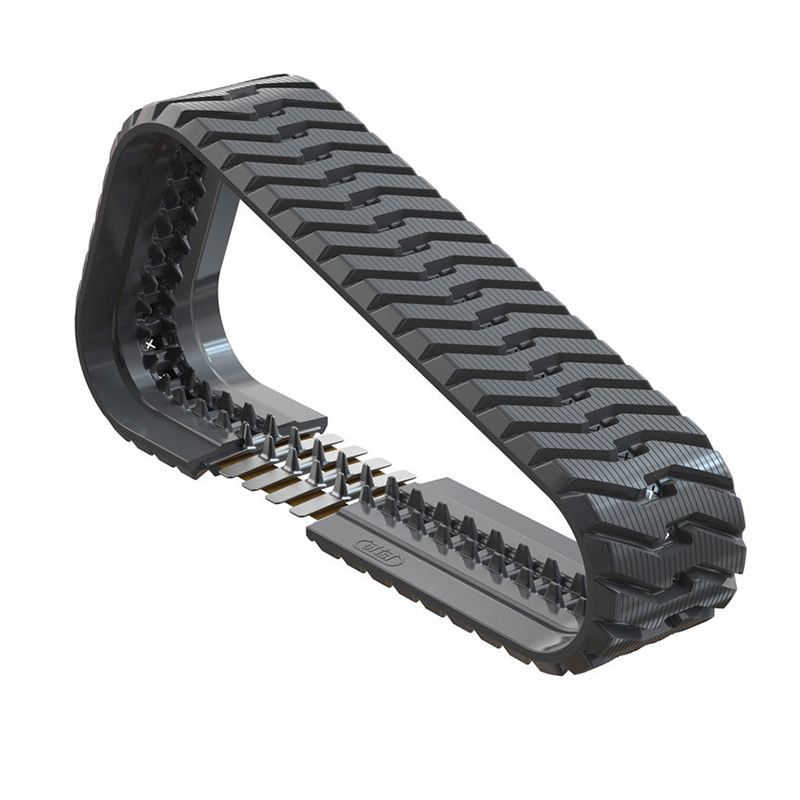

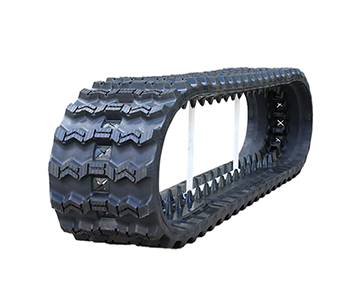

Product Display
Strength and toughness: the chain link and pin of the loader track are generally made of high-strength alloy steel, which has high strength and toughness, and can withstand the huge weight of the loader and various impact forces generated when working. For example, high-strength alloy steel ensures that the track does not break or deform when the loader is carrying out excavation and loading and unloading operations, which require the track to withstand the heavy reaction force from the bucket.
- Wear resistance: Due to the continuous friction between the track and the ground and various obstacles during operation, its chain and shoe (or shoe teeth) need to have good wear resistance. The surface of the link is usually treated with special heat treatment or coating to improve its wear resistance. The rubber shoe (if it is a rubber track) is made of high wear-resistant rubber material, and the metal shoe teeth will also use wear-resistant alloys.
- Corrosion resistance: loaders sometimes work in some harsh environments, such as seaside, chemical sites, etc., and the tracks are vulnerable to corrosion. Therefore, the track material also needs to have a certain corrosion resistance. For the link parts, anti-corrosion measures such as galvanizing and painting may be adopted; For rubber shoes, chemical resistant rubber formulations are used.
Application Cases

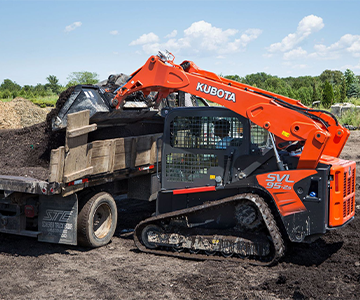

It is widely used in crawler excavator, bulldozer, loader and other equipment. On construction sites, for example, the rubber tracks of excavators can provide enough grip on soft ground to prevent the machine from sinking. At the same time, in the process of moving, rubber tracks can reduce the damage to the ground, which is particularly important for some construction scenarios that need to protect the ground (such as indoor demolition, landscape restoration, etc.). Tracked military equipment such as tanks and armored vehicles will also use rubber tracks. On the one hand, the rubber track can reduce the noise of the vehicle and play a certain hidden role; On the other hand, when driving on hard roads such as highways, it can reduce the damage to the road surface and improve the smoothness of driving.
Company Introduction
Tate Rubber is a professional manufacturer of rubber parts for the chassis of construction machinery and agricultural machinery. We are committed to providing our customers with professional technical services, quality products and timely and thoughtful service to help them achieve success in their respective fields.
For OEM customers, Tate's excellent technical team provides one-stop technical support. Customers can either use our existing specifications or customize according to their needs. During the design process, we fully communicate with the customer's technical team, design the structure of the track according to the customer's chassis frame and wheel train selection, and design the rubber formula according to the weight, speed and working conditions of the machine. This not only ensures a good match between the chassis and the track, but also ensures the stable and reliable performance and quality of the product.
Service
- Customized design: According to the needs of different customers, research and development and design of specific specifications and performance of rubber tracks. For example, in order to adapt to different types of construction machinery, agricultural machinery, etc., rubber tracks of different sizes, patterns and strengths are designed to meet the requirements of customers in various working conditions.
- Quality control: Establish a strict quality inspection system, from raw material procurement, production and processing to finished products, the whole process of quality control. For example, the hardness, tensile strength, wear resistance of rubber, as well as the strength and toughness of skeleton materials are tested to ensure that products meet relevant standards and customer quality expectations.
