Product Description

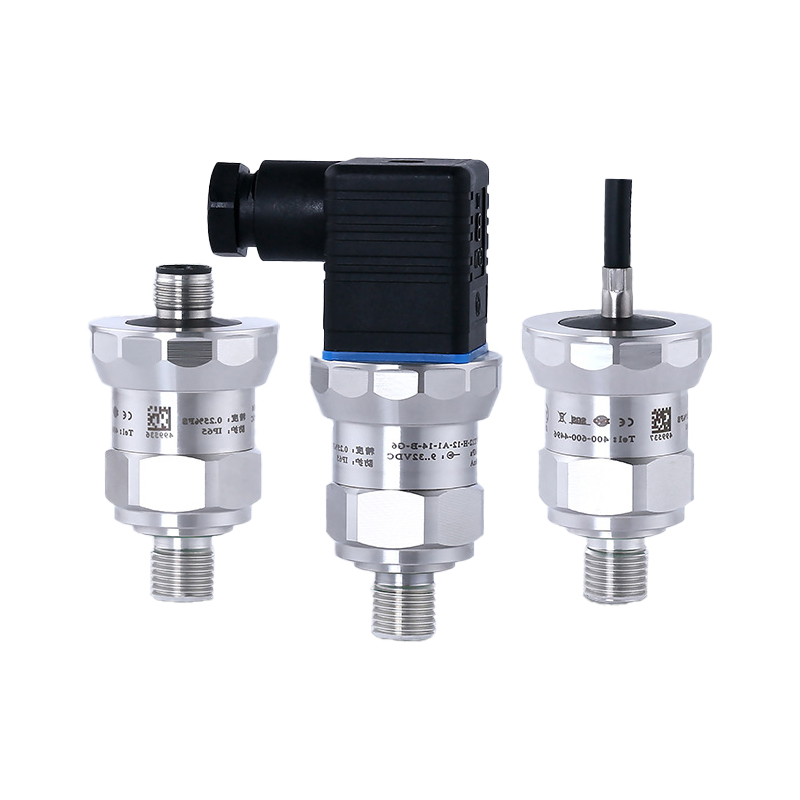

CYYZ12 series pressure transmitter products use 0EM pressure sensor with stainless steel isolation diaphragm as signal measurement element, and through computer automatic test, zero point and sensitivity temperature compensation for a wide temperature range by laser resistance adjustment process. The amplifier circuit is located in the stainless steel housing, which converts the sensor signal to the standard output signal, giving full play to the technical advantages of the sensor, and making the CYYZ12 series pressure transmitter have excellent performance. It has strong anti-interference, overload and impact resistance, small temperature drift, high stability, and high measurement accuracy, and is the ideal pressure measuring instrument in the field of industrial automation.
Product parameters
| Basic parameter | |
|---|---|
| Measuring medium | Liquid or gas (compatible with contact material) |
| Measuring range | 0 ~ 0.02 ~ 20MPa (see range selection table for details) |
| Pressure type | Gauge pressure, absolute pressure, sealing pressure |
| accuracy level | 0.25% FS |
| Response frequency | 2kHz |
| Medium temperature | - 40 ℃ ~ 100 ℃ |
| Turn-on time | 20ms |
| Stability performance | ±0.1%FS/ year |
| Temperature compensation | -40 ~ 80℃ |
| Temperature drift | ±0.01%FS/℃ (within the temperature compensation range) ±0.05%FS/℃ (outside the temperature compensation range) |
| Class of protection | IP65 |
| durability | 10X10⁶ times (number of cycles from lower range to upper range) |
| Overall weight | ≈170g |
| Power supply range | 9 to 32VDC, 13 to 32VDC |
| Output signal | The value ranges from 4 to 20mA and from 0 to 10VDC |
| Maximum power | |
| Current mode | 0.02 or less Us (W) |
| Voltage mode | 0.005 or less Us (W) |
| Load characteristic | |
| Current mode | Load ≤{(US-8) ÷0.02}Ω (Us= power supply voltage) |
| Voltage mode | 5 k or higher Ω |
| Environmental condition | |
| Ambient temperature | -40 ~ 85℃ |
| Ambient humidity | 0% ~ 95%RH (no condensation, no condensation) |
| Overload capacity | |
| Overload pressure | 300%FS, 200%FS, 150%FS |
| Burst pressure | 600%FS, 500%FS, 400%FS |
| Overall material | |
| diaphragm | 316L Stainless steel (contact) |
| Process connection | 304 stainless steel (contact) |
| shell | 304 stainless steel (contact) |
| Sealing element | Nitrile butadiene rubber (contact) (see overpressure and explosion chart (contact with tested media) |
| Hersman joint | ABS engineering plastics |
| Mechanical stability | |
| Vibration resistance | 10g(20… 2000Hz) |
| Impact resistance | 500g/ms |
| Electrical protection | |
| Short circuit protection | permanent |
| Inverse pole protection | No damage, but no work |
| Insulation resistance | P 100 m Ω 500 VDC |
| Insulation strength | 500VAC |
| Output restriction | |
| Output minimization | 3.2mA, -1.2VDC |
| Output maximum | 22.3mA, 11.2VDC |
Product Display
Diaphragm isolation technology is adopted
Integrated chip, wide voltage
Small power supply structure, easy to install
Response frequency up to 2kHz current limiting, voltage limiting, reverse protection
High precision, good stability, fast response speed, impact resistance
The pressure sensor diffuses a Wheatstone bridge on a single silicon wafer, and the pressure of the measured medium (gas or liquid) changes the resistance value of the bridge wall (piezoresistive effect), resulting in a differential voltage signal, which is converted into a standard analog signal by a special amplifier.
Size & Interface
