Product Description
CYYZ802 special pressure transmitter is made of metal-based pressure sensitive chip package (sputtered film), designed for the construction machinery hydraulic system serious cavitation, liquid hammer phenomenon and high pressure peak, power supply fluctuation, vibration interference, harsh environment and other problems, fully meet these requirements. Range :0~1~60MPa(see range selection table for details); Output :4~20mA; Power supply :9~28VDC; Accuracy: 0.5%FS; In addition, according to the customer's application, we can provide customized products to meet their application needs in a short time.
Product parameters
| Basic parameter | |
|---|---|
| Measuring medium | Liquid or gas (compatible with contact material) |
| Measuring range | 0 ~ 1 ~ 60MPa (See range selection table for details) |
| Pressure type | Manometer pressure |
| Output signal | 4 to 20mA |
| Supply voltage | 9 to 28VDC |
| accuracy level | 0.5% FS |
| Medium temperature | -40 ~ 105℃ |
| Turn-on time | 20ms |
| Response frequency | 1kHz |
| Stability performance | ±0.2% FS/ year |
| Temperature compensation | -40 ~ 85℃ |
| Temperature drift | ±0.01%FS/℃ (within the temperature compensation range) ±0.03%FS/℃ (outside the temperature compensation range) |
| Overall weight | None ≈190g Yes ≈270g |
| Class of protection | See outline and dimensions |
| durability | 1X108 |
| Number of cycles from lower range to upper range | |
| Maximum power | 0.02Us(W) Note: Us= supply voltage |
| Overall weight | ≈55g |
| Resolution | 0.01% FS |
| Load characteristic | |
| Voltage mode | 10 k Ω or greater |
| Current mode | Current type: ≤{(US-8) ÷0.02}Ω (Us= power supply voltage) |
| Environmental condition | |
| Ambient temperature | -40 ~ 85℃ |
| Ambient humidity | 0% ~ 95%RH (no condensation, no condensation) |
| Overload capacity | |
| Overload pressure | 3 times 3 times 2.5 times |
| Burst pressure | 40 times 10 times and ≤400 mpa ≤400 mpa |
| Overall material | |
| diaphragm | 17-4PH stainless steel (contact with tested medium) |
| Process connection | 304 stainless steel (contact with measured medium) |
| shell | 304 stainless steel |
| ED ring | Nitrile butadiene rubber |
| Mechanical stability | |
| Random vibration | 20g conforms to GB/T2423.56-2006 |
| Positive vibration | 14.1g complies with GB/T2423.10-2008 |
| strike | 500g/ms complies with IEC60068-2-27 standard |
| Electrical protection | |
| Short circuit protection | permanent |
| Inverse pole protection | No damage, but no work |
| Insulation resistance | P 100 m Ω 500 VDC |
| Insulation strength | 500VAC |
Product Display
No oil, all welded stainless steel structure, leak proof
Integrated chip, wide voltage power supply
Small structure, easy to install
Intercept frequency design, strong anti-interference ability
Small hysteresis, good repeatability
Fast response speed, response time is less than 1ms
All-metal pressure sensitive diaphragm for impact resistance
It is suitable for construction machinery hydraulic system with severe cavitation, liquid hammer phenomenon, high pressure peak, large power supply fluctuation, vibration interference and other harsh environment.
The pressure sensor sputters a Wheatstone bridge on the metal diaphragm, and the pressure of the measured medium (gas or liquid) changes the resistance value of the bridge wall (piezoresistic effect), resulting in a differential voltage signal, which is converted into a standard analog signal or a digital signal by a special amplifier.

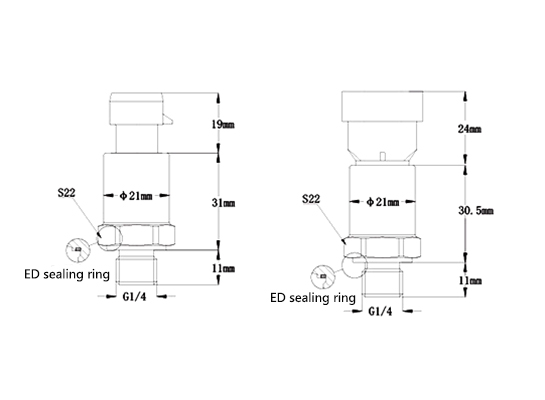

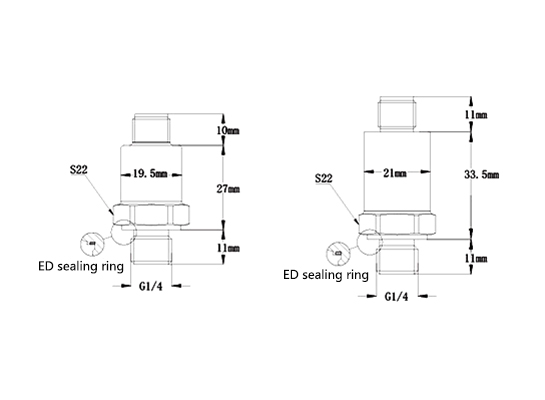

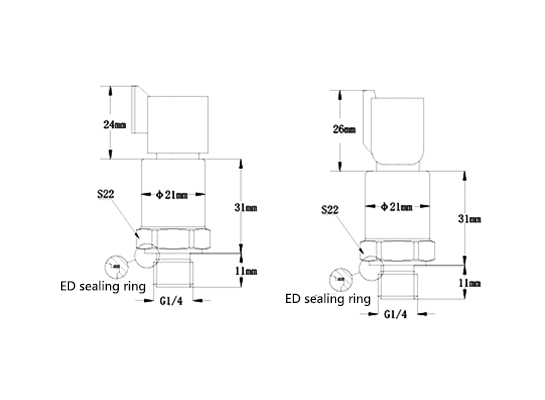

Size & Interface
