K823 module is a full-system multi-frequency RTK positioning and orientation module developed by Shanghai Sinan Satellite Navigation Technology Co., Ltd. based on Quantum III. The module supports BDS-3 global signal, BDS-2, GPS, GLONASS, Galileo, IRNSS, QZSS, SBAS and other satellite signals, mainly for intelligent driving, mechanical control, intelligent robot and other fields.

Next generation Quantum III SoC chip

K823 A new generation of full-system full-frequency high-precision Quantum III SoC chip. It also supports high performance floating point arithmetic and provides users with highly reliable position information.

Whole system full frequency positioning and orientation module

K823 can track BDS-3, BDS-2, GPS, GLONASS, Galileo, IRNSS, QZSS, SBAS and other satellite signals, 30×40mm×3.2mm compact classic design, can significantly reduce the size of the terminal, low power consumption, easy for users to integrate.

Integrated IMU, support onboard integrated navigation

K823 onboard high-precision inertial navigation device, through up to 20Hz IMU data update rate and inertial navigation integration algorithm, even in tunnels, buildings, forests and other satellite signal limited environment, can also provide continuous, high-quality positioning data.

Adaptive anti-interference ability

K823 has excellent adaptive anti-interference performance. Thanks to the high-performance Quantum III SoC chip and its front-end design of wideband information receiving technology, it can effectively suppress wide and narrow band and continuous wave interference signals, and perform better in complex environments.

Fully support Beidou-3 satellite signal reception, the whole system full frequency positioning orientation, support L-Band, single unit can achieve centimeter level positioning, the maximum 20Hz data update rate onboard inertial navigation, support integrated navigation, small size patch installation, higher integration.

Raw material control: According to the industry demand, global select suppliers, with high-precision equipment to strictly screen raw materials from electrical performance, mechanical strength accuracy and other dimensions, to ensure that the quality exceeds the industry standard, build a solid foundation of high quality products.

Production process optimization: Customize the fine process according to the characteristics of the application field, automatic precision assembly for the production of geographic information acquisition equipment, modular assembly for the manufacturing of fine agricultural navigation equipment, and set up multiple detection points to ensure the accuracy of each link and product consistency, and meet the requirements of high-precision scenarios.

Performance verification system: Build a comprehensive and targeted verification system, simulate the actual scenes of various industries in depth testing, safety engineering products to do extreme environmental reliability verification, industrial measurement products and professional instruments compared calibration, only qualified products to enter the market, to provide users with reliable satellite navigation solutions.

Teaching and research in scientific research institutions: It provides an ideal experimental platform for relevant majors in universities and scientific research institutions, which can be used to carry out teaching practice and research projects of satellite navigation and positioning technology, unmanned vehicle navigation and control, robot autonomous positioning and other courses, and help students and researchers to deeply understand the principle and application method of high-precision positioning technology.

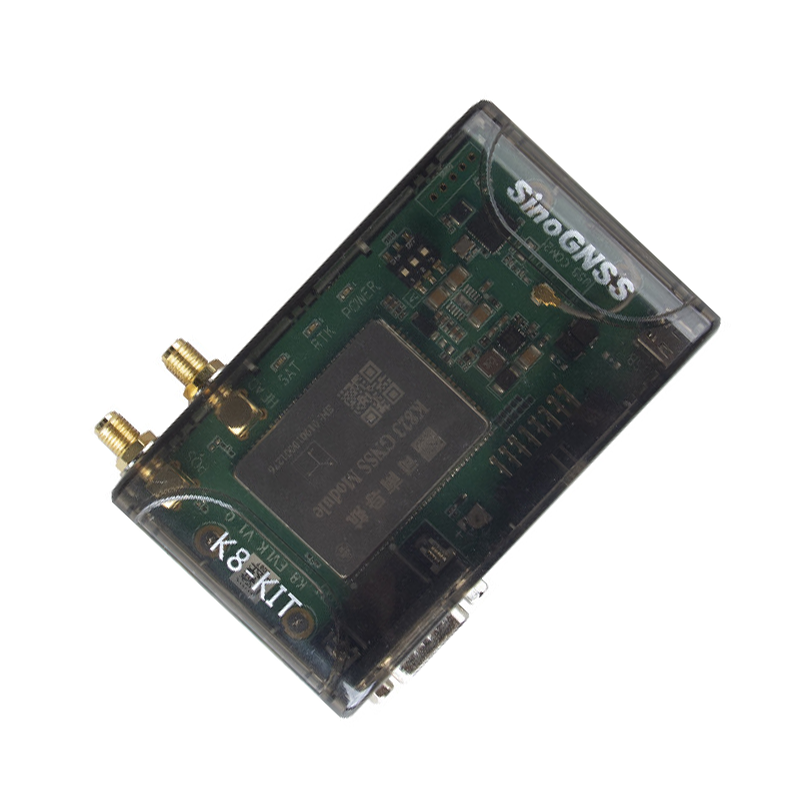

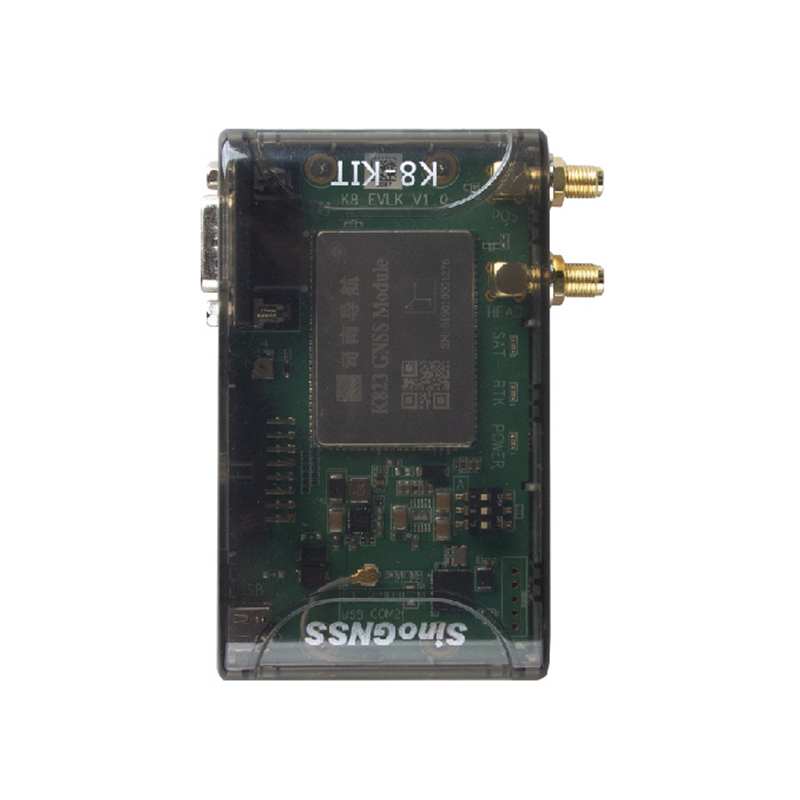

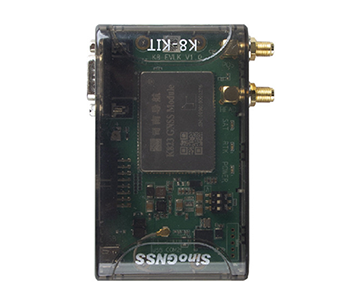

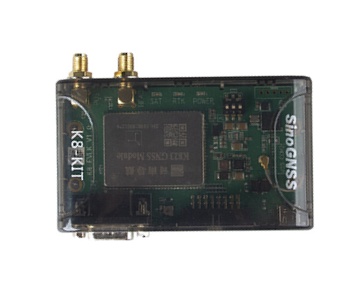

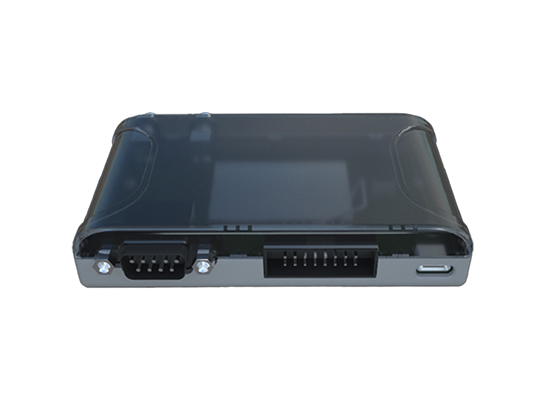

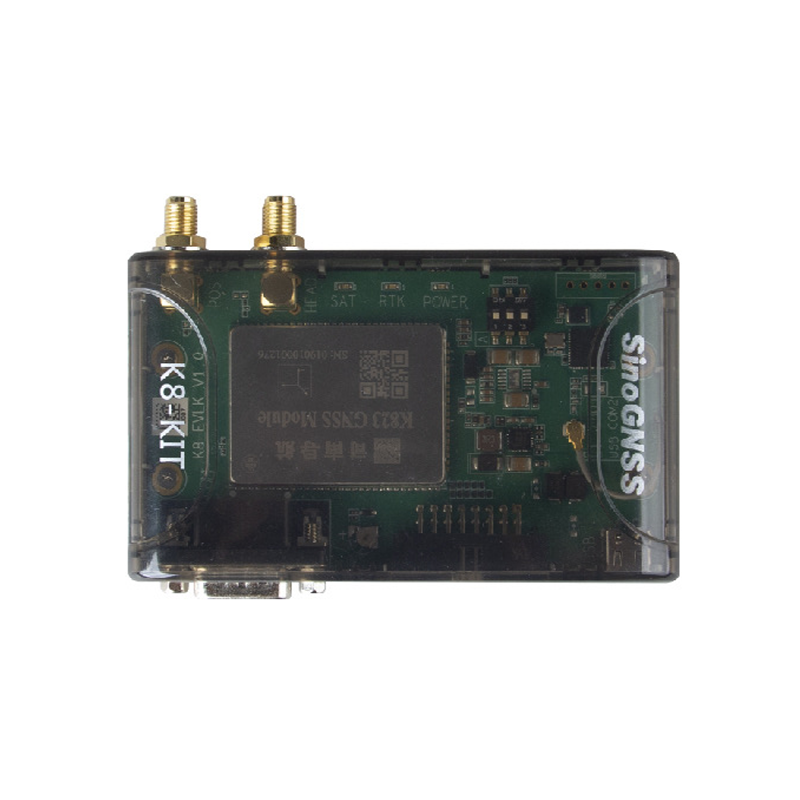

Unmanned vehicle development: In the research and development of unmanned vehicles, the K823W development kit can provide accurate position and direction information to ensure the safe driving and accurate path planning of unmanned vehicles in various complex environments, which plays an important role in improving the intelligent level and autonomous navigation ability of unmanned vehicles.

Robot monitoring and positioning: For various robot applications, such as industrial robots, service robots, inspection robots, etc., the suite can achieve high-precision real-time positioning and monitoring, so that the robot can accurately perform tasks, improve work efficiency and accuracy.
