Product Description
Here are two excellent micro servo products. The first is the DS-S002M metal gear servo, which weighs only 4.3 grams. Although it is small in size, it contains huge energy. The metal gear design makes it extremely durable and load-bearing. It can run stably in various precision control scenarios and accurately execute every command. The other DS-M005 plastic gear servo is as light as 2 grams. The plastic gears greatly reduce the weight while ensuring basic performance, providing an excellent choice for projects with strict weight requirements. Whether it is a small model airplane, a micro robot, or a fine handmade creative work, these two servos can rely on their respective advantages to become your powerful control "assistants" to meet your diverse needs.
Product parameters
| Brand | XIAORGEEK |
| Name | DS-S002M 4.3g metal digital servo |
| Product weight | 5.8±0.2g |
| Product size | As shown in the dimensional diagram |
| Stalling torque | ≥0.65kgf·cm at 4.8V |
| Control angle | 180°±10° |
| Operating voltage | 4.8~6.0V DC |
| No-load current | ≤100mA at 4.8V |
| Product line length | 150±5mm |
| Brand | XIAORGEEK |
| Name | DS-S005M 2g plastic gear digital servo |
| Product weight | 2.2±0.2g |
| Product size | As shown in the size diagram |
| Stalling torque | ≥0.4kgf·cm at 4.2V |
| Control angle | 180°±10° |
| Operating voltage | 3.7~4.2V DC |
| No-load current | ≤60mAat 4.2V |
| Product line length | 150±5mm |
Product Display
Micro servo | Small but powerful

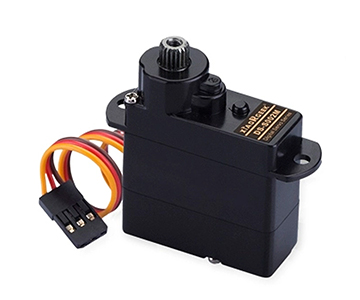

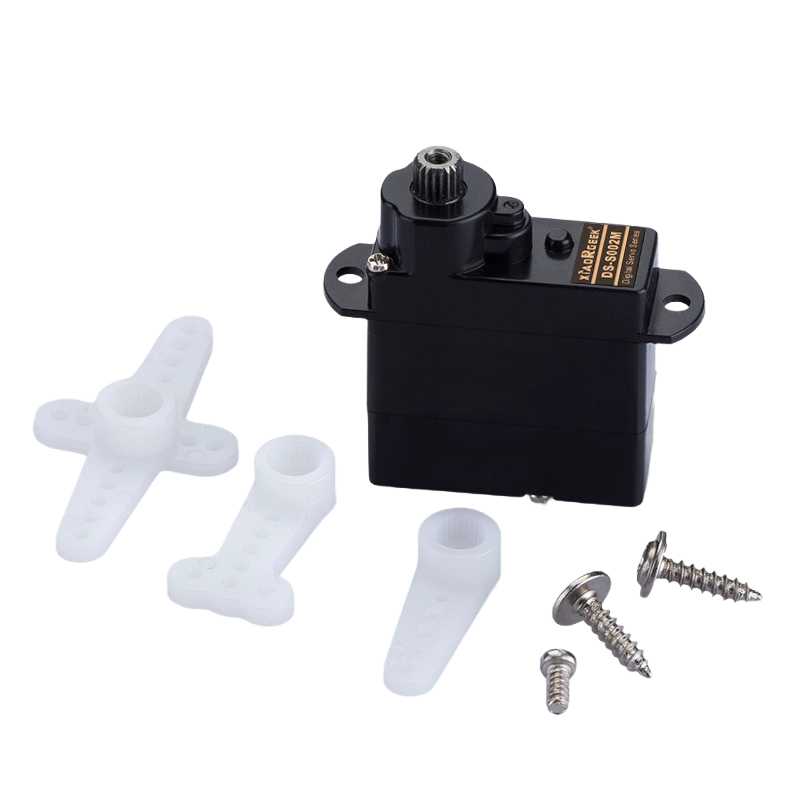

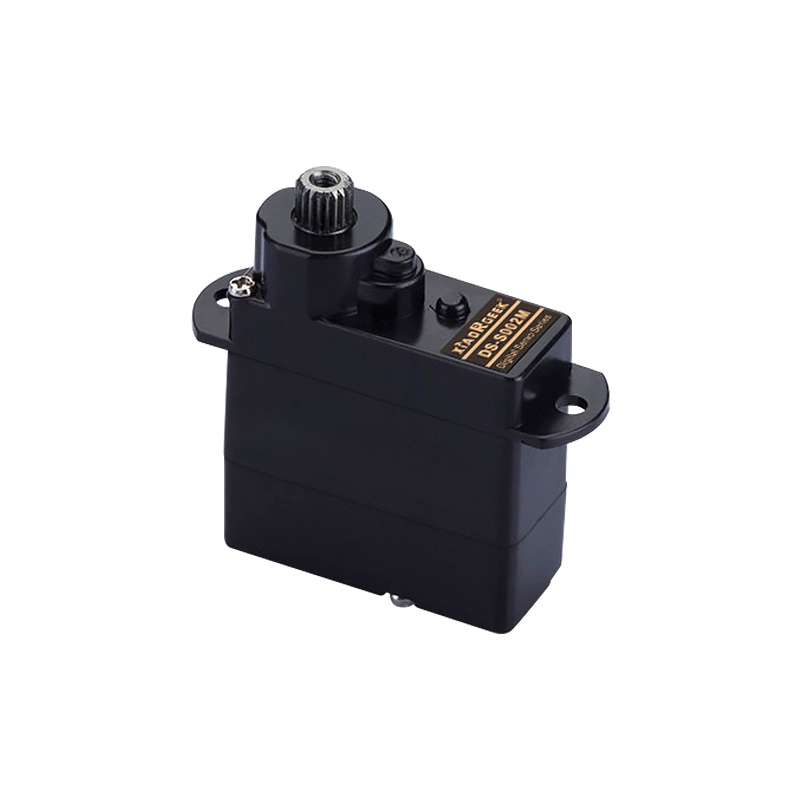

4.3g metal gear digital servo
Mini body design
Stalling protection
*There is also a "2g plastic tooth digital servo" optional in the package

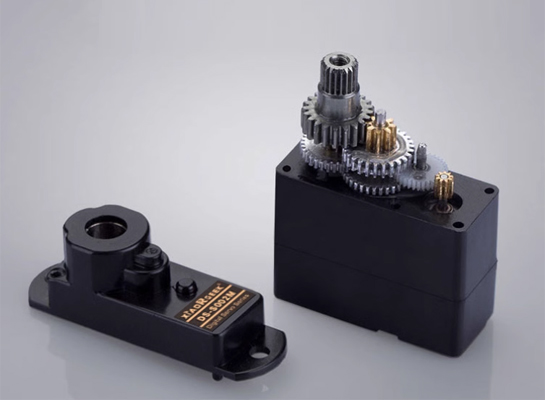

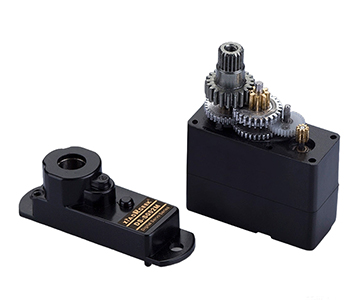

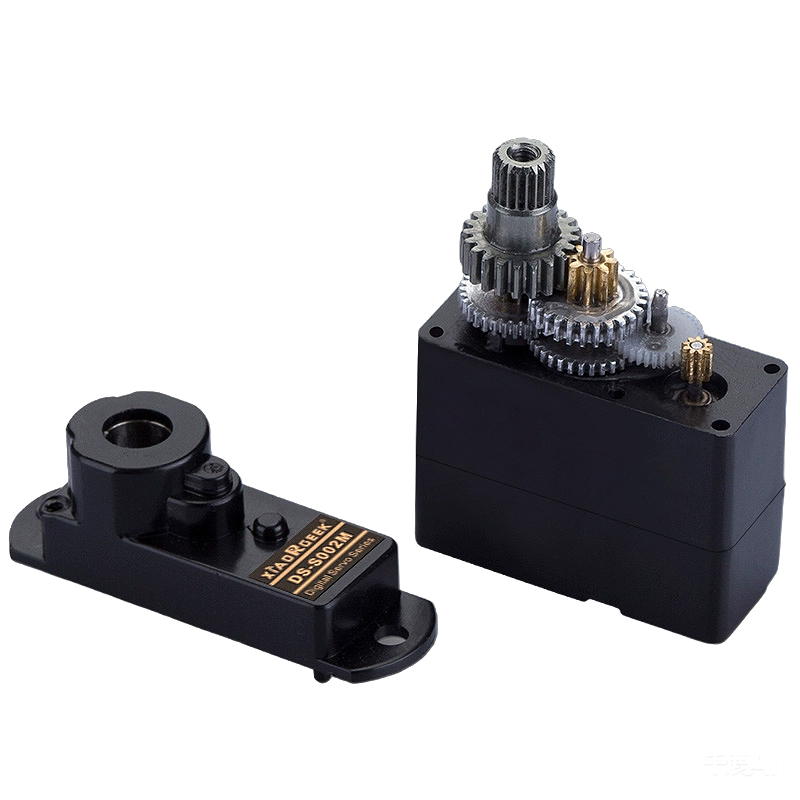

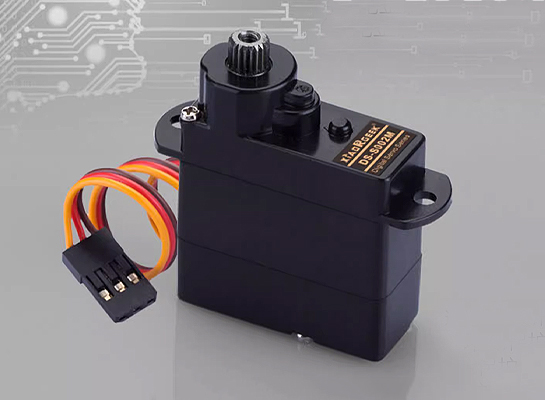

Ingenious design | Metal gears
Upgraded metal gears, high precision, fast speed, stable and durable

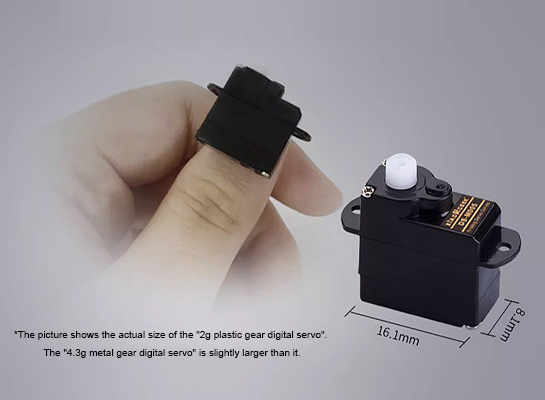

As big as a fingernail | Strong and durable
Compact workmanship, thickness is only 8.1mm, stable and durable, strong power

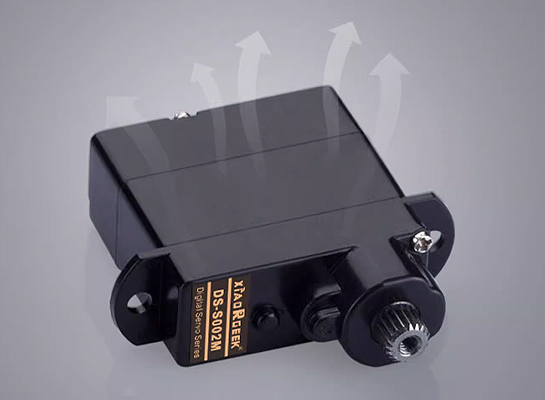

High-quality shell | Convenient heat dissipation
One-piece simple shell, better heat dissipation and motor protection

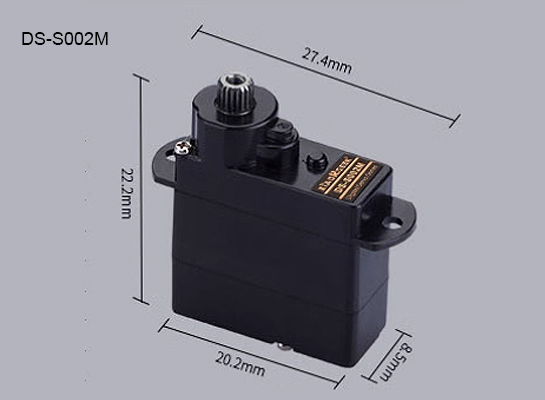

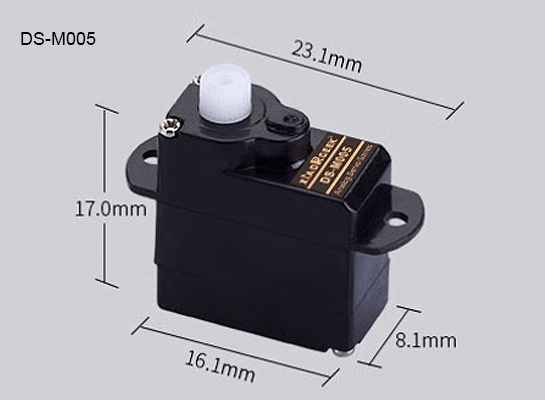

Size & Interface
Application Cases
Micro servos play an extraordinary role. In model airplanes, they can precisely control the wings to make the flight posture elegant and stable. In smart pet toys, they can drive the limbs to swing flexibly, which is very interesting.In the field of drones, it accurately controls the flight attitude, helping drones to turn agilely, hover stably, and easily cope with complex airspace.
