Vision measuring machines can recognize positioned workpieces and automatically load the corresponding program. Coordinate systems can be automatically created, and autofocus and automatic lighting settings can be achieved. This not only reduces the operator's workload, but also makes the measurement process free from operator influence and achieves the best repeatability. Whether it is used in automotive, electronics or plastic processing, vision measuring machines are particularly suitable for accurately detecting distance, radius or angle dimensions.

CMM machine stands for Coordinate Measuring Machine. It is a tool that can measure the dimensions of machine/tool parts using coordinate technology. The dimensions available for measurement include height, width and depth in X, Y and Z axis. The physical geometry and dimensions of the object are measured by a contact probe mounted on the moving axis of the machine.CMM has better speed and accuracy to measure parts repeatedly. It can also increase productivity while reducing the possibility of errors in the measurement process.

CNC precision machining wire cutting uses the principle of discharge corrosion to accurately cut various workpieces. With the precision CNC system, the dimensional accuracy can reach ±0.005mm. It can process a variety of conductive materials, such as cemented carbide, hardened steel, etc. It has a wide cutting range and can achieve complex shapes. The maximum cutting thickness is [X] mm. At the same time, it has the advantages of no cutting force deformation and small machining allowance, which can meet various precision machining needs efficiently and with high quality.

CNC precision machining EDM is based on the high temperature melting or gasification of materials by electric discharge to achieve machining. With the help of advanced CNC technology, it can achieve a high accuracy of ±0.002mm. It is suitable for difficult-to-cut materials such as heat-resistant alloys and titanium alloys. It can process cavities and holes of complex shapes. This machining method has no mechanical cutting force, can reduce deformation, and can process materials that are difficult to process with traditional methods, providing a reliable solution for precision manufacturing.

CNC precision surface grinding grinds the workpiece surface with a high-speed rotating grinding wheel to achieve high-precision processing. With advanced CNC systems, the flatness can reach ±0.001mm and the surface roughness can reach Ra0.05μm. It can process a variety of metal and non-metal materials, such as hardened steel, ceramics, etc. Whether it is a flat surface, a cylindrical surface or a complex molding surface, it can be accurately ground. It can effectively eliminate material surface defects, provide ultra-precision surface quality for products, and meet high-end manufacturing needs.

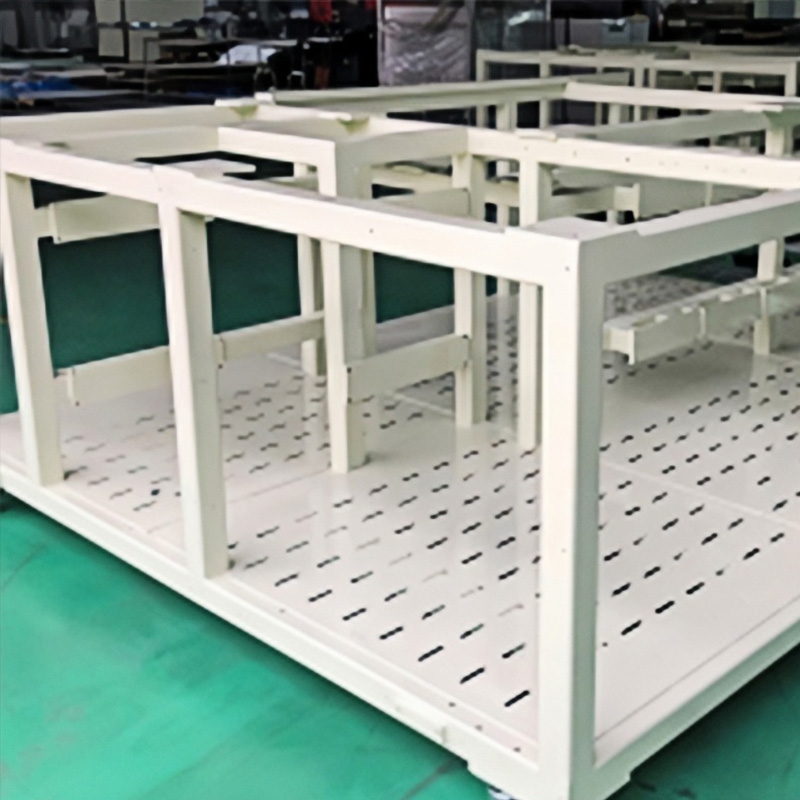

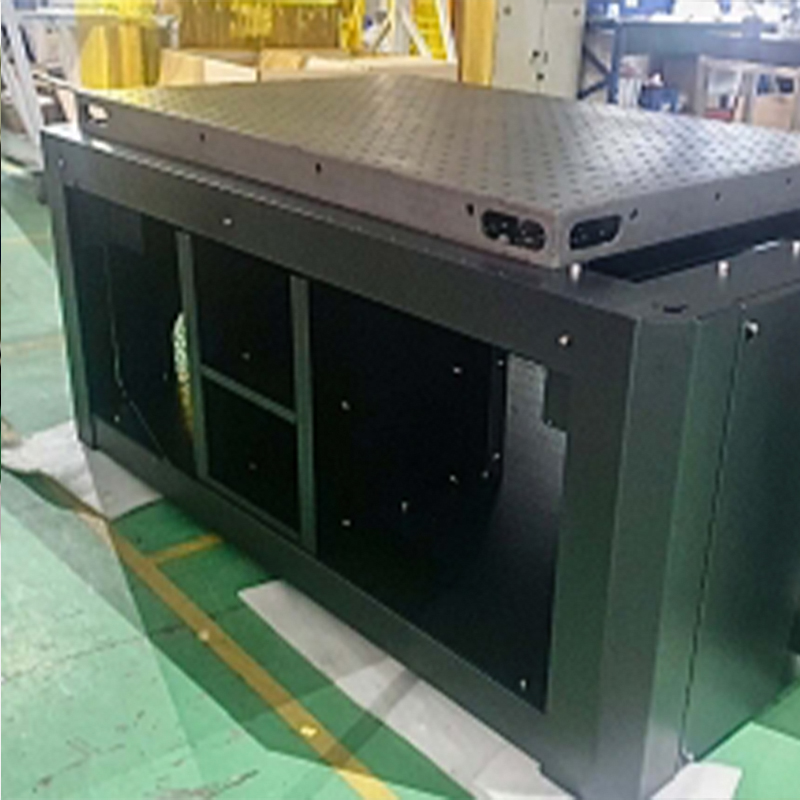

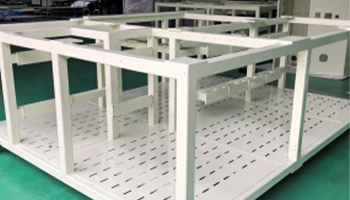

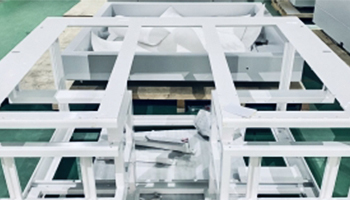

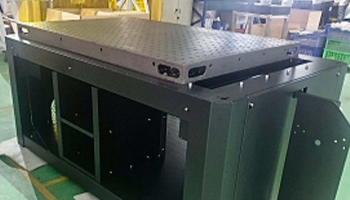

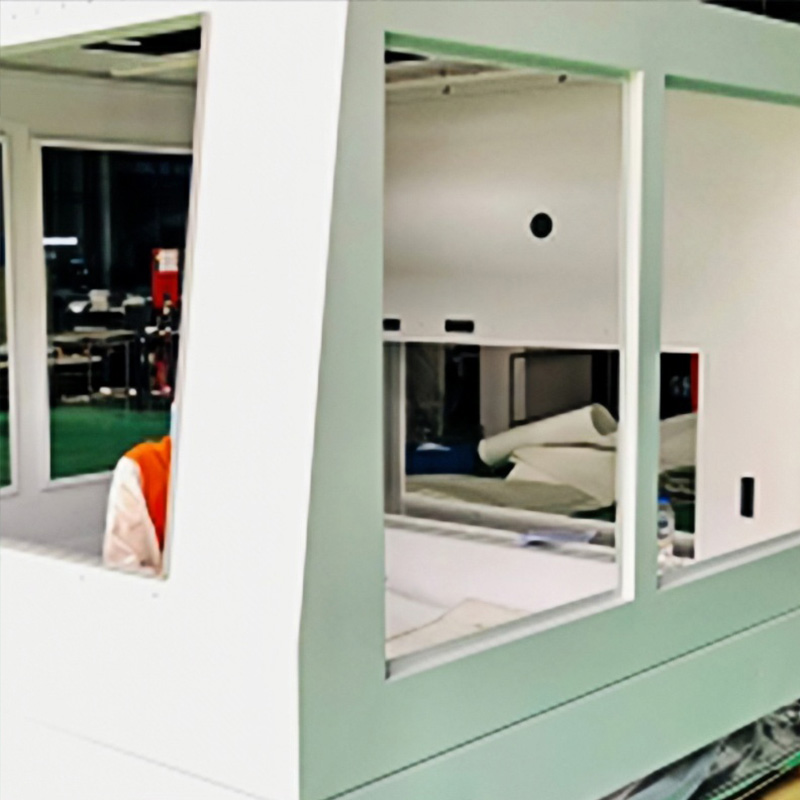

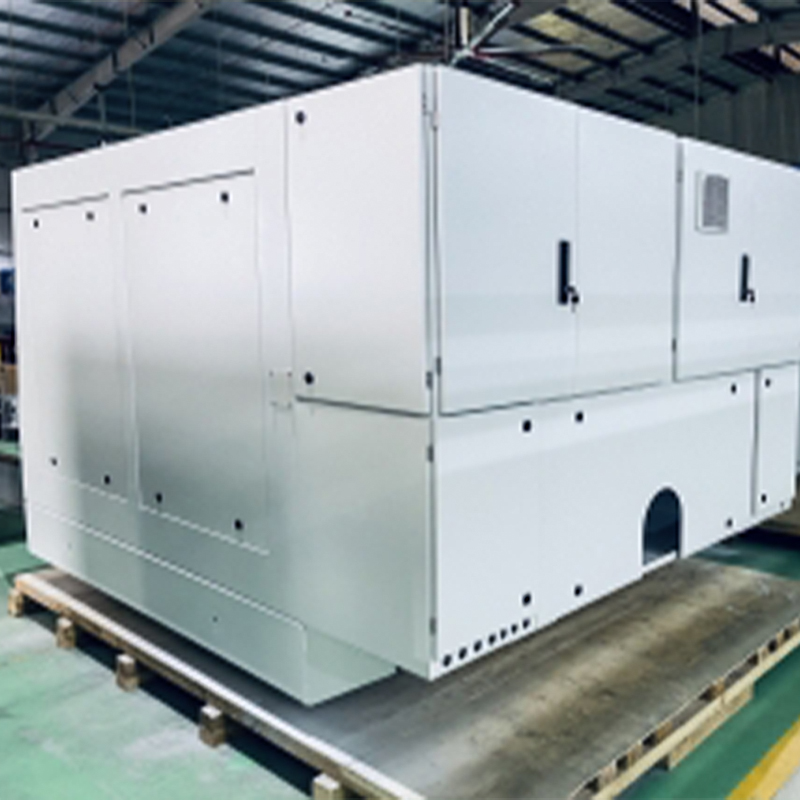

We offers painting service with various materials for industry application.

Powder coating line with 02 separate treatment processes for aluminum and steel, applied Chromium (III) for Aluminum and Zinc phosphate for steel, both be passed FDA, RoHS compliance.

Spray painting offers to products with complicated texture requirement, multiple coatings.

Anodic coating type II, class 1, 2 with multi color applicable, be made between 5 and 22μm, this is highly effective solution for aluminum surface protection.

Anodic coating type III, be made between 25 and 40μm.

Chromate conversion coating, is also called Alodine coating, Irridite coating. Curently producing several types as CT3796, CT3700 or Yellow Alodine,…

Silk screen printing is widely used in sheet metal forming, can be applied in a variety of color and on flat or curved surfaces.

Sandblasting is one of solution to prepare surface of aluminum before painting or anodizing.
