Product Description
Enhance your warehouse operations with the Zamma Series 1.2-2.0 Tonne Material Handling Autonomous Unit – AMR tech solution that makes handling pallets a breeze. It doesn’t need constant supervision and can carry loads from 1.2 to 2.0 tonnes. It’s packed with safety features, easy to control, and eco-friendly with energy-saving design. Monitor and manage it remotely for top-notch performance. Upgrade your warehouse with the Zamma Series Stacker and Counterbalance solutions with 1.2-2.0 Tonne payload range – where efficient pallet handling meets cutting-edge technology.

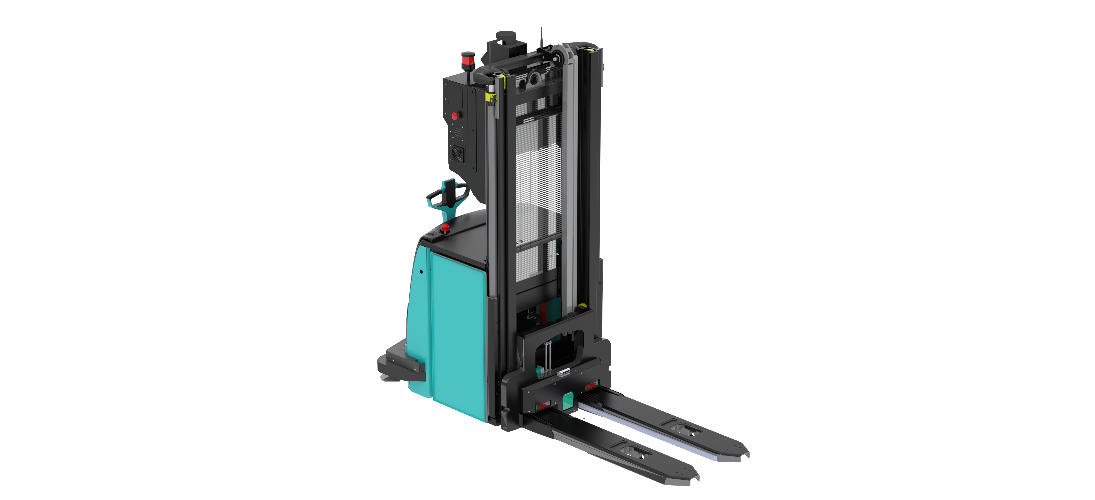

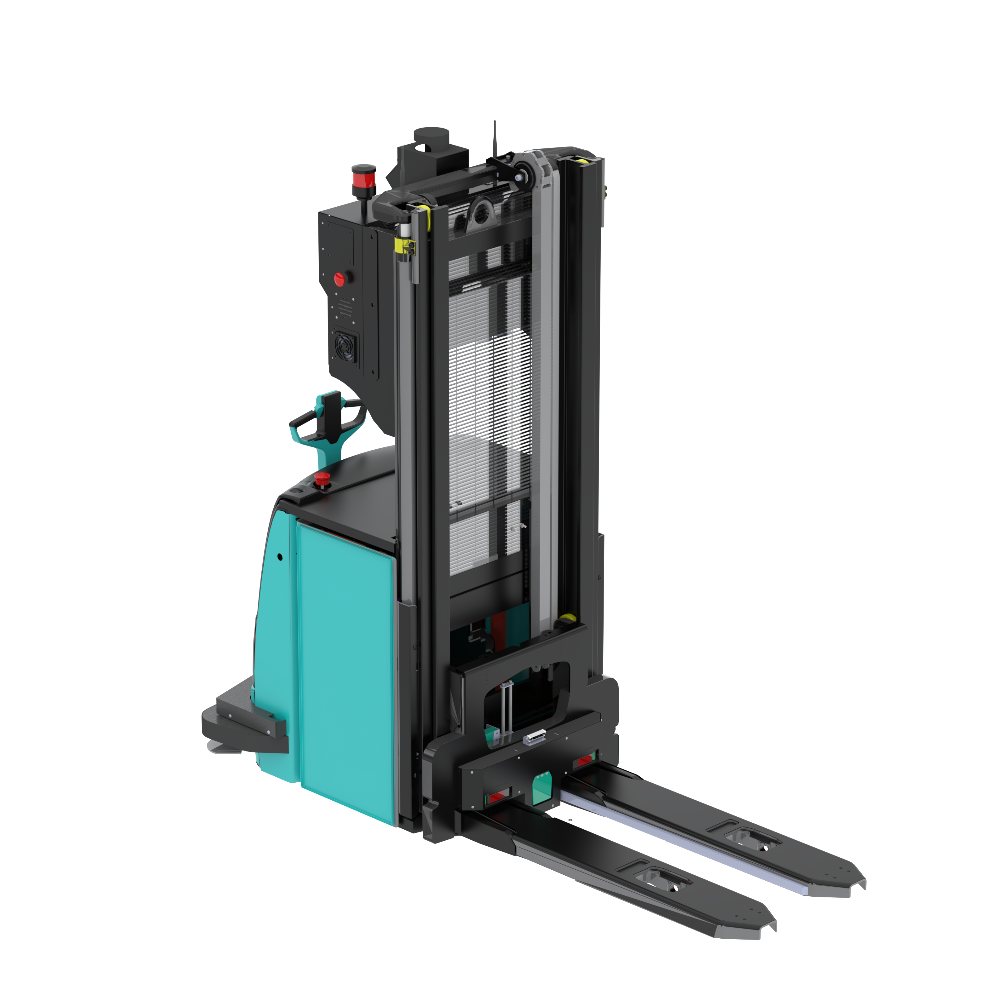

The Zamma Series Standard L16 AMR, an autonomous stacker and warehouse robot, autonomously transfers open pallets, and can lift a whopping 1.6 tonnes up to 2.4m high.
Navigating with Natural Feature Navigation (SLAM) and reflector support, it zips around at 1.6 m/s. Plus, its lithium battery keeps it going for up to 5 hours. It’s a perfect fit for warehouses, logistics, and manufacturing. Efficiency in material handling has never been this easy!
Uniqueness At A Glance:
Maximum payload of 1.6 tonne with max lifting height 2.4m
Natural Feature Navigation (SLAM)
Support Reflector for improved localization
Up to 1.6 m/s speed
Lithium Battery support up to 5 Hours Continuous operation
Operate in Minimum Aisle of 3m
Powered by DF Navwiz and DFleet web based Software
Product Features
1. High Payload
Lift up to 1.6 Tonne
2. Lift Height
Lifting height reaching 2.4m
3. Aisle Width
Support minimum aisle width of 3m.

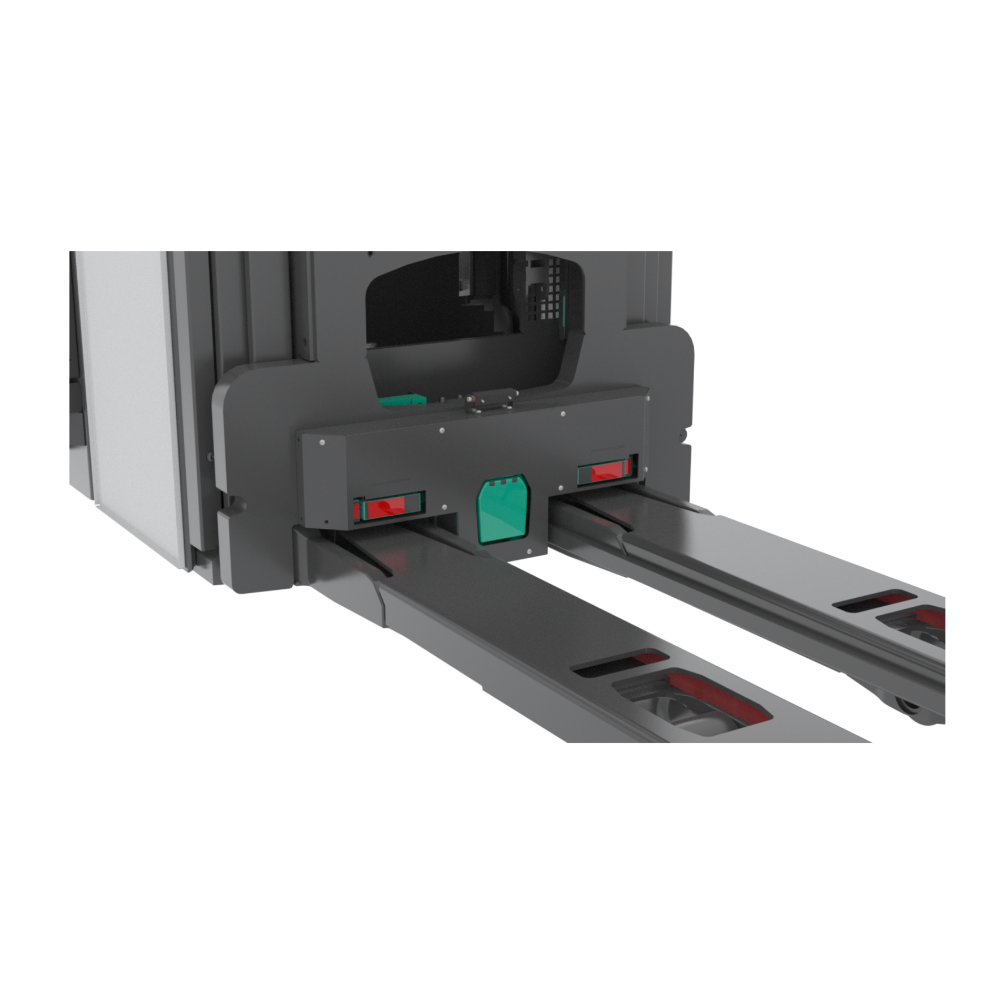

4. Pallet Type
Support open pallet type.
5. Top Speed
Capable of reaching speed up to 1.6 m/s.
6. Auto Charging
Automatically charges itself to ensure 24-hour continuous operation.
7. NavWiz Mapping
Allows user to draw and plan topological map for autonomous stacker.
8. NavWiz Task
Programming software using simple flowchart system.

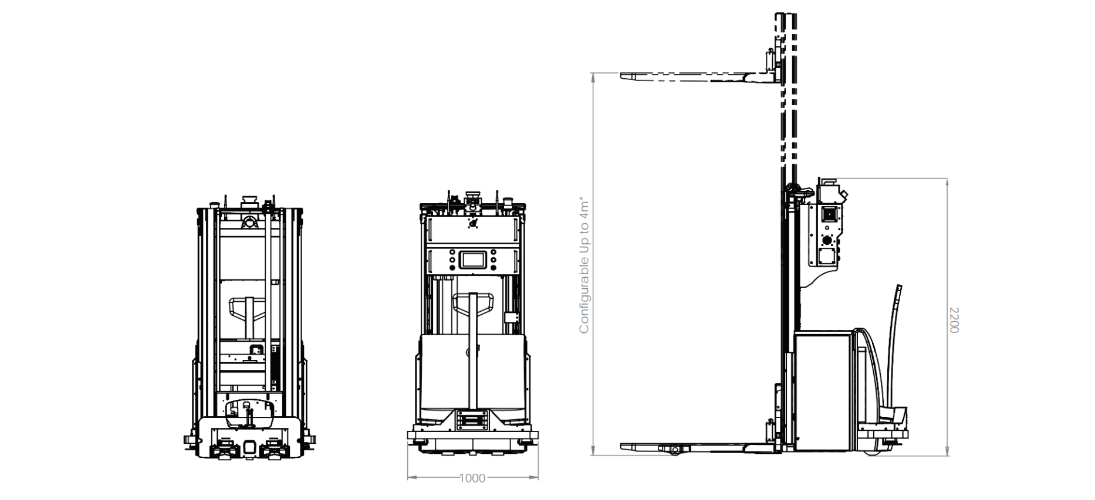

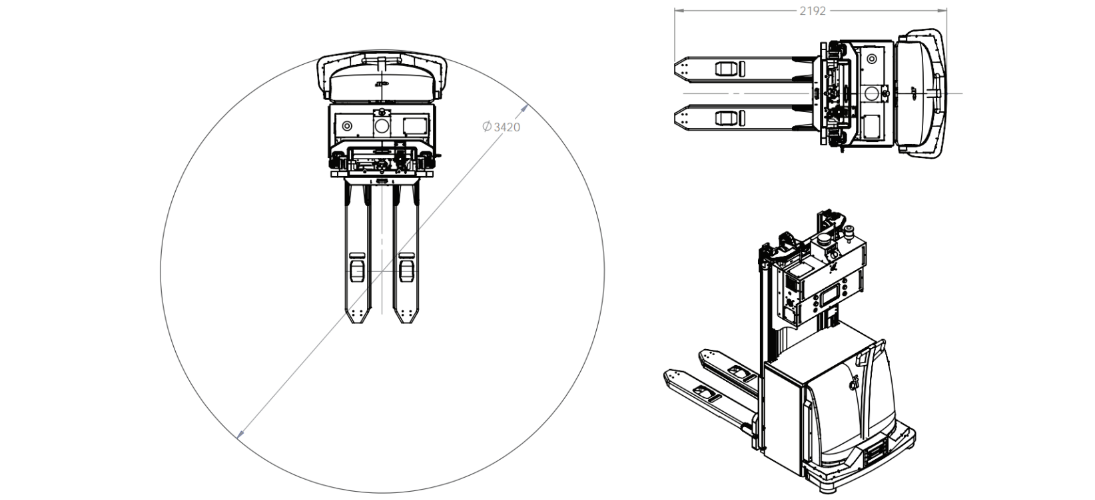

Structure Diagram
Product parameters
Dimension | |
Length | 2192 mm |
Width | 1000 mm |
Height | 2200 mm l Lowered Mast |
Lift Height | 2430 mm l Configurable up to 4730 mm with reduced payload |
Clearance from Ground | 30 mm |
Weight including Battery | 1085 kg |
Width between reach legs | (255 – 375) mm |
Fork Spread | (560 – 680) mm |
Fork carriage length | 1150 mm |
Front Tyre Size | Diameter: 230 mm Width: 90 mm |
Rear Tyre Size | Diameter: 85 mm Width: 85 mm |
Auxiliary Wheel Size | Diameter: 150 mm Width: 50 mm |
Payload | |
Lifting Payload | 1600 kg l Rated load include pallet weight |
Driving and Navigation | |
Navigation System | Laser-based Natural Feature Navigation l With Marker for precision |
Navigation Direction | Forward,Reverse, Left, Right |
Turning Radius | 1642 mm |
Aisle Width | 3000 mm |
Minimum Safety Clearance of Width | 500 mm |
Performance | |
Maximum Speed | 1.6 m/s (6 km/h) l Without load |
Stopping Accuracy | Laser Sensor (Natural Feature): ±50mm, ±2° Marker: ±20mm, ±2° |
Maximum Gradeability | With load : 10 % Without load : 24 % |
Power | |
Running Time | 5 h |
Charging Time | < 2 h |
Charging Method | Manual Charge: Through cable Auto Charge: Dock charging through charging station |
Battery Type | Li-ION |
Battery Weight | 252 kg |
Battery Voltage | 24 V |
Battery Capacity | 208 AH |
Safety | |
Emergency Switch | 2 Unit |
Safety Laser Scanner | 2 Unit |
Obstacle sensor | 1 Unit |
Interface | |
Language | English |
Operating System | NavWiz |

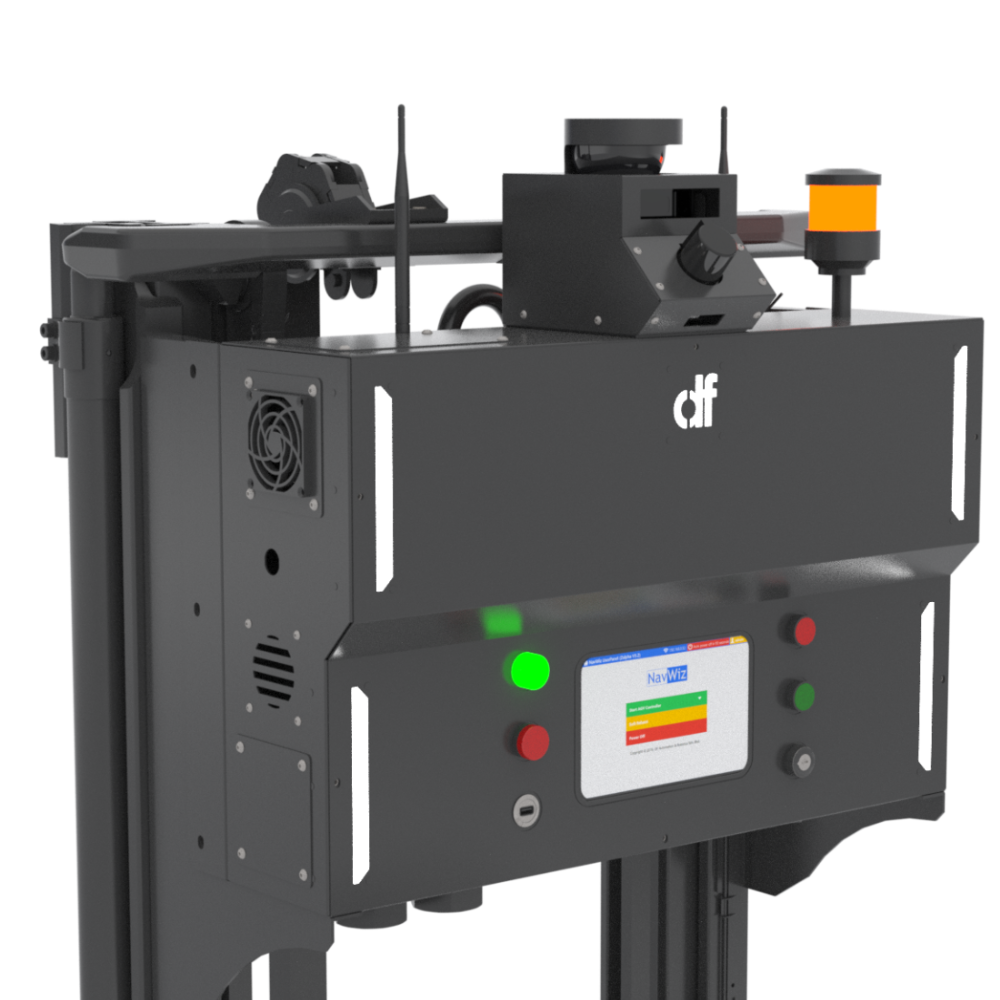

User Interface | 7″, 1280×800 pixels, 262K color screen capacitive touchscreen Physical Buttons |
Communications | 802.11 ac/a/b/g/n, 2.4GHz / 5GHz Dual-Band WiFi Open WPA & WPA2 Personal WPA & WPA2 Enterprise |
Environment | |
Operating Environment | Indoor usage with no excessive dust or corrosive gases |
Floor Requirement | Level surface or concrete (no water, no oil, no dirt) |
IP Class | IP20 |
