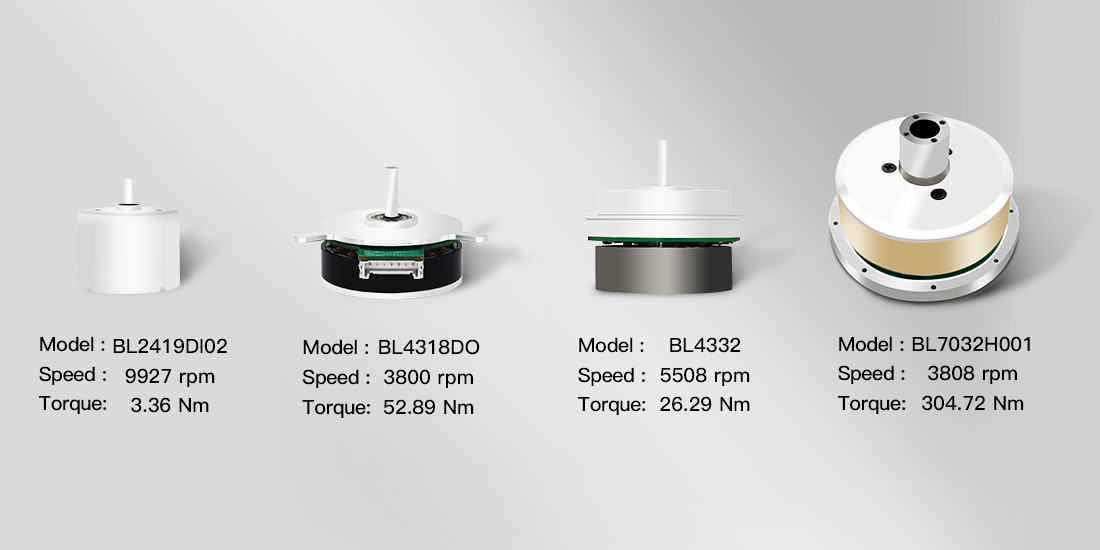

Product Description
Smart home series brushless motor
Functional Features
▲ External rotor brushless motor, lightweight design
▲ Built-in driver, built-in Hall components
▲ Large torque, high efficiency, long life
▲ Finished shell, beautiful appearance
▲ High reliability, strict environmental testing

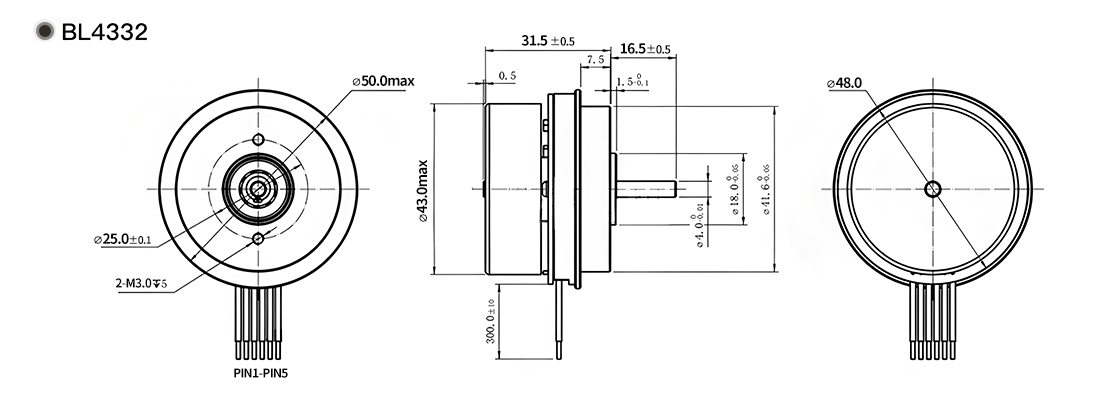

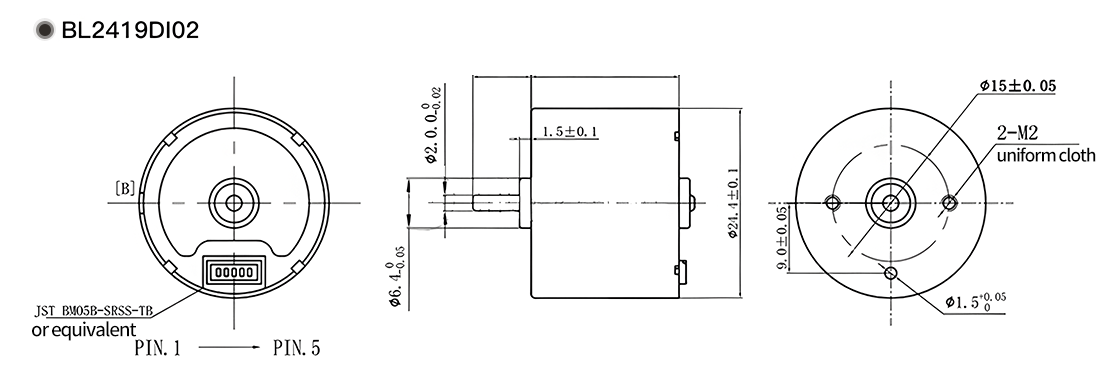

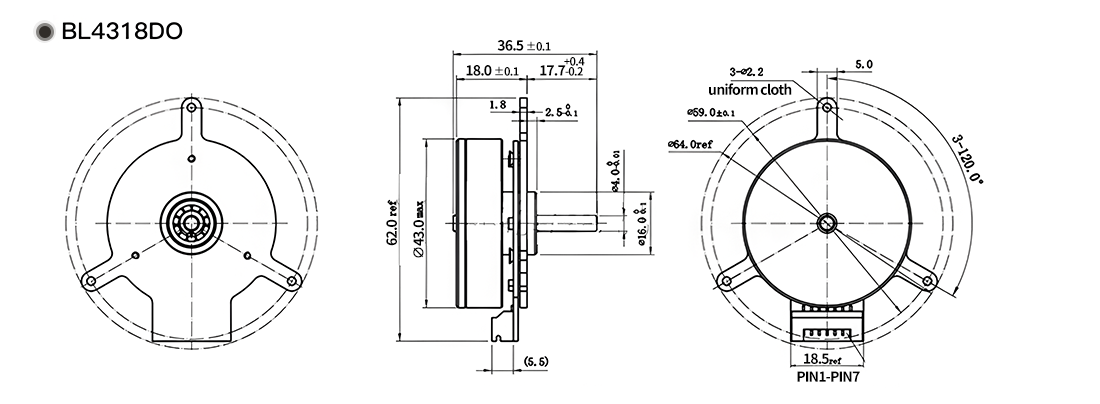

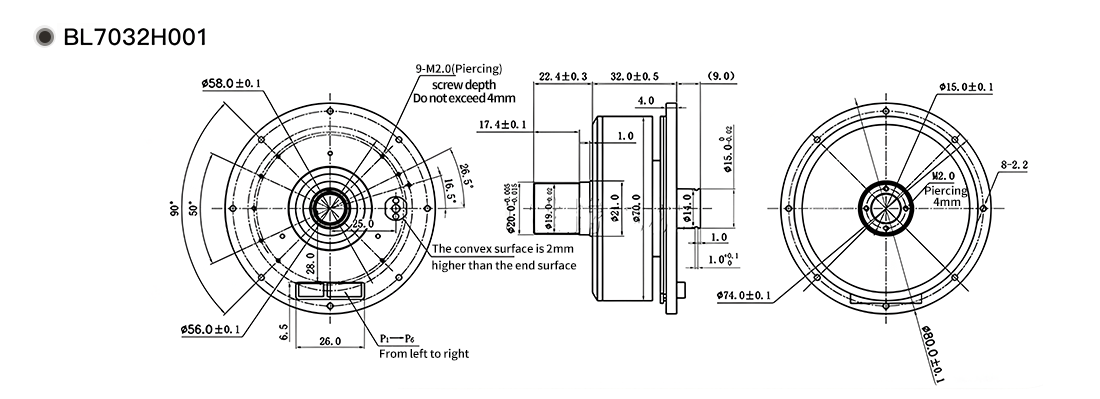

Dimensional drawing
Product parameters
No. | Motor type | Operating voltage (V) | unloaded | Maximum efficiency point | Maximum power point | locked-rotor | swerve | |||||||||
Current (A) | Speed (RPM) | Torque (mN.M) | Current (A) | Speed (RPM) | Power (W) | efficiency | Torque (mN.M) | Current (A) | Speed (RPM) | Power (W) | Torque (mN.M) | Current (A) | ||||
1# | BL2419DI02 | 24 | 0.06 | 12500 | 3.36 | 0.232 | 9927 | 3.5 | 0.63 | 8.18 | 0.477 | 6250 | 5.35 | 16.35 | 0.893 | CW/CCW |
2# | BL4318DO | 24 | 0.136 | 4350 | 52.89 | 1.007 | 3800 | 21.05 | 87% | 213.89 | 3.638 | 2168 | 48.57 | 427.8 | 7.135 | CW/CCW |
3# | BL4332 | 24 | 0.14 | 6500 | 26.29 | 0.778 | 5508 | 15.16 | 0.81 | 86.17 | 2.231 | 3250 | 29.33 | 172.3 | 4.321 | CW/CCW |
4# | BL7032H001 | 24 | 0.763 | 4276 | 304.72 | 6.213 | 3808 | 121.53 | 0.82 | 1393 | 25.675 | 2138 | 311.84 | 2786 | 50587 | CW/CCW |
Application
Robot motor application
Application of unmanned vehicle scenarios
Smart home industry applications
Logistics sorting applications
