Product Description
Technological innovation drives the future: MG direct drive motors lead the new trend
Functional Features
1）Small in size and compact in structure;
2) Low noise and strong impact resistance;
3) High power density, diameter 43mm;
4) The maximum output torque of the motor can reach 1.1Nm.
The minimum controllable rotational speed can reach 0.05°/s.
6) The cogging torque is small, and the low-speed control stability is high.
Product Display
Motor coding rules
Product parameters
Product model | MG-43-110W-S-KV150 | MG-72-A-D1-KV30 | MG-110-A-D1-KV45 |
Rated voltage (V） | 24 | 24 | 24 |
Rated current (A） | 4 | 3 | 16.9 |
Peak current (A） | 12 | 7.6 | 42.3 |
Rated torque (Nm） | 0.35 | 1.16 | 4.4 |
Peak torque (Nm） | 1.1 | 2.8 | 10.8 |
Rated power (W） | 55 | 75 | 450 |
Rated speed (rpm) | 1500 | 600 | 1000 |
Maximum rotational speed (rpm） | 3000 | 660 | 1040 |
Back electromotive force coefficient (mV/krpm) | 10000 | 32775 | 22094 |
Polar logarithm | 7 | 10 | 14 |
Encoder type | SSI | SSI | SSI |
Single-turn resolution (bit) | 15 | 15 | 15 |
Multi-turn resolution (bit) | 16 | 16 | 16 |
Type of reducer | / | / | / |
Reduction ratio | / | / | / |
Return clearance (arc min) | / | / | / |
Temperature range (℃) | -10~ +85 | -10~ +85 | -10~ +85 |
Weight (g) | 272±5 | 800±20 | 1470±20 |
Diameter (mm) | Φ43 | Φ72 | Φ110 |
Height (mm) | 63 | 54.6 | 69 |
LEMG-43-110W-S-KV150

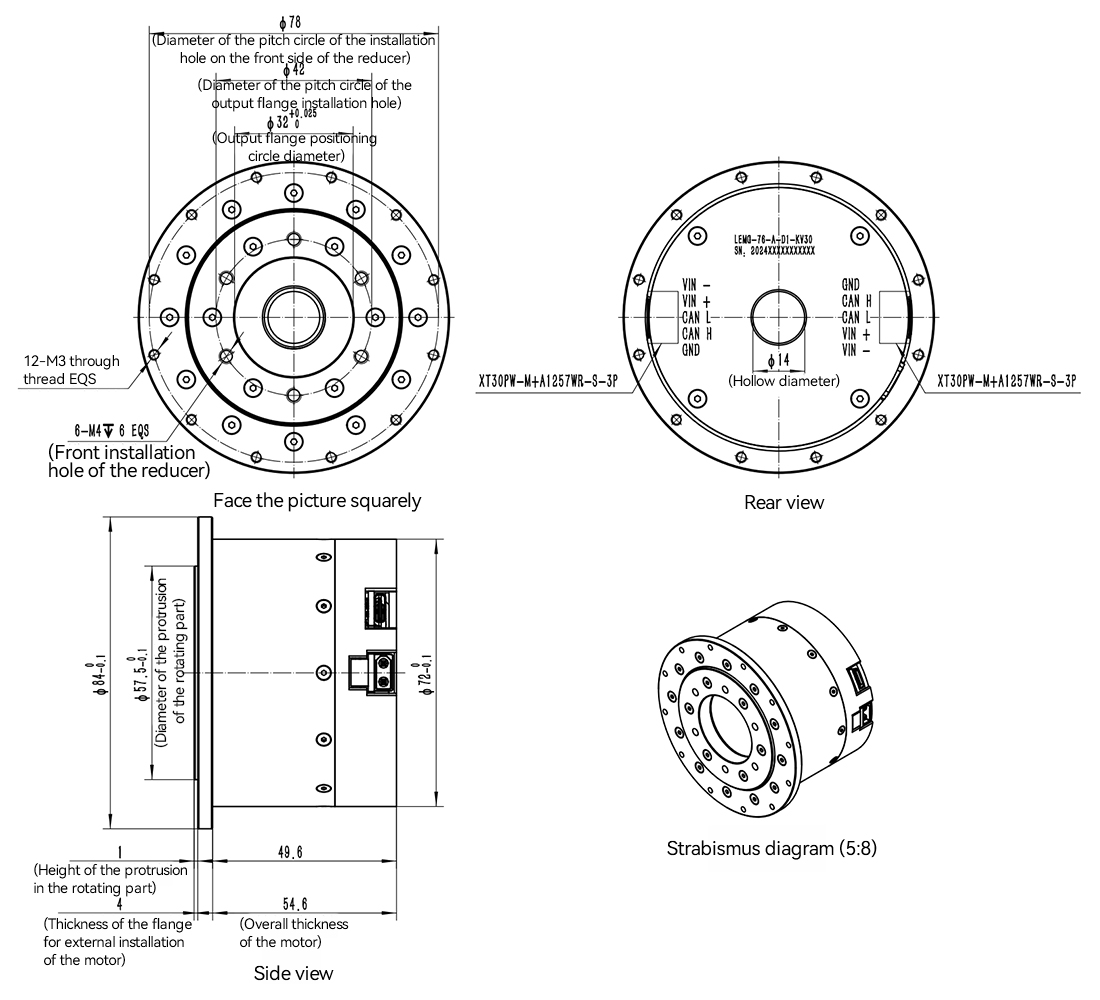

LEMG-72-A-D1-KV30
Application
Application fields: aerospace, satellite communication, military equipment, ships, robots, nuclear industry, medical equipment, rail transit, etc.
