Product Description
High performance planetary gearbox - compact design for efficient output
Functional Features
PLANETARY GEARBOX MODULE
Product parameters

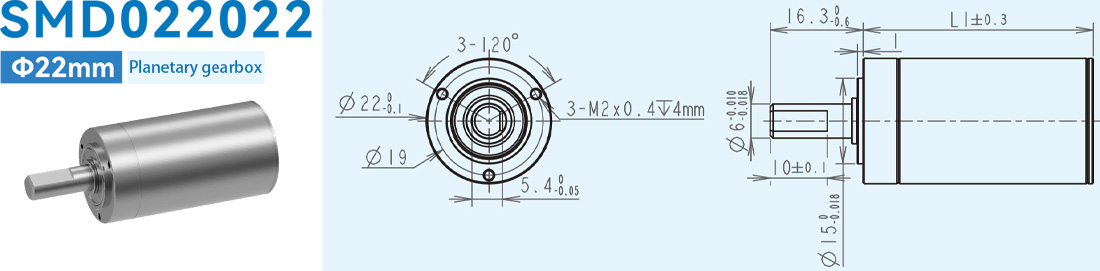

Technical data | ||||||
Gearbox series | 1 | 2 | 3 | 4 | 5 | |
Continuous output torque (Max) | Nm | 1 | 2.9 | 4.3 | 5.5 | 5.2 |
Instantaneous allowable moment (Max) | Nm | 1.25 | 3.6 | 5.3 | 6.5 | 6.5 |
Reduction ratio | / | 3.71 | 9.7,14 | 43,66 | 94,112,134,159,190,246 | 415,592,989,1526 |
External diameter | mm | 22 | 22 | 22 | 22 | 22 |
Gearbox length L1 | mm | 24.3 | 32.8 | 40.4 | 46.5 | 52.6 |
Maximum efficiency | % | 96 | 92 | 90 | 87 | 83 |
Recommended temperature range | ℃ | -30~+85 | -30~+85 | -30~+85 | -30~+85 | -30~+85 |
Gearbox weight (Max) | G | 53 | 65 | 76 | 88 | 102 |
Maximum transmission power (continuous) | W | 66 | 36 | 20 | 11 | 6 |
Maximum transmission power (instantaneous) | W | 82.5 | 45 | 25 | 14 | 7 |
Average empty return of no load | ° | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Maximum axial load (dynamic) | N | 80 | 80 | 80 | 80 | 80 |
Maximum radial load (4mm from flange) | N | 100 | 145 | 150 | 150 | 150 |
Output bearing | Ball bearing | Ball bearing | Ball bearing | Ball bearing | Ball bearing | |
Axial clearance | mm | 0~0.1 | 0~0.1 | 0~0.1 | 0~0.1 | 0~0.1 |
Note: The above data does not include motor, gearbox and motor sales, the specific parameters can be customized according to customer requirements | ||||||
Modular assembly | ||||||
Combination product | Model number | series | ||||
1 | 2 | 3 | 4 | 5 | ||
Length(mm) | ||||||
Dc motor | MP1931φ19mm graphite brush | 56.1 | 64.6 | 72.2 | 78.3 | 84.4 |
MP2238φ22mm graphite brush | 62.5 | 71 | 78.6 | 84.7 | 90.8 | |
Brushless machine | MO1925φ19mm brushless motor with external rotor | 49.3 | 57.8 | 65.4 | 71.5 | 77.6 |
MC2232φ22mm hollow cup brushless motor | 56.3 | 64.8 | 72.4 | 78.5 | 84.6 | |
MC2250φ22mm hollow cup brushless motor | 74.3 | 82.8 | 90.4 | 96.5 | 102.6 | |
encoder | CB-ST-16 | Magnetic knitting | ||||
Typical application product data | |||||||||||
Model number | Rated voltage (V) | No-load data | Load data | Total length | Gear box rated allowable torque (NM) | Gear box instantaneous torque (NM) | Reduction ratio | Reducer length L1(mm) | |||
No-load speed | No-load current | Load speed | Load current | Torque | |||||||
SMD022022-3.71 | 24 | 1914 | 150 | 1482 | 1 | 0.06 | 56.3 | 1 | 1.25 | 3.71 | 24.3 |
SMD022022-9.7 | 24 | 732 | 200 | 567 | 1.2 | 0.14 | 64.8 | 2.9 | 3.6 | 9.7 | 32.8 |
SMD022022-14 | 24 | 507 | 200 | 393 | 1.2 | 0.2 | 14 | ||||
SMD022022-43 | 24 | 165 | 250 | 128 | 1.5 | 0.6 | 72.4 | 4.3 | 5.3 | 43 | 40.4 |
SMD022022-66 | 24 | 108 | 250 | 83 | 1.5 | 0.92 | 66 | ||||
SMD022022-94 | 24 | 76 | 300 | 59 | 1.8 | 1.27 | 78.5 | 5.5 | 6.5 | 94 | 46.5 |
SMD022022-112 | 24 | 63 | 300 | 49 | 1.8 | 1.51 | 112 | ||||
SMD022022-134 | 24 | 53 | 300 | 41 | 1.8 | 1.81 | 134 | ||||
SMD022022-159 | 24 | 45 | 300 | 35 | 1.8 | 2.14 | 159 | ||||
SMD022022-190 | 24 | 37 | 300 | 29 | 1.8 | 2.56 | 190 | ||||
SMD022022-246 | 24 | 29 | 300 | 22 | 1.8 | 3.32 | 246 | ||||
SMD022022-415 | 24 | 17 | 350 | 13 | 2.2 | 5.34 | 84.6 | 5.2 | 6.5 | 415 | 52.6 |
SMD022022-592 | 24 | 12 | 350 | 9 | 2.2 | 7.62 | 592 | ||||
SMD022022-989 | 24 | 7 | 350 | 6 | 2.2 | 12.72 | 989 | ||||
SMD022022-1526 | 24 | 5 | 350 | 4 | 2.2 | 19.63 | 1526 | ||||

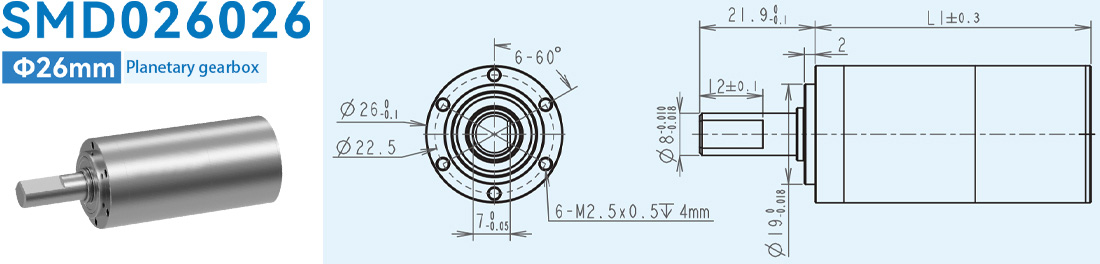

Technical data | ||||
Gearbox series | 2 | 3 | 4 | |
Continuous output torque (Max) | Nm | 3 | 5 | 6.3 |
Instantaneous allowable moment (Max) | Nm | 4 | 7 | 8 |
Reduction ratio | / | 16,21,26,28,35 | 62,83,103,111,138,150,172,186,231 | 243,326,406,439,546,590,679,734, |
External diameter | mm | 26 | 26 | 26 |
Gearbox length L1 | mm | 35.9 | 44.9 | 52.4 |
Maximum efficiency | % | 92 | 90 | 87 |
Recommended temperature range | ℃ | -30~+85 | -30~+85 | -30~+85 |
Gearbox weight (Max) | G | 120 | 132 | 145 |
Maximum transmission power (continuous) | W | 60 | 30 | 15 |
Maximum transmission power (instantaneous) | W | 75 | 40 | 20 |
Average empty return of no load | ° | 0.5 | 0.5 | 0.5 |
Maximum axial load (dynamic) | N | 110 | 110 | 110 |
Maximum radial load (4mm from flange) | N | 180 | 180 | 180 |
Output bearing | Ball bearing | Ball bearing | Ball bearing | |
Axial clearance | mm | 0~0.1 | 0~0.1 | 0~0.1 |
Note: The above data does not include motor, gearbox and motor sales, the specific parameters can be customized according to customer requirements | ||||
Modular assembly | ||||
Combination product | Model number | series | ||
2 | 3 | 4 | ||
Length(mm) | ||||
Dc motor | MP2238φ22mm graphite brush | 74.1 | 83.1 | 90.6 |
MP2430φ24mm graphite brush | 67.1 | 76.1 | 83.6 | |
MP2543φ25mm hollow cup carbon brush motor | 79.4 | 88.4 | 95.9 | |
MP2554φ25mm hollow cup carbon brush motor | 79.4 | 88.4 | 95.9 | |
Brushless machine | MC2453φ24mm brushless hollow cup motor | 88.9 | 97.9 | 105.4 |
encoder | CB-ST-22 | Magnetic knitting | ||
Typical application product data | |||||||||||
Model number | Rated voltage (V) | No-load data | Load data | Total length | Gear box rated allowable torque (NM) | Gear box instantaneous torque (NM) | Reduction ratio | Reducer length L1(mm) | |||
No-load speed | No-load current | Load speed | Load current | Torque | |||||||
SMD026026-16-X | 24 | 813 | 460 | 747 | 3 | 0.3 | 88.9 | 3 | 4 | 16 | 35.9 |
SMD026026-21-X | 24 | 619 | 460 | 569 | 3 | 0.4 | 21 | ||||
SMD026026-26-X | 24 | 500 | 460 | 460 | 3 | 0.5 | 26 | ||||
SMD026026-28-X | 24 | 464 | 460 | 427 | 3 | 0.5 | 28 | ||||
SMD026026-35-X | 24 | 371 | 460 | 341 | 3 | 0.6 | 35 | ||||
SMD026026-62-X | 24 | 210 | 580 | 193 | 3.5 | 1.1 | 97.9 | 5 | 7 | 62 | 44.9 |
SMD026026-83-X | 24 | 157 | 580 | 144 | 3.5 | 1.5 | 83 | ||||
SMD026026-103-X | 24 | 126 | 580 | 116 | 3.5 | 1.9 | 103 | ||||
SMD026026-111-X | 24 | 117 | 580 | 108 | 3.5 | 2 | 111 | ||||
SMD026026-138-X | 24 | 94 | 580 | 87 | 3.5 | 2.5 | 138 | ||||
SMD026026-150-X | 24 | 87 | 580 | 80 | 3.5 | 2.7 | 150 | ||||
SMD026026-172-X | 24 | 76 | 580 | 69 | 3.5 | 3.1 | 172 | ||||
SMD026026-186-X | 24 | 70 | 580 | 64 | 3.5 | 3.3 | 186 | ||||
SMD026026-231-X | 24 | 56 | 580 | 52 | 3.5 | 4.2 | 231 | ||||
SMD026026-243-X | 24 | 53 | 700 | 49 | 4 | 4.2 | 105.4 | 6.3 | 8 | 243 | 52.4 |
SMD026026-326-X | 24 | 40 | 700 | 37 | 4 | 5.7 | 326 | ||||
SMD026026-406-X | 24 | 32 | 700 | 29 | 4 | 7.1 | 406 | ||||
SMD026026-439-X | 24 | 30 | 700 | 27 | 4 | 7.6 | 439 | ||||
SMD026026-546-X | 24 | 24 | 700 | 22 | 4 | 9.5 | 546 | ||||
SMD026026-590-X | 24 | 22 | 700 | 20 | 4 | 10.3 | 590 | ||||
SMD026026-679-X | 24 | 19 | 700 | 18 | 4 | 11.8 | 679 | ||||
SMD026026-734-X | 24 | 18 | 700 | 16 | 4 | 12.8 | 734 | ||||
SMD026026-794-X | 24 | 16 | 700 | 15 | 4 | 13.8 | 794 | ||||
SMD026026-913-X | 24 | 14 | 700 | 13 | 4 | 15.9 | 913 | ||||
SMD026026-987-X | 24 | 13 | 700 | 12 | 4 | 17.2 | 987 | ||||
SMD026026-1135-X | 24 | 11 | 700 | 11 | 4 | 19.7 | 1135 | ||||
SMD026026-1227-X | 24 | 11 | 700 | 10 | 4 | 21.3 | 1227 | ||||
SMD026026-1526-X | 24 | 9 | 700 | 8 | 4 | 26.6 | 1526 | ||||

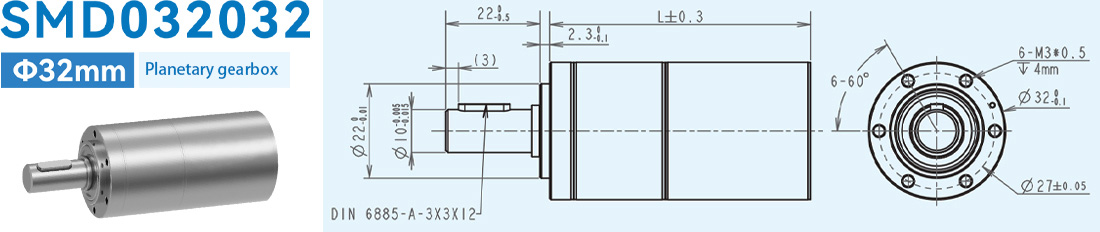

Technical data | |||||
Gearbox series | 1 | 2 | 3 | 4 | |
Continuous output torque (Max) | Nm | 2.2 | 4.8 | 10.4 | 12.6 |
Instantaneous allowable moment (Max) | Nm | 2.7 | 6 | 13 | 16 |
Reduction ratio | / | 3.9,5.3 | 16,21,26,28,35 | 62,83,103，111,138,150,172,186,231 | 243,326,406,439,546,590,679,734, |
External diameter | mm | 32 | 32 | 32 | 32 |
Gearbox length L1 | mm | 32 | 47 | 62 | 77 |
Maximum efficiency | % | 96 | 93 | 90 | 87 |
Recommended temperature range | ℃ | -40~+100 | -40~+100 | -40~+100 | -40~+100 |
Gearbox weight (Max) | G | 167 | 231 | 287 | 350 |
Maximum transmission power (continuous) | W | 242 | 160 | 70 | 25 |
Maximum transmission power (instantaneous) | W | 300 | 160 | 85 | 30 |
Average empty return of no load | ° | 0.4 | 0.7 | 0.8 | 0.8 |
Maximum axial load (dynamic) | N | 110 | 110 | 110 | 110 |
Maximum radial load (4mm from flange) | N | 150 | 200 | 250 | 250 |
Output bearing | Ball bearing | Ball bearing | Ball bearing | Ball bearing | |
Axial clearance | mm | O~0.1 | 0~0.1 | 0~0.1 | O~0.1 |
Note: The above data does not include motor, gearbox and motor sales, the specific parameters can be customized according to customer requirements | |||||
Modular assembly | |||||
Combination product | Model number | series | |||
1 | 2 | 3 | 4 | ||
Length(mm) | |||||
Dc motor | φ30mm graphite brush | 74 | 87.5 | 103.5 | 117.5 |
Brushless machine | φ32mm brushless hollow cup motor | 102 | 115.5 | 131.5 | 145.5 |
encoder | CB-ST-16 | Magnetic knitting | |||
Typical application product data | |||||||||||
Model number | Rated voltage (V) | No-load data | Load data | Total length | Gear box rated allowable torque (NM) | Gear box instantaneous torque (NM) | Reduction ratio | Reducer length L1(mm) | |||
No-load speed | No-load current | Load speed | Load current | Torque | |||||||
SMD032032-3.9-X | 24 | 1286 | 150 | 1051 | 1 | 0.097 | 74 | 2.2 | 2.7 | 3.9 | 32.00 |
SMD032032-5.3-X | 24 | 1068 | 151 | 774 | 1 | 0.132 | 5.3 | ||||
SMD032032-16-X | 24 | 363 | 152 | 263 | 1 | 0.377 | 87.5 | 4.8 | 6.0 | 16 | 45.50 |
SMD032032-21-X | 24 | 270 | 153 | 196 | 1 | 0.507 | 21 | ||||
SMD032032-26-X | 24 | 217 | 154 | 157 | 1 | 0.630 | 26 | ||||
SMD032032-28-X | 24 | 201 | 155 | 146 | 1 | 0.681 | 28 | ||||
SMD032032-35-X | 24 | 162 | 156 | 117 | 1 | 0.847 | 35 | ||||
SMD032032-62-X | 24 | 92 | 157 | 67 | 1 | 1.439 | 87.5 | 10.4 | 13.0 | 62 | 61.50 |
SMD032032-83-X | 24 | 68 | 158 | 50 | 1 | 1.935 | 83 | ||||
SMD032032-103-X | 24 | 55 | 159 | 40 | 1 | 2.406 | 103 | ||||
SMD032032-111-X | 24 | 51 | 160 | 37 | 1 | 2.602 | 111 | ||||
SMD032032-138-X | 24 | 41 | 161 | 30 | 1 | 3.236 | 138 | ||||
SMD032032-150-X | 24 | 38 | 162 | 27 | 1 | 3.500 | 150 | ||||
SMD032032-172-X | 24 | 33 | 163 | 24 | 1 | 4.023 | 172 | ||||
SMD032032-186-X | 24 | 30 | 164 | 22 | 1 | 4.351 | 186 | ||||
SMD032032-231-X | 24 | 25 | 165 | 18 | 1 | 5.410 | 231 | ||||
SMD032032-243-X | 24 | 23 | 166 | 17 | 1 | 5.490 | 117.5 | 12.6 | 16.0 | 243 | 75.50 |
SMD032032-326-X | 24 | 17 | 167 | 13 | 1 | 7.383 | 326 | ||||
SMD032032-406-X | 24 | 14 | 168 | 10 | 1 | 9.180 | 406 | ||||
SMD032032-439-X | 24 | 13 | 169 | 9 | 1 | 9.929 | 439 | ||||
SMD032032-546-X | 24 | 10 | 170 | 8 | 1 | 12.345 | 546 | ||||
SMD032032-590-X | 24 | 10 | 171 | 8 | 1 | 12.600 | 590 | ||||
SMD032032-679-X | 24 | 8 | 172 | 7 | 1 | 12.600 | 679 | ||||
SMD032032-734-X | 24 | 8 | 173 | 7 | 1 | 12.600 | 734 | ||||
SMD032032-794-X | 24 | 7 | 174 | 6 | 1 | 12.600 | 794 | ||||
SMD032032-913-X | 24 | 6 | 175 | 5 | 1 | 12.600 | 913 | ||||
SMD032032-987-X | 24 | 6 | 176 | 5 | 1 | 12.600 | 987 | ||||
SMD032032-1135-X | 24 | 5 | 177 | 4 | 1 | 12.600 | 1135 | ||||
SMD032032-1227-X | 24 | 5 | 178 | 4 | 1 | 12.600 | 1227 | ||||
SMD032032-1526-X | 24 | 4 | 179 | 3 | 1 | 12.600 | 1526 | ||||

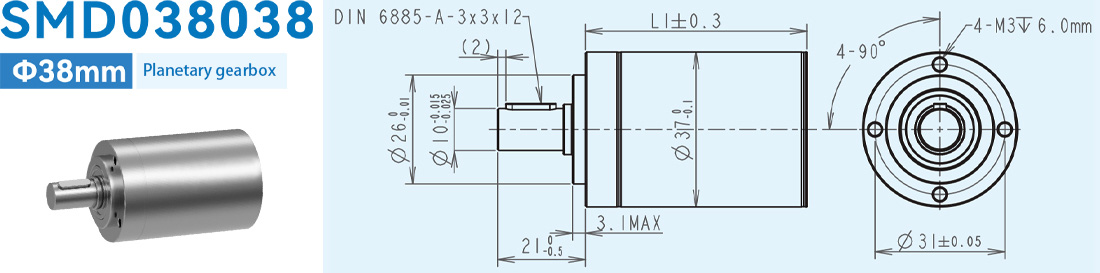

Technical data | ||||
Gearbox series | 1 | 2 | 3 | |
Continuous output torque (Max) | Nm | 2.3 | 5.4 | 9.3 |
Instantaneous allowable moment (Max) | Nm | 2.9 | 6.8 | 11.6 |
Reduction ratio | / | 3.9 | 16,26 | 62,83,103,111,138,150,172,186,231 |
External diameter | mm | 37 | 37 | 37 |
Gearbox length L1 | mm | 32.3 | 45.4 | 52.9 |
Maximum efficiency | % | 96 | 93 | 90 |
Recommended temperature range | ℃ | -40~+100 | -40~+100 | -40~+100 |
Gearbox weight (Max) | G | 240 | 320 | 420 |
Maximum transmission power (continuous) | W | 185 | 90 | 45 |
Maximum transmission power (instantaneous) | W | 230 | 115 | 60 |
Average empty return of no load | ° | 0.5 | 0.5 | 0.5 |
Maximum axial load (dynamic) | N | 240 | 240 | 240 |
Maximum radial load (4mm from flange) | N | 200 | 250 | 250 |
Output bearing | Ball bearing | Ball bearing | Ball bearing | |
Axial clearance | mm | 0~0.1 | 0~0.1 | 0~0.1 |
Note: The above data does not include motor, gearbox and motor sales, the specific parameters can be customized according to customer requirements | ||||
Modular assembly | ||||
Combination product | Model number | series | ||
1 | 2 | 3 | ||
Length(mm) | ||||
Dc motor | 3571 φ35mm hollow cup brush | 103.3 | 116.4 | 123.9 |
3857φ38mm graphite brush | 89.3 | 102.4 | 109.9 | |
Brushless machine | 3657φ36mm brushless motor | 89.3 | 102.4 | 109.9 |
encoder | CB-ST-22 | Magnetic knitting | ||
Typical application product data | |||||||||||
Model number | Rated voltage (V) | No-load data | Load data | Total length | Gear box rated allowable torque (NM) | Gear box instantaneous torque (NM) | Reduction ratio | Reducer length L1(mm) | |||
No-load speed | No-load current | Load speed | Load current | Torque | |||||||
SMD038038-3.9-X | 24 | 2085 | 600 | 1836 | 4 | 0.5 | 103.3 | 23 | 2.9 | 3.9 | 32.3 |
SMD038038-16-X | 24 | 508 | 600 | 448 | 4.5 | 1.8 | 116.4 | 5.4 | 6.8 | 16 | 45.4 |
SMD038038-26-X | 24 | 313 | 600 | 275 | 4.5 | 3 | 26 | ||||
SMD038038-62-X | 24 | 131 | 700 | 115 | 5 | 6.9 | 123.9 | 9.3 | 11.6 | 62 | 52.9 |
SMD038038-83-X | 24 | 98 | 700 | 86 | 5 | 9.2 | 83 | ||||
SMD038038-103-X | 24 | 79 | 700 | 70 | 5 | 11.4 | 103 | ||||
SMD038038-111-X | 24 | 73 | 700 | 65 | 5 | 12.3 | 111 | ||||
SMD038038-138-X | 24 | 59 | 700 | 52 | 5 | 15.3 | 138 | ||||
SMD038038-150-X | 24 | 54 | 700 | 48 | 5 | 16.7 | 150 | ||||
SMD038038-172-X | 24 | 47 | 700 | 42 | 5 | 19.1 | 172 | ||||
SMD038038-186-X | 24 | 44 | 700 | 38 | 5 | 20.7 | 186 | ||||
SMD038038-231-X | 24 | 35 | 700 | 31 | 5 | 25.7 | 231 | ||||
Technical data | |||||
Gearbox series | 1 | 2 | 3 | 4 | |
Continuous output torque (Max) | Nm | 4.5 | 18 | 32 | 35 |
Instantaneous allowable moment (Max) | Nm | 7 | 24 | 46 | 50 |
Reduction ratio | / | 3.9,5.3 | 16,21,26,28,35 | 62,83,103,111,138,150,172,186,231 | 243,326,406,439,546,590,679,734, |

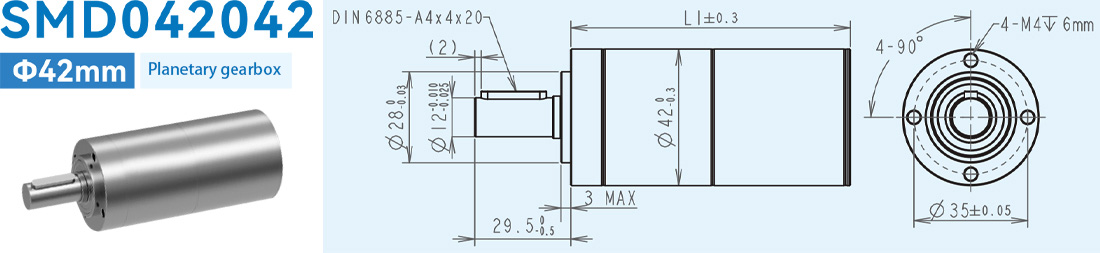

External diameter | mm | 42 | 42 | 42 | 42 |
Gearbox length L1 | mm | 47.8 | 66.4 | 86 | 104.5 |
Maximum efficiency | % | 96 | 93 | 90 | 87 |
Recommended temperature range | ℃ | -40~+100 | -40~+100 | -40~+100 | -40~+100 |
Gearbox weight (Max) | G | 400 | 540 | 660 | 800 |
Maximum transmission power (continuous) | W | 650 | 460 | 200 | 40 |
Maximum transmission power (instantaneous) | W | 820 | 580 | 250 | 50 |
Average empty return of no load | ° | 5 | 0.5 | 5 | 0.5 |
Maximum axial load (dynamic) | N | 200 | 200 | 200 | 200 |
Maximum radial load (4mm from flange) | N | 350 | 525 | 750 | 750 |
Output bearing | Ball bearing | Ball bearing | Ball bearing | Ball bearing | |
Axial clearance | mm | 0~0.1 | 0~0.1 | 0~0.1 | 0~0.1 |
Note: The above data does not include motor, gearbox and motor sales, the specific parameters can be customized according to customer requirements | |||||
Modular assembly | |||||
Combination product | Model number | series | |||
1 | 2 | 3 | 4 | ||
Length(mm) | |||||
Dc motor | 3571 φ35mm hollow cup brush | 118.8 | 137.4 | 157 | 175.5 |
Brushless machine | 4088φ40mm brushless hollow cup motor | 135.8 | 154.4 | 174 | 192.5 |
4260φ42mm brushless motor | 107.8 | 126.4 | 146 | 164.5 | |
encoder | CB-ST-22 | Magnetic knitting | |||
Typical application product data | |||||||||||
Model number | Rated voltage (V) | No-load data | Load data | Total length | Gear box rated allowable torque (NM) | Gear box instantaneous torque (NM) | Reduction ratio | Reducer length L1(mm) | |||
No-load speed | No-load current | Load speed | Load current | Torque | |||||||
SMD042042-3.9-X | 24 | 2085 | 600 | 1836 | 9 | 0.500 | 118.8 | 4.5 | 7 | 4 | 48 |
SMD042042-5.3-X | 24 | 1534 | 600 | 1351 | 9 | 0.600 | 5 | ||||
SMD042042-16-X | 24 | 508 | 600 | 448 | 9 | 1.800 | 138 | 18 | 24 | 16 | 67 |
SMD042042-21-X | 24 | 387 | 600 | 341 | 9 | 2.400 | 21 | ||||
SMD042042-26-X | 24 | 313 | 600 | 275 | 9 | 3.000 | 26 | ||||
SMD042042-28-X | 24 | 290 | 600 | 256 | 9 | 3.200 | 28 | ||||
SMD042042-35-X | 24 | 232 | 600 | 205 | 9 | 4.000 | 35 | ||||
SMD042042-62-X | 24 | 131 | 700 | 115 | 9.5 | 6.900 | 157 | 32 | 46 | 62 | 86 |
SMD042042-83-X | 24 | 98 | 700 | 86 | 9.5 | 9.200 | 83 | ||||
SMD042042-103-X | 24 | 79 | 700 | 70 | 9.5 | 11.400 | 103 | ||||
SMD042042-111-X | 24 | 73 | 700 | 65 | 9.5 | 12.300 | 111 | ||||
SMD042042-138-X | 24 | 59 | 700 | 52 | 9.5 | 15.300 | 138 | ||||
SMD042042-150-X | 24 | 54 | 700 | 48 | 9.5 | 16.700 | 150 | ||||
SMD042042-172-X | 24 | 47 | 700 | 42 | 9.5 | 19.100 | 172 | ||||
SMD042042-186-X | 24 | 44 | 700 | 38 | 9.5 | 20.700 | 186 | ||||
SMD042042-231-X | 24 | 35 | 700 | 31 | 9.5 | 25.700 | 231 | ||||
SMD042042-243-X | 24 | 33 | 800 | 29 | 10 | 26.400 | 175.5 | 35 | 50 | 243 | 105 |
SMD042042-326-X | 24 | 25 | 800 | 22 | 10 | 35.400 | 326 | ||||
SMD042042-406-X | 24 | 20 | 800 | 18 | 10 | 44.100 | 406 | ||||
SMD042042-439-X | 24 | 19 | 800 | 16 | 10 | 47.700 | 439 | ||||
SMD042042-546-X | 24 | 15 | 800 | 13 | 10 | 59.300 | 546 | ||||
SMD042042-590-X | 24 | 14 | 800 | 12 | 10 | 64.100 | 590 | ||||
SMD042042-679-X | 24 | 12 | 800 | 11 | 10 | 73.800 | 679 | ||||
SMD042042-734-X | 24 | 11 | 800 | 10 | 10 | 79.800 | 734 | ||||
SMD042042-794-X | 24 | 10 | 800 | 9 | 10 | 86.300 | 794 | ||||
SMD042042-913-X | 24 | 9 | 800 | 8 | 10 | 99.200 | 913 | ||||
SMD042042-987-X | 24 | 8 | 800 | 7 | 10 | 107.300 | 987 | ||||
SMD042042-1135-X | 24 | 7 | 800 | 6 | 10 | 123.400 | 1135 | ||||
SMD042042-1227-X | 24 | 7 | 800 | 6 | 10 | 133.400 | 1227 | ||||
SMD042042-1526-X | 24 | 5 | 800 | 5 | 10 | 165.800 | |||||
Application
Application scenario display: Widely used in industrial production, robotics, consumer electronics, smart medical, mobile travel and other intelligent fields
Service
Dedicated service, along the way
Warranty worry-free, extended repair, often return to promote optimization, peace of mind choice, all in control.
Before the purchase of professional consultants rapid response, accurate recommendation products;
Purchase logistics is efficient, specially-assigned to ensure delivery;
After the purchase 7×24 hours customer service answer questions, engineers at any time to save the "machine";
After-sale guarantee
After-sales service: We provide comprehensive after-sales technical support, if you encounter any problems in the process of use, the professional after-sales engineer team will respond quickly, through telephone, mail or remote assistance, to provide you with detailed solutions. We also provide regular return visits to our products to understand how they are used and to collect your feedback in order to continuously optimize our products and services. In addition, in strict accordance with the quality assurance policy, we provide free repair or replacement services for products with quality problems during the warranty period, so that you have no worries.
