Product Description

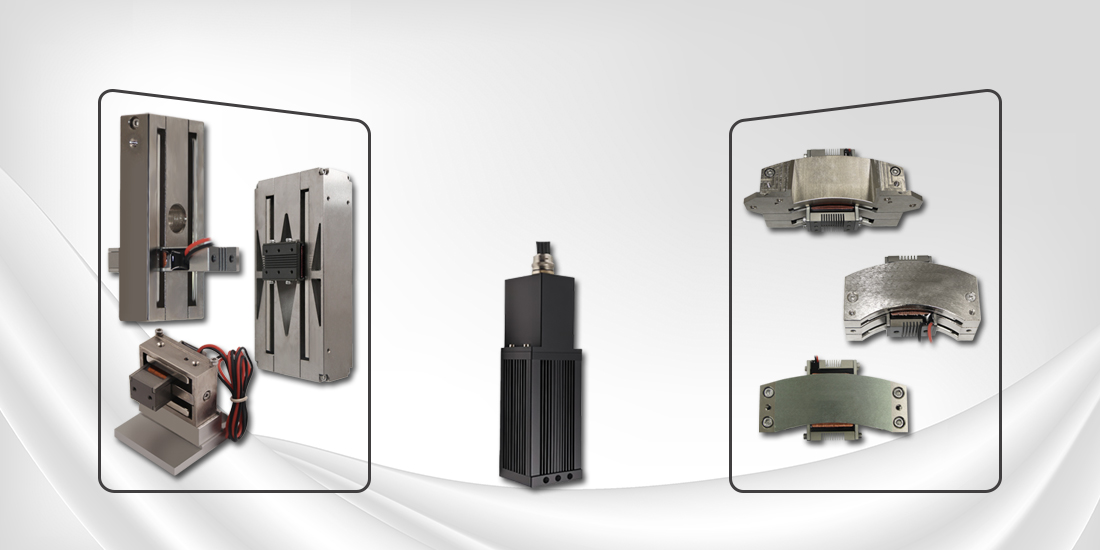

This series integrates three types of voice coil motors: rectangular (TMES), swing (TMER), and shaft-type (TMEH). Its universal design adapts to diverse control requirements, covering long-stroke linear motion (1-250mm), angular swing (1-120°), and shaft-type direct-propulsion (peak thrust of 29.3N). It offers the common advantages of lightweight actuators, fast response, and precise force control, precisely supporting precision motion control in fields such as semiconductors, automation, and aerospace.
Functional Features

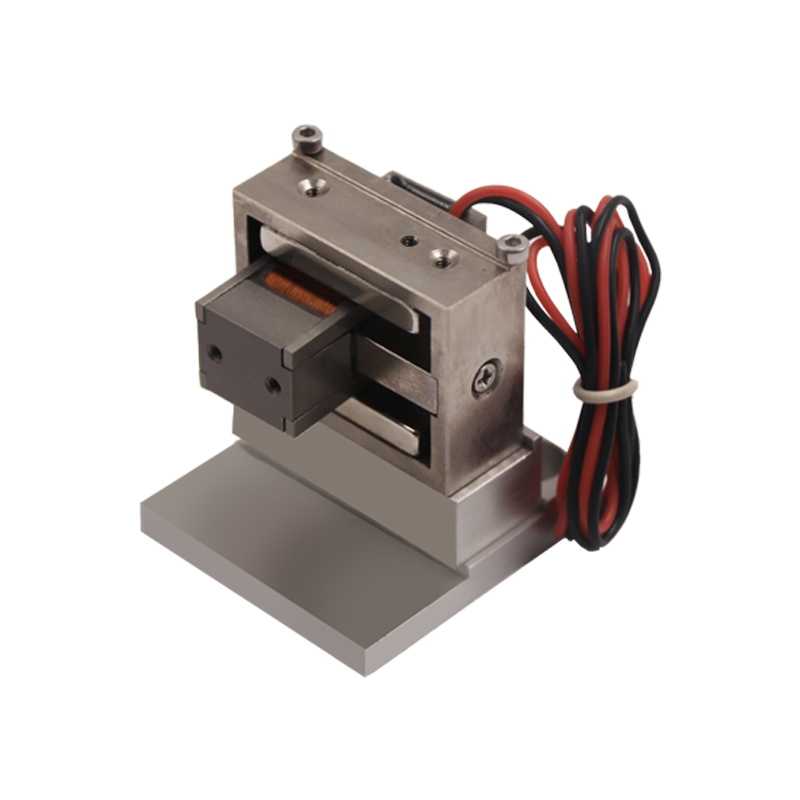

TMES Rectangular Voice Coil Motor
◆Lightweight actuator, short response time
◆Peak thrust: 1-1000N
◆Effective stroke: 1-250mm
◆Can be made into a small X-Y two-axis motion platform

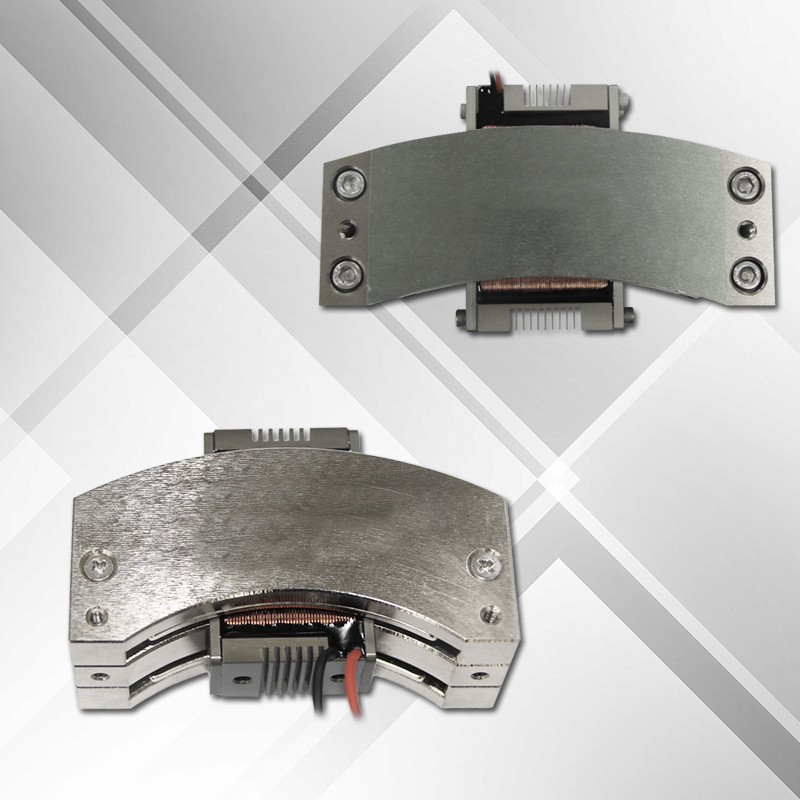

TMER Swing-type Voice Coil Motor
◆Lightweight actuator, short response time
◆Swing angle: 1-120°
◆Torque: 1-50N.m
TMEH Shaft-type Voice Coil Motor
◆ Shaft-type direct drive design, smooth thrust output
◆ Peak thrust: 29.3N
◆ Continuous thrust: 13.6N
◆ Low inductance design, fast response
◆ Suitable for precision positioning and fast start-stop systems
Product parameters

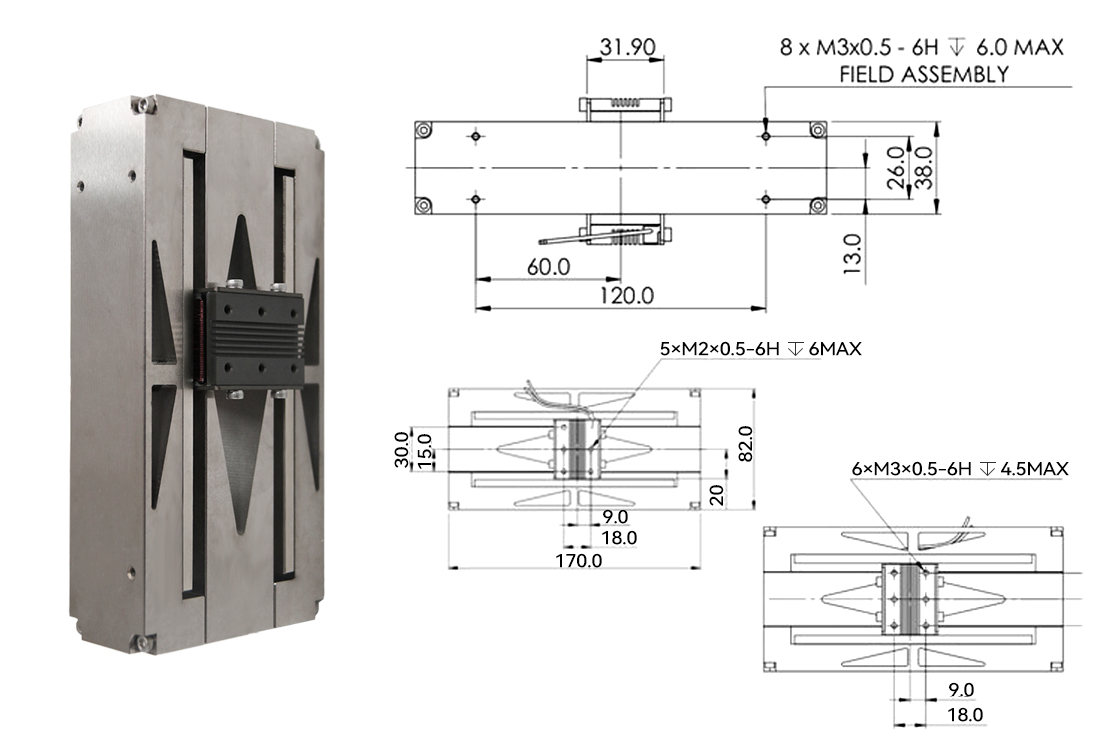

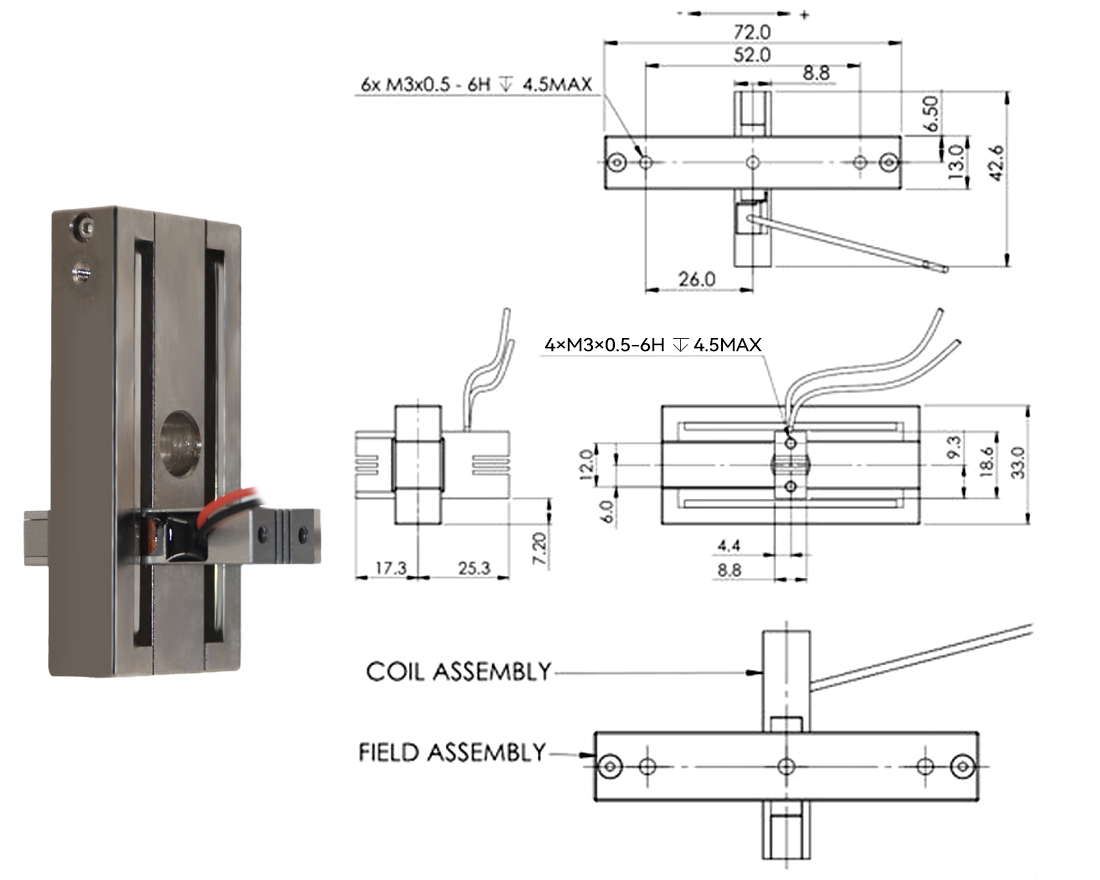

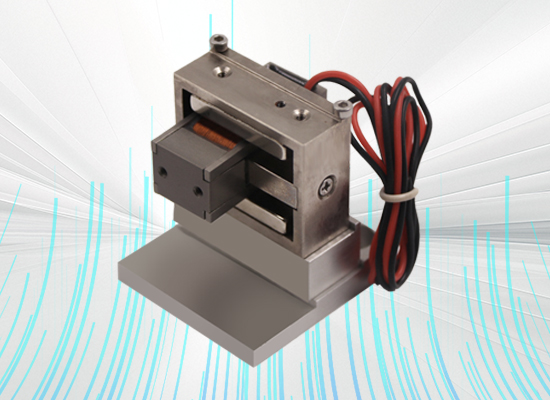

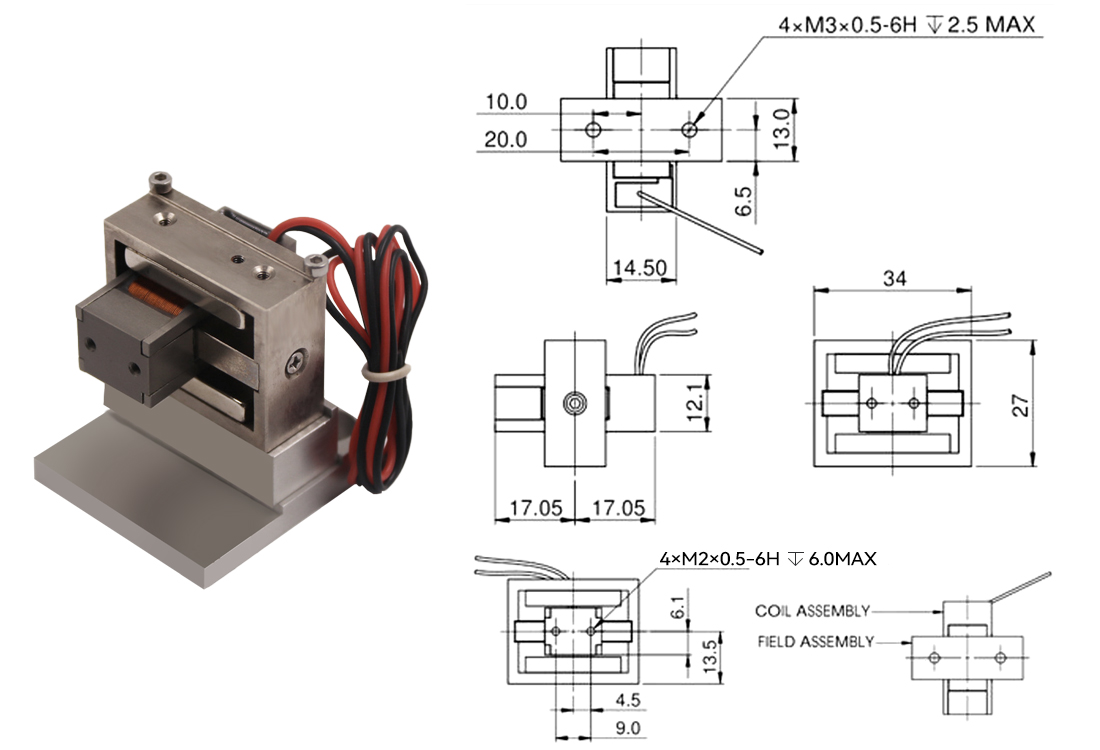

TMES rectangular voice coil motor
TMES0002-050
TMES0006-010
TMES0060-100
Rated performance
Peak thrust | Continuous thrust | Motor constant | Total stroke | Coil gap | |
Symbol | Fp | Fc | Ka | S | CL |
Unit | N | N | N/√W | mm | mm |
TMES0002-050 | 2.00 | 1.30 | 0.50 | 50.00 | 0.50 |
TMES0006-010 | 6.00 | 3.20 | 1.50 | 10.00 | 0.50 |
TMES0060-100 | 60.00 | 21.00 | 4.40 | 100.00 | 0.50 |
Electrical specifications
Peak voltage | Peak current | Peak power | Thermal resistance | Thrust constant (25℃) | Back electromotive force (25℃) | Phase resistance (25℃) | Phase inductance (25℃) | Electrical time constant | Maximum winding temperature | |
Symbol | Vp | Ip | Pp | Rth | Kf | Kb | R | L | Te | Tmax |
Unit | Volts | Amps | W | ℃/W | N/Arms | Vrms/(m/s) | Ohms | mh | ms | ℃ |
TMES 0002-050 | 11.30 | 1.60 | 18.20 | 17.00 | 1.30 | 1.30 | 7.00 | 0.90 | 0.10 | 150.00 |
TMES 0006-010 | 13.30 | 1.30 | 17.70 | 25.30 | 4.50 | 4.50 | 10.00 | 2.00 | 0.20 | 150.00 |
TMES 0060-100 | 28.00 | 6.70 | 190.00 | 5.50 | 9.00 | 9.00 | 4.20 | 3.50 | 0.80 | 150.00 |
Mechanical characteristics
Mover weight (coil) | Magnetic track weight (magnetic track) | |
Symbol | WTc | Wta |
Unit | g | g |
TMES0002-050 | 16.00 | 190.00 |
TMES0006-010 | 18.00 | 70.00 |
TMES0060-100 | 140.00 | 3720.00 |

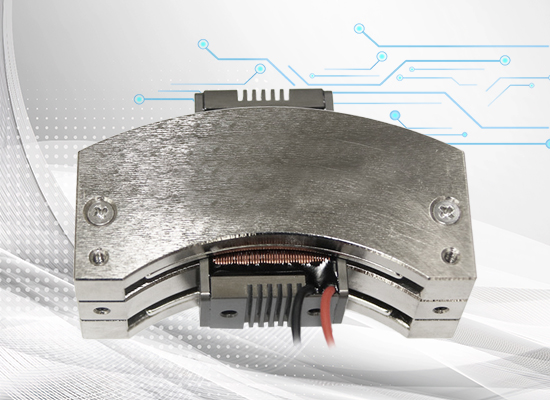

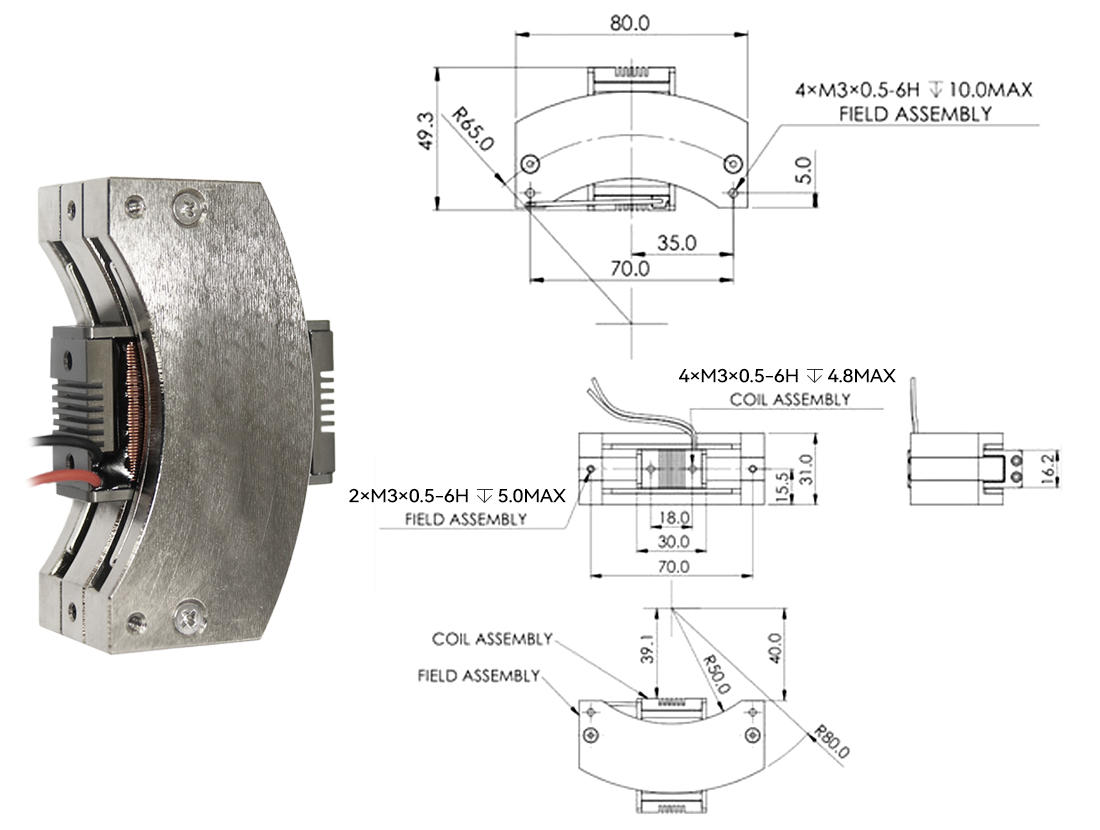

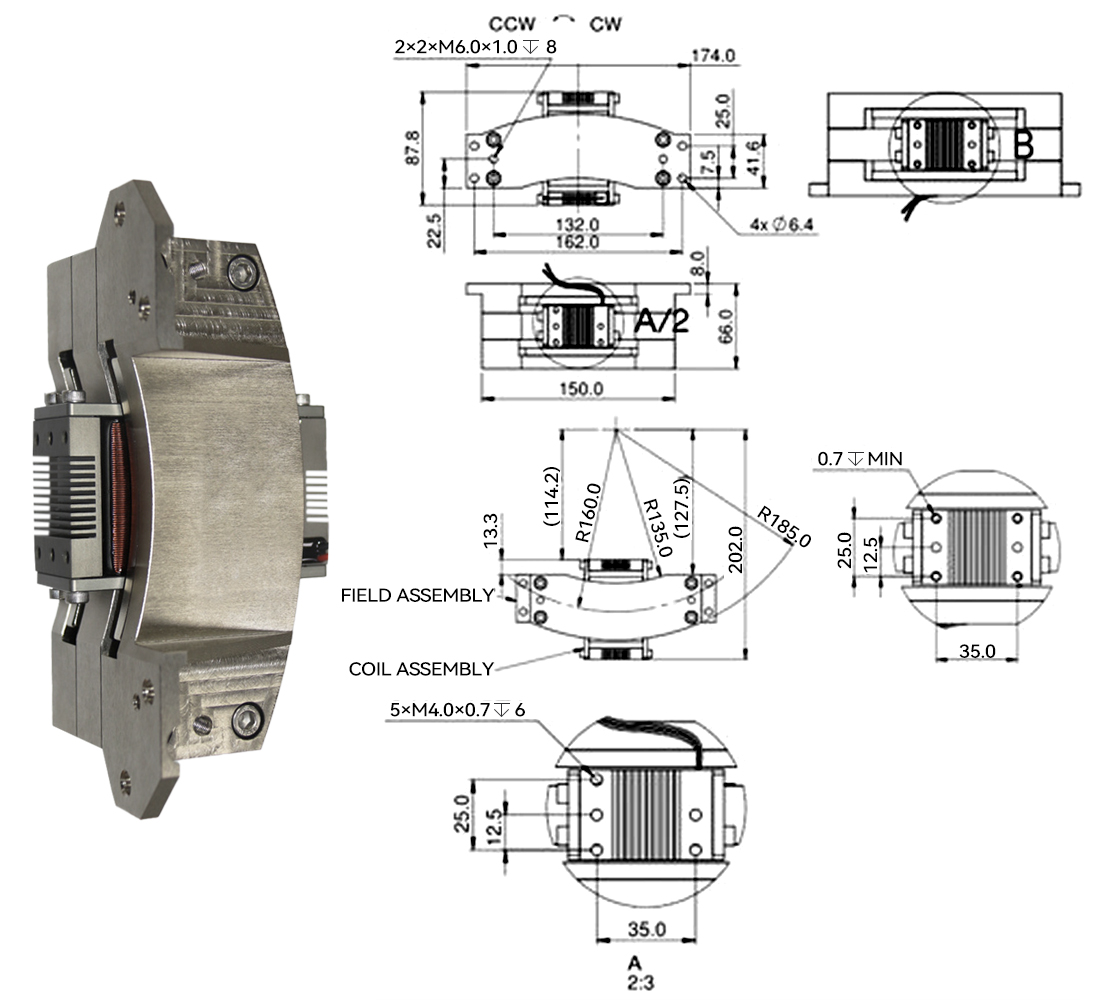

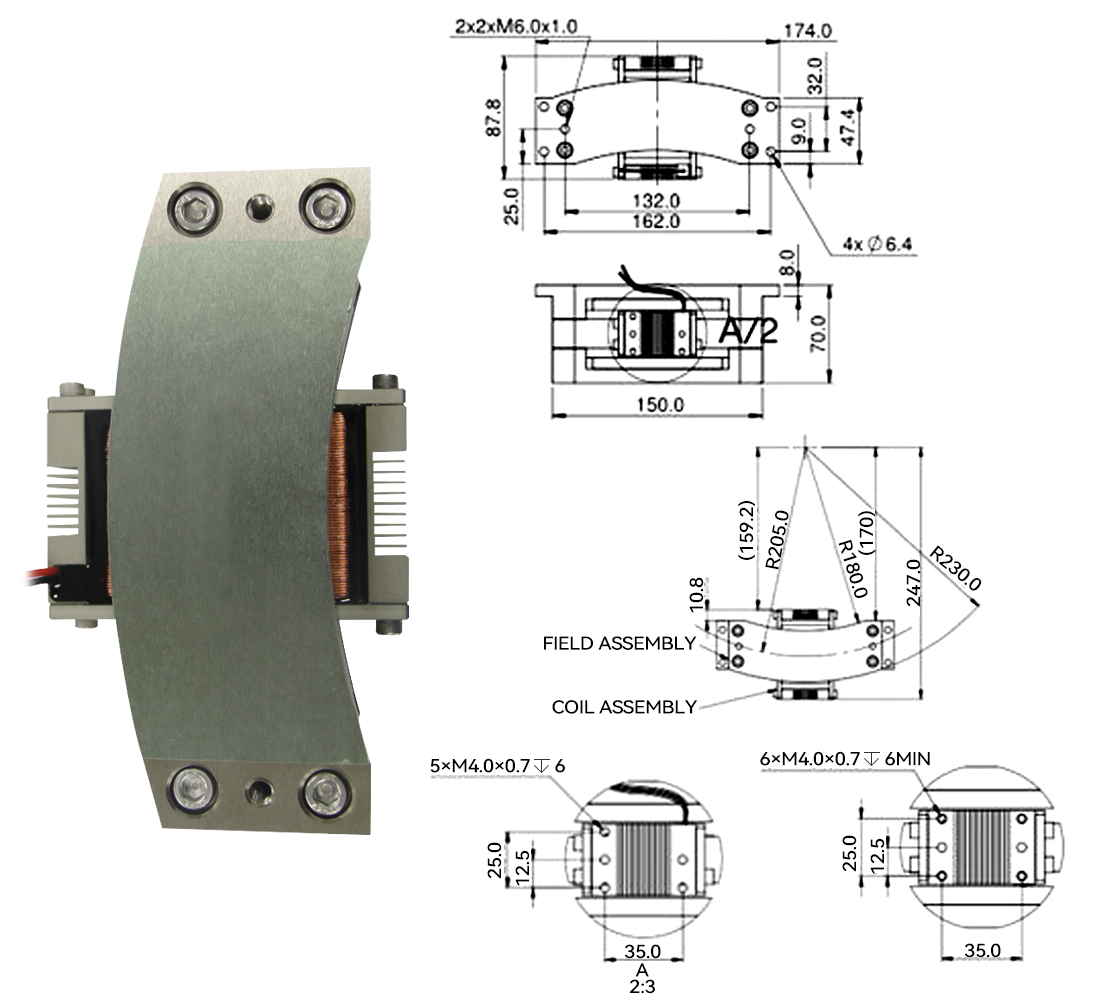

TMER swing voice coil motor
TMER0085-030-000
TMER1690-011-000
TMER3370-011-000
Symbol | Unit | TMER0085-030-000 | TMER1690-011-000 | TMER3370-011-000 | |
DC resistance | R | OHMS | 1.5 | 4.2 | 4.2 |
Peak voltage | Vp | VOLTS | 6.3 | 27.3 | 27.3 |
Peak current | Ip | AMPS | 4.2 | 6.5 | 6.5 |
Torque constant | Kt | N-m/A | 0.2 | 2.6 | 2.6 |
Back EMF | Kb | V/M/Sec | 0.2 | 2.6 | 2.6 |
Inductance | L | mH | 0.6 | 4.4 | 4.4 |
Peak torque | Tp | N-m | 0.85 | 16.9 | 16.9 |
Continuous torque | TCS | N-m | 0.6 | 4.7 | 4.7 |
Motor constant | Ka | N/√w | 0.16 | 1.3 | 1.3 |
Time constant | Te | ms | 0.4 | 1.05 | 1.05 |
Peak power | Pp | W | 26.4 | 117.5 | 117.5 |
Rotation angle | S | degree | 30 | 11 | 11 |
Single-sided air gap | CL | mm | 0.5 | 1 | 1 |
Thermal resistance | θth | C/W | 9 | 4.7 | 4.7 |
Winding temperature | Tmax | C | 150 | 120 | 120 |
Coil weight | WTc | g | 60 | 0.32 | 0.32 |
Moment of inertia | Ic | g-cm2 | 2200 | 96.8 | 96.8 |
Magnet weight | WTc | g | 490 | 3.4 | 3.4 |
Motor weight | Wta | g | 550 | 3.72 | 3.72 |
Total length of motor | L | mm | 80 | 174 | 174 |
Total width of motor | W | mm | 49.3 | 87.8 | 87.8 |
Total height of motor | H | mm | 31 | 60 | 60 |

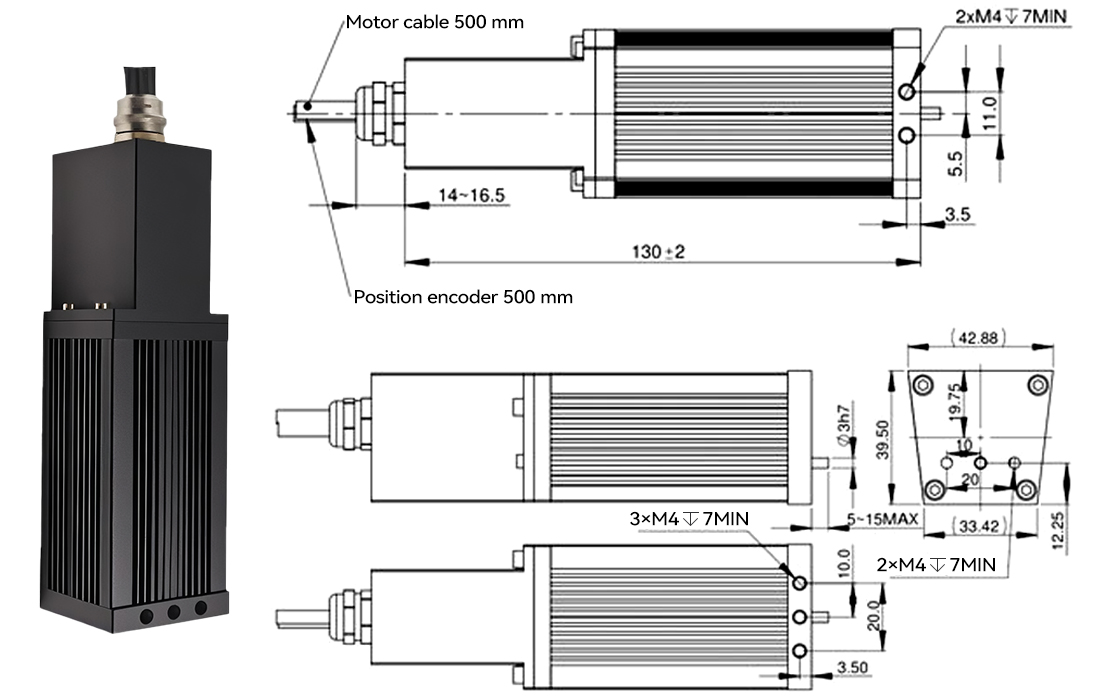

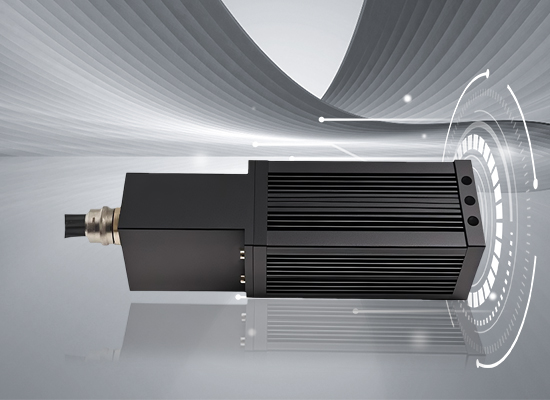

TMEH shaft-type voice coil motor
TMEH0030-010-000
Symbol | Unit | TMEH0030-010-000 | |
DC resistance | R | OHMS | 3.3 |
Peak voltage | Vp | VOLTS | 11.8 |
Peak current | Ip | AMPS | 3.6 |
Force constant value | Kf | N/A | 8.2 |
Back EMF | Kb | V/M/Sec | 8.2 |
Inductance | L | mH | 1.75 |
Peak force | Fp | N | 29.3 |
Continuous thrust | Fc | N | 13.6 |
Motor constant | Ka | N/√w | 4.5 |
Time constant | Te | ms | 0.53 |
Peak power | Pp | W | 42.1 |
Peak displacement | S | mm | 10 |
Single air gap | CL | mm | 0.2 |
Thermal resistance | θth | C/W | 6 |
Winding temperature | Tmax | C | 100 |
Coil weight | WTc | g | 373 |
Magnet weight | WTf | g | 79 |
Motor weight | Wta | g | 452 |
Total motor length | L | mm | 130 |
Outer diameter | ФD | mm | 42.88 |
Application
Covering scenarios such as semiconductors, automation, aerospace, precision testing, and medical care, it meets the needs of multi-form precision operations such as linear displacement, angle control, and shaft end thrust, empowering core areas such as high-end equipment, industrial automation, and medical technology.
Quality Control
The core materials of the common parts of voice coil motors are strictly controlled, the coils are precisely wound, and the magnetic circuit system is calibrated to ensure uniform magnetic field. The assembly follows high-precision alignment standards, passes multiple rounds of environmental and mechanical tests, and has stable dynamic response. Full inspection before leaving the factory ensures reliable quality.
Service
Voice coil motor services run through the entire product life cycle. Detailed technical consultation is provided before sales, and selection and matching are assisted based on application scenarios; real-time follow-up of production and logistics is carried out during sales to ensure efficient and accurate delivery; after sales, rapid response to needs is provided, installation guidance and troubleshooting support are provided, and the quality assurance system is linked to solve problems, ensuring the stable operation of the equipment in all aspects.
