Features

HANMAJESN precision reducers are used in the joints of industrial robots. They provide strong support while achieving fine movements. They are key components and occupy a considerable share in the market.

HANMAJE5M precision reducers are highly praised for their high precision, high rigidity, small size and light weight, and are now steadily expanding their application areas, not only in the field of industrial robots, but also in other industries such as machine tools, radar navigation equipment, automation and service robots, medical treatment, and liquid crystal manufacturing equipment and semiconductor manufacturing equipment.

Product Parameters

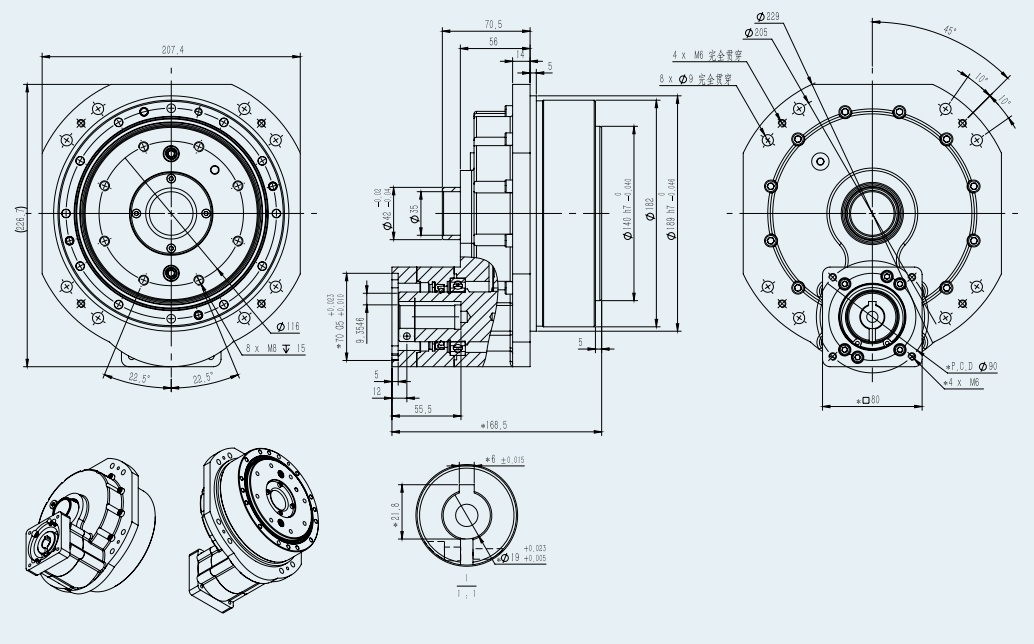

KRD-10C

Remark:

1. The base mounting screws are 8×M6, with a torque of 15.6±0.78 N.m;

2. The output end flange connection screws are 8×M8, with a torque of 37.2±1.86 N.m;

3. Bolts should be used with spring washers;

4. Grease has been added at the factory. If you want to replace it yourself, please add VIGOGREASE REO;

5. Applicable motor shaft diameter ∅14, if other shaft diameters are required, please contact us;

6. Product weight is about 6.2kg.

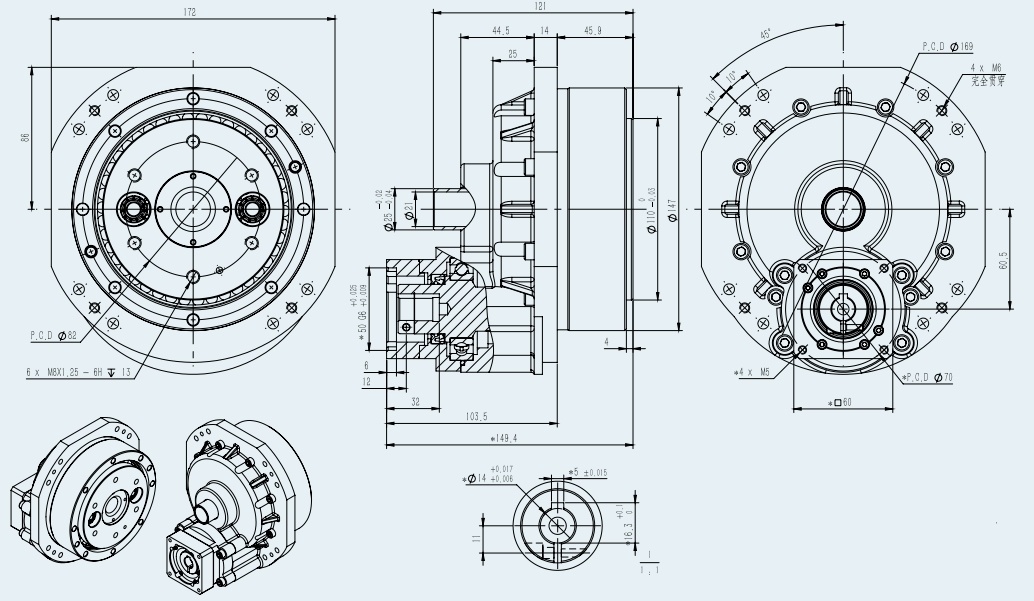

KRD-27C

Remark:

1. The base mounting screws are 12×M6, with a torque of 15.6±0.78 N.m;

2. The output end flange connection screws are 8×M8, with a torque of 37.2±1.86 N.m;

3. Bolts should be used with spring washers;

4. Grease has been added at the factory. If you want to replace it yourself, please add VIGOGREASE REO;

5. Applicable motor shaft diameter ∅19, if other shaft diameters are required, please contact us;

6. Product weight is about 9.3kg.

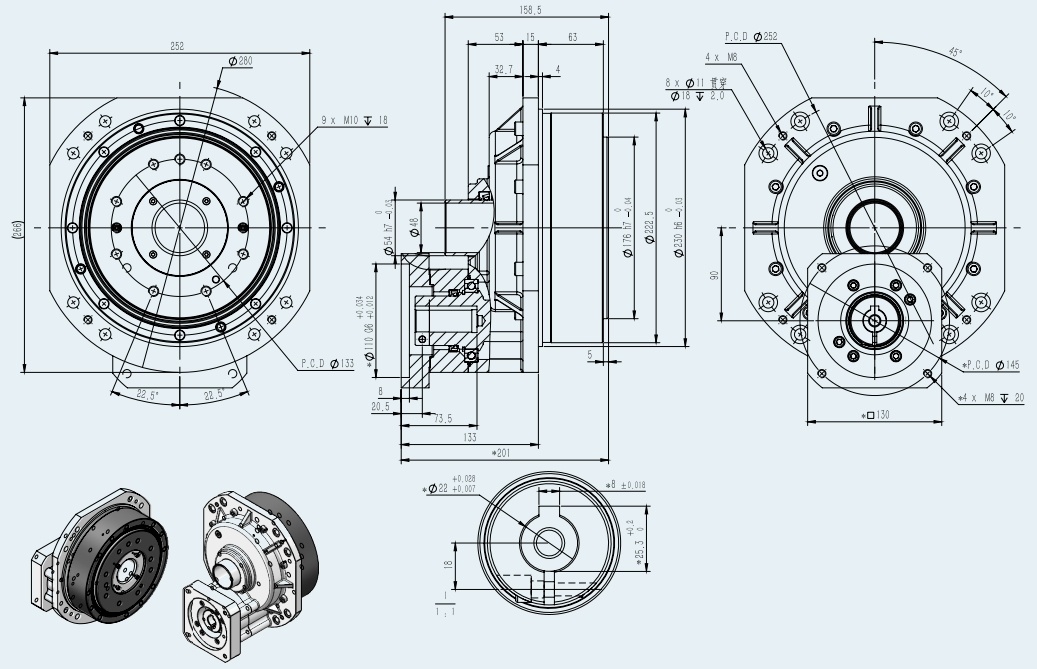

KRD-50C

Remark:

1. The base mounting screws are 8×M10, with a torque of 73.5±3.43 N.m;

2. The output end flange connection screws are 8×M10, with a torque of 73.5±3.43 N.m;

3. Bolts should be used with spring washers;

4. Grease has been added at the factory. If you want to replace it yourself, please add VIGOGREASE REO;

5. Applicable motor shaft diameter ∅22, if other shaft diameters are required, please contact us;

6. Product weight is about 19.4kg.

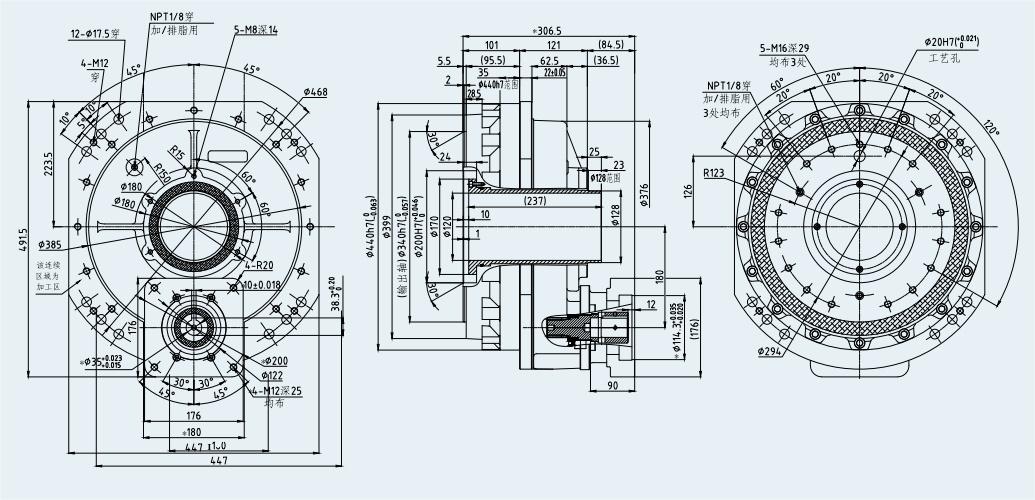

KRD-100C

Remark:

1. Lubricating oil has been added at the factory. If you want to replace it yourself, please add VIGOGREASEREO;

2. The * symbol will change with the servo motor, and the motor mounting flange will be adapted to the user's motor.

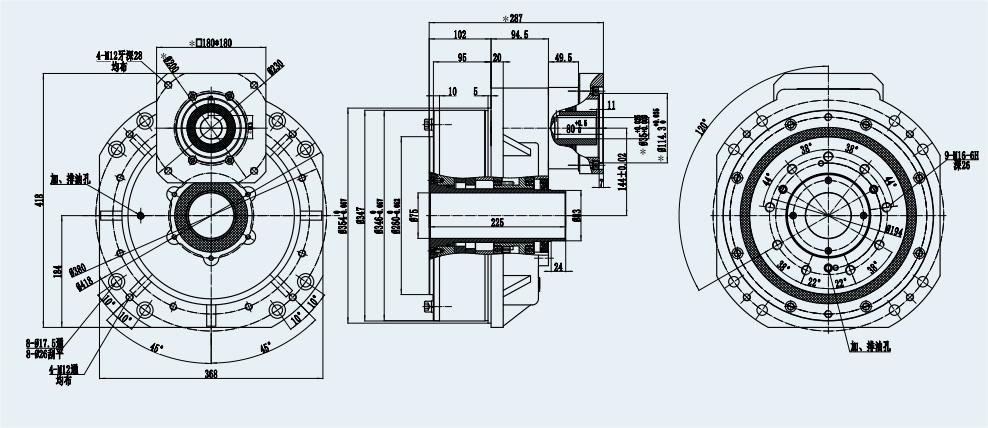

KRD-200C

Remark:

1. Lubricating oil has been added at the factory. If you want to replace it yourself, please add VIGOGREASEREO;

2. The * symbol will change with the servo motor, and the motor mounting flange will be adapted to the user's motor.

Remark:

1. Lubricating oil has been added at the factory. If you want to replace it yourself, please add VIGOGREASEREO;

2. The * symbol will change with the servo motor, and the motor mounting flange will be adapted to the user's motor.
