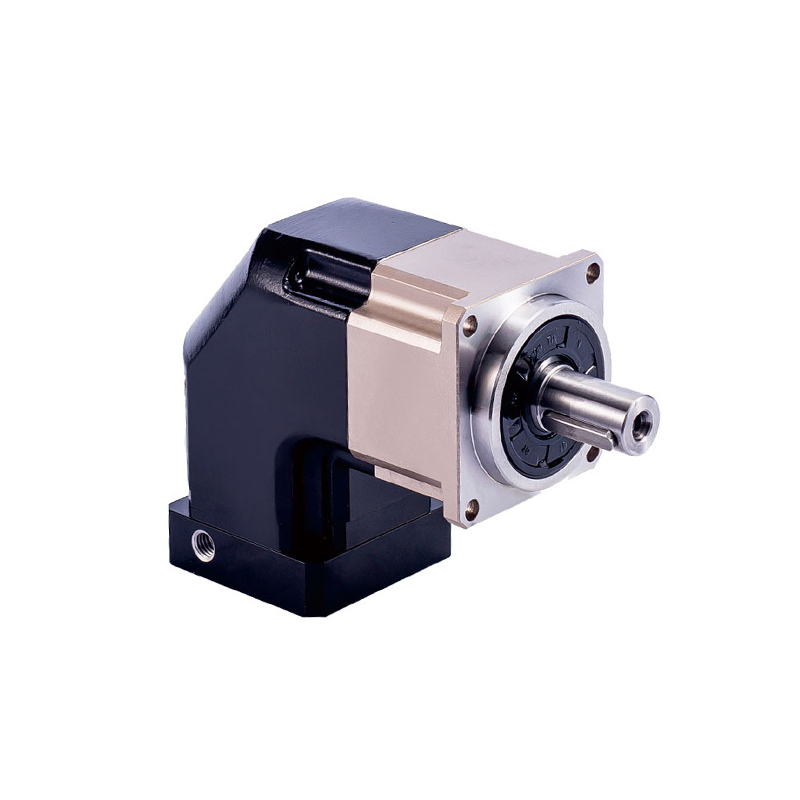

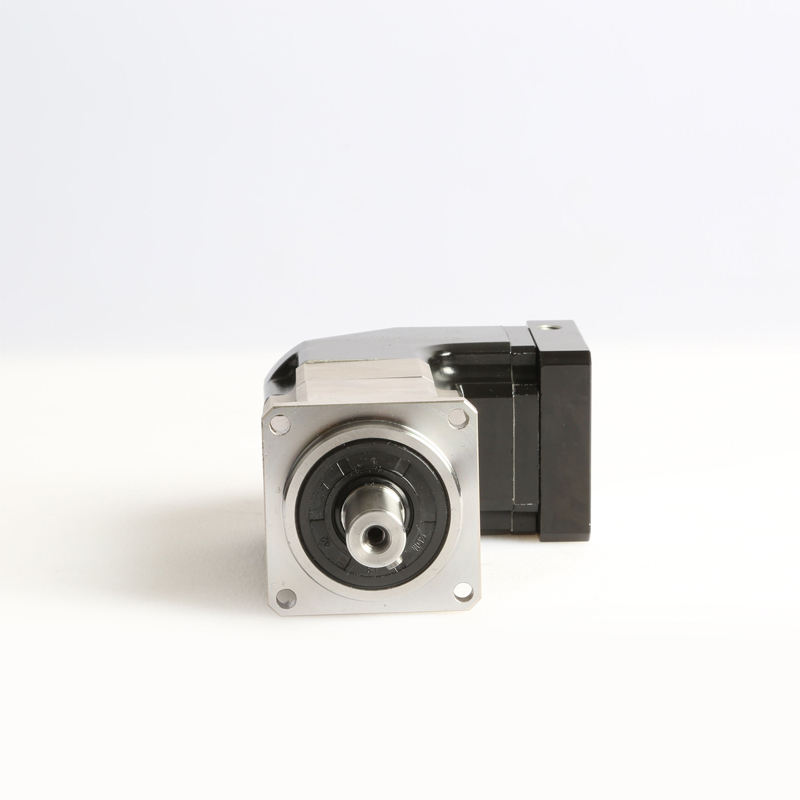

WABR series planetary reducer

The planetary arm and output shaft adopt an integrated structural design to ensure maximum torsional rigidity. The planetary gear adopts a full needle roller design to increase the contact area to improve the structural rigidity and output torque. The gear is made of low-carbon steel surface carburized and quenched to HRC62 to obtain the best wear resistance and impact toughness. The tooth profile uses imported software to assist in design to obtain the best tooth profile to reduce noise. The input end and the motor shaft are connected by a double-sided clamping method to obtain the maximum clamping force and zero backlash power transmission. The spiral bevel gear design allows high output torque, which is more than 30% higher than the straight bevel gear. The high allowable input speed is more than 8 times higher than the straight bevel gear input. The meshing tooth print of the spiral bevel gear is optimized, the contact tooth surface load is uniform, and the operating life is long. The meshing of the spiral bevel gear is optimized through the best motion error analysis and strict process control to ensure high-precision operating backlash.

Product details

Features

High efficiency: transmission efficiency is as high as 97% or more
Low noise: exquisite design, precision manufacturing, noise is less than 63dB (A)
High input speed: the maximum input speed can reach 10000rpm
Low backlash: single section less than 2 arc minutes, double section less than 3 arc minutes
High reduction ratio: modular design, planetary gearboxes can be connected to each other with high speed ratio

Product Parameters

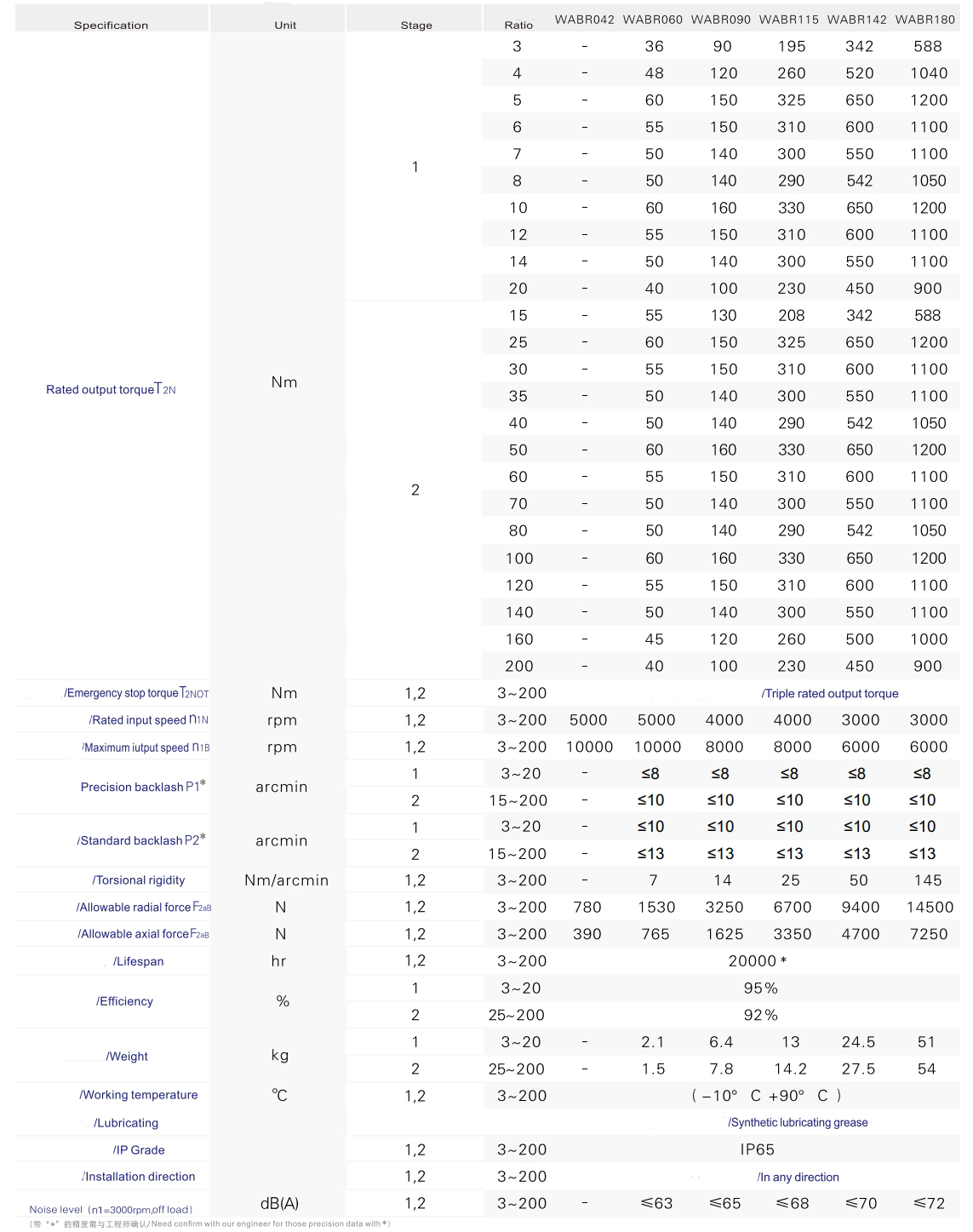

Reducer performance

Reducer moment of inertia

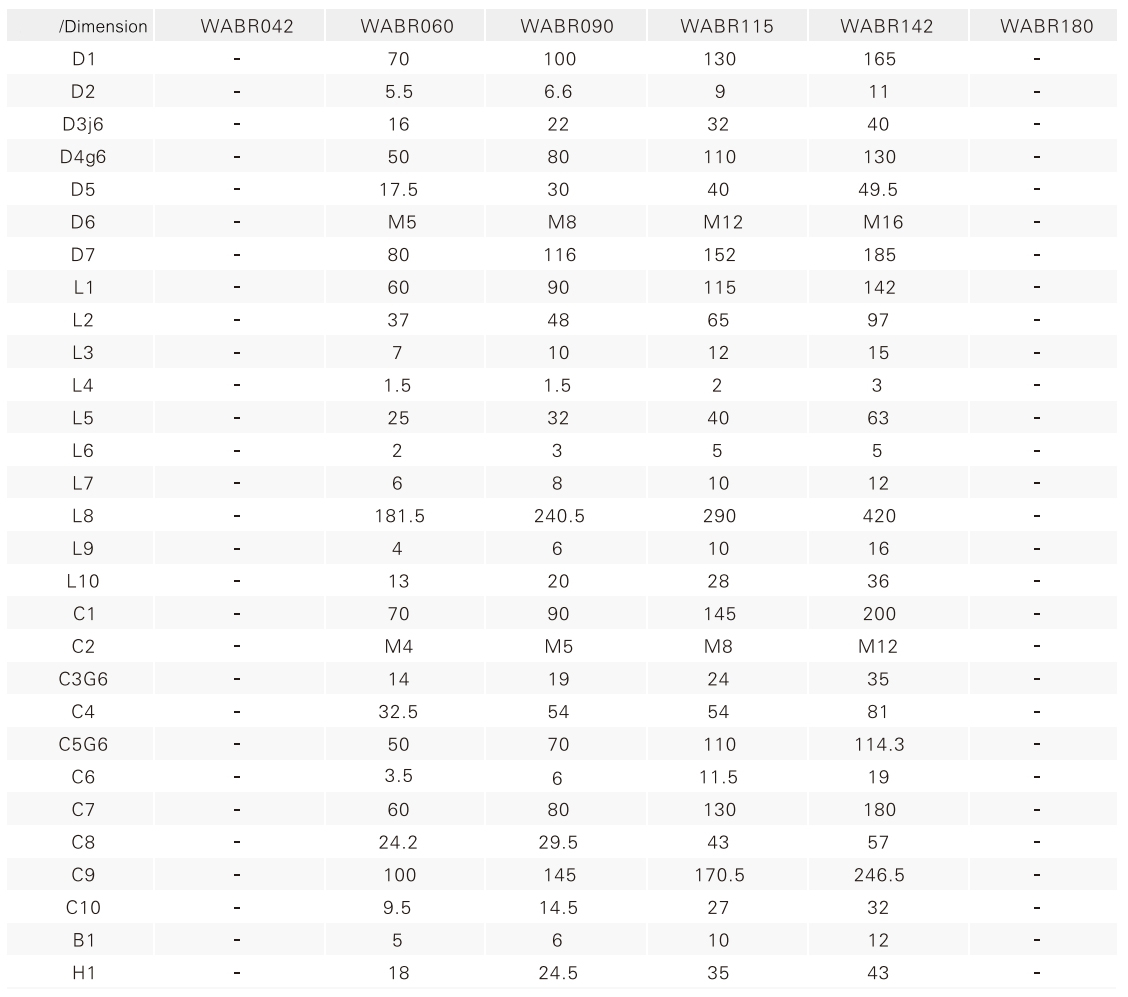

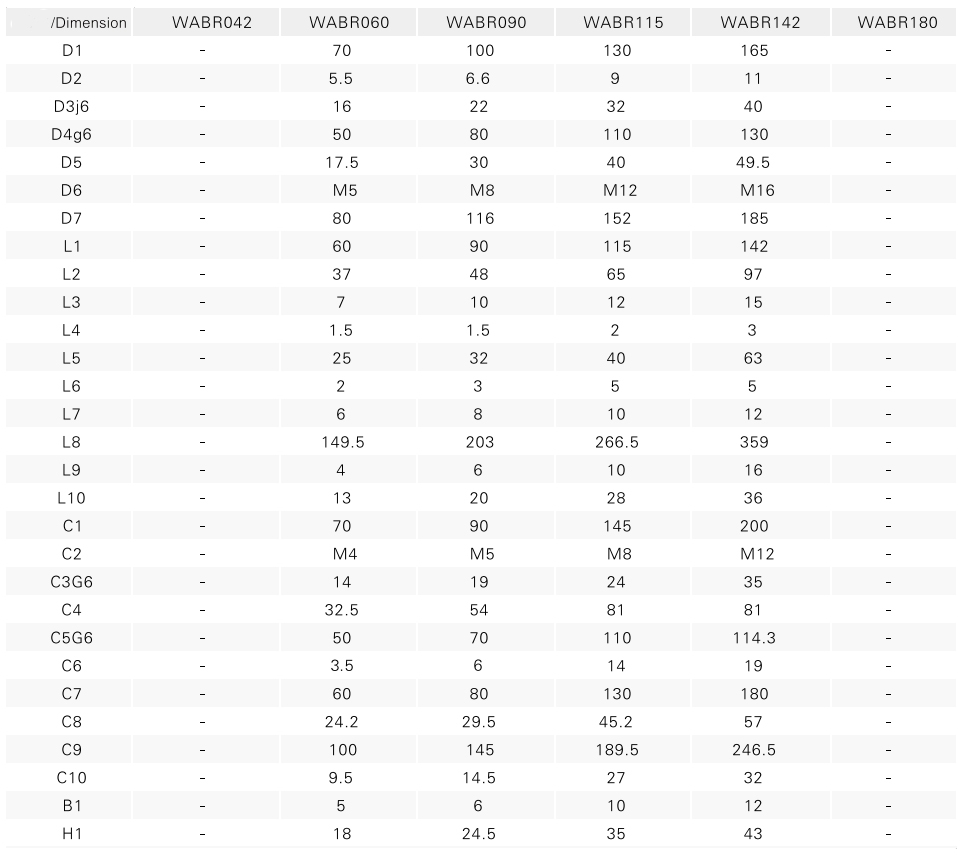

Size (double section, reduction ratio i=15~200) Type

Applications

The products are used in automation industry, industrial robots, metallurgy and mining, tobacco and light industry, environmental protection engineering, warehousing and logistics, plastic machinery, lifting and transportation, three-dimensional parking, automobile manufacturing, textile, food, beverage, ceramic industry and other fields.
