C-100 underwater robot

C-100 underwater robot underwater drone underwater submersible open source robot

  • Size:490x290x210mm
  • Weight in air:4kg
  • Load Capacity:1kg
  • Working depth:50m

USD: 6117

ablity:Monthly Output500

contact shop
  • Product Description
  • Product Params

Product Description

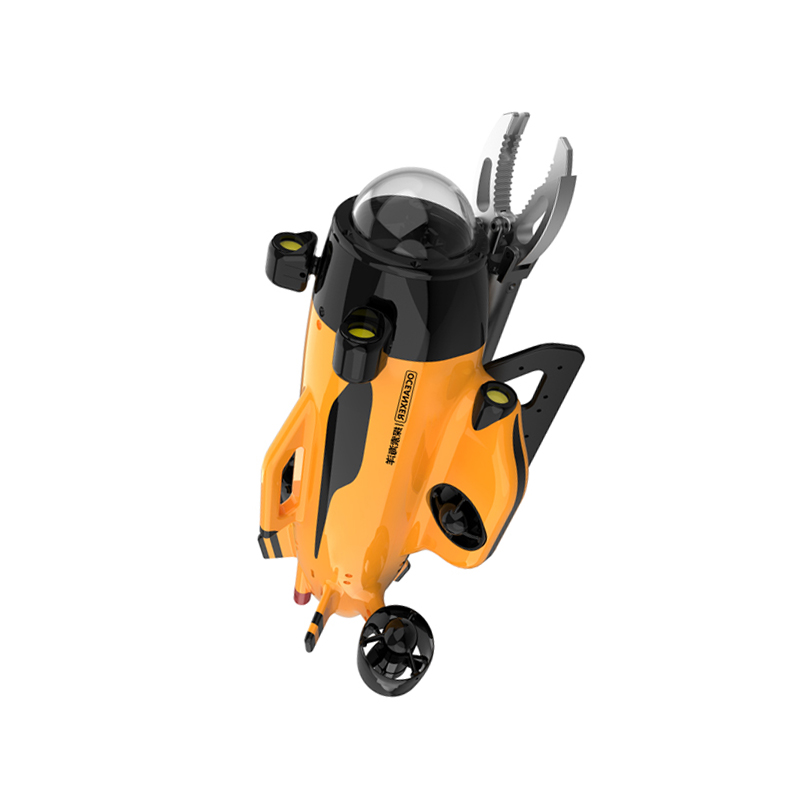

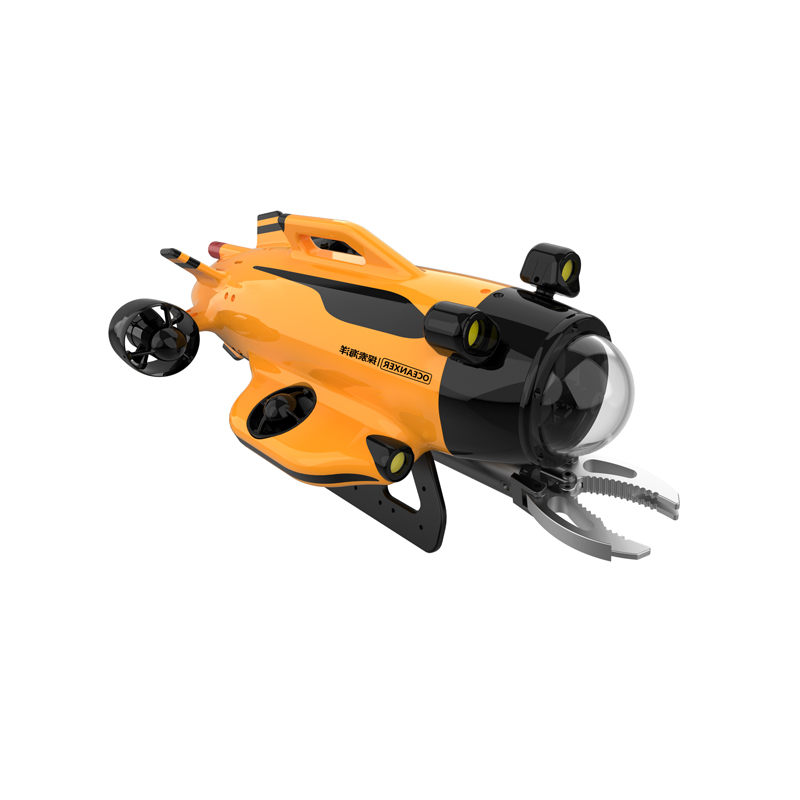

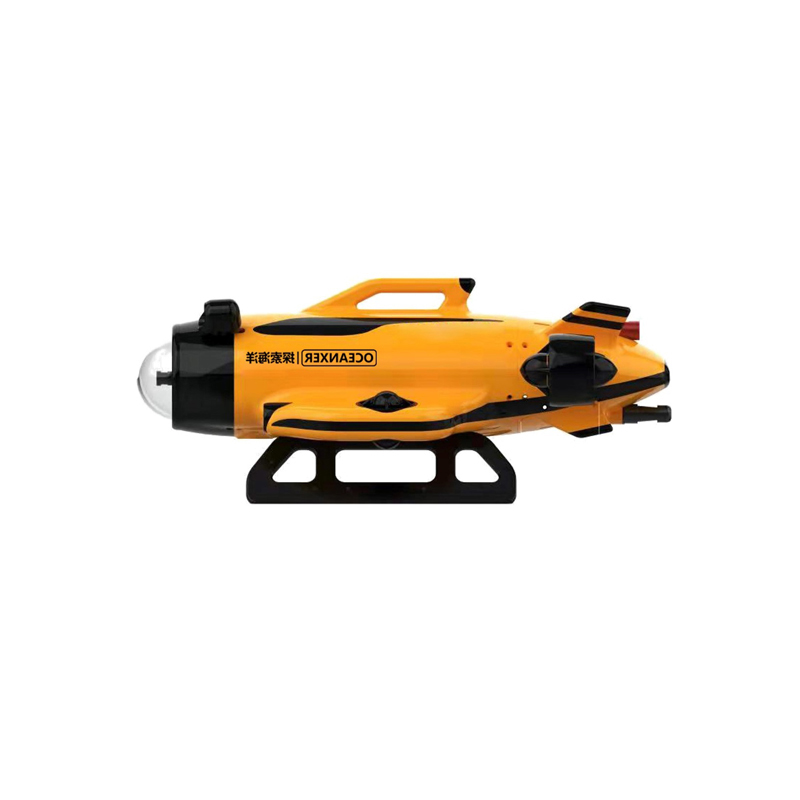

C-100 underwater robot


C-100 adopts a design similar to that of a double-hull submarine, consisting of an inner pressure-resistant waterproof cabin and an outer non-pressure-resistant structural shell. The streamlined hull design greatly reduces the travel resistance of the underwater machine. The underwater robot has good scalability, allowing customers to connect their own functional modules to it, making it easier to make targeted modifications for various underwater robot competitions. At the same time, the open source submarine has the advantages of flexible control, convenient control, and easy portability, so that its application is not limited to competitions. Customers can drive the C-100 ROV to explore the waters around them in addition to scientific and technological innovation, realizing the combination of scientific research and entertainment.


The ROV includes:
--- 4 200W brushless DC thrusters
--- 1 1080P PTZ camera

--- 4 250 lumens high brightness LED lights


Product Parameters

C-100 underwater robot

Mechanical parameters
Size
490x290x210mm
Weight in air
4kg
Load Capacity
1kg
Working depth
50m
Thruster thrust (single)
2kgf@max

Electrical parameters
Operating voltage
12V
Camera sensitivity
0.01lux

Zero buoyancy cable

Mechanical parameters
Length
50m
Tensile strength
104kg
Buoyancy in seawater
Slightly neutral

Electrical parameters
Communication line
4 twisted pairs


Optional accessories

——Single-function underwater robotic arm
——Upgrade to ARV

Application Areas

Supplier Information

Company Name:Dalian Discovery Marine Technology Co., Ltd.
