Product Description
The RG series collaborative parallel electric gripper is an electric gripper mainly used for collaborative manipulators.
The product adopts a standard interface, supports adjustable and controllable force and position, and has power-off retention, grasping feedback and drop detection functions.
Product parameters
Model name | RG52-050 | RG75-300 |
Adjustable stroke | 0-52mm | 0-75 mm |
Single-finger gripping force | 2-50N | 40-300 N |
Open/close time | 0.65s | 0.55s |
Repeat accuracy(mm) | ±0.02 mm | ±0.02mm |
Maximum recommended load | 1Kg | 6kg |
Drop detection | support | support |
Power-off maintenance | support | support |
Usage environment | 5~40℃，85% under RH | 5~40℃，85% under RH |
Operation noise | ＜40 dB | ＜40dB |
weight | 0.75Kg | 1.5Kg |
Protection level | IP 54 | IP65 |
Rated voltage(V) | DC 24V±10% | DC 24V±10% |
Maximum current(A) | 0.8 A | 1.5A |
Rated current | 0.5 A | 0.55A |
Communication protocol | ModbusTU(RS 485)，Digital I/O | Modbus RTU(RS 485) |
International standards | CE、RoHS | CE、RoHS |
Vertical allowable static load Fz | 200N | 400 N |
Slider allowable static moment Mx | 2.5 N·m | 8 N·m |
Slider allowable static moment My | 2 N·m | 8 N·m |
Slider allowable static moment Mz | 2.8 N·m | 8 N·m |

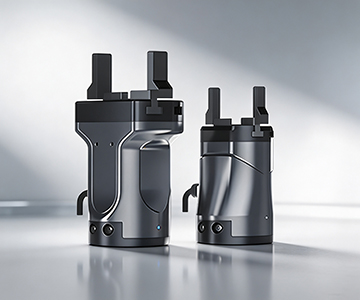

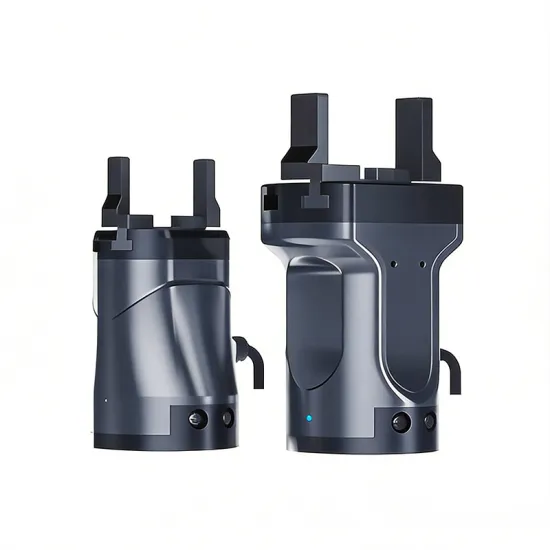

Product Display

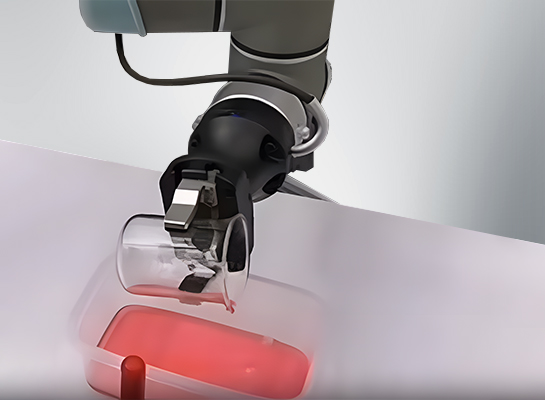

Precision Force Control

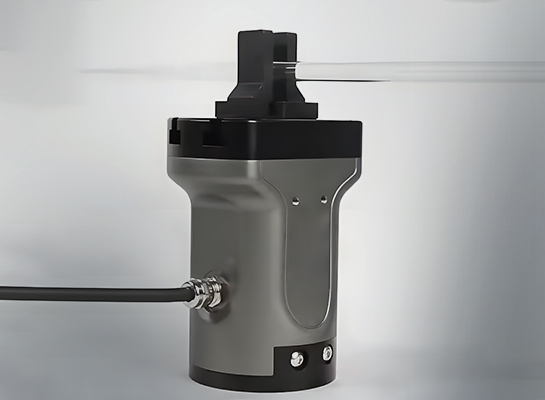

Precisely adjustable gripping force adapts to different workpieces, enabling flexible gripping. Combined with ±0.02 mm repeatability, it ensures stable, precise, and reliable gripping performance.

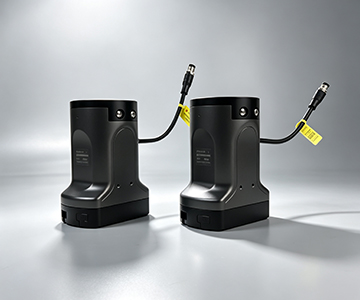

High Protection Level
With an IP65 protection rating, the gripper effectively resists dust and water droplets or splashing, making it suitable for a wide range of industrial operating environments and ensuring stable, reliable performance in automated gripping applications.

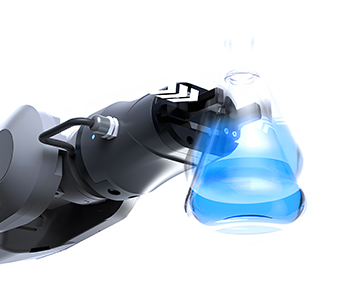

Smart and Flexible

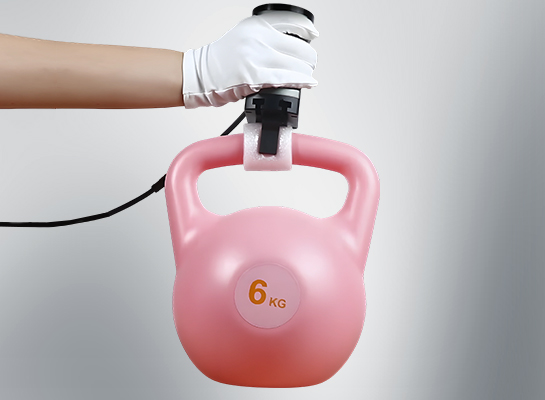

High Load Capacity
The RG series gripper delivers strong gripping force with a maximum load capacity of up to 6 kg, enabling stable handling of heavier workpieces. It maintains a secure grip even under load, effectively reducing the risk of workpiece slippage.

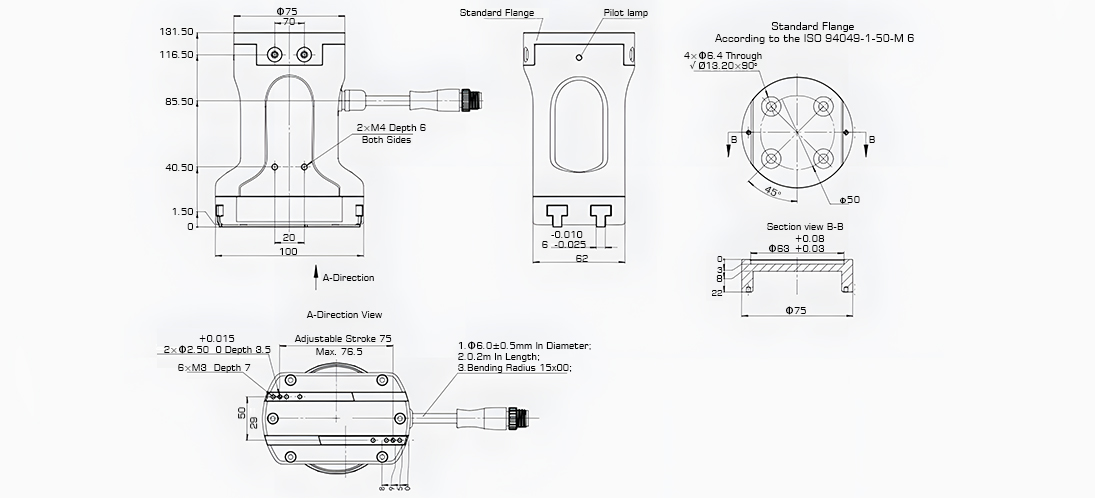

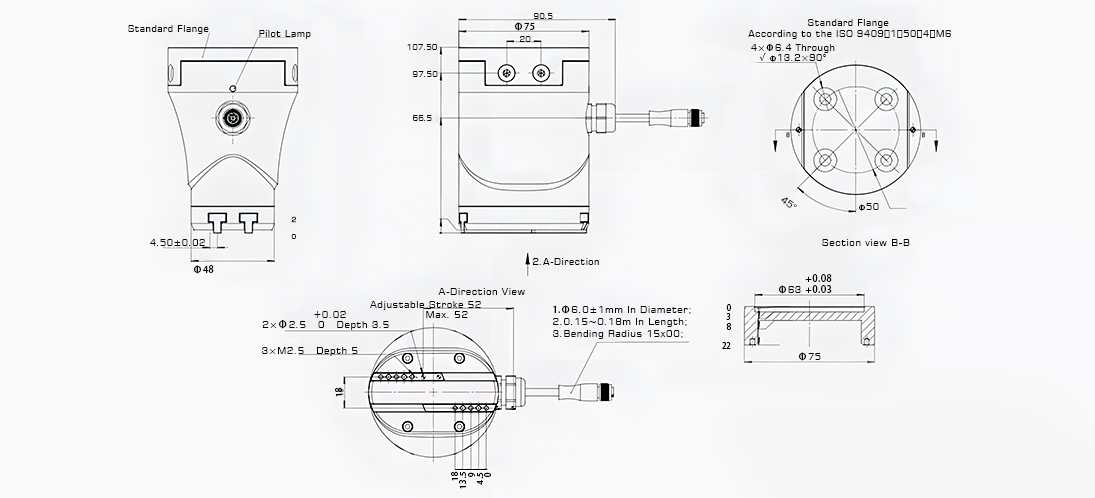

Dimensional drawing
RG52-050
RG75-300

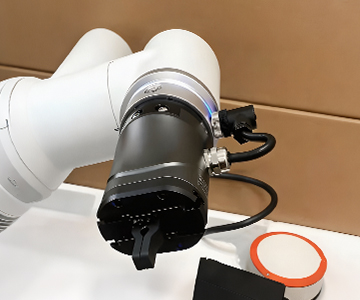

Application Cases
The RG series gripper is suitable for various industrial applications, including inspection, loading and unloading, packaging, automated handling, and heavy-duty gripping. It can flexibly handle workpieces of different shapes, sizes, and weights to meet diverse automated production needs.

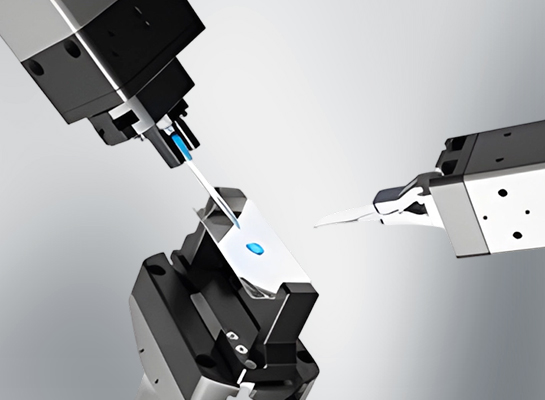

Inspection

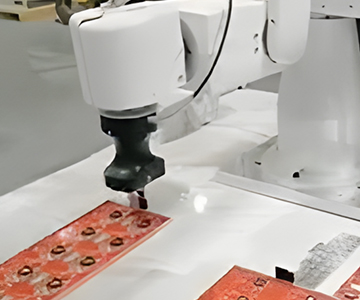

Loading and unloading
Packaging
