Description
The mobile robot chassis has super corrosion resistance and a load capacity of 220.5 pounds. The price of the robot chassis will be determined by the material used to manufacture the chassis.

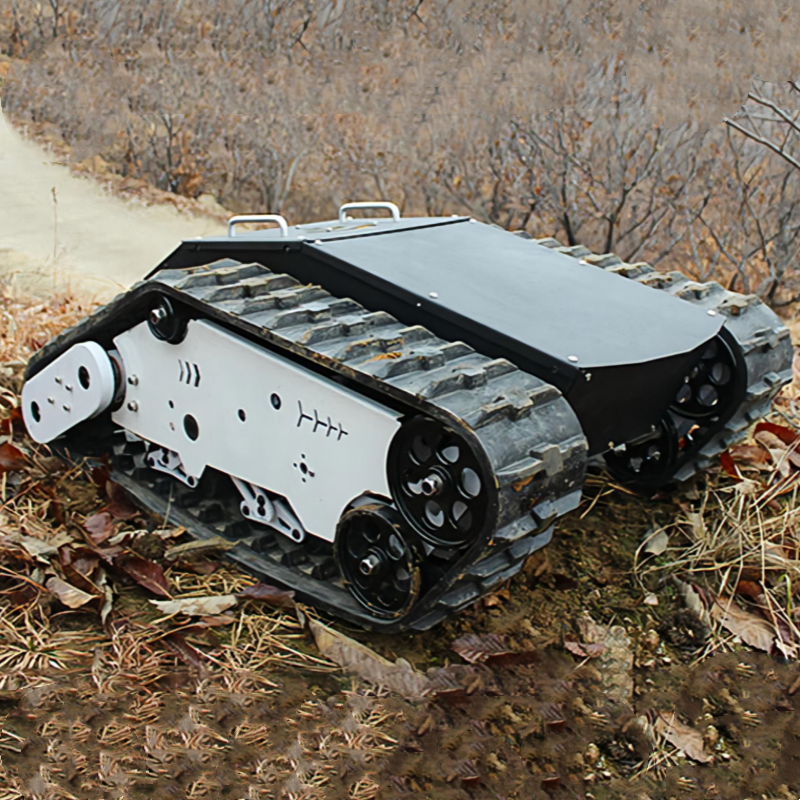

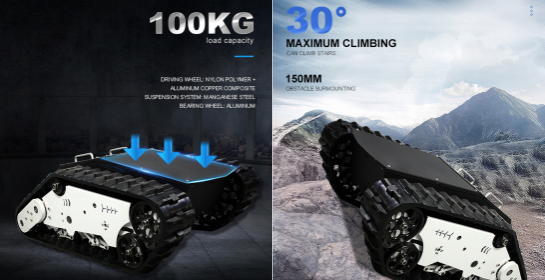

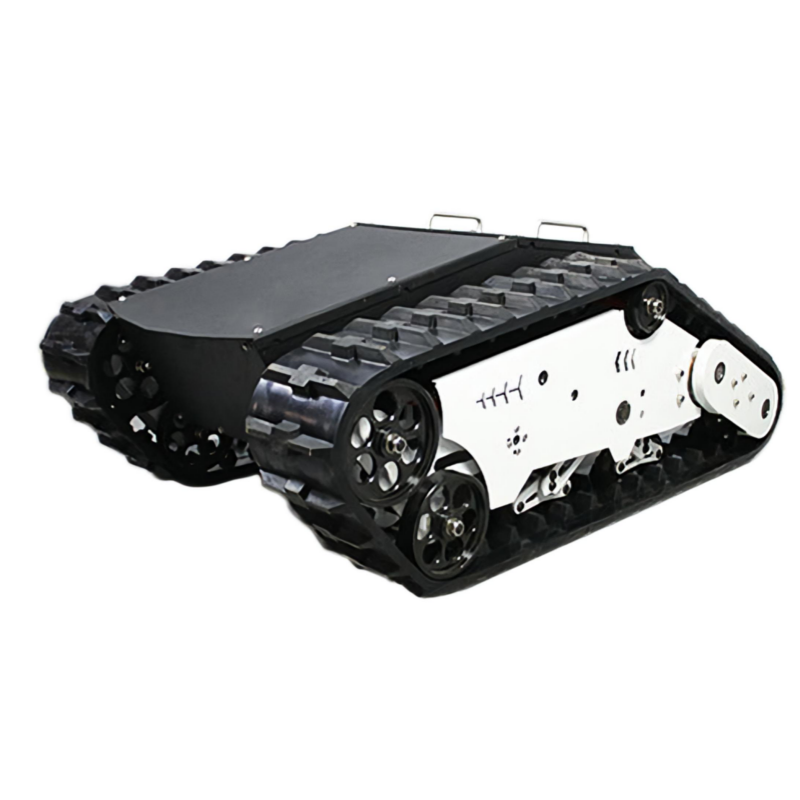

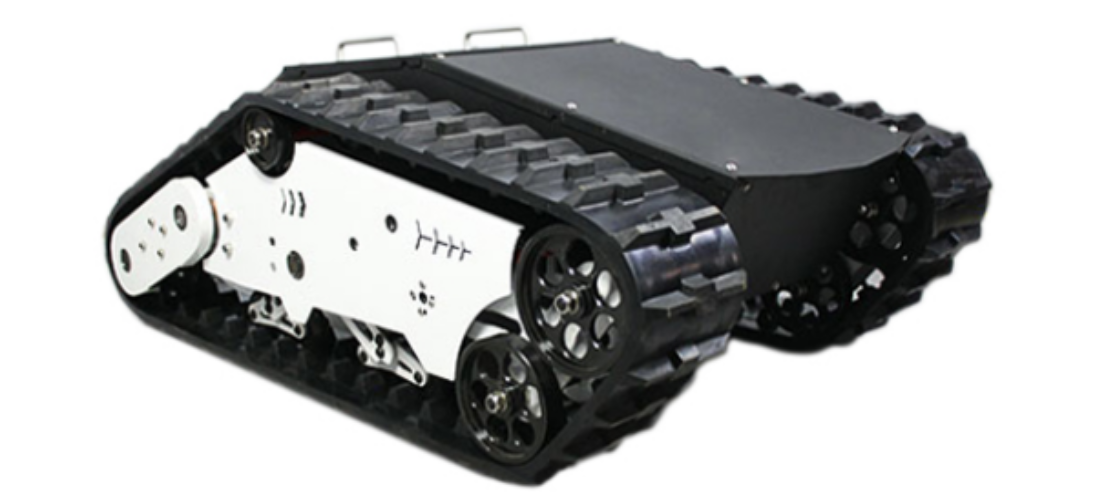

C10 Robot Chassis has a Christie Suspension system and a Matilda 4-wheel balance system, which has better shock absorption and terrain capability. Carrying 100kg load, it can reach any rough area, even across 45°slope.
Product Features

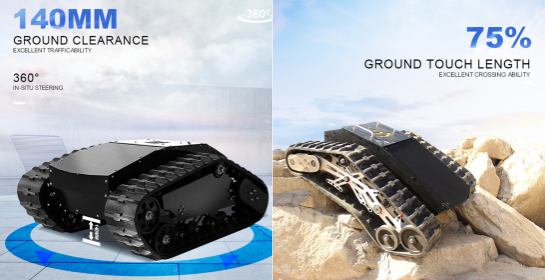

1. 140mm ground clearance, excellent trafficability.
2. 75% ground touch length, excellent crossing ability.
3. Superior grip, perfect obstacle-crossing performance.
With a ground clearance of 140 mm, this vehicle offers excellent trafficability, ensuring smooth navigation over various terrains.
The 75% ground touch length enhances its crossing ability, allowing it to tackle obstacles with ease. Coupled with superior grip, it delivers outstanding obstacle-crossing performance, making it an ideal choice for challenging environments.
Whether navigating rugged landscapes or maneuvering through urban obstacles, this vehicle is designed to excel.
Product Params
| Item | Data | Item | Data |
| Body Material | 304 Stainless Steel Skin, Galvanized Square Tube | Size | 1020*750*405mm |
| Track Material | Quality Rubber Embedded with Kevlar Fiber | Internal Size (Excluding Battery) | 320*295*240mm |
| Weight | 120KG | Loading Capacity | 100KG |
| Motor | Kane Motor 110BL03 | Ground clearance | 115mm |
| Track Width | 150mm | Max. span | 300mm |
| Drive Wheel Diameter | 160mm | Rated Torque | 60NM |
| Wheel Material | Aluminium | Ground Contact Length | 74cm |
| Reduction Ratio | 1:7.5 | Reducer | NMRV50 |
| Surface Treatment | Sprayed / Partially Painted | Running Speed | 6KM/H |
| Climbing | 30°, can climb stairs | Power | 1000W*2 |
Motor Parameter:
| Model | 110BL03 |
| Poles | 8 |
| Phase | 3 |
| Rated Voltage | 48 VDC |
| Rated Speed | 1400 RPM |
| Rated Torque | 6 N-m |
| Rated Current | 8 Amps |
| Output Power | 1884 Watts |
| Peak Torque | 18 N-m |
| Peak Current | 24 Amps |
| Torque Constant | 0.078 N-m/Amps |
| Anti-Potential Constant | 81.6 V/kRPM |
| Moment of Inertia | 320 Kg·mm2 |
| Lead Length | 500 mm |
| Body Length | 187 mm |
| Weight | 9.6 kg |
APPLICATION
1. Exploration of inspection
It is ideal for exploration and inspection tasks, providing reliable access to remote areas.
2. The rescue vehicle
In emergency situations, it functions as a dedicated rescue vehicle, equipped to assist in critical rescues.
3. Scientific research and education
Its capabilities extend to scientific research and education, facilitating data collection in diverse environments.

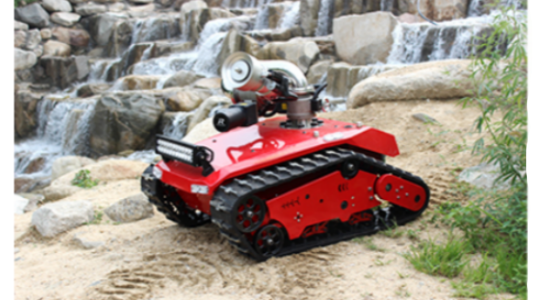

4. Fire control security guard
The Robot Chassis also plays a crucial role in fire control and security, ensuring rapid response in emergencies.

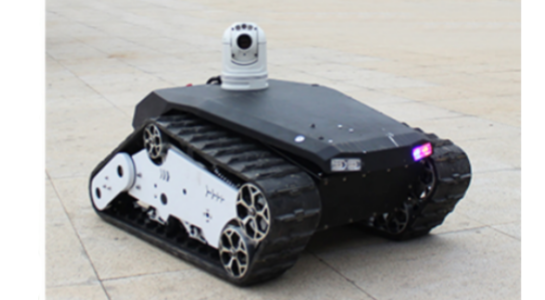

5. Special photography
Its adaptable design allows for the mounting of advanced camera systems, enabling high-quality imaging in challenging environments, whether for wildlife observation or artistic endeavors.
6. Special transport
In addition, the chassis can be equipped with equipment to handle various transport tasks, facilitating the movement of equipment or materials in environments where traditional vehicles are difficult to move.
Service
1. 1 year warranty for main parts
During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight.
2. Spare Parts
Most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients.
3. Operation and Maintenance
We will offer you detailed operation manual, ensuring you can use it perfectly.
4. Online support
Video technical support
5. Online Service
your question will be answer within 24 hours during working days, 48 hours during holiday.
Pack
To ensure the ultimate protection of your products during transportation, we offer a comprehensive range of packaging solutions, including sturdy wooden boards, durable cartons, and high-quality foam packaging. These materials are specifically designed to safeguard your items from damage, providing a reliable barrier against the rigors of transit. By choosing our packaging options, you can rest assured that your products will arrive safely and in excellent condition.
Transport
We offer a range of freight methods to meet your needs, ensuring that your shipments are delivered efficiently. Typically, our deliveries arrive within 3 to 5 working days, allowing you to plan your operations with confidence. Whether you require standard shipping or expedited services, our reliable freight options guarantee timely arrival, helping you maintain your schedule and meet customer demands effectively.
