Description
T8H Crawler Robot Chassis
Dimension：L800*W595*H350MM Self Weight：About 50kg
Motor Reduction Ratio：1:30 load 100kg Maximum running speed：2.5km/h
Product Features
This robot chassis can be used with the following:
1. Exploration of inspection
It is particularly effective for exploration and inspection tasks, allowing access to hard-to-reach areas with precision.
2. The rescue vehicle
In emergency situations, it can function as a rescue vehicle, equipped to assist in critical operations.
3. Scientific research and education
Its capabilities extend to scientific research and education, facilitating data collection and hands-on learning in diverse environments.
4. Fire control security guard
This robot chassis also supports fire control and security operations, ensuring rapid response to emergencies.
5. Special photography
Its adaptable design allows for the mounting of advanced camera systems, enabling high-quality imaging in challenging environments, whether for wildlife observation or artistic endeavors.
6. Special transport
In addition, the chassis can be equipped with equipment to handle various transport tasks, facilitating the movement of equipment or materials in environments where traditional vehicles are difficult to move.

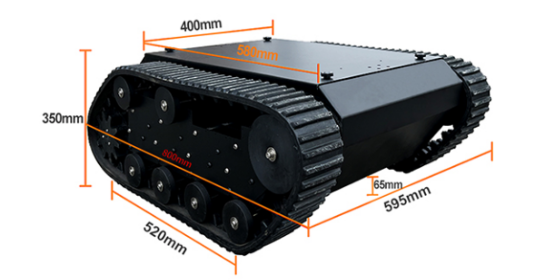

Structure Diagram
Product Params
| Item | Data | Item | Data |
|---|---|---|---|
| Size | L800*W595*H350MM | Surface treatment | Electrostatic paint |
| Weight | 50kg | Body Material | 2mm stainless steel |
| Drive Mode | Left and right independent drive, with crawler differential steering | ||
| Gyroscope Parameters | 9-axis gyroscope | Communication Interface | TTL serial port/CAN interface (provides communication protocol) |

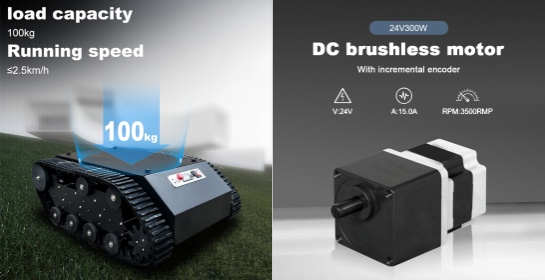

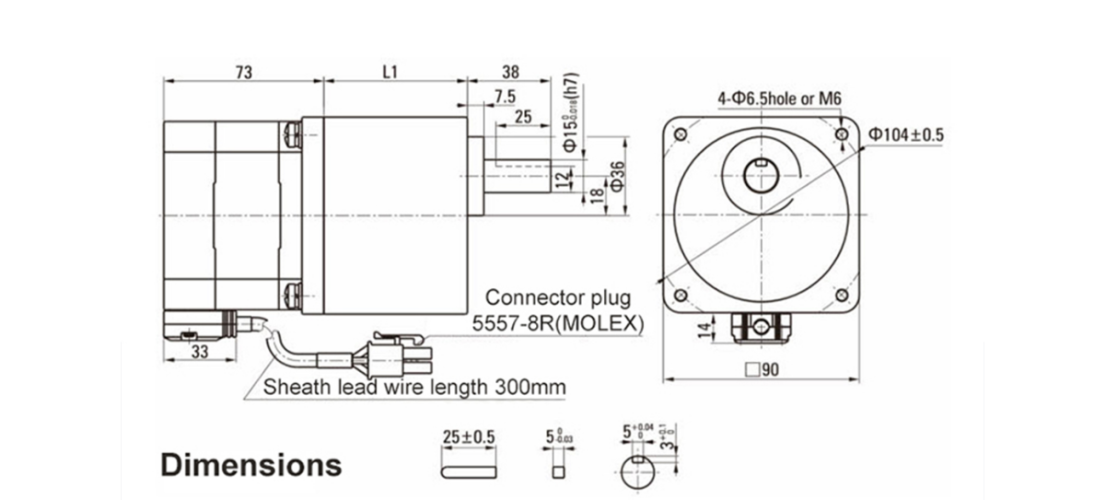

| Motor | DC brushless motor 24V300W*2 | Encoder | Incremental photoelectric encoder 1000 lines*2 |
| Motor Reduction Ratio | 1:30 load 100kg, maximum running speed: 2.5km/h | ||
| 1:10 load 60kg, maximum running speed: 6.0km/h | |||
| Track Material | 87mm thickened high-quality rubber track with embedded Kevlar fiber | ||
| Gradeability | 30 degrees | Shock absorption Design | 8 groups of independent suspension shock absorption system |
| Minimum Turning Radius | 0M (spin in place) | Obstacle Crossing Ability | 130mm |
| Lithium Battery | 24V30Ah with overcharge and overdischarge protection | Charging Method | 220V independent aviation charging plug |
| Battery Life | About 1.5-2 hours; battery capacity can be increased for longer battery life | ||

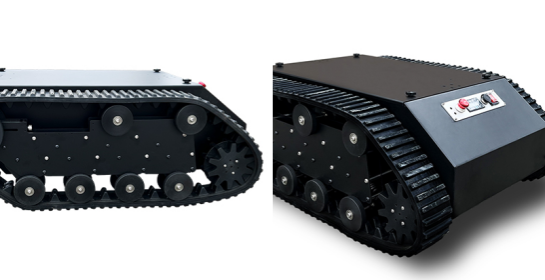

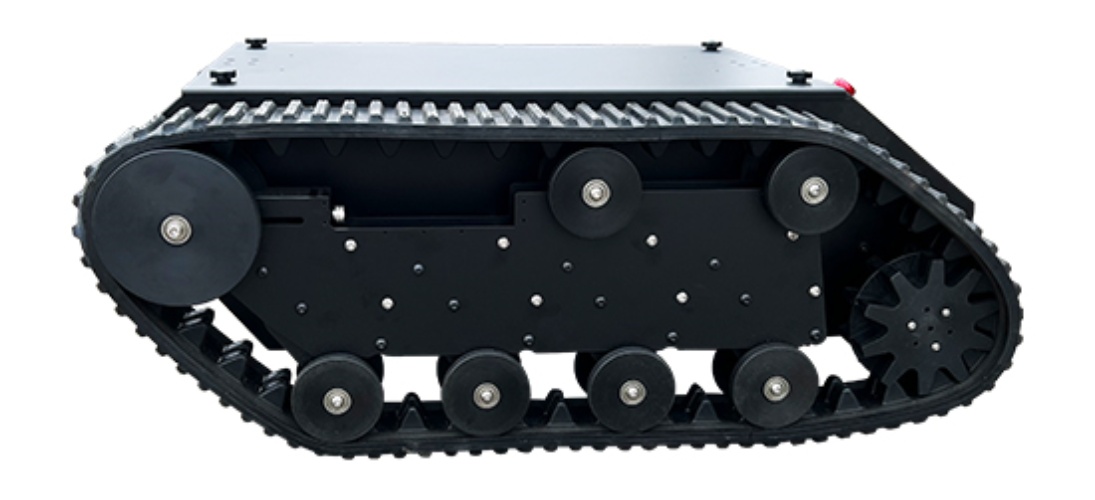

More Detail
Service
1. 1 year warranty for main parts
During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight.
2. Spare Parts
Most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients.
3. Operation and Maintenance
We will offer you detailed operation manual, ensuring you can use it perfectly.
4. Online support
Video technical support
5. Online Service
your question will be answer within 24 hours during working days, 48 hours during holiday.
