LMG-40 Robot Gripper

Robot Hand Robot Gripper

  • Recommended load:3kg
  • Weight:0.64kg
  • Clamping force:12-50N
  • Route:20-60mm

USD: 475

ablity:Monthly Output1000

contact shop

Product Description

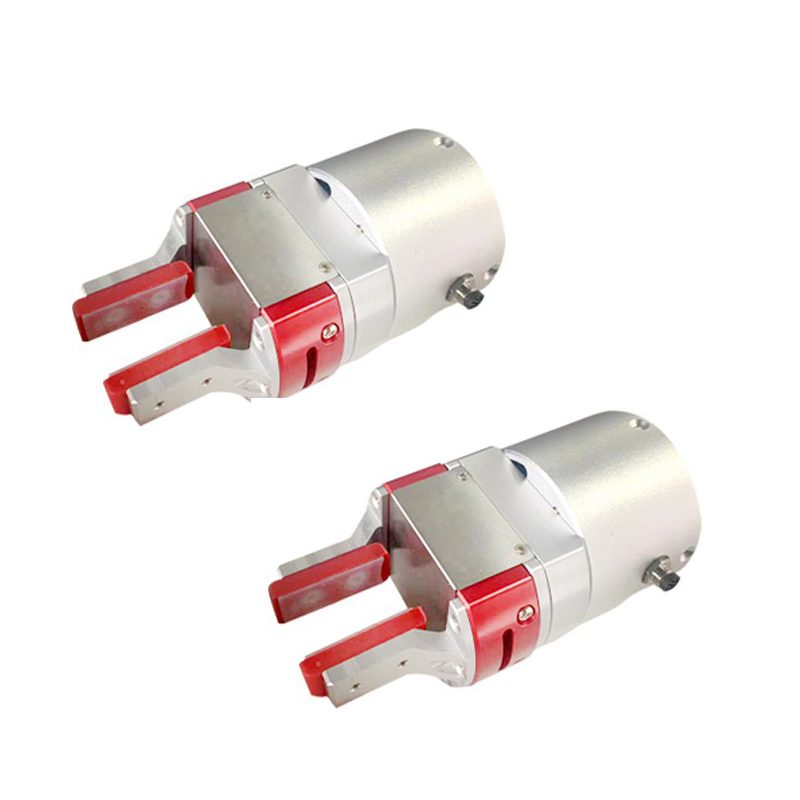

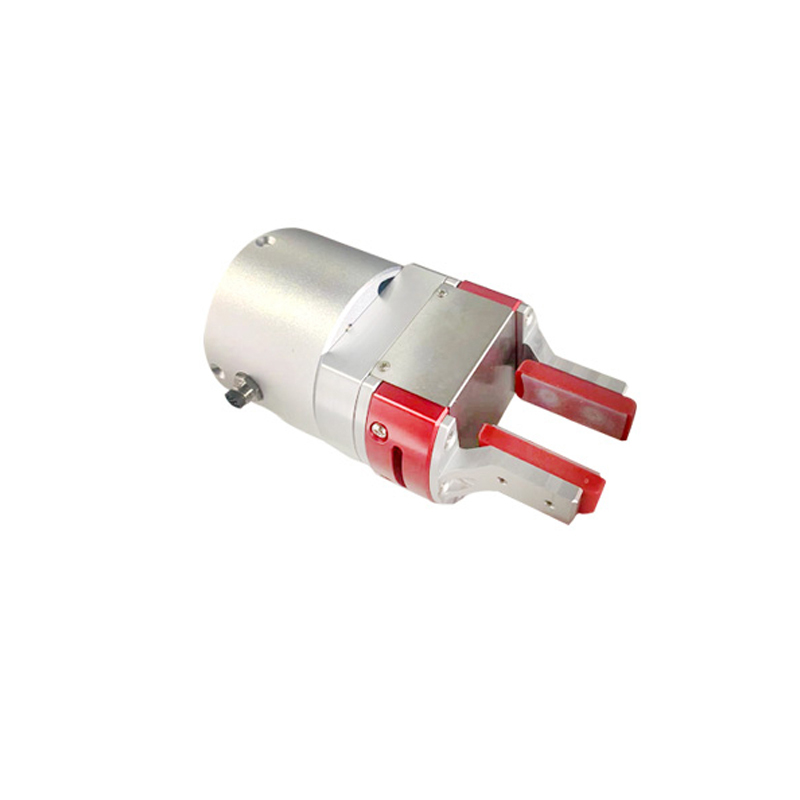

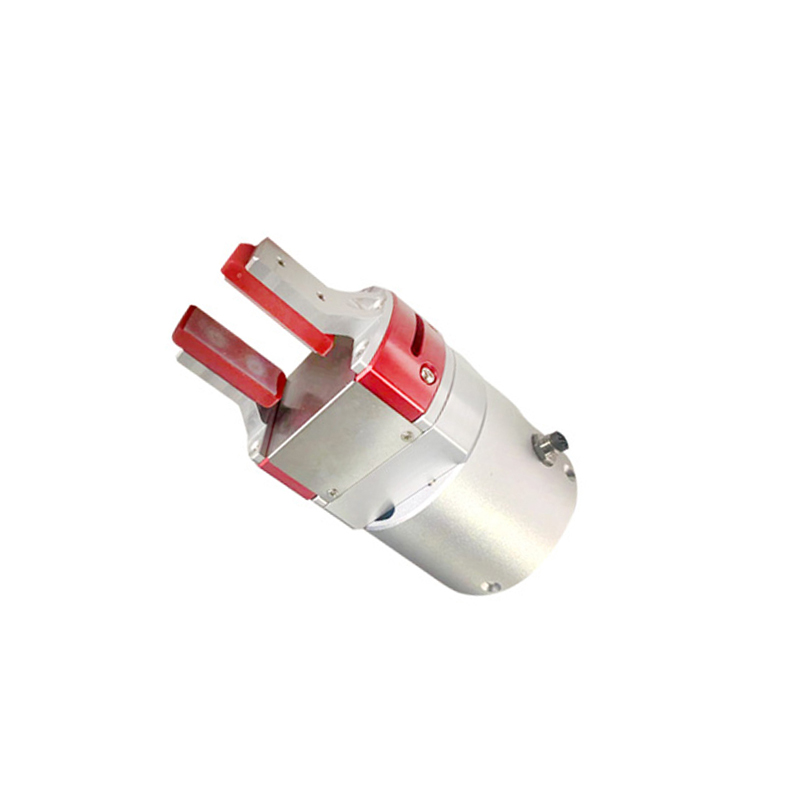

LMG-40 Gripper

The large-stroke force-controlled electric gripper can grab objects of different sizes and shapes. It is equipped with 2DI/2DO interface and 1 U-ART sensor interface. The suction cup and photoelectric sensor components can be selected according to user needs to detect objects and realize the composite functions of suction and gripping.

Product parameters

Recommended load3kg
Weight0.64kg
Clamping force12-50N
Power supply24V(DC)
Route20-60mm
CommunicationRS485
ControllerBuilt-in
Self-lockingNO
IO2DI/2DO
Sensor interface1 UART


Product Display



LMG-40


The mid-stroke force-controlled parallel electric gripper can grasp objects of different sizes and shapes.



The gripper has an IO port. According to user needs, the suction cup and photoelectric sensor components can be selected to detect objects and realize suction and clamping combination.


The gripper has a reserved UART sensor interface, which can be expanded with laser rangefinder and camera module, etc.

Application Cases

Robot grippers are widely used in many fields such as industrial manufacturing, precise assembly of parts, efficient handling and palletizing of goods in logistics and warehousing, gentle sorting and packaging of food ingredients in food processing, and fine operation of medical surgery, which effectively promote the automation process of various industries.
