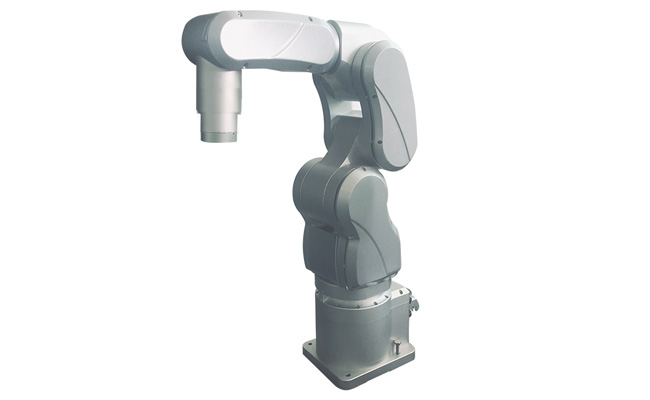

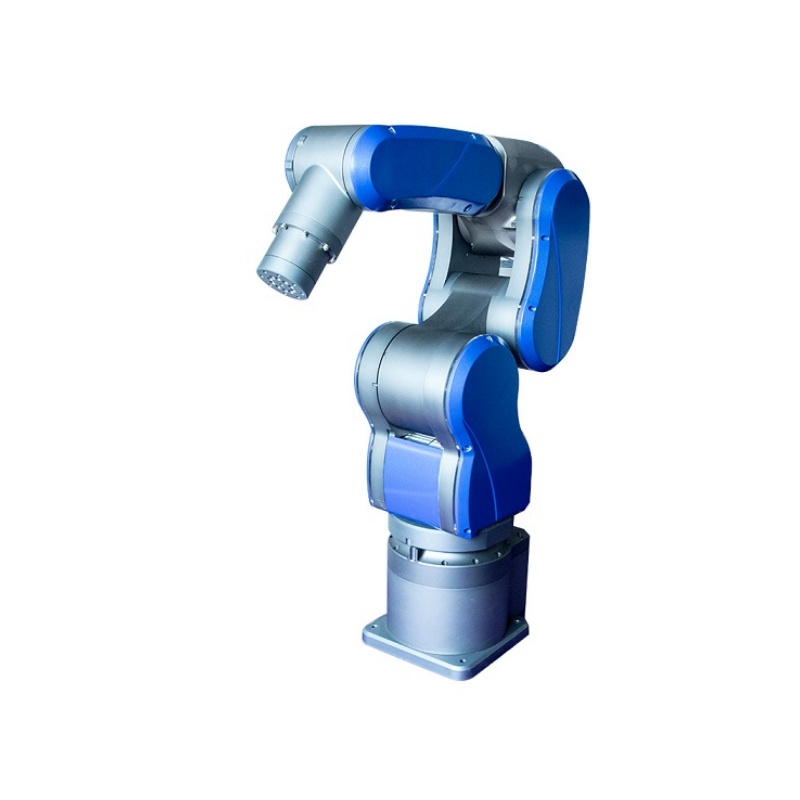

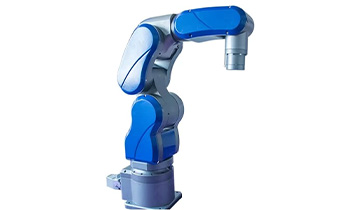

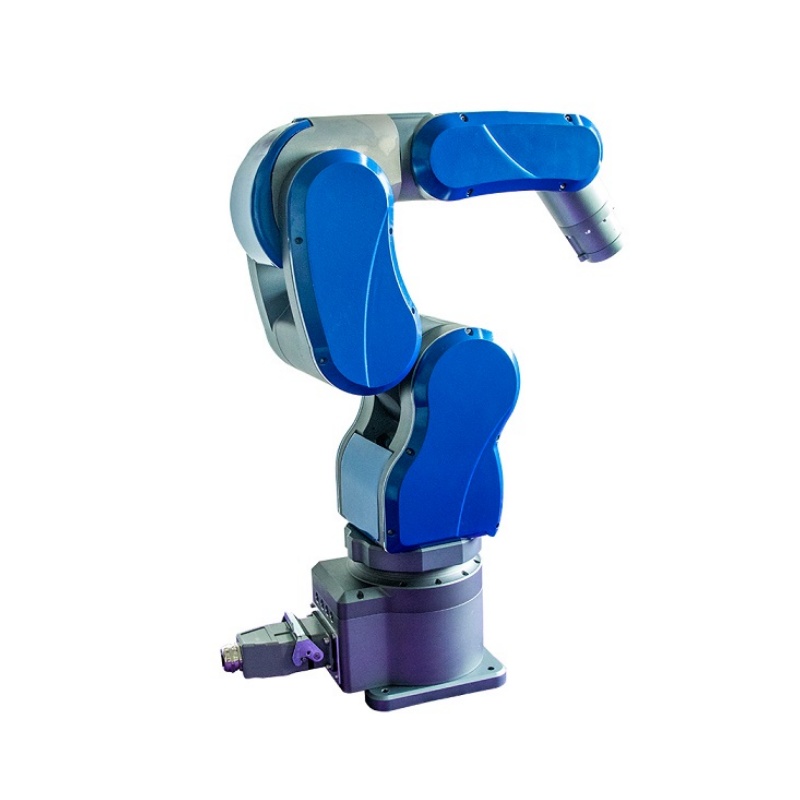

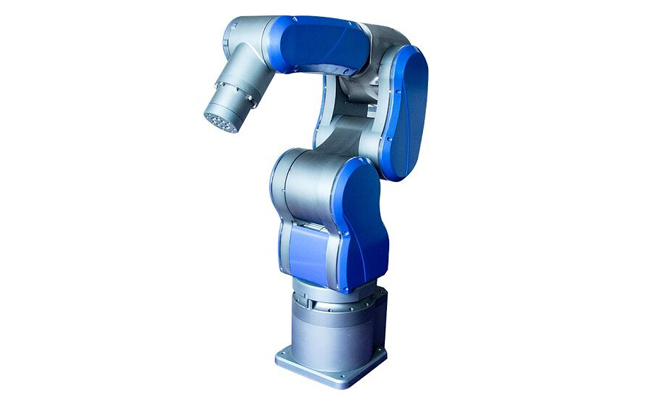

Product Description
The design is compact, takes up little space, but contains powerful functions. Its six axes give it a high degree of flexibility and precision, allowing it to extend, rotate and grasp in a variety of complex working environments. Whether in the narrow corner of the workshop, or on the precision laboratory operating table, it can play a role.
The use of advanced materials and manufacturing processes ensures the stability and durability of the robot arm. The high-strength metal frame can withstand high-strength working loads, and there will be no deformation or failure during long-term operation. At the same time, the precise transmission system and sensors make every action accurate and the error is minimal.
Product Features
The operation is simple and convenient, and through the intuitive control system, you can easily program and control the movements of the robot arm. Whether it is a professional engineer or a novice who contacts the robot arm for the first time, it can master its operation method in a short time. It can complete a variety of complex tasks, such as parts assembly, goods handling, fine processing, etc., greatly improving work efficiency and production quality.
This small robot arm with 6 axes is not only a tool, but also the crystallization of technology and innovation. It will bring a new experience to your production and work, and help you stand out in a competitive market.
Number of axes: 6 axes, 6 degrees of freedom;
Load: 5kg;
Operating radius: 700mm;
Body material: aluminum alloy;
Fuselage processing technology: CNC machining, sandblasting, oxidation;
Power device: industrial servo motor with multi-circle absolute encoder (4);
Industrial servo motor with brake includes multi-circle absolute encoder (2);
Reduction device: harmonic reduction (1-6 axis);
Zero return device: multi-turn absolute value encoder
Application Cases

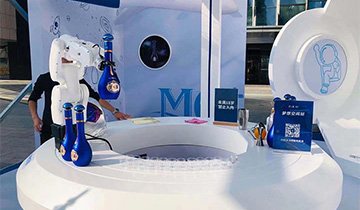

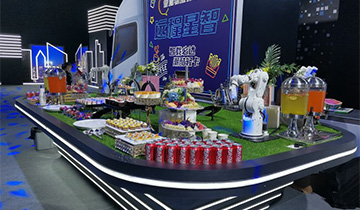

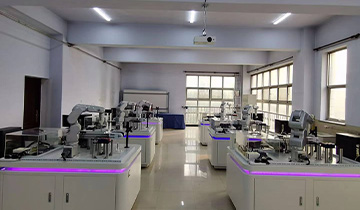

6 axis robot arm, open a new intelligent experience. In the unmanned coffee machine, precise operation, grinding, brewing in one go, for you to serve strong coffee. Next to the bartender, it dances flexibly, making colorful drinks, and every bite is a surprise. Enter the field of teaching and research, help teaching and scientific research, stimulate innovative thinking, and lead the future trend of science and technology.
Technical Parameter
| item | argument | item | argument |
|---|---|---|---|
| Number of axes | 6 | Fuselage material | 6061 aluminium alloy |
| Operating radius | 700mm | Power plant | Ac servo motor |
| Maximum load | 3KG | Reduction gear | Harmonic deceleration |
| Rated load | 5KG | Repeated positioning accuracy | + / - 0.05 mm |
| Body weight | 25KG | Environment Requirements Temperature/humidity | Temperature 5℃-50℃/ Humidity 10%-80% |
| Input voltage | 220V | Installation mode | Countertop, side mount, flip mount |
| Operating range (Axis 1) | -175°~+175° | Maximum speed (Axis 1) | 176°/SEC |
| Operating range (Axis 2) | -130°~+50° | Maximum speed (Axis 2) | 176°/SEC |
| Operating range (Axis 3) | -120°~+50° | Maximum speed (Axis 3) | 148°/SEC |
| Operating range (Axis 4) | -175°~+175° | Maximum speed (Axis 4) | 237°/SEC |
| Operating range (Axis 5) | -120°~+120° | Maximum speed (Axis 5) | 237°/SEC |
| Operating range (Axis 6) | -180°~+180° | Maximum speed (axis 6) | 400°/SEC |
Packing list
Packing: As a rule, we use standard export packing. We can also according to customer requirements.
Specifications:

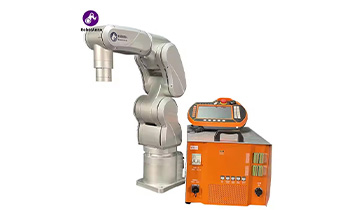

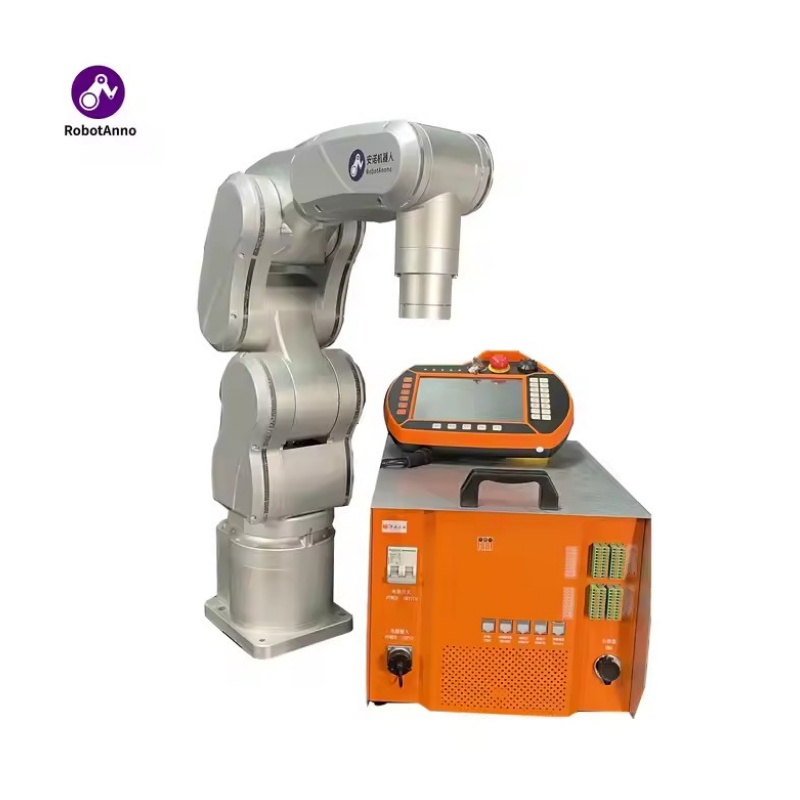

Model: 6-axis manipulator SJ602-A
Case material: aluminum
Volume weight: 41 kg
The package includes:
Carton 1 (65cm * 60cm * 32cm, 32kg) :
1* robot arm body
Carton 2 (43 cm*43 cm* 23 cm, 9 kg) :

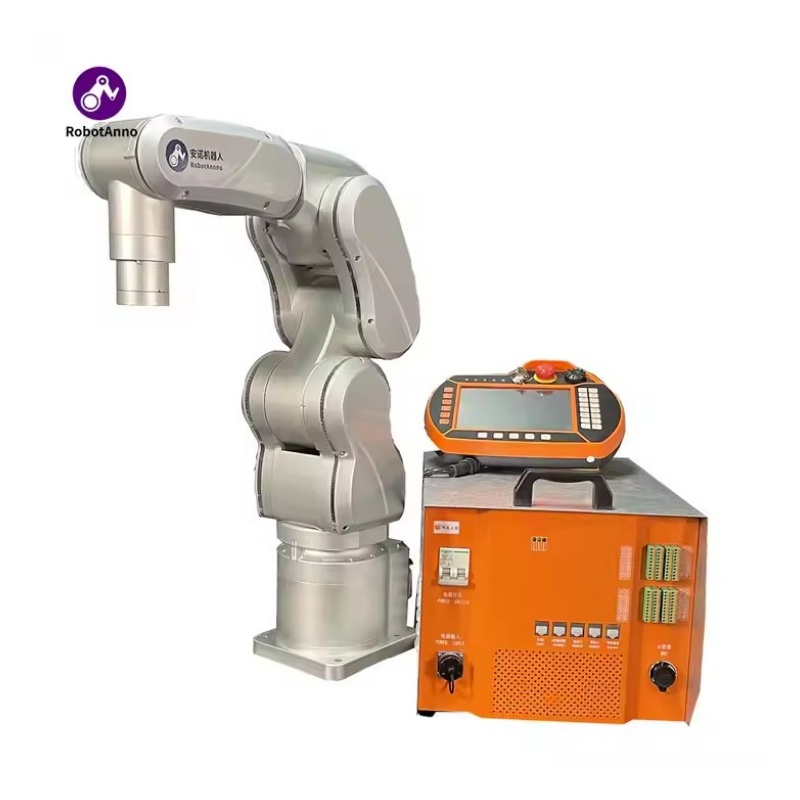

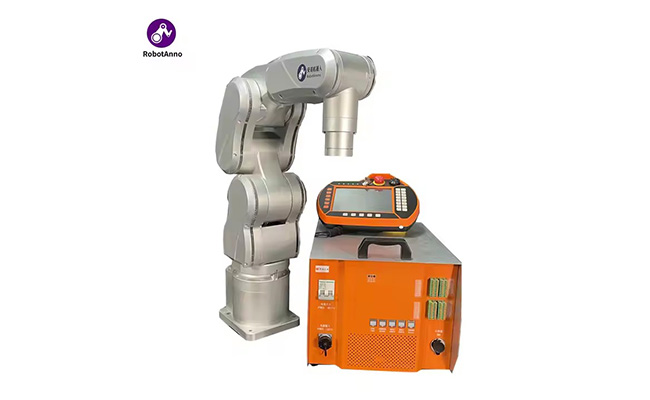

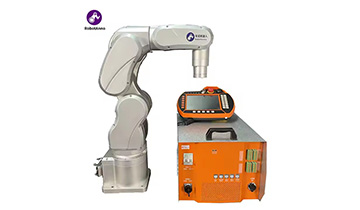

1* Robot controller
1* power cord
1* USB cable
1* USB disk (includes user manual and information)
