Description

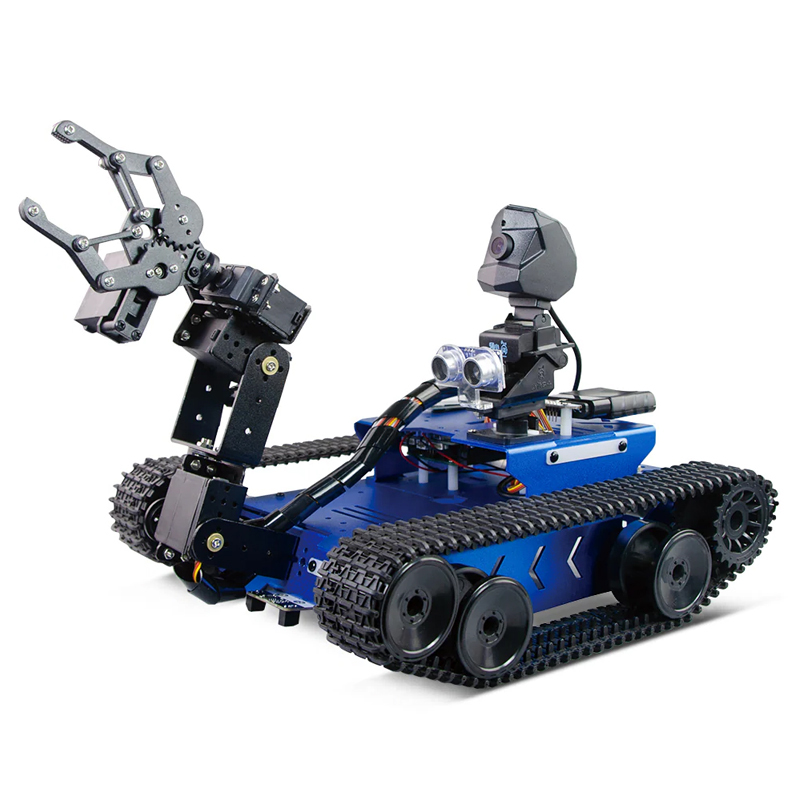

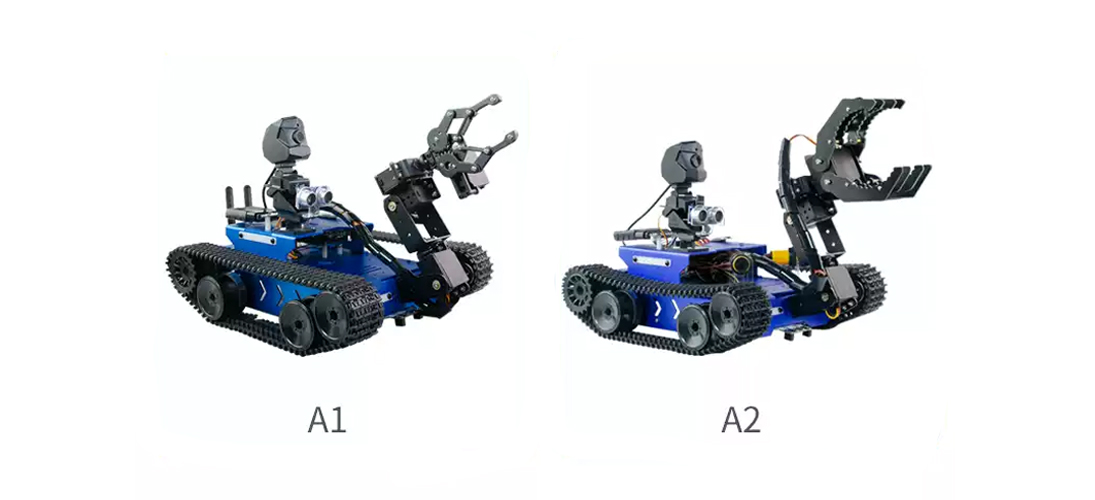

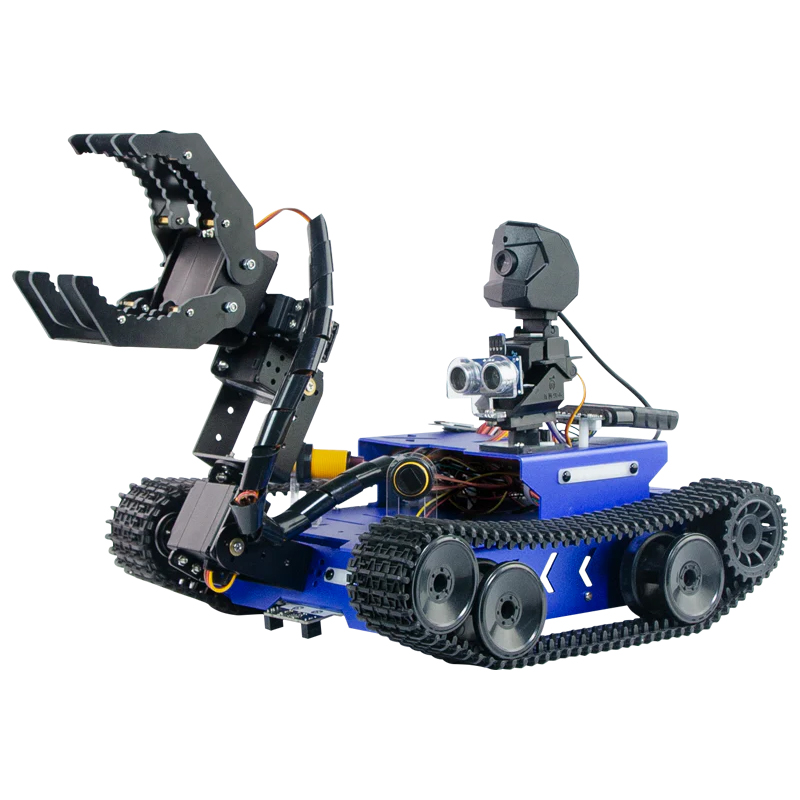

The GFS-X robot is an advanced vehicle-shaped robot with a crawler structure. The large size of the vehicle body makes it easy to install various sensors and expansion modules. It is suitable for different application scenarios such as rough roads, climbing slopes, crossing ditches, etc.
The GFS-X robot also has AI machine vision, which allows users to learn and expand artificial intelligence functions such as visual line detection, face recognition and color recognition.
Specification Parameters
| Development Boards | Raspberry Pi |
| Camera | 720P HD camera |
| Driver board | PWR.X.A |
| Drive wheel | Crawler |
| Size | 301*260*211mm |
| Remote control method | WiFi/Bluetooth/PS2 controller |
| Frequency range | 2.400-2.4835GHz |
| Programming language | Arduino-c/c/python |
| Battery | 12.6V-2200mAh |
| Motor | TT DC gear motor |
| Robotic Arm | Four-degree-of-freedom robotic arm |
| Signal range | ≤80m open distance |
| Motor drive | TB6612 Dual Motor Driver |
| Charging method | No need to disassemble the plug-in |
| Supply voltage | 12V lithium battery pack |
| Wireless Communications | Support 802.11b/g/n protocol up to 150Mbps. |
| Control Platform | 1. Mobile APP 2. PC client 3. PS2 controller |
Product Features

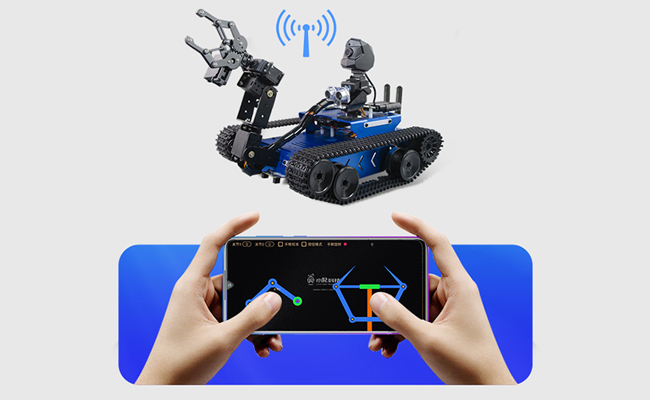

WlFI Wireless Remote Control
After the car is turned on, it generates a WiFi signal.and the mobile phone or tablet can connect to the car through WiFi,and control it with a dedicated APP

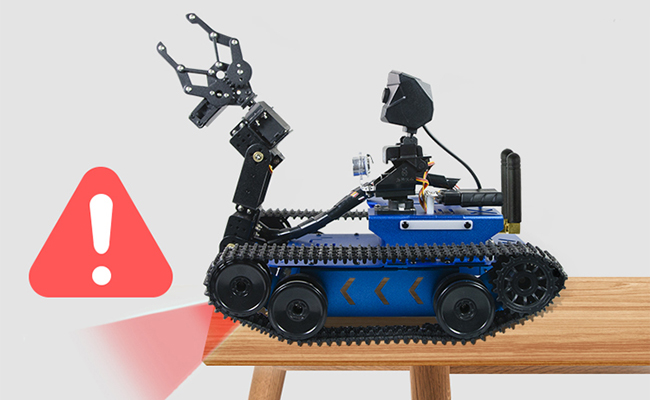

Infrared Anti-drop Function
The car is running smoothly on the table. when it is close to the edge of the table, the infrared sensor of the car detects that there is a danger of falling, and it will no longer respond to the forward command

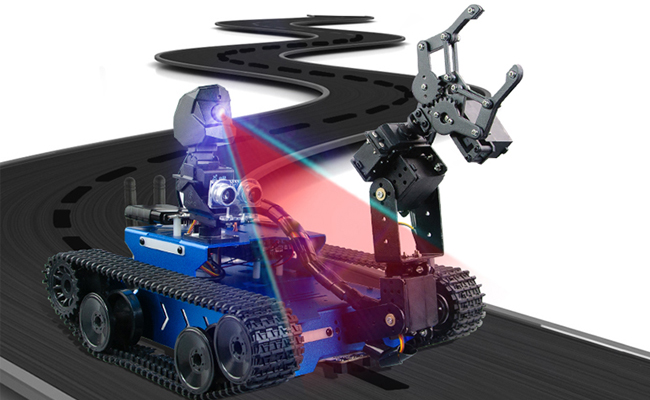

720P Camera Line Inspection
The car recognizes the black tracking line arranged on the ground through the camera,and automatically follows the tracking line [Raspberry Pi version only]

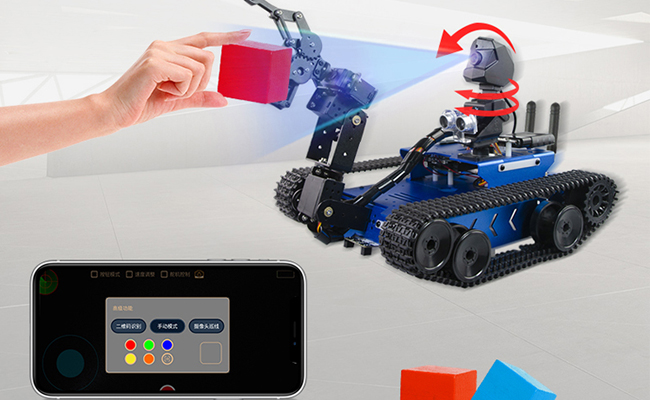

Visual Recognition Color
Set the specified color in the APP, the car recognizes the color of the object through the camera, and uses the gimbal to follow the object.[ Exclusive to Raspberry Pi version 】
Case
Youth Robotics Competition
Zhejiang University Laboratory
Artificial Intelligence Training Course
