Segment‑driven variable‑curvature servo gripper, adaptive for curved/special‑shaped parts, non‑damage large‑envelope grasping,
pre‑set postures for multi‑size workpieces to reduce tooling changeovers.
Product Description
Adopting modular design with integrated drive‑control architecture, this gripper supports remote control and host computer operation. It enables wrist rotation and independent finger movement. Both gripping force and clamping speed are adjustable to realize flexible enveloping grasping.
Product parameters
| Name | AVORA3F3D | AVORA3F4D |
| Maximum current | 4A | 5A |
| Degree of freedom | 3 | 4 |
| Wrist rotation angle range | / | 0-270° |
| Total Stroke | 150mm (per single finger) | |
| Max Payload | 2kg | |
| Drive Mode | High precision Servo Motor | |
| Max Gripping Force | 30N | |
| Max Grasping Speed | 150mm/s | |
| Gripping Range(Diameter) | Φ1~Φ140mm | |
| Repeat Positioning Accuracy | Finger ±0.5°, Wrist ±0.2° | |
| Weight | 520g | 620g |
| Communication Protocol | Modbus, CanOpen, Standard Servo PWM | |
| Programmable Parameters | Refer to Protocol Document | |
| Recommended Operating Environment | Compatible with any platform per protocol | |

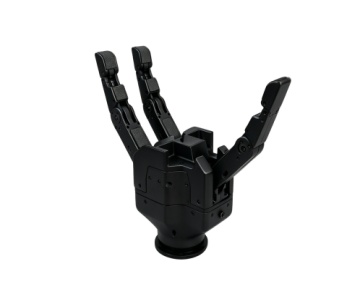

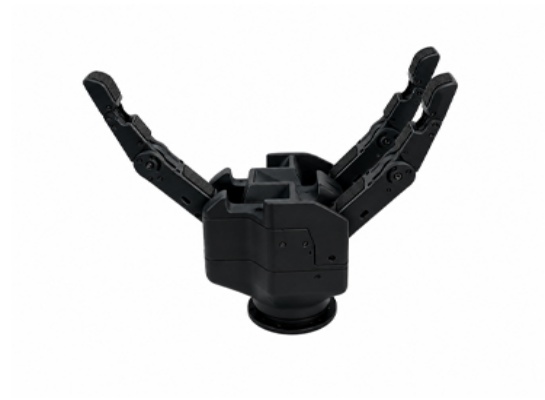

Product Views

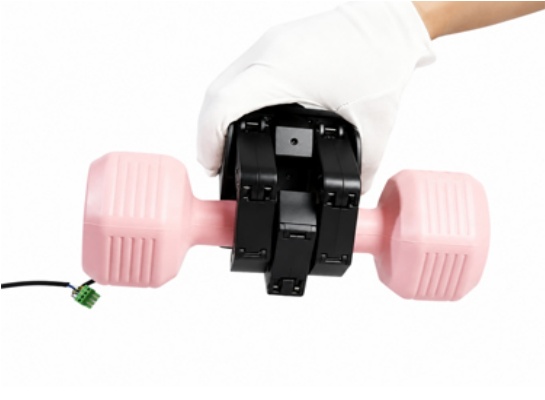

Variable‑curvature Flexible Grasping

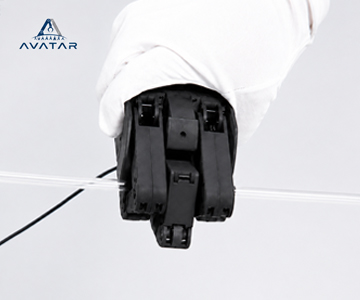

IP68 High‑level Protection
IP68 high protection rating, fully‑enclosed multi‑sealed, fully dust‑proof. Supports water immersion & high‑pressure washing,
resists oil and cutting fluid corrosion. Stable gripping in harsh conditions, reduces failure maintenance.
resists oil and cutting fluid corrosion. Stable gripping in harsh conditions, reduces failure maintenance.

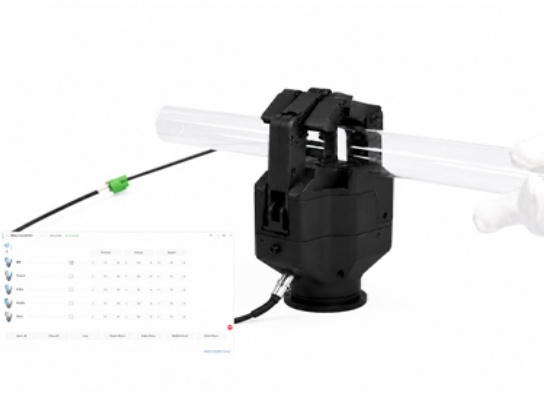

Simple & Easy Operation
It supports remote control with integrated drive‑control architecture and host‑computer compatibility. Featuring easy operation and plug‑and‑play function, it simplifies programming, shortens cycle time and ensures smooth production‑line operation.

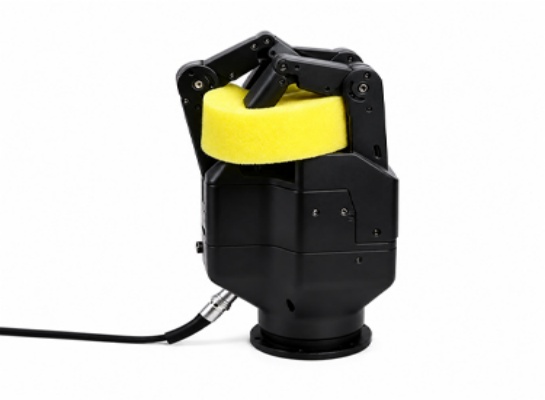

Adjustable Force Control
Adjustable gripping force and clamping speed for flexible parameter setup per workpiece material & shape. Flexible enveloping grasping fits irregular and curved parts, disperses clamping pressure to protect thin‑wall and fragile workpieces, suitable for various materials.

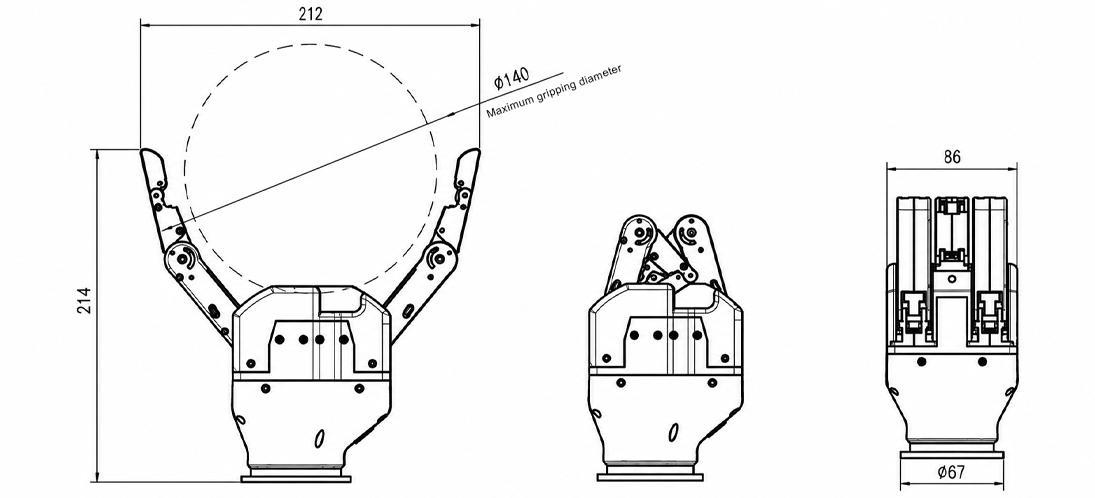

Schematic Diagram

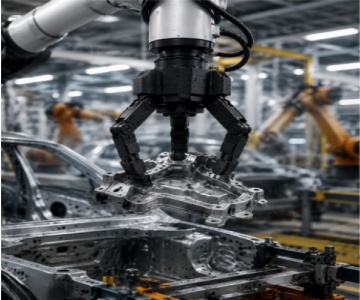

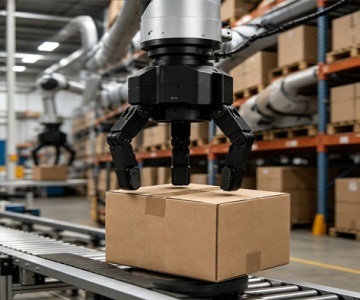

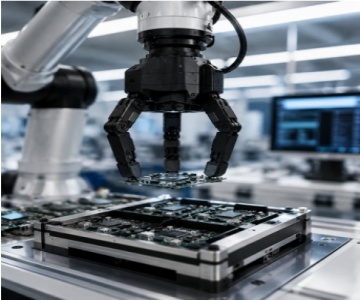

Application Cases
This robotic gripper can grip fruits, handle lab reagents and hold cups. It is suitable for precision electronics, automotive manufacturing, logistics and warehousing. Silent, dust-free, anti-static and high-load, it supports 24h continuous operation for micron-level precision assembly, production processing and material handling.
