Laser-guided AGV
TL-FB-DZ-001

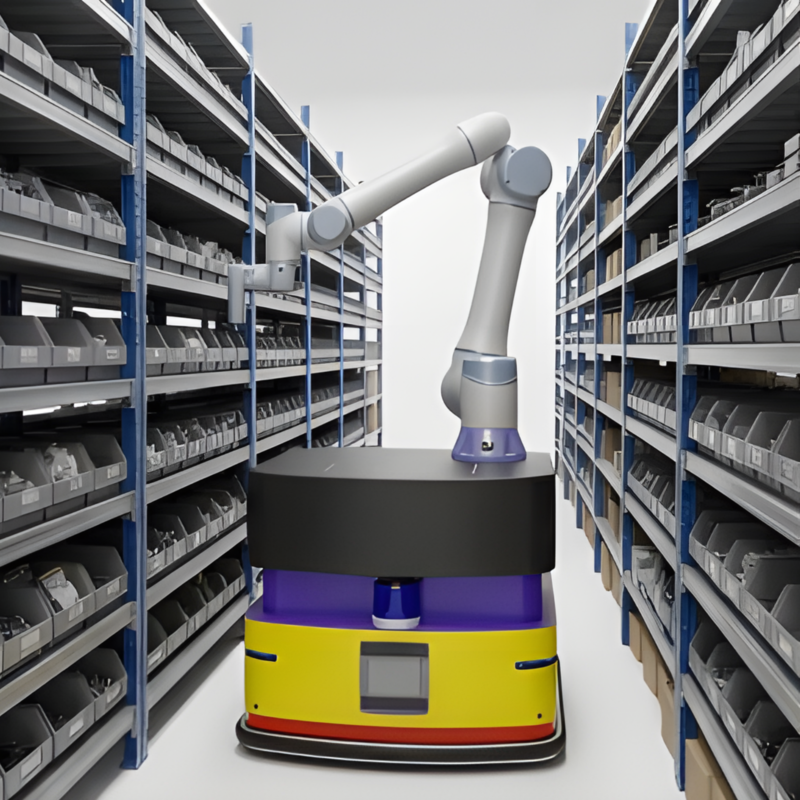

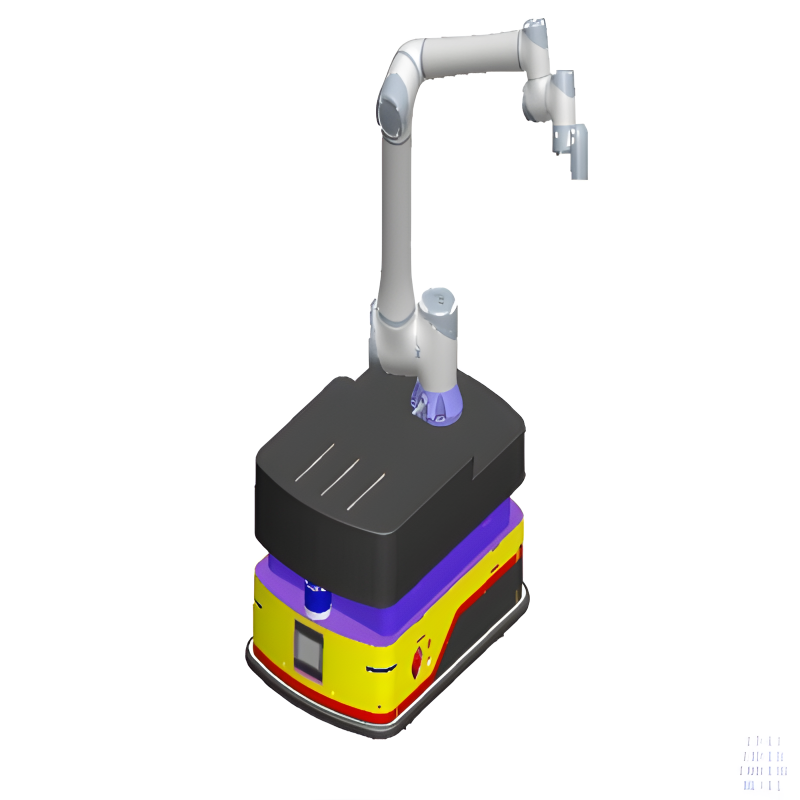

The DZ-001 is a product equipped with a robotic arm;
This AGV (Automated Guided Vehicle) combines a robotic arm with its trolley operation. It's a deeply customized AGV independently developed by TuLing, featuring magnetic navigation, bidirectional movement, and a lifting capacity of 5kg. The lifting weight depends on the robotic arm selection. Customized to meet different user needs, it's widely used in industries such as automotive parts, electronics, home appliances, and footwear.
Product Features
| Navigation Advantages: Magnetic navigation, high cost-effectiveness, accurate positioning, and non-slip; |
Easy Maintenance: Convenient maintenance, easy route changes; |
|
| Safety and Protection: Quadruple safety protection (laser safety protection, obstacle avoidance sensors; mechanical anti-collision device; emergency stop button); Applications: Widely applicable in industries such as automotive, electronics, home appliances, and furniture; |
Product Parameters
Performance Parameters | Description |
| Product Model | TLAGV-800-DZ |
| Dimensions | L1720mm*W800mm*H390mm |
| Weight | 180Kg |
| Transportation Method | Customized |
| Guidance Method | Magnetic strip guidance: S-pole (30mm wide, 1.2mm thick) |
| Drive Method | Differential drive |
| Minimum Turning Radius | 1000mm |
| Driving Speed | 10m/min~45m/min |
| Traffic Functions | Forward, Reverse, Accelerate, Decelerate, Turn, Pause, Permanent Stop, Fork in the Road Selection |
| Control Method | Microcomputer Control, Software Programming, Automatic Tracking Control |
| Landmarking Method | RFID Landmark (RFID IoT Control Technology) |
| Communication Method | Industrial-grade Wireless Module/WiFi Network/RF Network |
| Stopping Accuracy | ±10 mm |
| Maximum Payload | 1000Kg (Other capacities can be customized) |
| Power Supply | DC24V |
| Battery Capacity | Standard 100Ah lithium battery (Other capacities or lithium battery requirements can be customized) |
| Battery Life | ≤8h, >600 charge cycles |
| Charging Method | Offline charging (automatic charging optional) |
| Human Machine Interface | High-quality touchscreen |
| Safety Protection | Obstacle contact buffer + obstacle sensor + emergency stop switch |
| Battery Display | Reminds you to manually replace the battery when it drops below 23.5V |
| Fault or Obstacle Alarm | Audible alarm + flashing tri-color indicator light |
| Operating Environment | Indoor and outdoor rainproof areas, temperature range: 0-50°C, humidity: 60% to 85%, climbing ability: less than 2°C |
| AGV Service Life | More than 10 years (one-year warranty) |
