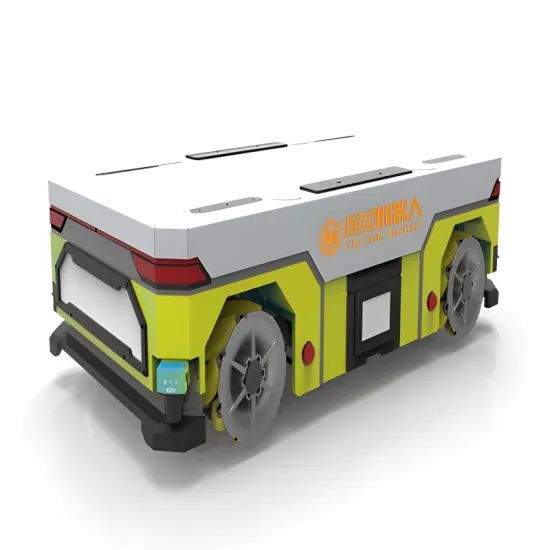

Customized AGVs
TL-BF-H350QX-001
The omnidirectional carrying AGV is an AGV independently developed by Tuling that can move forward, backward, left, and right. It features magnetic strip navigation, omnidirectional operation, and a large load capacity, capable of carrying up to 300kg of goods. The size is customized according to the on-site application and it is widely used in industries such as automobiles, machinery, home appliances, and furniture.
Product Features
| Omnidirectional operation, capable of forward, backward, left and right lateral movement, 90°/180°/360° rotation, acceleration, deceleration, branching turns, timed stops, and reversing direction; |

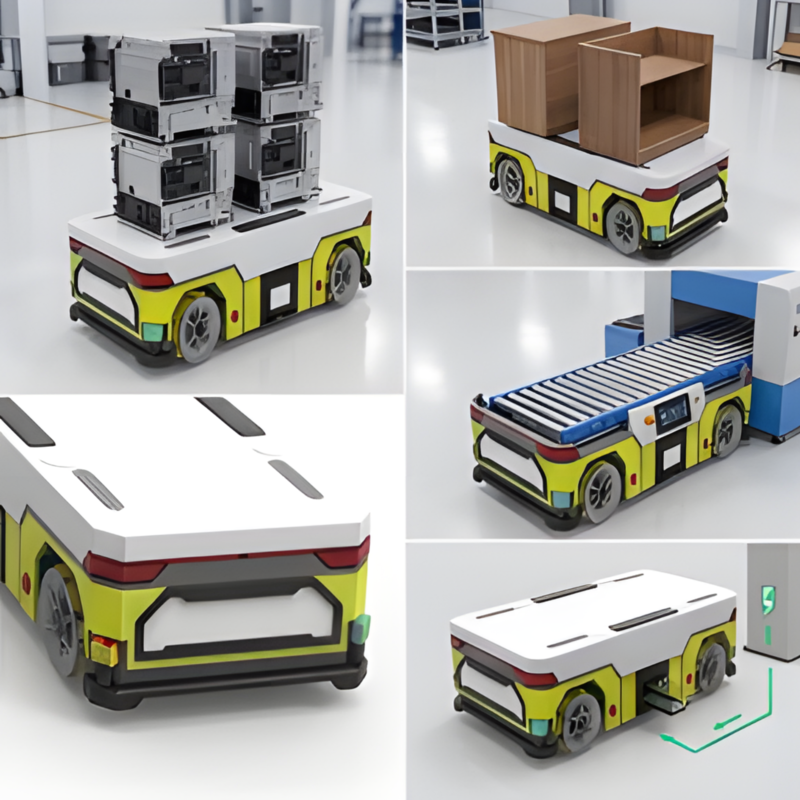

Materials can be directly placed on the top of the AGV or equipped with material boxes, roller platforms, etc., for automatic material delivery to the production line, achieving high-efficiency material turnover in the workshop and maximizing enterprise production efficiency; |
|

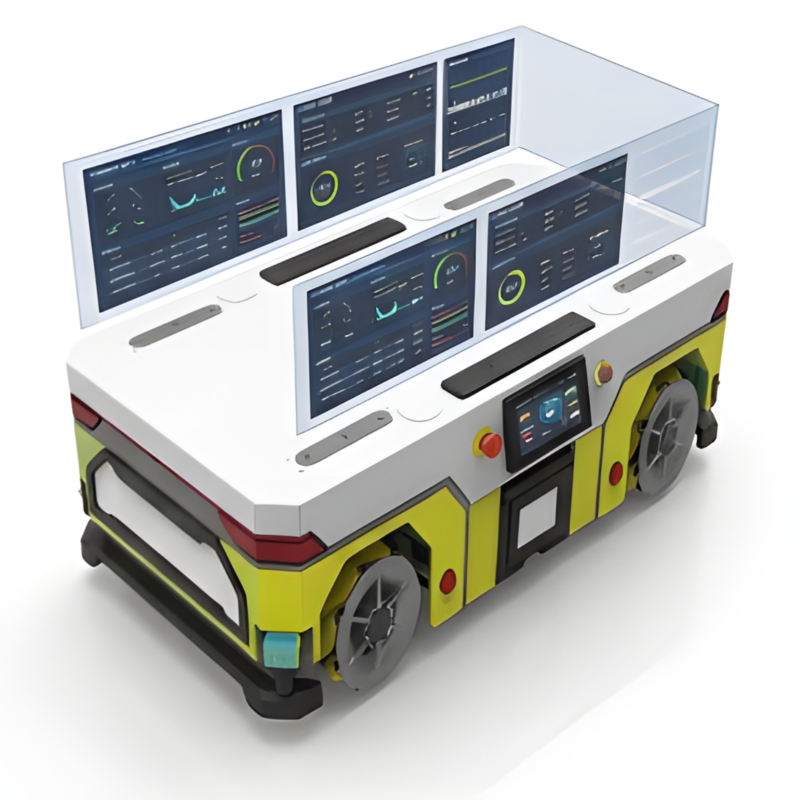

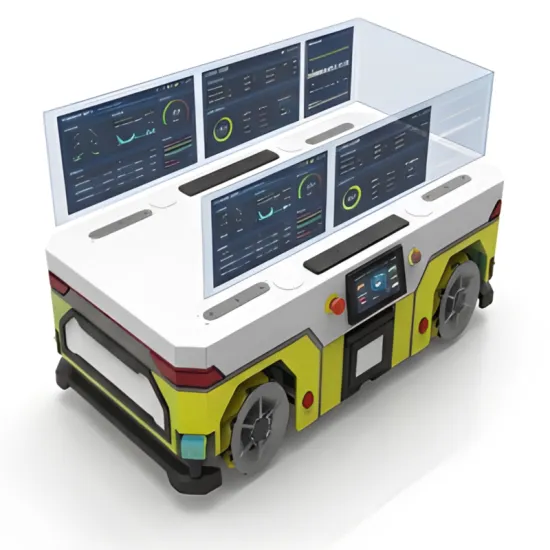

| Multi-sensor fusion navigation is safe and reliable, flexible and efficient, achieving full automation without human intervention, automatically handling materials to reduce manual labor intensity, intelligent scheduling seamlessly integrating with MES/WMS/ERP systems, improving logistics efficiency, and quickly and flexibly adapting to different complex scenarios to efficiently complete automated transportation of logistics. |
Product Parameters
Performance Parameters | Description |
| Product Model | TL-BF-350QX-001 |
| Dimensions | Standard L1200mm*W500mm*H30mm (or customized) |

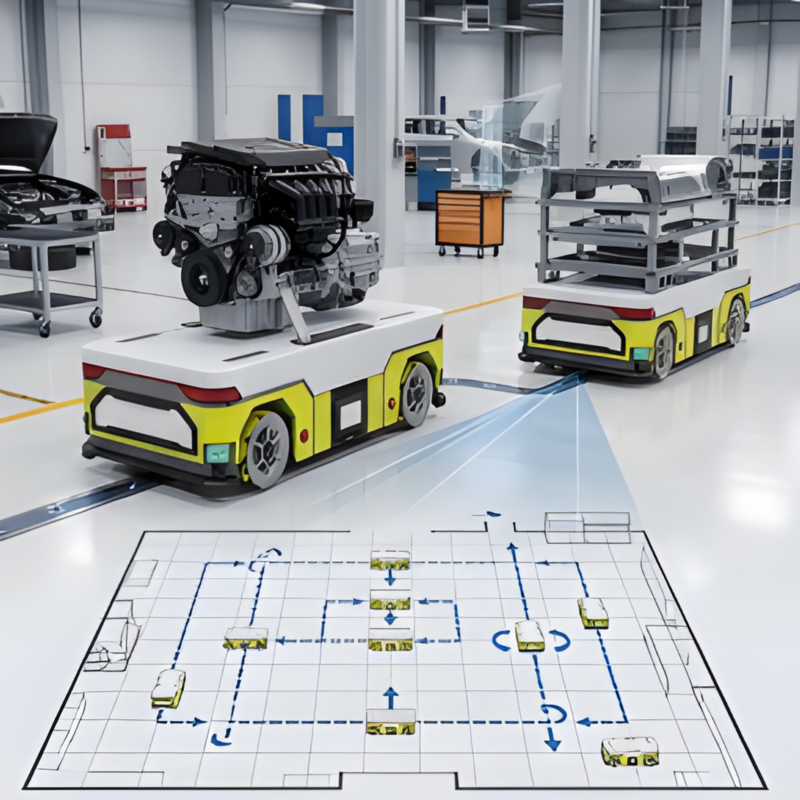

| Navigation Type | Magnetic Navigation |
| Drive Type | Differential Drive |
| Travel Mode | Forward, Backward, Rotation, Fork Turn, Timed Stop, Reversing Operation, and other multi-functional travel |
| Travel Speed | 0~45m/min (or customized) |
| Rated Load | 300KG (or customized) |
| Climbing Ability | ≤2 degrees |
| Turning Radius | 1000mm or stationary 90°/180°/360° Rotation |
| Stop Accuracy | ±10mm |
| Navigation Accuracy | ±10mm |
| Battery Life | 8-12H (or customized) |
| Charging Method | Manual charging/Automatic charging (optional) |
| Human-Machine Interface | Easy operation/4.3-inch touchscreen (optional) |
| Alarm Type | Audio and visual alarm |
| Communication Network | WIFI network/RF network |
| Power Battery | 70Ah high-quality lithium battery |
| Safety Protection | Obstacle sensor + contact bumper + emergency stop button |
| Design Life | >80000H |
