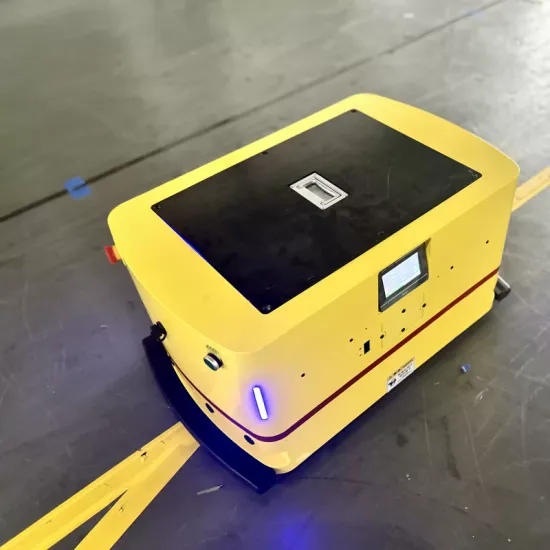

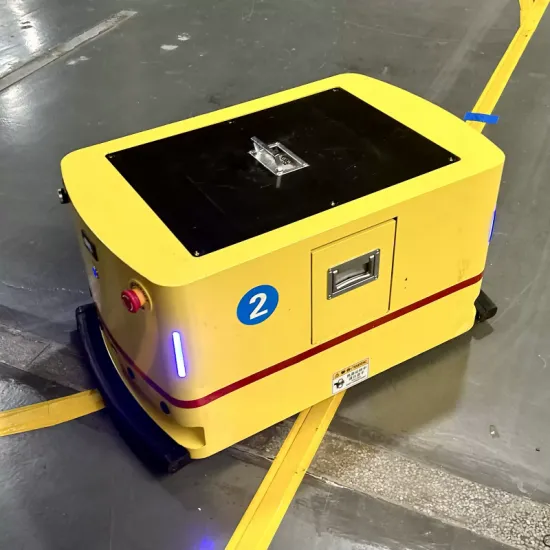

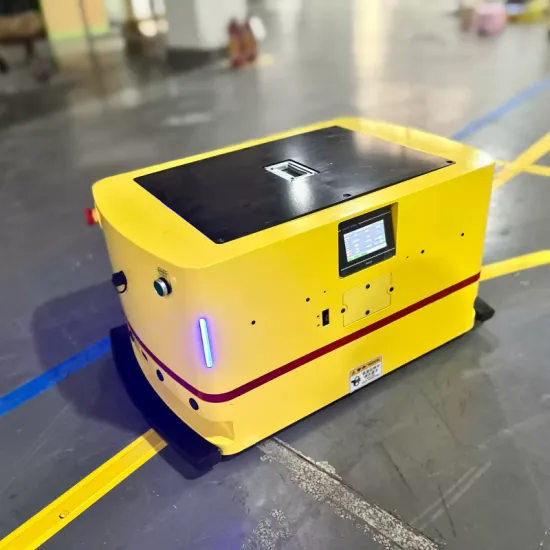

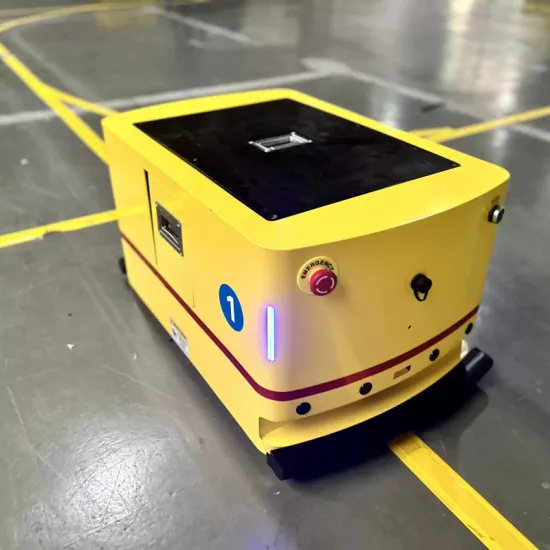

TL-JS-390SX-001
Product Overview: Ø Single-drive bidirectional operation, capable of forward, backward, 90°/180°/360° rotation, acceleration, deceleration, turn-breaking, timed stopping, and directional switching for multifunctional driving; Ø The AGV is equipped with a lifting mechanism at the top to directly lift material carts or material frames, automatically operating and distributing materials to the production line, efficiently enabling material turnover in the workshop and maximizing enterprise production efficiency; Ø Multi-sensor fusion navigation is safe, reliable, flexible, and efficient, achieving full automation without manual intervention, automatic handling reduces manual labor intensity, intelligent scheduling seamlessly integrates with MES/WMS/ERP systems, and is improved
Product Description

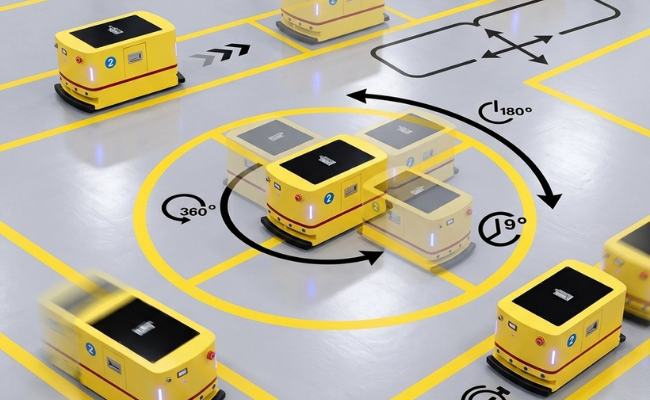

Single-drive bidirectional operation, capable of forward, reverse, 90°/180°/360° rotation, acceleration, deceleration, turn-breaking, timed stopping, and reversing operation

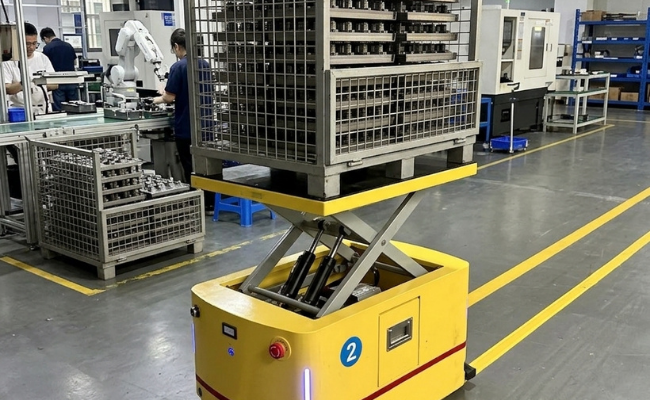

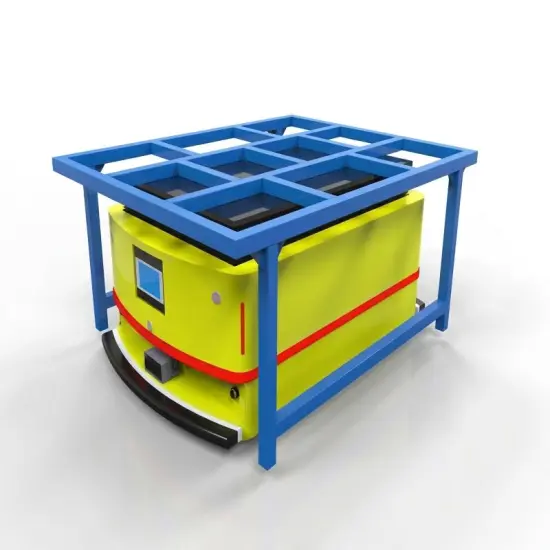

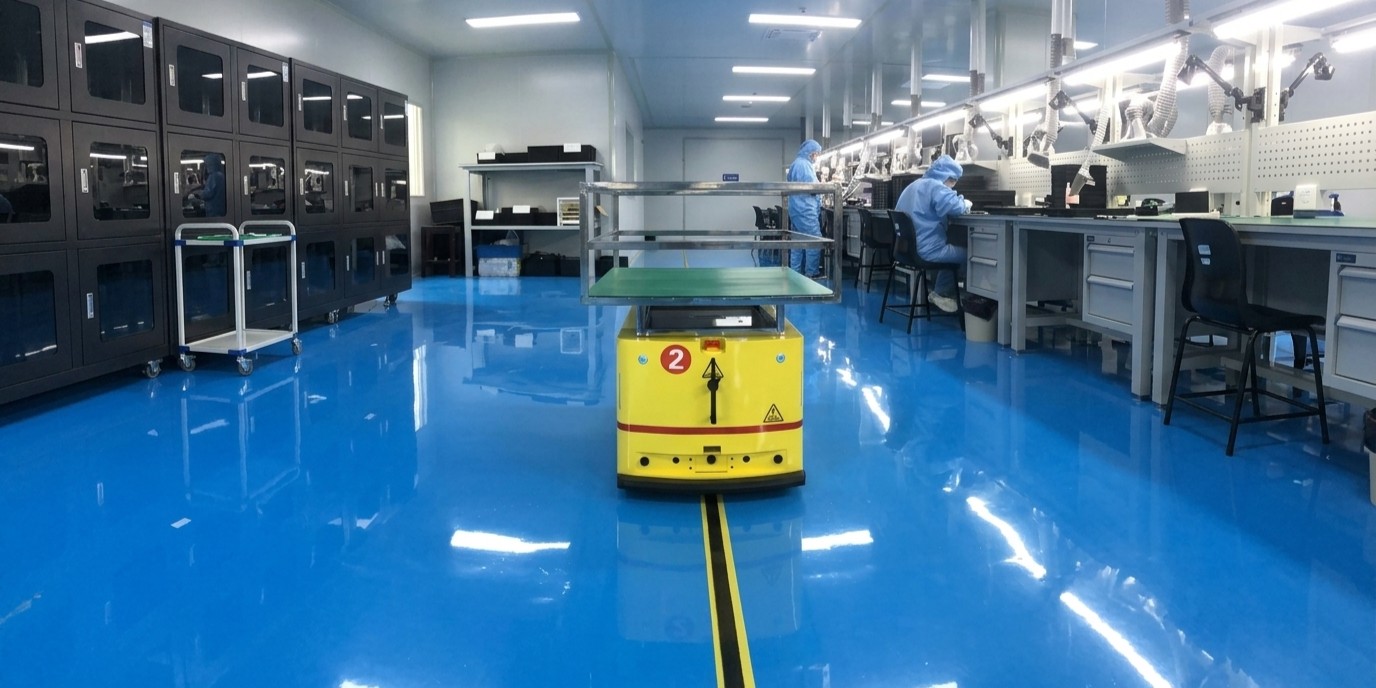

The AGV is equipped with a lifting mechanism at the top to directly lift material carts or material frames, automatically operating and distributing materials to the production line, efficiently enabling material turnover in the workshop and maximizing enterprise production efficiency
Multi-sensor fusion navigation is safe, reliable, flexible, and efficient, achieving full automation without manual intervention, automatic handling reduces manual labor intensity, intelligent scheduling seamlessly integrates with MES/WMS/ERP systems, improves logistics efficiency, quickly and flexibly adapts to different complex scenarios, and efficiently completes automated logistics transportation.
Specification Parameters
Performance parameters | Explanation |
Product models | TL-JS-3900SX-001 |
External dimensions | StandardL1000mm*W600mm*H390mm (or customized). |
Navigation type | Magnetic navigation |
Drive type | Differential drive |
Walking style | Forward, backward, turning, turning, timed stopping, and directional switching are all multifunctional driving |
Walking speed | 0~40m/min (or customized). |
Rated load | 100KG (or customized). |
Climbing ability | ≤ 2 degrees |
Turning radius | 500mm or rotation in place at 90°/180°/360° |
Stop accuracy | ±10mm |
Navigation accuracy | ±10mm |
Battery life | 8-12 hours (or customized).) |
Charging method | Manual charging / automatic charging (optional). |
Human-machine interaction | 4.3-inch touchscreen |
Alarm Form | Sound and light alarms |
Communication networks | Wi-Fi network / RF network |
Power batteries | 40Ah high-quality lithium battery |
Safety protection | Obstacle sensors + contact bumpers + emergency stop buttons |
Design lifespan | >80000H |
