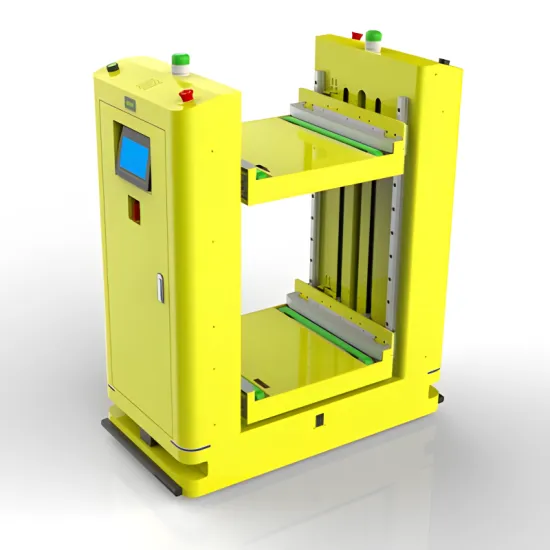

Automatic docking conveyor
TL-SMT-1255SX- 002
Product Introduction: Ø SMT synchronous belt double-layer docking type, capable of forward, backward, 90°/180°/360° rotation, arc turning, acceleration, deceleration, branching turns, timed stops, and reversing operation; Ø The top of the AGV can be equipped with conveyor platforms such as rollers, conveyor belts, and synchronous belts; it can automatically dock with conveyor lines or production lines, automatically transferring materials carried on the AGV to the conveyor line, or automatically recovering materials from the conveyor line to the AGV's conveyor platform, and then the AGV automatically docks and transports the materials to the next docking conveyor line, completing the automatic feeding of the production line.
Product Features

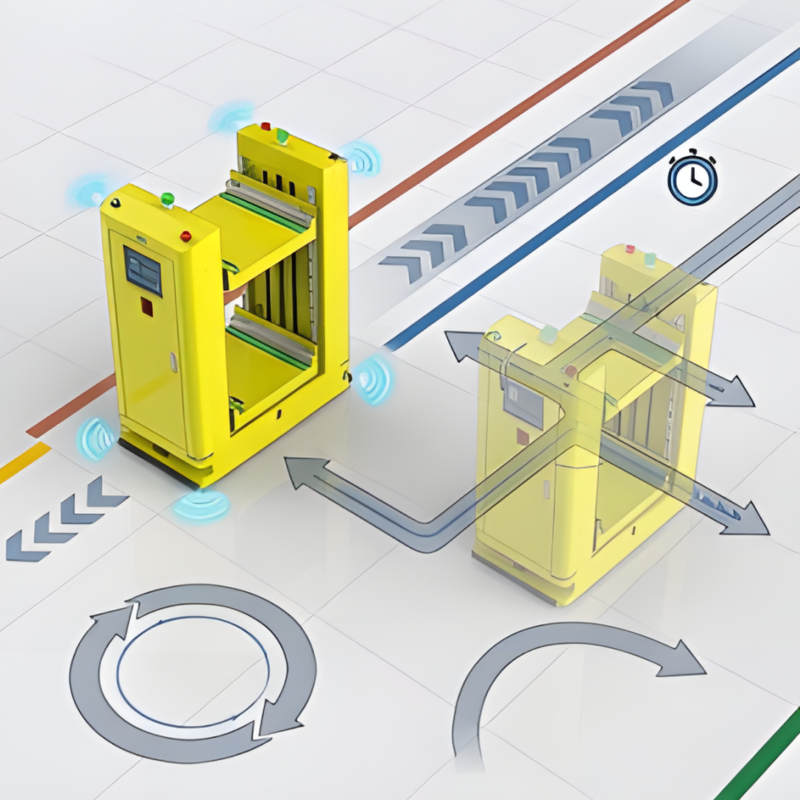

| The SMT synchronous belt double-layer docking type allows for forward, backward, 90°/180°/360° rotation, arc turning, acceleration, deceleration, branching turns, timed stops, and reversing operation, among other multi-functional travel capabilities. |

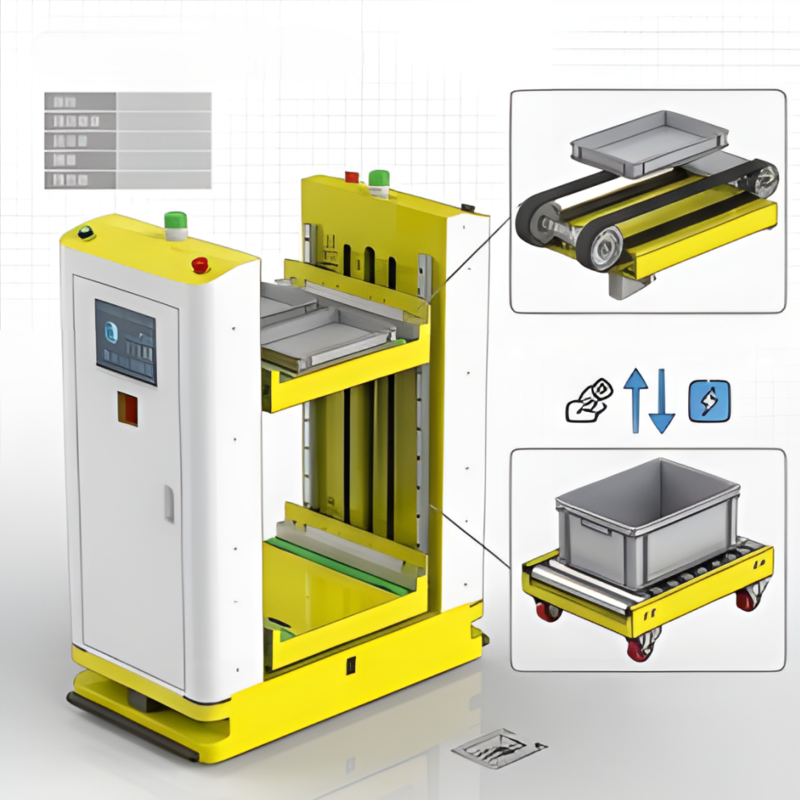

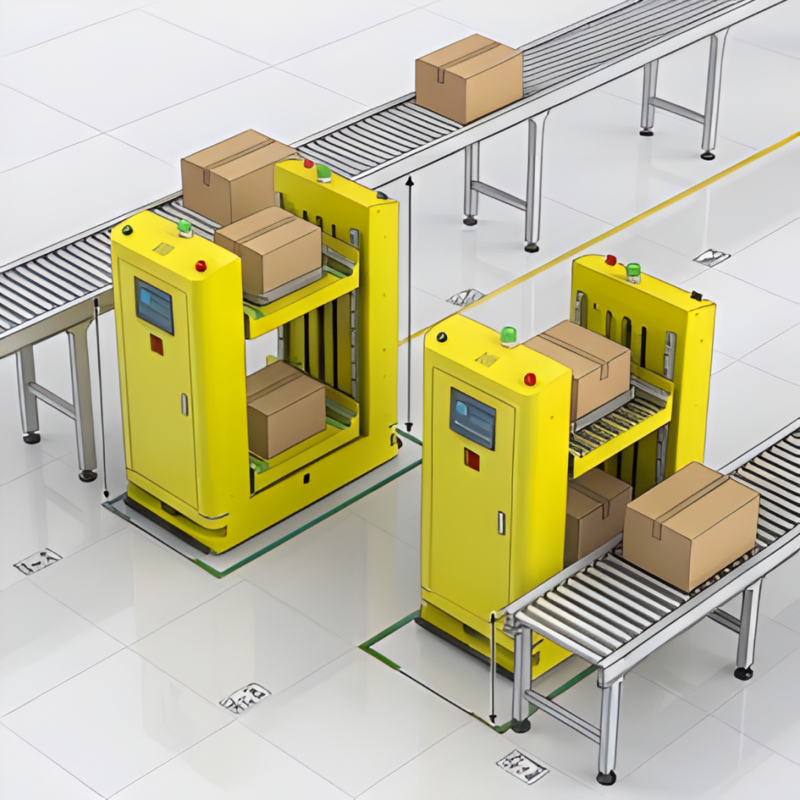

The top of the AGV can be equipped with conveyor platforms such as rollers, conveyor belts, and synchronous belts. It can automatically dock with conveyor lines or production lines, automatically transferring materials carried on the AGV to the conveyor line, or automatically recovering materials from the conveyor line to the AGV's conveyor platform. The AGV then automatically docks and transports the materials to the next docking conveyor line, completing the automatic loading and unloading of the production line. |
|
| Multi-sensor fusion navigation ensures safety and reliability, flexibility and efficiency, achieving full automation without human intervention, automatic handling reduces manual labor intensity, intelligent scheduling seamlessly integrates with MES/WMS/ERP systems, improves logistics efficiency, and quickly and flexibly adapts to different complex scenarios, efficiently completing the automatic transportation of logistics. |
Product Parameters
Performance Parameters | Description |
| Product Model | TL-SMT-1255SX-002 |
| Dimensions | Standard L1075mm*W550mm*H1255mm / Ground Clearance 300/1000mm (or customized) |
| Navigation Type | Magnetic Strip Navigation |
| Drive Type | Differential Drive |
| Travel Mode | Forward, Backward, Rotation, Fork Turn, Timed Stop, Reversing Operation, and other multi-functional travel modes |
| Travel Speed | 0~40m/min (or customized) |
| Rated Load | 100KG (or customized) |
| Climbing Ability | ≤2 degrees |
| Turning Radius | 500mm or 90°/180°/360° rotation in place |
| Stop Accuracy | ±10mm |
| Navigation Accuracy | ±10mm |
| Battery Life | 8-12H (or customized) |
| Charging Method | Manual charging/Automatic charging (optional) |
| Human-Machine Interface | 4.3-inch touchscreen |
| Alarm Type | Audio and visual alarm |
| Communication Network | WIFI network/RF network |
| Power Battery | 50Ah Lithium Iron Phosphate Battery |
| Safety Protection | Obstacle sensor + contact bumper + emergency stop button |
| Design Life | >80000H |
