TL-FH-1890SX-001

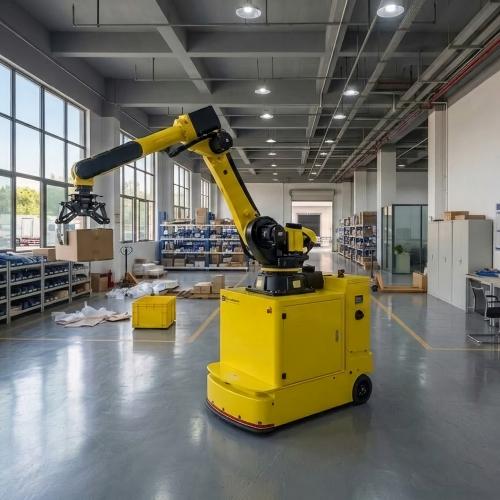

Product Overview: The top of the ØAGV is equipped with a robotic arm, enabling the entire AGV and manipulator to move and grasp materials between multiple workstations. Traditional robotic arms are fixed for material picking up tasks, but combined with AGVs, they can be transformed into mobile robotic arms; Ø Multi-sensor fusion navigation is safe, reliable, flexible, and efficient, achieving full automation without manual intervention, automatic handling reduces manual labor intensity, intelligent scheduling seamlessly integrates with MES/WMS/ERP systems, improves logistics efficiency, quickly and flexibly adapts to different complex scenarios, and efficiently completes automated logistics transportation. Performance parameters describe the product
Product Description
| Ø The top of the AGV is equipped with a robotic arm, enabling the entire AGV and robot to move and grasp materials between multiple workstations. Traditional robotic arms are fixed for material picking up tasks, but combined with AGVs, they can be transformed into mobile robotic arms |
| Ø Multi-sensor fusion navigation is safe, reliable, flexible, and efficient, achieving full automation without manual intervention, automatic handling reduces manual labor intensity, intelligent scheduling seamlessly integrates with MES/WMS/ERP systems, improves logistics efficiency, quickly and flexibly adapts to different complex scenarios, and efficiently completes automated logistics transportation. |
|
Specification Parameters
Performance parameters | Explanation |
Product models | TL-FH-1890SX-001 |
External dimensions | Standard L1260mm*W650mm*H1890mm / lifting stroke 350mm~1580mm (or customized). |
Navigation type | Magnetic stripe navigation |
Drive type | Differential drive |
Walking style | Forward, backward, turning, turning, timed stopping, and directional switching are all multifunctional driving |
Walking speed | 0~40m/min (or customized). |
Rated load | 100KG (or customized). |
Climbing ability | ≤ 2 degrees |
Turning radius | 500mm or rotation in place at 90°/180°/360° |
Stop accuracy | ±10mm |
Navigation accuracy | ±10mm |
Battery life | 8-12H (or customized) |
Charging method | Manual charging / automatic charging (optional). |
Human-machine interaction | 4.3-inch touchscreen |
Alarm Form | Sound and light alarms |
Communication networks | Wi-Fi network / RF network |
Power batteries | 80Ah lithium iron phosphate battery |
Safety protection | Obstacle sensors + contact bumpers + emergency stop buttons |
Design lifespan | >80000H |
Packaging & Transportation
Service
The core technical personnel of our R&D team have more than ten years of working experience in the AGV industry. Many R&D personnel have exchanged and studied in well-known domestic and foreign companies, and have rich research and practical experience in intelligent robots, embedded software/hardware, software engineering, artificial intelligence, etc. Relying on our strong background and technical accumulation, we provide users with intelligent, efficient, stable, safe and high-quality products and services. Over the years, we have carried out extensive cooperation with many well-known companies to provide customers with better quality Industrial 4.0 intelligent logistics systems and tailor-made "personalized and systematic" automation solutions.
Pack
We are well aware that the safety of goods during transportation is of vital importance, so we have invested a lot of energy in packaging. Our professional packaging team will select the most suitable packaging materials according to the characteristics of the goods to minimize the damage of the products during transportation. Our product packaging is a solid fortress of safety and quality, escorting your purchasing experience.
Transport
We work with world-renowned international express companies that have extensive global networks and efficient logistics systems to ensure that your cross-border packages can be delivered quickly and safely.
