Product Description

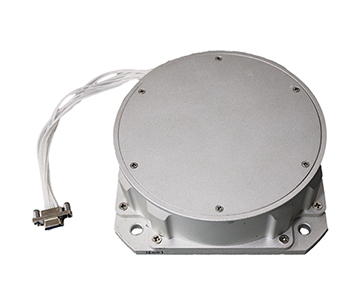

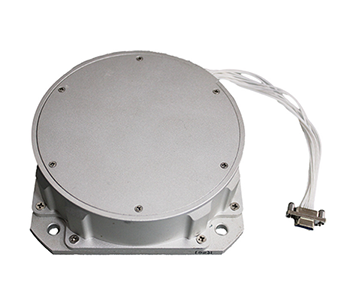

The AgileLight - 400A digital closed loop single-axis fiber optic gyroscope is based on the Sagnac effect to measure the angular velocity. When the circular optical path rotates in inertial space, the light propagating clockwise and counterclockwise will produce optical path difference, and the angular velocity information can be obtained by detecting this optical path difference.
It uses the optical fiber as the optical path, by transmitting the optical signal in the optical fiber ring to achieve high precision measurement. The digital closed loop technology is the core of the system, and the feedback control loop can stabilize the system output, which can effectively reduce the influence of interference factors on the measurement results.
Product parameters
| Technical parameter | Axial direction | uniaxial |
| Measuring range (°/s) | -450~450 | |
| Zero bias stability (°/h), 1σ | ≤0.05 | |
| Zero bias repeatability (°/h), 1σ | ≤0.05 | |
| Random walk coefficient (°/√hr) | ≤0.005 | |
| Scale factor nonlinearity (ppm) | ≤80 | |
| Scale factor asymmetry (ppm) | ≤80 | |
| Scale factor repeatability (ppm), 1σ | ≤200 | |
| Physical characteristics | Frequency band width (Hz) | ≥100 |
| Start time (s) | ≤1 | |
| Power Supply (V) | -5~+5 | |
| Power consumption (W) | ≤5 | |
| Size (mm) | φ98xH34 | |
| Weight (g) | ≤300 | |
| Output mode | RS 422 | |
| Operating temperature (C) | -40~+65 | |
| Storage temperature (℃) | -45~+85 | |
| coupler | J30J-15TJL |
Technological innovation and advantages
Data refresh rate: has a high data refresh rate, can be set according to the specific application needs, generally between 200Hz-2000Hz, to ensure timely access to the latest angular velocity data, to meet the requirements of real-time control and monitoring

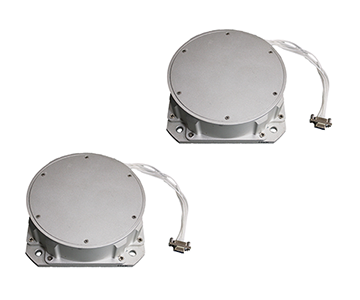

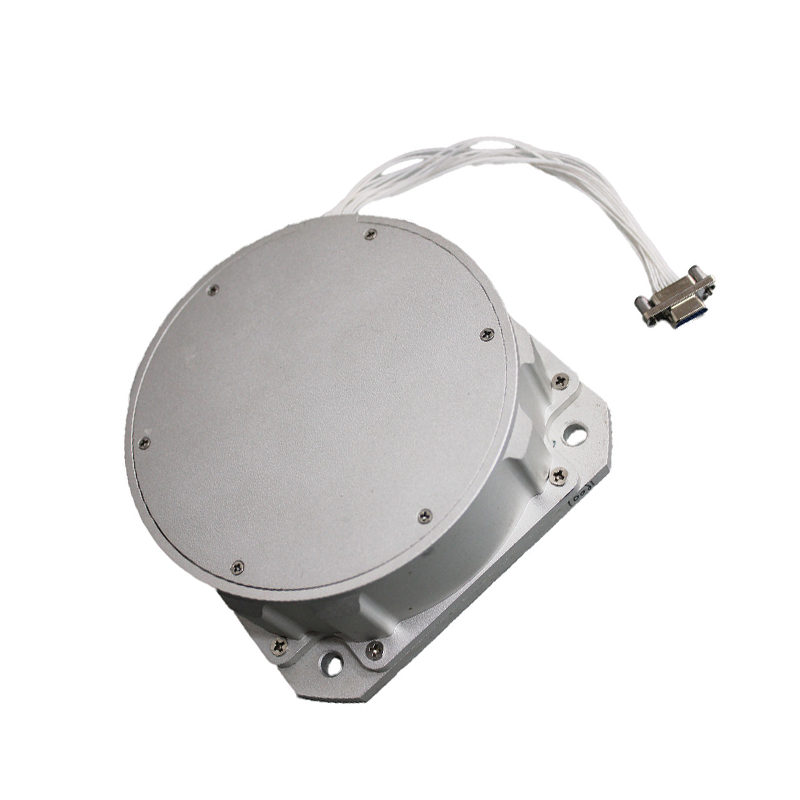

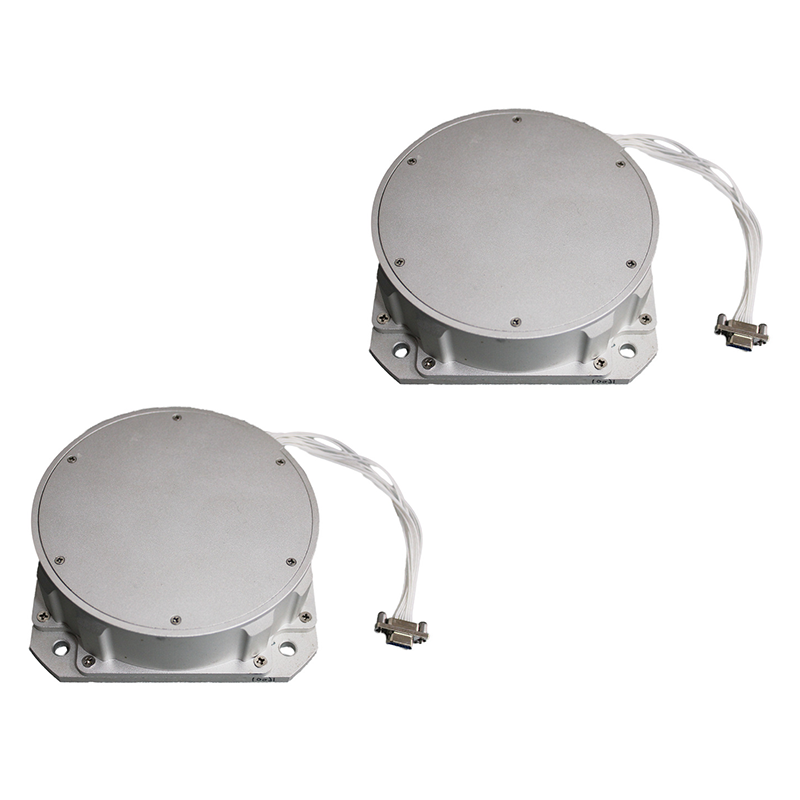

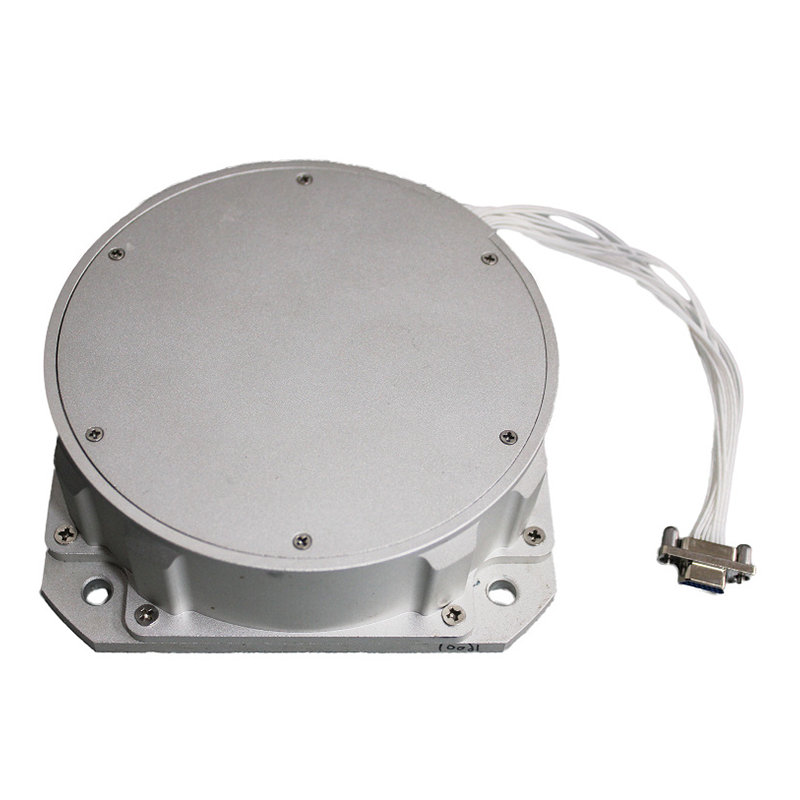

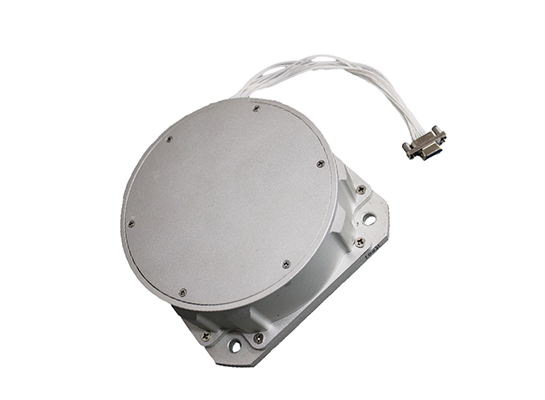

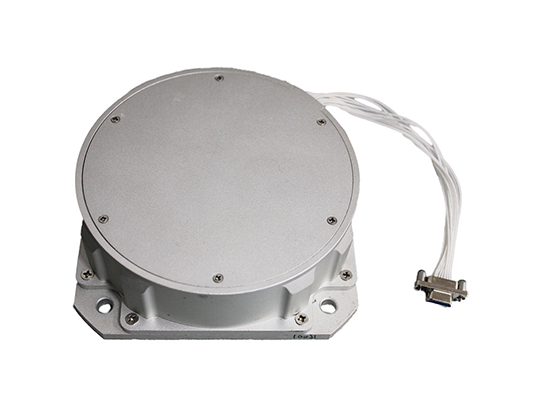

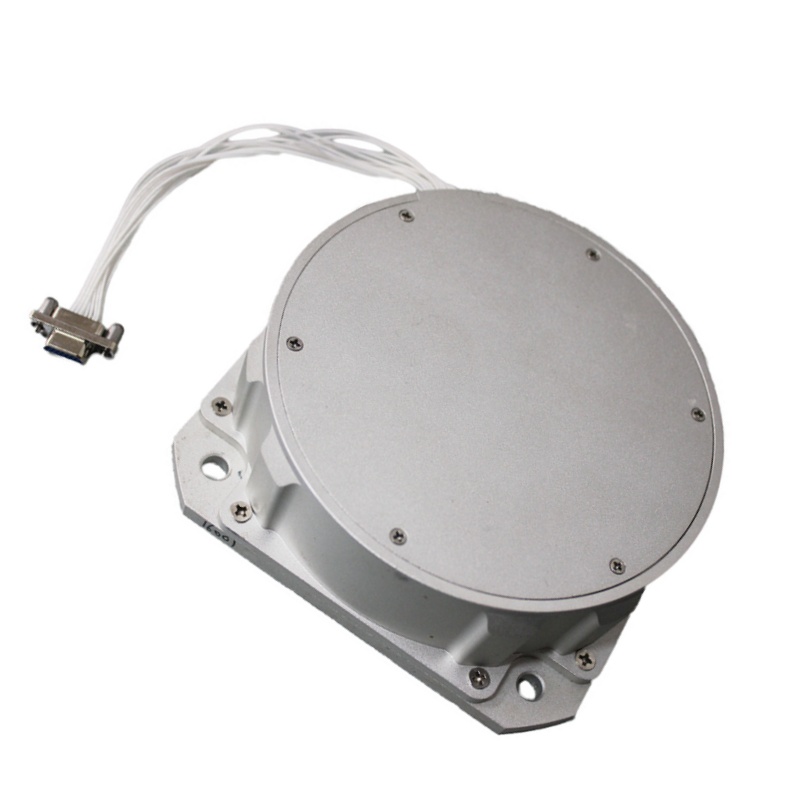

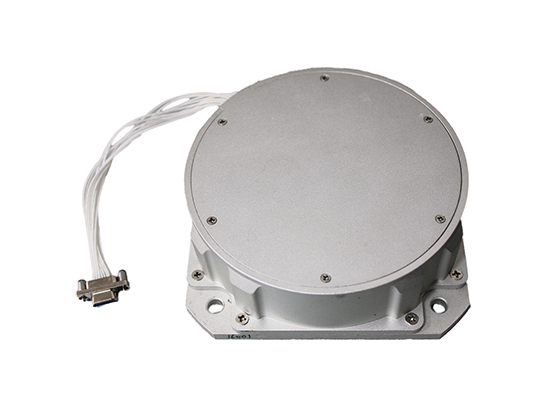

Product Display
High precision measurement:
The gyroscope adopts digital closed-loop technology, which can accurately measure the angular velocity of single axis, and has high measurement accuracy and stability, which can meet the needs of various high-precision application scenarios
Wide dynamic range:
With a wide dynamic range, it can adapt to the measurement of different angular velocities, and can accurately measure and output the corresponding angular velocity information from low speed to high speed motion states.
High resolution:
It can provide high-resolution angular velocity measurement data, and can also be sensitive to capture and measure small Angle changes, thus providing more accurate attitude information for the system.
Quick response:
With a fast response time, it can reflect the change of the angular velocity of the object in real time, and perform well in applications requiring rapid acquisition of motion state information, such as the monitoring of high-speed rotating equipment and the attitude control of fast-maneuvering aircraft

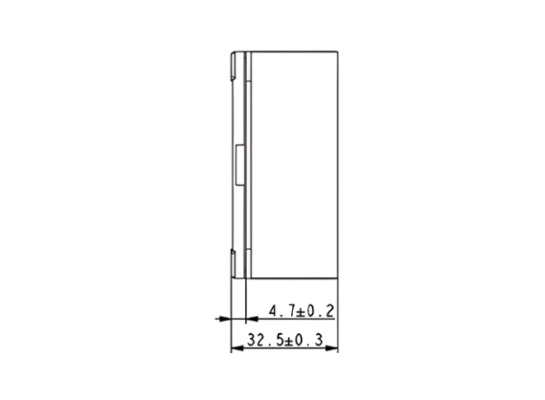

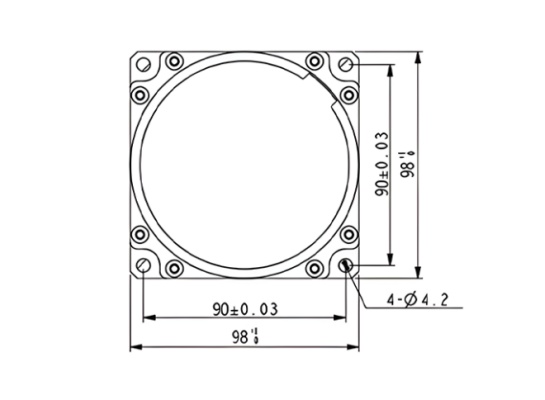

Size & Interface
Quality Control
The quality requirements are extremely strict. In the procurement of raw materials and parts, carefully select suppliers and strictly inspect the factory. In the production process, we operate according to the standardized operation process, set up multiple online detection points for real-time monitoring, and strictly control the production environment. The finished product inspection process, comprehensive performance testing, covering all key indicators, but also reliability testing, including high temperature aging, vibration shock, environmental adaptability, etc. At the same time, build a perfect quality traceability system to ensure high quality and high performance of products, meet the needs of multiple applications and ensure that after-sales can be checked and controllable.
Application Cases
Aerospace: Used in aircraft, satellites and other aerospace vehicles for attitude control, navigation systems and flight stability systems, etc., to provide critical attitude information for accurate control and safe flight of aircraft.
Ship navigation: can be applied to the ship's inertial navigation system, compass system and ship attitude stabilization system, etc., to help the ship maintain accurate heading and stable attitude at sea, improve the safety and accuracy of navigation.
Land transport: In cars, trains and other land transport vehicles, it can be used in the vehicle's automatic driving system, inertial navigation assistance system and body stability control system, etc., to improve the vehicle's handling performance and driving safety, especially in complex road conditions and bad weather conditions.
Industrial automation: widely used in various equipment and systems in the field of industrial automation, such as robot attitude control, automatic production line motion control, CNC machine tool precision control, etc., to improve the automation level of the production process and product quality
