T1
4 Years
Inspection robot
Agricultural inspection robot autonomous navigation satellite positioning intelligent agricultural robot
- Climbing angle：35°
- Vertical obstacle crossing：8cm
- Remote control distance：100m
- Maximum input current：100A
- Voltage output：48V
- Working temperature：-10℃~+60℃
USD： Price Inquiry
ablity：Monthly Output200
- Product Description
- Product Params
Product Description

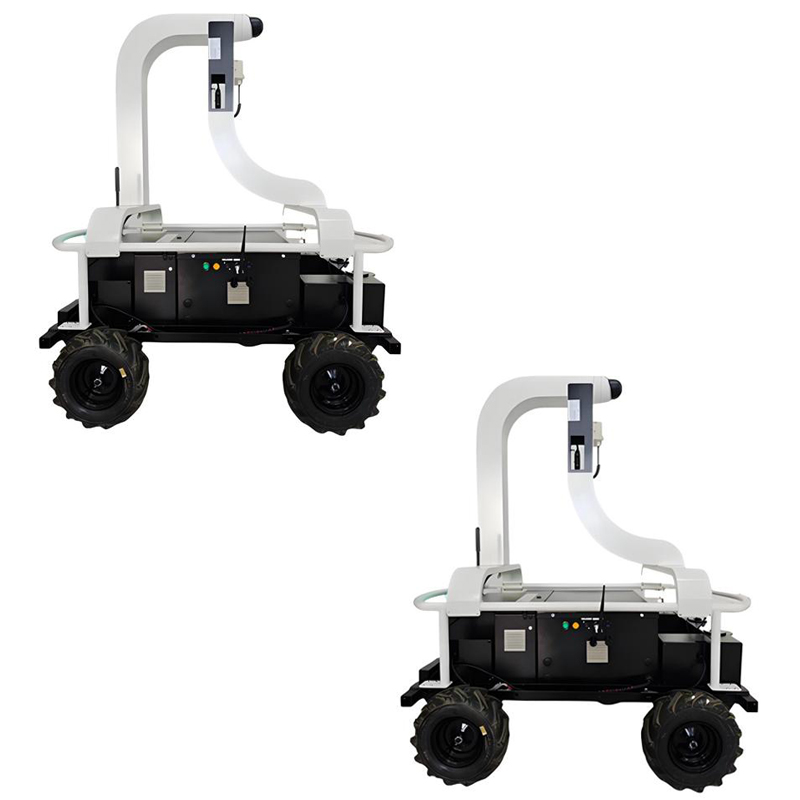

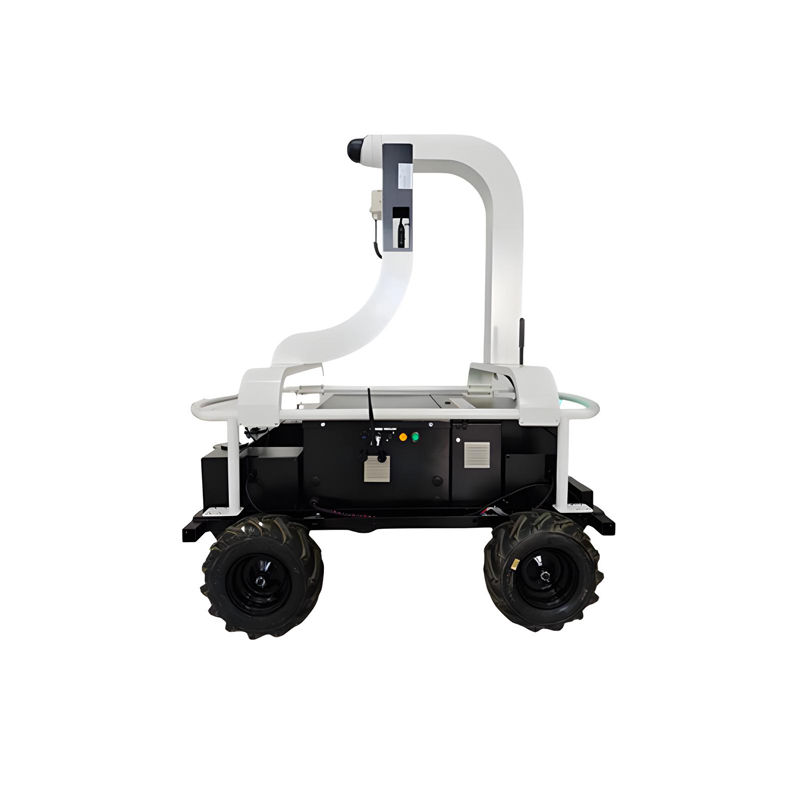

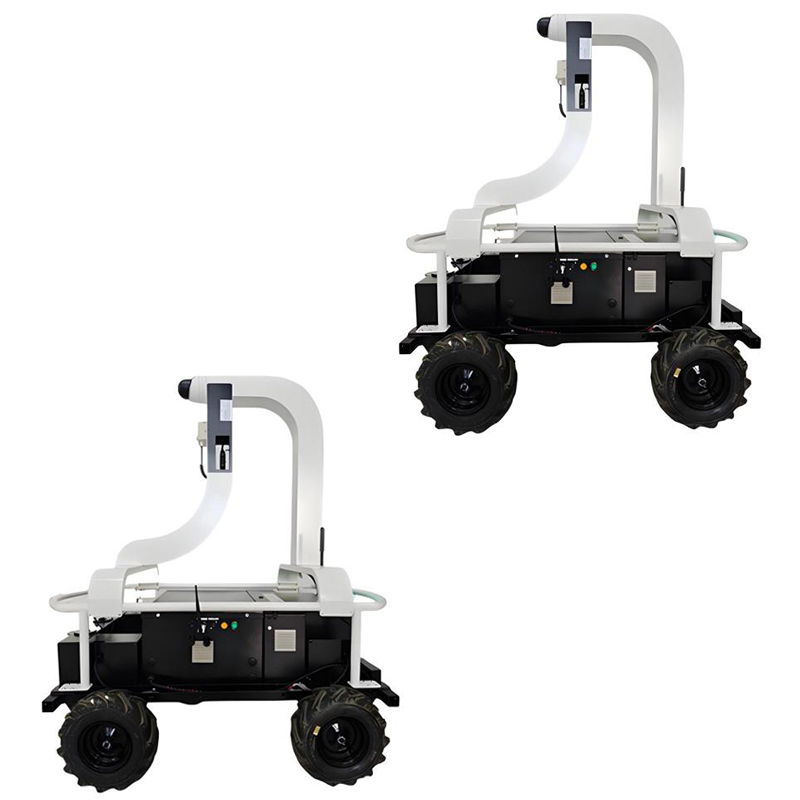

Inspection robot
The inspection robot uses multi-sensor fusion technology to achieve autonomous navigation and crop inspection in a facility agricultural environment. Realize precise motion control of inspection robot through DC brushless motor control. The satellite positioning system is used to realize the inspection robot walking along the navigation line. At the same time, ultrasonic sensors installed around the inspection robot detect obstacles in real time and control the inspection robot to stop when encountering obstacles.
Inspection robot parameters
—— -
| TSRXJG-5 | Climbing angle | 35° |
| Vertical obstacle crossing | 8cm | |
| Positioning accuracy | ±10cm | |
| Navigation accuracy | ±5cm | |
| Remote control distance | 100m | |
| Depth camera resolution | 1280×720 | |
| Depth camera field of view | 87°×58° | |
| Depth camera frame rate | 30fps | |
| Depth camera detection distance | 0.28~2m | |
| Color camera resolution | 1280×720 | |
| Color camera field of view | 69°×42° | |
| Color camera frame rate | 30fps | |
| Battery life | 3h | |
| Working temperature | -10℃~+60℃ | |
| Voltage output | 48V | |
| Maximum input current | 100A |
*This is a customized model, the parameters are for reference only, please contact the merchant for details.
