Product Description
Precision planetary reducers are key core components in modern mechanical transmission systems. They combine advanced design concepts and sophisticated manufacturing processes to provide accurate, efficient and reliable power transmission solutions for equipment operation in many industries.
Precision planetary reducers use the principle of planetary gear transmission. The sun gear is located in the center, and multiple planetary gears are evenly surrounded and meshed with the sun gear. These planetary gears interact with the outer gear ring at the same time, and the planet carrier integrates the movement of the planetary gears for output. This unique structural design is the basis of its excellent performance.



Product parameters
Specifications | Level | Reduction ratio | MYDR047 | MYDR090 | MYDR110 | MYDR140 | |
Rated output torque | Nm | 1 | 4 | 19 | 130 | 270 | 560 |
5 | 22 | 160 | 330 | 650 | |||
6 | 150 | 310 | 600 | ||||
7 | 19 | 140 | 300 | 550 | |||
8 | 17 | 130 | 270 | 560 | |||
10 | 14 | 160 | 330 | 650 | |||
14 | 140 | 300 | 550 | ||||
20 | 一 | 100 | 230 | 450 | |||
2 | 20 | 19 | 130 | 270 | 560 | ||
25 | 22 | 160 | 330 | 650 | |||
35 | 22 | 160 | 330 | 650 | |||
40 | 22 | 130 | 270 | 560 | |||
50 | 22 | 160 | 330 | 650 | |||
60 | 150 | 310 | 600 | ||||
70 | 22 | 160 | 330 | 650 | |||
80 | 130 | 270 | 560 | ||||
100 | 22 | 160 | 330 | 650 | |||
120 | 150 | 310 | 600 | ||||
140 | 140 | 300 | 550 | ||||
160 | 120 | 260 | 500 | ||||
200 | 100 | 230 | 450 | ||||
Maximum output torque | Nm | 1,2 | 4~200 | 3 times rated output torque | |||
Rated input speed | rpm | 1,2 | 4~200 | 5,000 | 4,000 | 4,000 | 3,000 |
Maximum input speed | rpm | 1,2 | 4~200 | 10,000 | 8,000 | 8,000 | 6,000 |
Ultra-precision backlash | arcmin | 1 | 4~20 | ≤2 | ≤2 | ≤2 | |
2 | 20~200 | 一 | ≤4 | ≤4 | ≤4 | ||
Precision backlash | arcmin | 1 | 4~~20 | ≤4 | ≤4 | ≤4 | ≤4 |
2 | 20~200 | ≤7 | ≤7 | ≤7 | ≤7 | ||
Standard backlash | arcmin | 1 | 4~20 | ≤6 | ≤6 | ≤6 | ≤6 |
2 | 20~200 | ≤9 | ≤9 | ≤9 | ≤9 | ||
Torsional rigidity | 1,2 | 4~200 | 7 | 31 | 82 | 151 | |
Maximum bending moment | Nm | 1,2 | 4~200 | 42.5 | 235 | 430 | 1,300 |
Allowable radial force | N | 1,2 | 4~200 | 1,080 | 2,310 | 4,800 | 6,200 |
Service life | hr | 1,2 | 4~200 | 20,000 | |||
Efficiency | % | 1 | 4~20 | ≥95% | |||
2 | 20~200 | ≥92% | |||||
Weight | kg | 1 | 4~20 | 1.1 | 5.9 | 10.5 | 21.9 |
2 | 20~200 | 1.4 | 4.5 | 9.8 | 20.1 | ||
Operating temperature | ℃ | 1,2 | 4~200 | -10℃~+90℃ | |||
Lubrication | 1,2 | 4~200 | Synthetic grease | ||||
Protection level | 1,2 | 4~200 | IP65 | ||||
Installation direction | 1,2 | 4~200 | Any direction | ||||
Noise level(n1=3000rpm) | dB | 1,2 | 4~200 | ≤61 | ≤65 | ≤68 | ≤70 |
Output shaft diameter
Dimension | C1 | C2 | C3 | C4 | C5 | C6 | C7 | C8 | C9 | C10 | C11 | C12 |
MYDR-090-L1 | ∅90 | 4-M5x15,4-M6x15 | ∅19 | 44 | ∅70 | 7 | 80 | 86 | 168 | 9 | 96 | 155 |
∅100 | 4-M6x15 | ∅16,∅19 | 44 | ∅80 | 7 | 86 | 86 | 168 | 9 | 96 | 155 | |
∅115 | 4-M8x20 | ∅19,∅22,∅24 | 56.5 | ∅95 | 10 | 100 | 86 | 173 | 17.5 | 108.5 | 167.5 | |
∅145 | 4-M8x20 | ∅19,∅22,∅24 | 60 | ∅110 | 8 | 130 | 86 | 188 | 21 | 112 | 171 | |
MYDR-090-L2 | ∅90 | 4-M5x15,4-M6x15 | ∅19 | 44 | ∅70 | 7 | 80 | 127 | 209 | 9 | 96 | 155 |
∅100 | 4-M6x15 | ∅16,∅19 | 44 | ∅80 | 7 | 86 | 127 | 209 | 9 | 96 | 155 | |
∅115 | 4-M8x20 | ∅19,∅22,∅24 | 56.5 | ∅95 | 10 | 100 | 127 | 214 | 17.5 | 108.5 | 167.5 | |
∅145 | 4-M8x20 | ∅19,∅22,∅24 | 60 | ∅110 | 8 | 130 | 127 | 229 | 21 | 112 | 171 | |
Dimension | C1 | C2 | C3 | C4 | C5 | C6 | C7 | C8 | C9 | C10 | C11 | C12 |
MYDR-110-L1 | ∅145 | 4-M8x20 | ∅19,∅22,∅24 | 64 | ∅110 | 8 | 130 | 104 | 206 | 21 | 135.5 | 208 |
∅200 | 4-M12x30 | ∅35 | 82 | ∅114.3 | 10 | 180 | 104 | 231 | 28 | 152.5 | 225 | |
MYDR-110-L2 | ∅90 | 4-M5x15,4-M6x15 | ∅19 | 44 | ∅70 | 7 | 80 | 134.5 | 216.5 | 9 | 96 | 168.5 |
∅100 | 4-M6x15 | ∅16,∅19 | 44 | ∅80 | 7 | 86 | 134.5 | 216.5 | 9 | 96 | 168.5 | |
∅115 | 4-M8x20 | ∅19,∅22,∅24 | 56.5 | ∅95 | 8 | 100 | 134.5 | 221.5 | 17.5 | 108.5 | 181 | |
∅145 | 4-M8x20 | ∅19,∅22,∅24 | 60 | ∅110 | 8 | 130 | 134.5 | 236.5 | 21 | 112 | 184.5 | |
Dimension | C1 | C2 | C3 | C4 | C5 | C6 | C7 | C8 | C9 | C10 | C11 | C12 |
MYDR-140-L1 | ∅145 | 4-M8x20 | ∅22,∅24 | 72 | ∅110 | 10 | 130 | 130.5 | 249.5 | 20.5 | 149 | 238.5 |
∅200 | 4-M12x30 | ∅35 | 82 | ∅114.3 | 10 | 180 | 130.5 | 268.5 | 26.5 | 160 | 249.5 | |
MYDR-140-L2 | ∅145 | 4-M8x20 | ∅19,∅22,∅24 | 64 | ∅110 | 8 | 130 | 163.5 | 276.5 | 21 | 135.5 | 225 |
∅200 | 4-M12x30 | ∅35 | 82 | ∅114.3 | 10 | 180 | 163.5 | 301.5 | 28 | 152.5 | 242 |
*C1-C7 are the dimensions of the metric standard motor connection plate, which can be customized according to customer requirements.

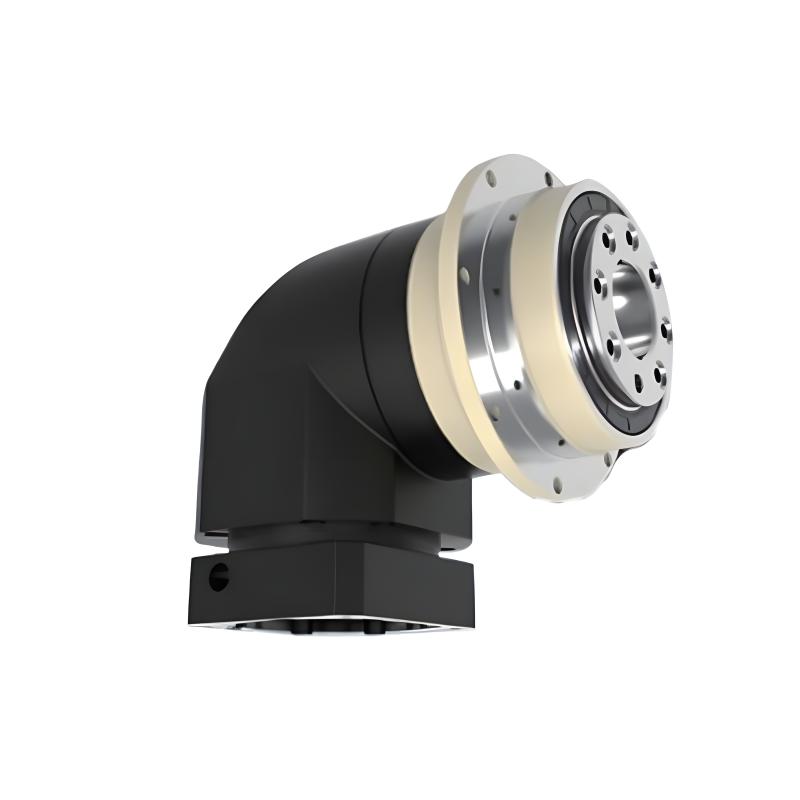

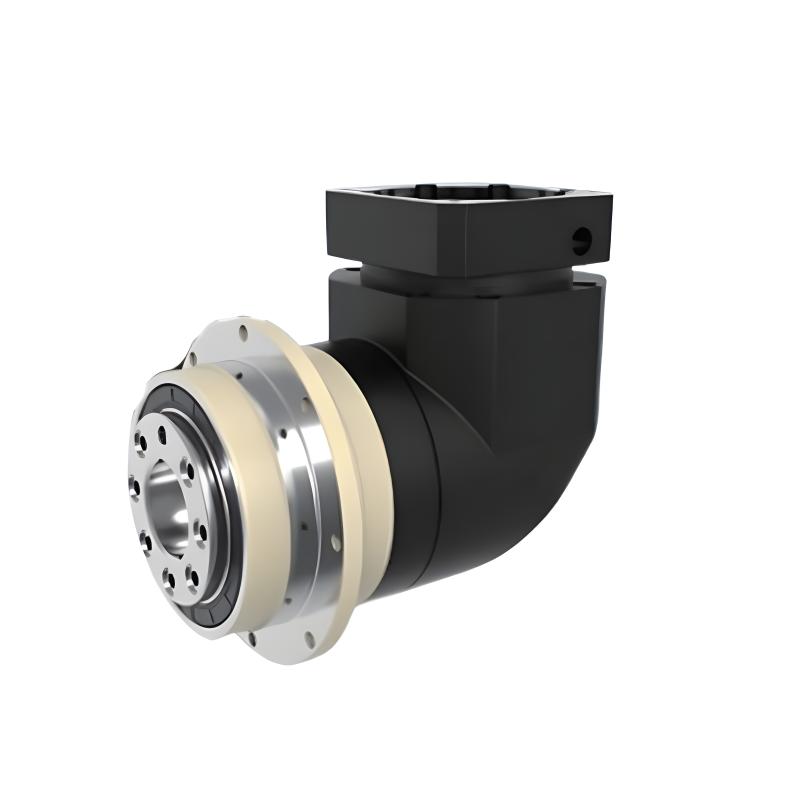

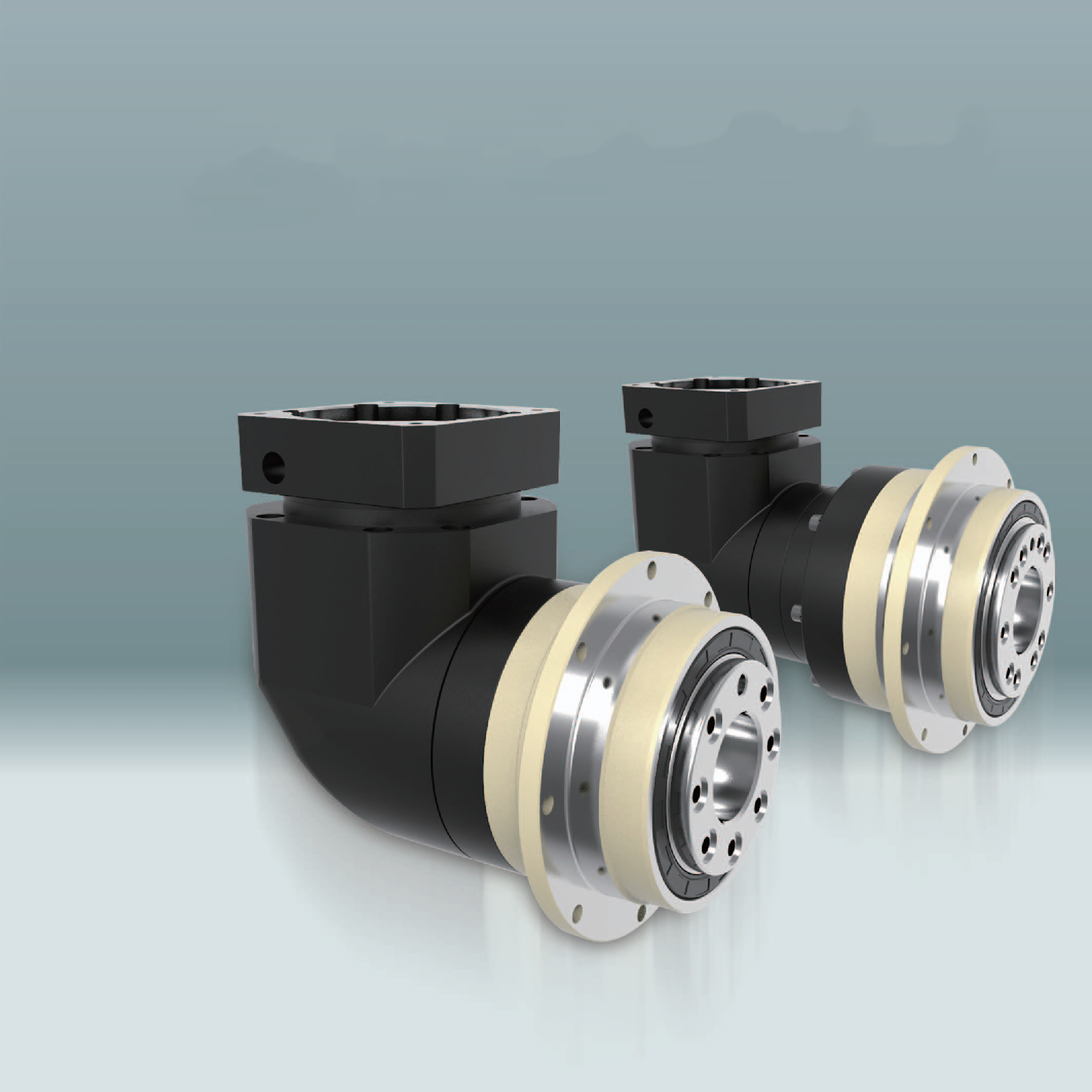

Product Display

High precision
- Precise transmission: The combined design and manufacturing process of the internal gears are excellent, which makes the transmission error extremely small and can achieve precise positioning and control. For example, in the feed system of CNC machine tools, the precision planetary reducer can ensure that the tool moves accurately to the specified position and improve the processing accuracy.
- Low backlash: The single-stage backlash can be within 3 arc minutes, and the double-stage backlash can be within 5 arc minutes. The small backlash means that the reducer has a small idle stroke when switching between forward and reverse directions, which ensures the accuracy and continuity of the movement.

High efficiency
- Low energy loss: The structural design and reasonable meshing method of the planetary gear reduce energy loss during the transmission process. The single-stage deceleration efficiency is usually above 95%, and the double-stage deceleration efficiency can also reach above 92%, which can significantly reduce energy consumption and improve the economy of the system in long-term operation of equipment.
- High power density: Under the same volume or weight, it can transmit greater power to meet the equipment's demand for high power output.
Size & Interface








Quality Control
The company is equipped with advanced CNC lathes, milling machines, three-shift assembly production lines, and two-shift lathe and milling machine personnel.
Comprehensive quality inspection equipment such as gear profile inspection equipment, three-dimensional inspection, backlash, maximum invalid stroke, torsional rigidity, noise and vibration measurement machines, etc. We also have long-term cooperation and regularly audited outsourcing suppliers, so we are ready to take on large orders at any time and maintain stable quality.

Application Cases
The products are widely used in CNC machine tools, cutting machines, welding machines, packaging and printing machinery, textile machinery, woodworking machinery, industrial robots and automated robotic arms, semiconductor equipment, fully automatic terminal machines, tool changers, aviation, medical equipment, etc.
