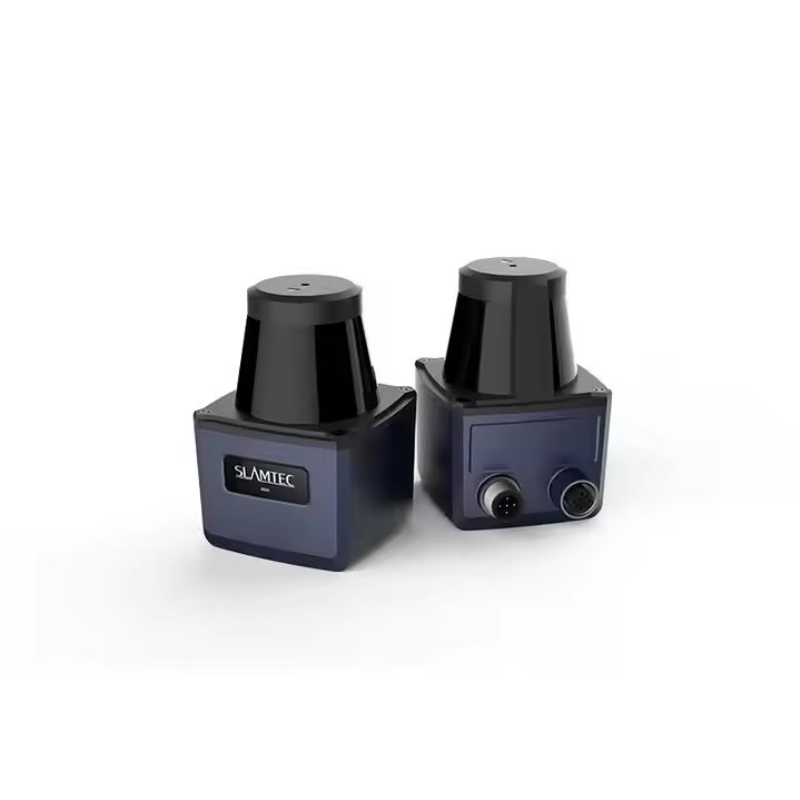

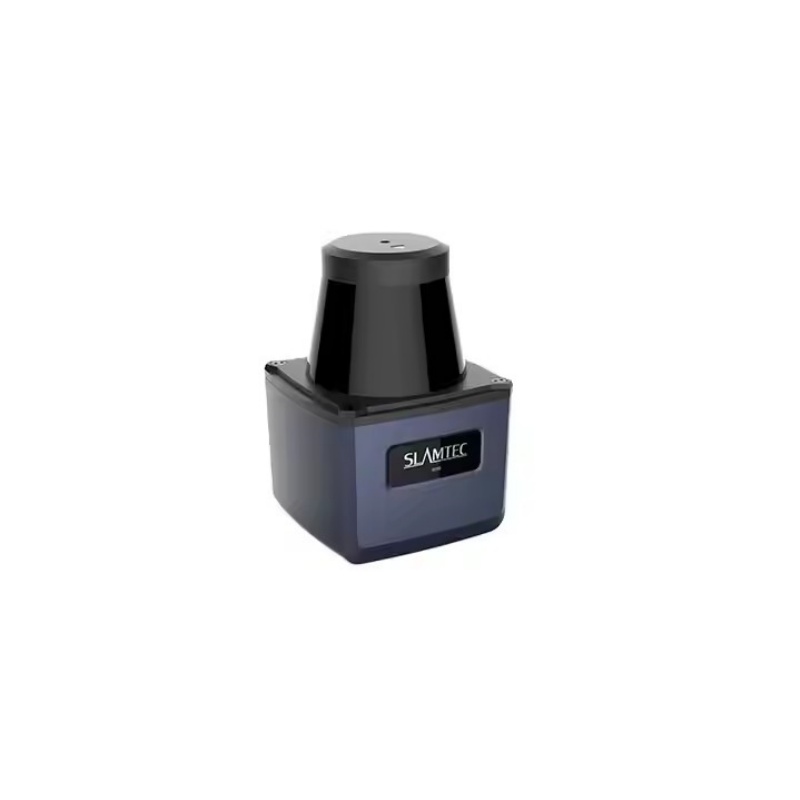

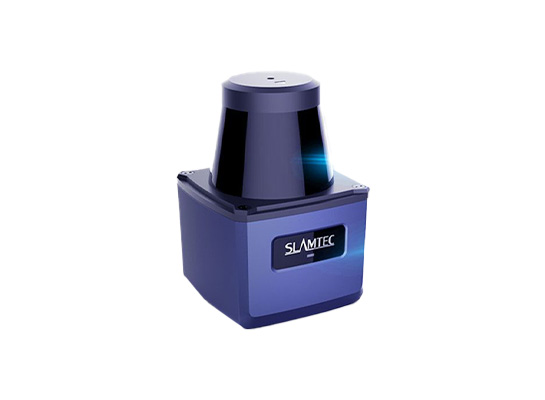

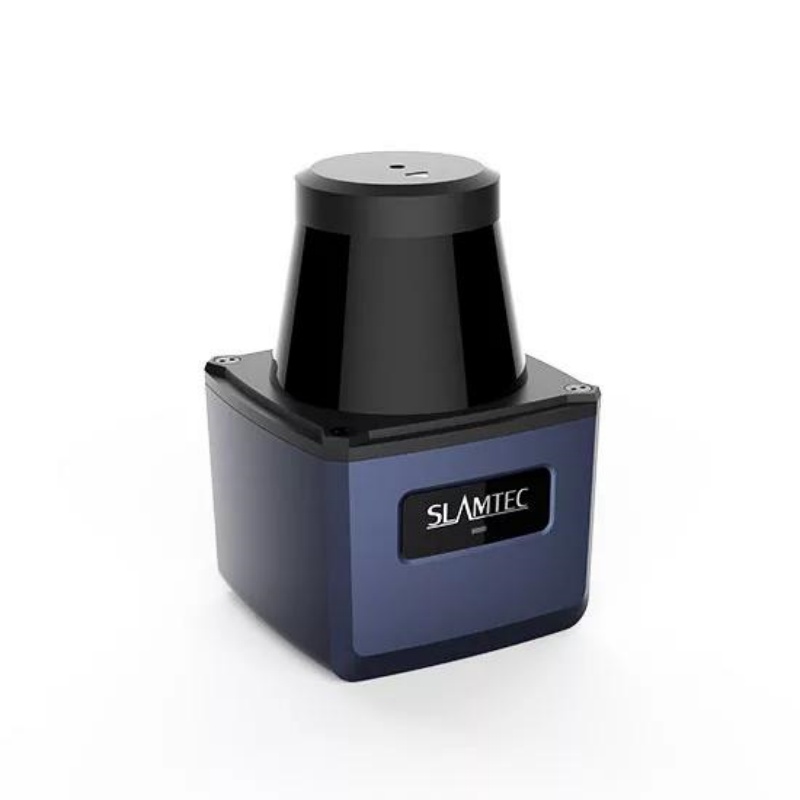

LPX-T1 Industrial LiDAR

Indoor and outdoor long range laser scanning range radar AGV preferred radar

Range radius :
40m
sample frequency :
60K
ranging accuracy :
±30mm
angular resolution :
0.12°
waterproof and dustproof :
IP66

USD: 680

ablity:Monthly Output2000

contact shop

Product Description

         LPX-T1 is the first generation of long range and high performance lidar developed by SLAMTEC, with a range of up to 40 meters, a high-speed laser ranging sampling capability of up to 60,000 times per second, and an anti-ambient light capability of up to 80,000 lux, with a scanning Angle of 270 degrees, it can generate real-time planar point cloud map information. Provides accurate environment awareness and navigation support. LPX-T1 is designed for AGV scenarios, and can also be used in practical application scenarios such as service robots and lightweight autonomous driving (unmanned vehicles in parks). LPX-T1 is an ideal choice to solve problems such as robot positioning and map construction.

Product parameters

specificationargumentspecificationargument
Recommended applicationAgvs, Service robots, Drones, Space environment mappingweight264g

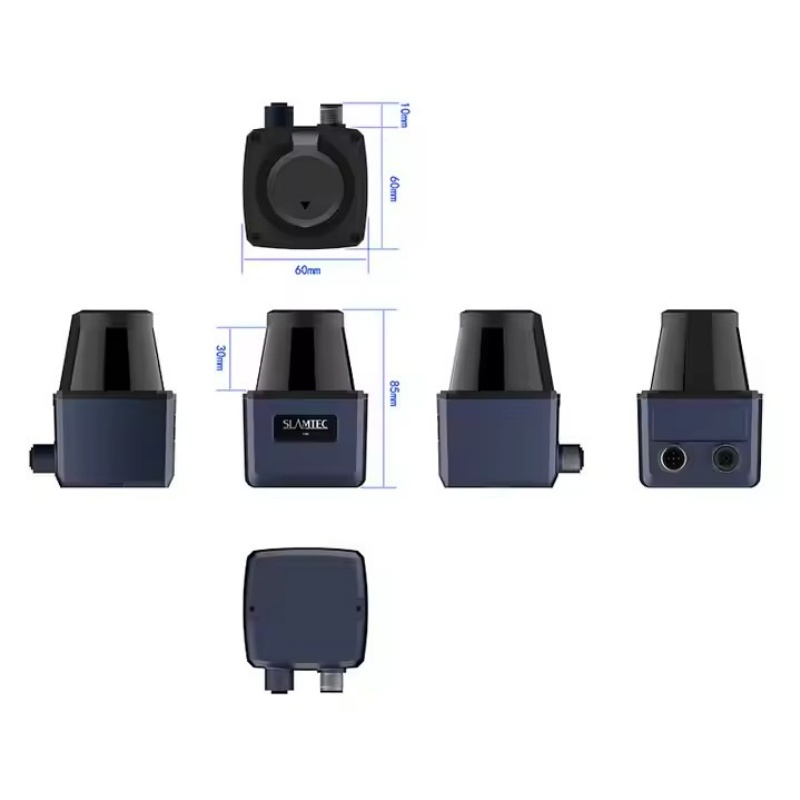

Scanning Angle270°dimension60 mm x73 mm x85 mm
Sweep frequency20-40Hz(Typical value 20Hz)Case colorMountain Lake Blue
Range radius0.05-40m 70% reflectance
0.05-15m 10% reflectance
Electrical connection4 pins, M12 plug 1X Ethernet interface
Sampling frequency60Khz5-pin power input port *1,M12 plug
Angular resolution0.12°Power decompression9~28VDC
Ranging accuracy±30mmPower dissipationTyp.4W
Ranging resolution8mmElectromagnetic Compatibility (EMC)EN 55032:2015/EN 55035:2017
Strong light resistance80,000luxVibration resistanceIEC60068-2-6
illuminantInfrared (905nm)Impact resistanceIEC60068-2-27
Class of protectionClass 1Operating temperature-20°C~50°C


Technological Innovation

Support for all types of development platforms

        In order to improve the efficiency of user development, SLAMTEC has developed the development software RobotStudio, RobotStudio provides users with professional LiDAR debugging tools, and SLAMTEC also recommends to users SDK development kit that can run on x86 windows, x86 Linux, arm Linux and other platforms to match various development applications.

Product Display


40 meters long range detection capability

     The LPX-T1 is capable of reliable detection at a range of 40 meters, enabling the identification and tracking of long-range targets. It provides the robot with a wider perception range and a longer reaction time, enhancing the safety and adaptability of the system. Applicable to warehouses, factories, distribution stations, hotels, restaurants, shopping malls, office buildings and other scenarios.

Small object detection ability

       Small object detection is one of the most important functions in AGV scenarios. With an angular resolution of 0.12°, the LGP-T1 accurately captures and identifies fine object details, ensuring accurate detection of small-size targets. Whether it is an obstacle in a warehouse, an obstacle in a narrow passage or a small object in a complex environment, the LPX-T1 enables efficient detection and identification with superior accuracy, providing AGVs with reliable navigation and obstacle avoidance capabilities.

Schematic Diagram

Quality Control

Class1 Laser safety standards

The LPX-T1 uses a modulated pulsed low-power infrared laser emission source, which meets the Class 1 laser safety standard and is safe for the human eye.

Application Cases

Wide range of application scenarios

        The functionality and performance of the LEPX-T1 make it suitable for a variety of flexible application scenarios. It can be widely used in industrial vehicles (AGVs), service robots, lightweight autonomous driving (park unmanned vehicles) and other fields. Whether it is warehousing logistics, intelligent manufacturing or autonomous driving systems, the LPX-T1 provides accurate and reliable environmental awareness and navigation support for different applications.

Service

     Hotline support

     Set up 7×24 hours after-sales technical support hotline, manned by a professional team of technical engineers. When you encounter any problems in the process of using industrial LiDAR laser scanners, you can call the hotline at any time, we will respond in the shortest time, initially understand the problem situation and provide immediate solution guidance.
