Product Description
ZDDP-TLXF-100 The swing arm robot chassis adopts modular design, and rich expansion interfaces can carry different applications, supporting rapid secondary development. Whether it is security class, disinfection class, detective class, inspection, transportation class or special robot, it supports RS485,CAN,232 bus communication interface by virtue of its excellent chassis technology; Support computer programming, rapid route planning, autonomous movement, intelligent obstacle avoidance (optional), fully realize the value of rubber track chassis.
Product Features
Robot rubber track chassis with mobility, positioning, navigation and obstacle avoidance functions (optional). "Climbing mountains and wading water, like walking on the ground", this is the best interpretation of the chassis of the tracked robot. The crawler chassis is able to continuously climb stairs, which is its significant advantage. The combination of multi-suspension design and anti-impact structure greatly reduces the impact of complex terrain on the chassis, making it easy to meet the requirements of heavy load, shockproof, off-road and so on.
Tracked chassis can move in all kinds of complex ground, such as sand, mud, hillside, culvert, etc., often used in the field of special robots, such as exploration, fire, special shooting, special transportation, disinfection robots in the field of epidemic prevention, security inspection robots and so on. At present, it has involved industries: security, disinfection, agriculture, animal husbandry, photovoltaic, special industrial and agricultural research and development.
Structure Diagram
Product parameters
| name | argument | name | argument |
|---|---|---|---|
| Chassis length | 1300mm | Chassis width | 810mm |
| Chassis height | 360mm | Track width | 70mm |
| Travel speed | 0-3.6 km/h | Motor power | ZD48VZD800W |
| Maximum load | 50 kg | Track material | Grade A natural rubber embedded with Kevlar fiber |
| Gear train material | Special synthetic polymer materials | Shafting material | Reinforced steel |
| Turning radius | Continuous 360 degree turn in place | Communication mode | CAN communication or 485 |

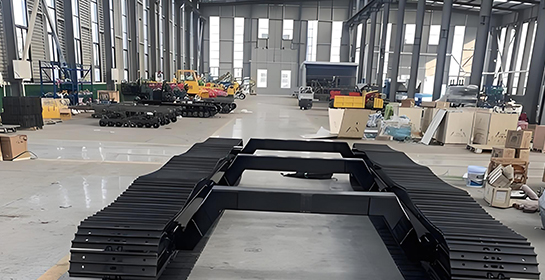

Our Factory
Service
We have a highly professional service team. Team members are the elites in their respective fields, they have gone through strict selection and systematic training, have a wealth of professional knowledge and superb skills. Whether facing complex technical problems or daily service needs, they can quickly understand your needs with keen insight and provide the perfect solution with efficient action.
Pack
All the equipment in the factory is packaged in wooden cases combined with other cushioning materials. The wood itself has a certain elasticity, which can play a buffer role when it is impacted by external forces. Moreover, the wooden box can also be used with other buffer materials (such as foam, sponge, etc.) to further enhance the buffer effect. In the logistics and storage process, the wooden box can be stably stacked, make full use of space, and can withstand the pressure of the upper goods, to ensure the safety of the goods in the stacked state.
Transport
Whether it is a small package or a large shipment, whether it is local delivery or long-distance transportation, we meet your needs with a professional attitude and quality service. Safety is the core value of our transportation services. At the same time, the order has a perfect cargo tracking and monitoring system, you can know the transportation status of the goods anytime and anywhere through the mobile phone or computer, just like you personally accompany the goods on the journey. From the moment the goods are loaded until they arrive safely at their destination, we provide you with a transparent service throughout.
