Product Description

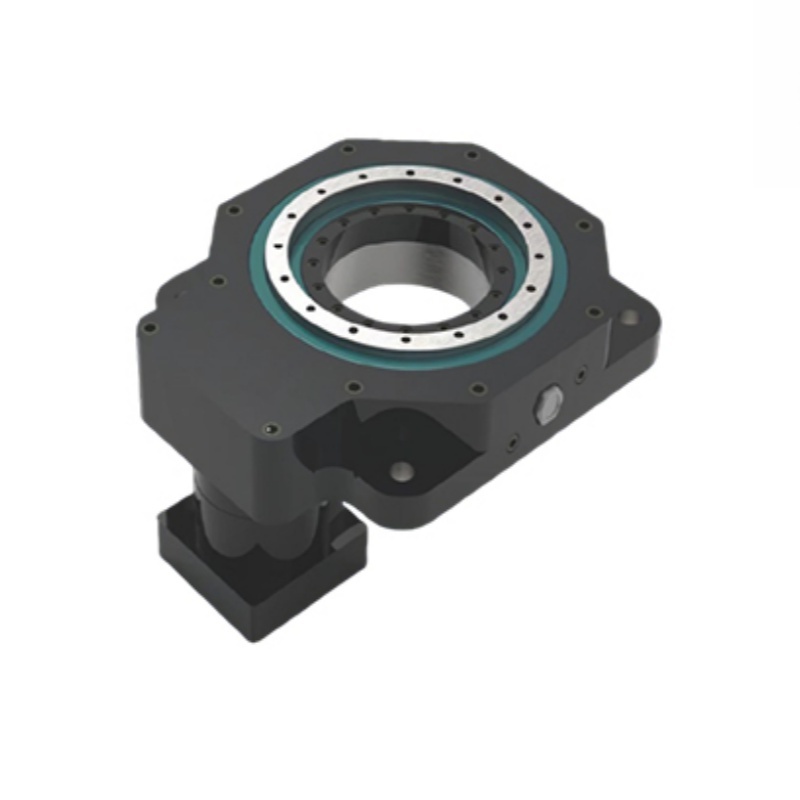

The turntable is hollow design, the servo motor is connected in the side, this unique structure is convenient to install the gas pipe and wire in the mold, so that the wiring of the equipment is more concise and orderly, avoid the problem of line winding, in the automatic production line and other high wiring requirements of the occasions obvious advantages, it sets high efficiency, high precision, high rigidity in one. Combining the advantages of servo motors, CAM dividers and DD motors, it is comparable to high-end rotary drive equipment in performance, but the cost is relatively low, which can provide users with a cost-effective rotary motion solution.
Product parameters
| Model number | GU66-C20 | GU100-C32 | GU146-C50 | |
| Motor type | 200-400W servo motor | 750W servo motor | 1.5KW servo motor | |
| Rotary platform bearing | Cross roller bearing | |||
| Allowable speed | rpm | 150(disc surface) | 150(disc surface) | 75(disc surface) |
| Reduction ratio | 1:05 | 1:05 | 1:05 | |
| Axial load is allowed | N | 200 | 400 | 800 |
| Allowable inertia moment load | N.m | 50 | 100 | 210 |
| Positioning accuracy | arcsec | 10 | 15 | 60 |
| Repeated positioning accuracy | arcsec | 4 | 25 | 25 |
| Application of platform parallelism | mm | 0.02 | 0.02 | 0.015 |
| Rotating platform concentricity | mm | 0.015 | 0.015 | 0.015 |
| Class of protection | IP | 50 | 50 | 50 |
| Precision life | H | 20000 | 20000 | 20000 |
| Weight | kg | 5 | 18 | 25 |
Product Display

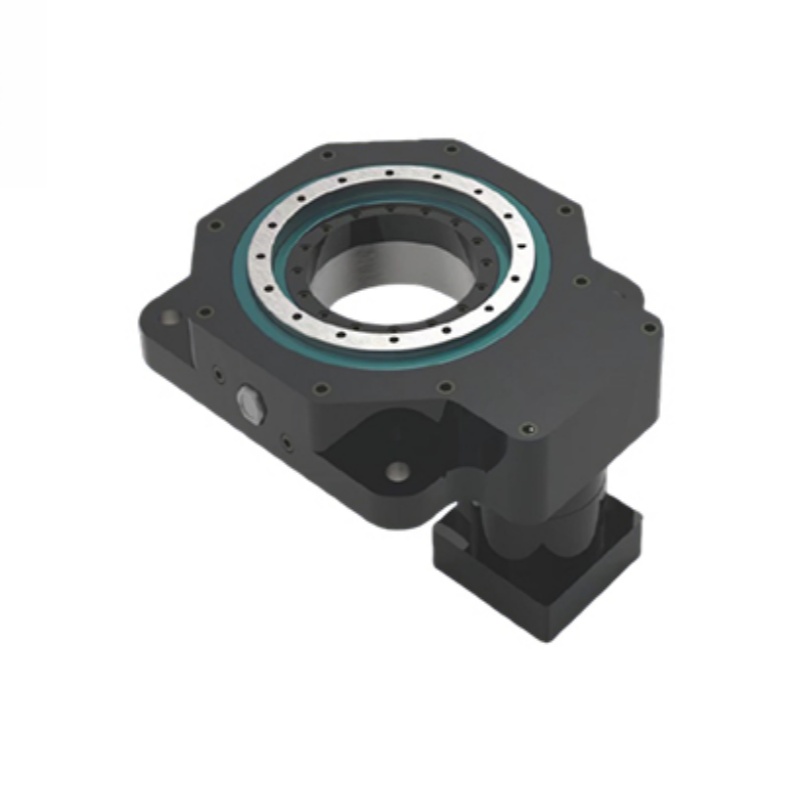

The hollow structure facilitates the installation of air pipes and wires in the jig, making the wiring of the equipment more concise and orderly, avoiding the problem of messy lines, and improving the overall aesthetics and safety of the equipment.
Through the precise design of gears and clearance adjustment mechanisms, the hollow rotary platform can achieve extremely high repeatability positioning accuracy, which can meet the needs of industrial production and scientific research with stringent requirements on positioning accuracy, such as precision assembly, testing and other fields.
Size & Interface
Application Cases
CNC indexing device: In CNC machine tools, the hollow rotating platform can be used as a indexing device to accurately control the rotation Angle of the tool or workpiece, to achieve multi-sided processing, complex contour processing, etc., to improve processing accuracy and efficiency.
Robot arm joint: as a joint component of the robot arm, it can achieve flexible rotation and accurate positioning of the robot arm, complete various actions such as grasping, handling, assembly, etc., and is widely used in automated production lines, logistics warehousing and other fields.
Automatic production line: suitable for all kinds of automatic production lines of material sorting, transmission, assembly, testing and other links, can achieve accurate rotation of materials positioning, improve production efficiency and product quality, such as automatic packaging production lines, electronic components production lines.
