Product Description

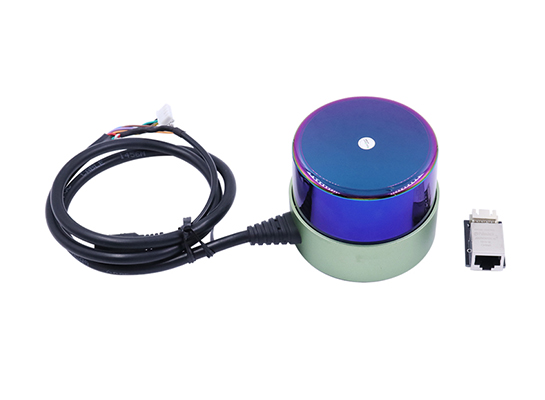

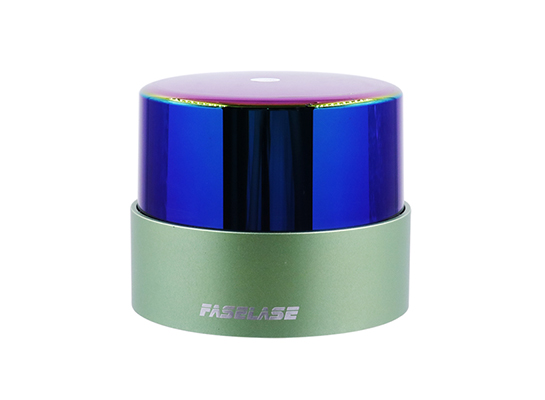

The S-series industrial laser scanning radar is a small and economical 360° two-dimensional outdoor laser scanning radar newly developed by FaseLase. The main features of the product are fast measurement speed, small size, light weight, low power consumption and low cost. Mainly used in industrial robot obstacle avoidance and navigation, projection screen interaction, security door, human flow detection and other fields.
Product parameters
| Model | S5 | S10 | S30 |
|---|---|---|---|
| Measuring distance | 0.15～5m@10% | 0.15～10m@10% | 0.15～30m@10% |
| Angle resolution | 0.3° | 0.3° | 0.144° |
| Scanning speed | 12Hz | 12Hz | 50Hz |
| Output Interface | 3*NPN OUT,2*NPN IN | Ethernet | Ethernet |
| Power supply | DC12V~36V | DC12V~36V | DC12V~36V |
| Dimensions | 77 x77 x 63 mm | 77 x77 x 63 mm | 77 x77 x 90 mm |
| Scanning area | 360° | ||
| Repeatability | ±3cm | ||
| Distance resolution | 1cm | ||
| light source | Laser diode 905nm, ≤1mW; Meets GB7247.1-2001; Class I laser human eye safety requirements | ||
| Operating temperature | －10℃～＋50℃ | ||
| storage temperature | －20℃～＋70℃ | ||
| Protection level | IP65 | ||
| Weight | 310g | ||

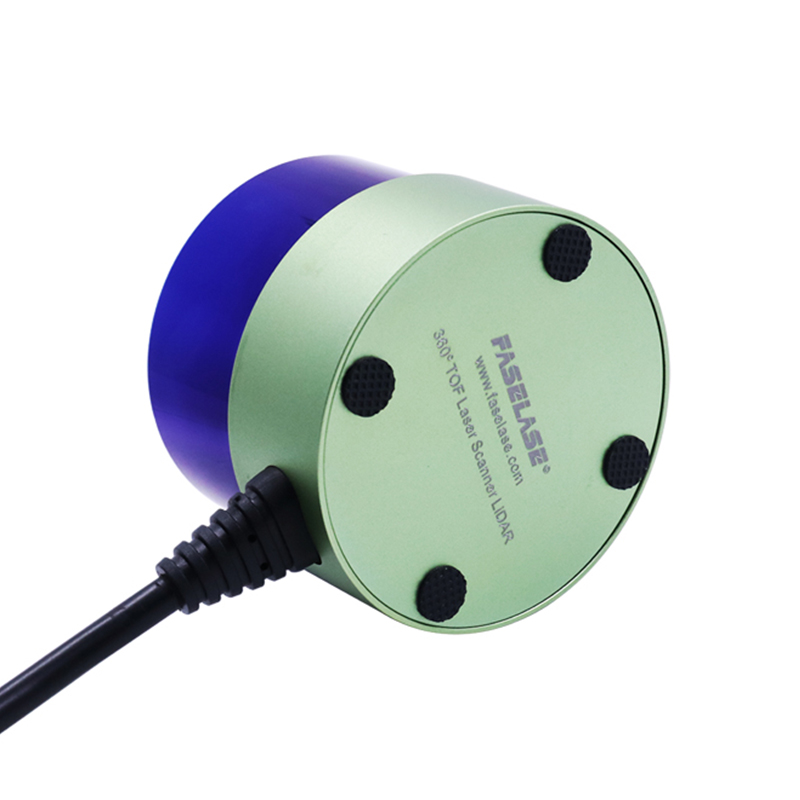

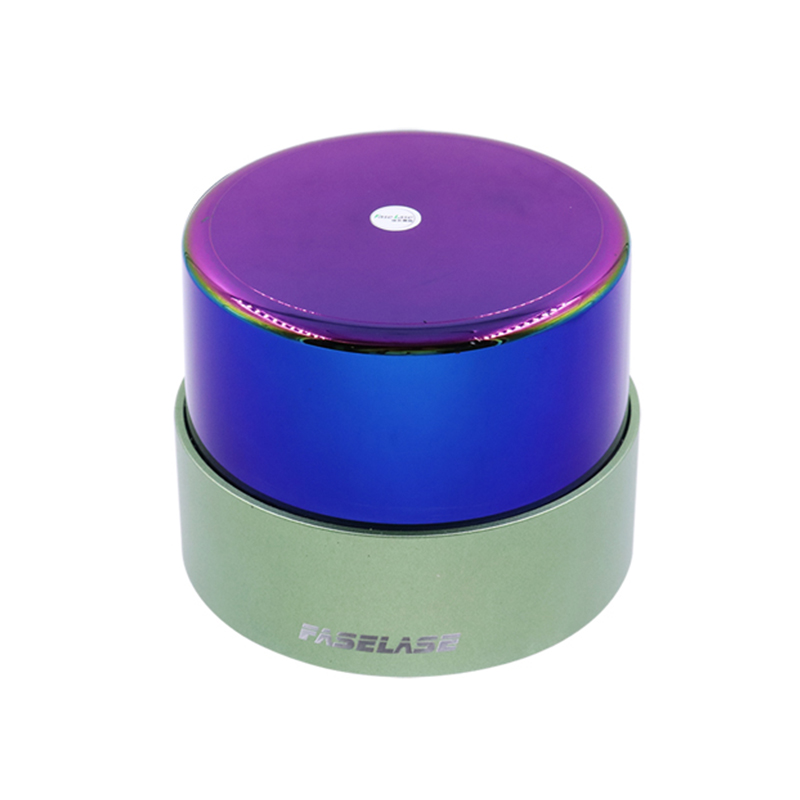

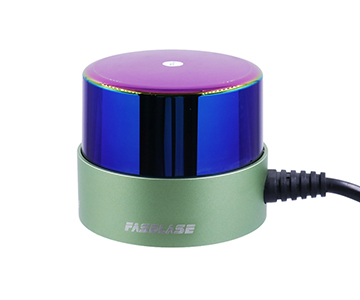

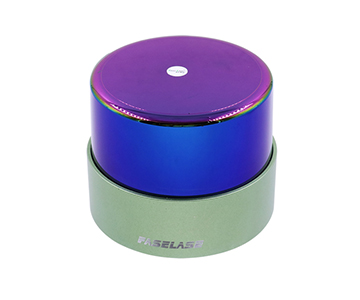

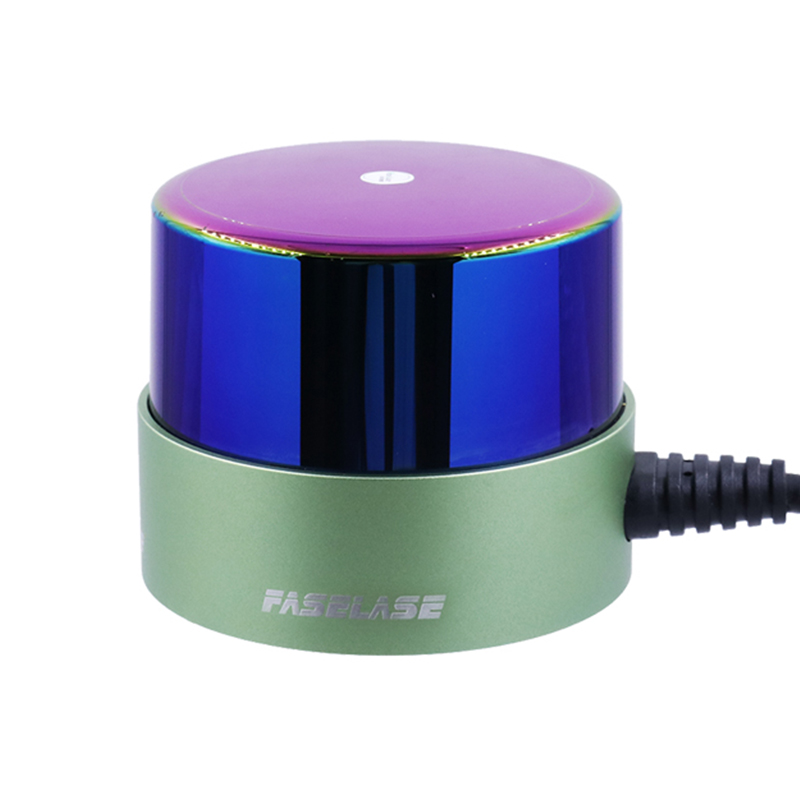

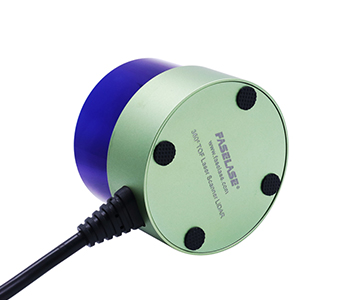

Product Display
● Based on TOF pulse measurement technology
● Super ranging ability, up to 40m
360˚ no dead Angle scanning, very small angular resolution up to 0.1˚
● Very small measurement spot, can accurately detect small objects and high precision
● Integrated rotation design, plane error ±0.08˚
● Light interference resistance: 50000Lux
● The LCPA algorithm includes smoke filtering, particle filtering, mean filtering, median filtering and standard analysis algorithms
● Nano optical dust cover, extended service life, reduced maintenance time
● Japanese motor, long service life
● Convenient multi-layer security protection area setting
● Eye safety laser protection, in line with standards
● With a variety of interfaces: USB, Ethernet
● A variety of installation methods and rich accessories, easy to use, convenient for users to secondary development
● Support remote maintenance and upgrade
● With synchronous map construction, path planning and navigation, automatic obstacle avoidance functions
Software Development Kit - ROS development kit is available to help customers accelerate the development of robotics projects
● Reliable and durable - strong and durable
Customizable - Easily select and use the right accessories from dozens of supported and tested accessories
● High precision - TOF LiDAR
● Technical support - complete software and hardware documentation, professional technical support from FaseLase team
Quality Control
- Optical component
For the laser in the laser emission module, the parameters such as wavelength accuracy and output power stability need to be strictly tested. For example, the deviation of the wavelength may affect the accurate reception and resolution of the light reflected by the liDAR on the target object, and the wavelength deviation is generally required to be controlled within a very small range, such as ±5nm.
The quality of the optical lens is also crucial. The curvature accuracy of the lens, the surface flatness and the transmittance of different wavelengths of laser light are all carefully tested. Any small flaw, such as a scratch or uneven curvature on the lens surface, can cause the laser to scatter or focus inaccurately, thus affecting the detection accuracy of the liDAR. The transmittance is generally required to reach more than 90% in a specific band.
- Electronic components
The chip on the circuit board is the "brain" of the lidar, and when conducting quality control, it is necessary to ensure that the performance of the chip meets the design requirements. For example, to test whether its data processing speed can meet the needs of liDAR to acquire and process large amounts of point cloud data in real time. At the same time, it is also necessary to check the stability of the chip in different temperature environments, because the lidar may generate heat during the working process, and the chip performance must be stable within a certain temperature range (such as -40 ℃ -85 ℃).
The parameter accuracy of capacitors, resistors and other discrete components can not be ignored. The deviation range between the nominal value and the actual value of these components should be controlled within a certain limit, such as the resistance value deviation of the resistance does not exceed ±1%, to ensure the normal operation of the circuit and the accuracy of signal transmission.

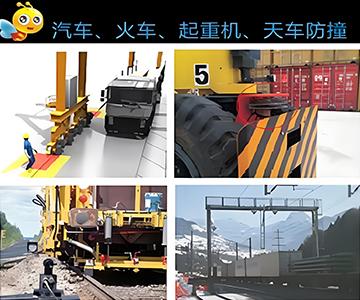

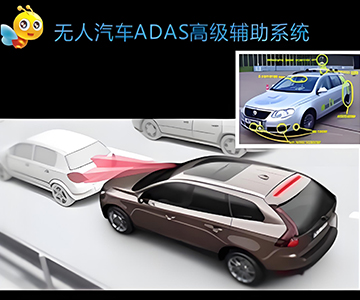

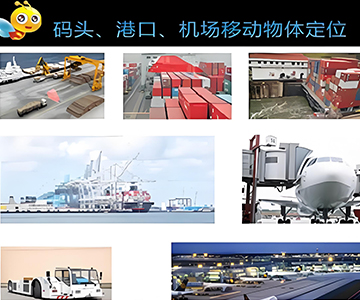

Application Cases
Shenzhen Fashi Lidar Co., LTD. (referred to as: Fashi Lidar) is a long-term engaged in rapid laser measurement and control technology research of pure technology enterprises, thousands of Lidar in the outdoor harsh environment, 365 days a year, 24 hours of long-term operation, failure rate of less than 1%, more than four years has been to provide customers with cost-effective products. The fast laser ranging sensor is used for the detection of fast moving objects and the detection of the surrounding environment of fast moving objects, and its speed, accuracy and detection distance can meet the needs of most customers. The main features of the product are fast measurement speed, small size, light weight, low power consumption and low cost. In addition, it can be measured by external timing control, which is convenient for ultra-dense installation, and is an application solution for fast-moving road vehicle detection, regional flow detection, train industry, high-speed rail, and port vessel obstacle avoidance. Such as: screen interaction, AGV, outdoor cleaning robot, forklift, industrial mobile robot, security door.
Service
- Product training services: The company can provide customers with training on the use of Lidar products, operational processes, data interpretation and other aspects. This helps customers make better use of LiDAR equipment and reduce problems caused by improper operation. For example, engineers in automotive manufacturing companies are trained in the commissioning and data collection methods of in-vehicle lidar so that they can understand how radar works in autonomous driving scenarios.
- Product customization services: According to the special needs of different customers, the performance parameters of Lidar (such as detection distance, angular resolution, scanning frequency, etc.), dimensions, installation methods, etc., are customized. For example, for space-constrained UAV application scenarios, customized miniaturized and lightweight liDAR.
