Product Description

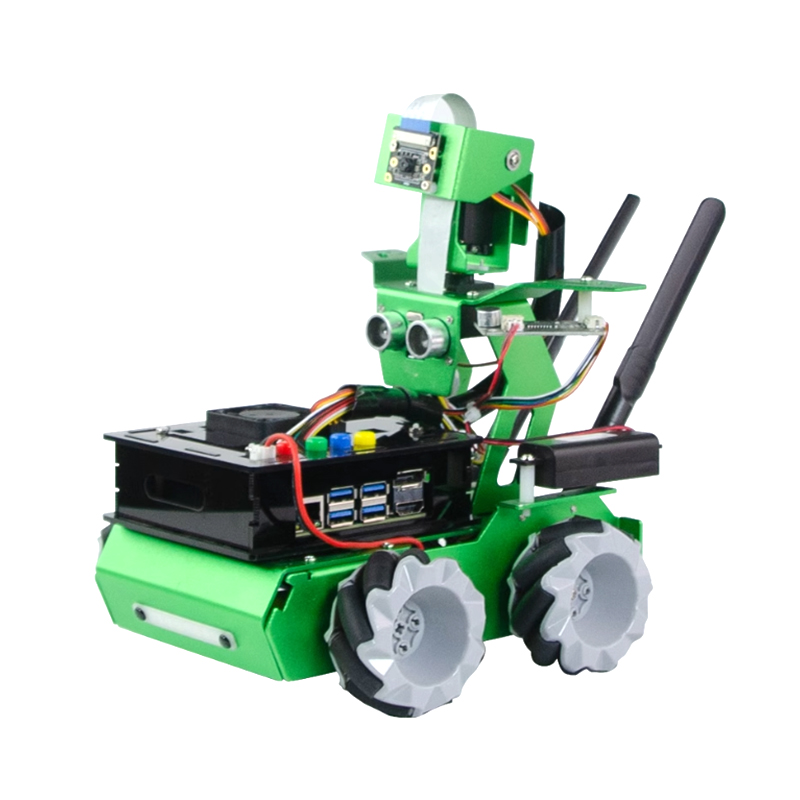

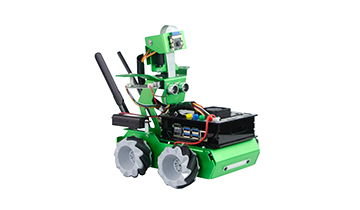

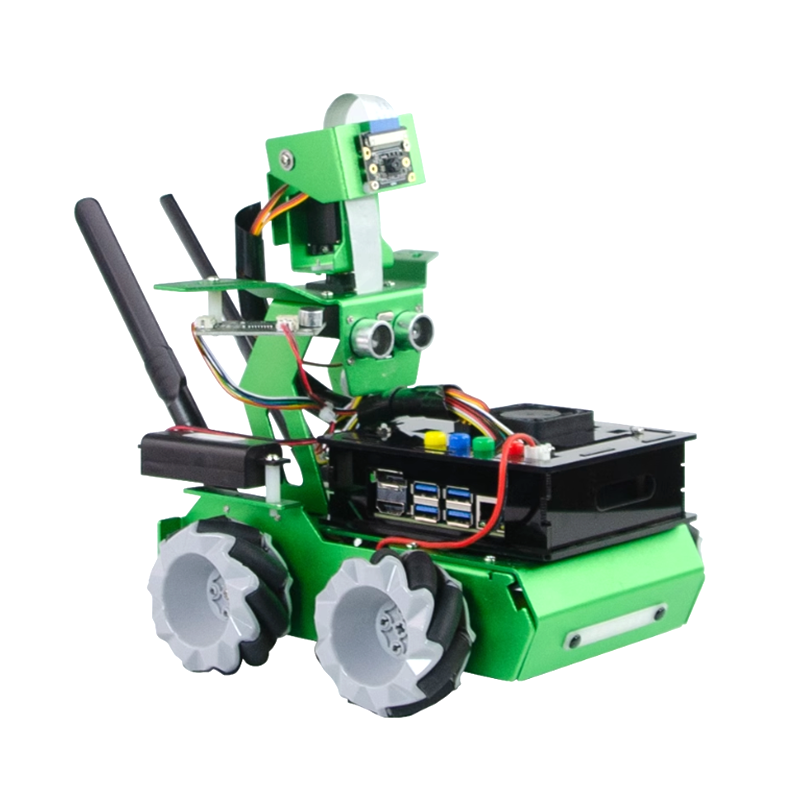

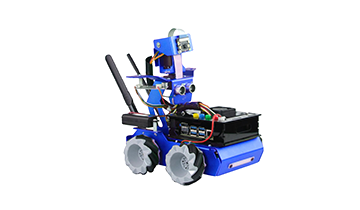

XR-JetbotV2.0 WiFi Wireless Car Robot
XR-Jetbot V2.0 is an amazing WiFi wireless car robot. With Jetson Nano as its core, it integrates advanced voice, vision and autonomous driving programming technologies to fully demonstrate intelligent technology. Based on the powerful Jetbot development platform, it can not only accurately identify objects and voice commands in the environment, but also achieve autonomous navigation and path planning through complex algorithms, bringing users an efficient, intelligent and fun operating experience.
Product Features

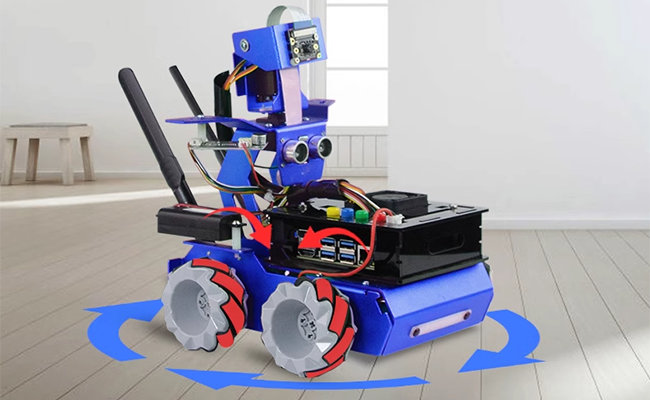

Omnidirectional Mecanum wheels
Don’t take the usual path! Jetbot2.0 artificial intelligence car abandons the conventional wheel travel method
It uses Mecanum wheels to move in all directions and walks like a crab, it is so arrogant.

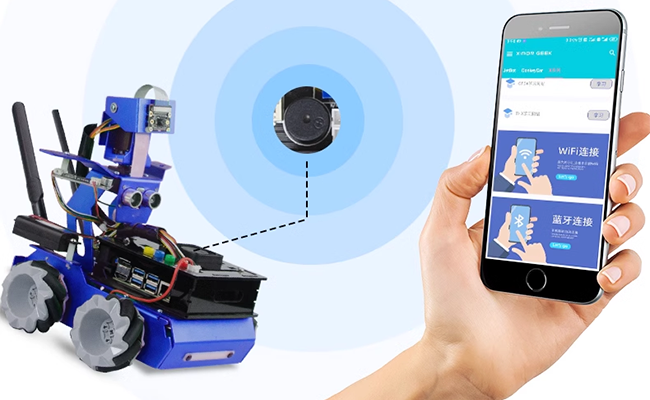

Buzzer
Controlled by APP port, the car will make a sound according to the instructions of APP.

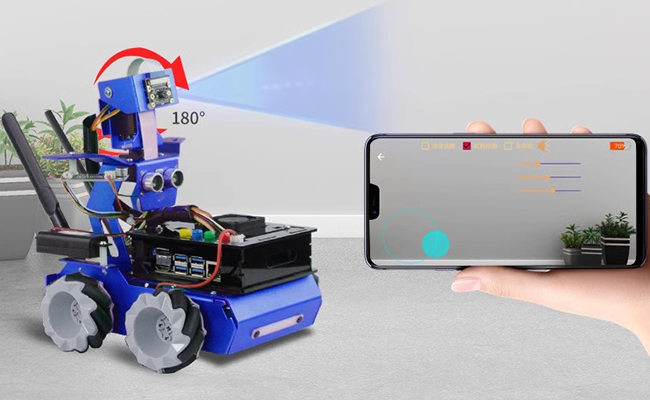

3-DOF gimbal
Flexibly control the gimbal to move in all directions through the APP, rotate 180 degrees left and right,
Rotate 90 degrees up and down, control the camera angle at will, and the visual range is more comprehensive

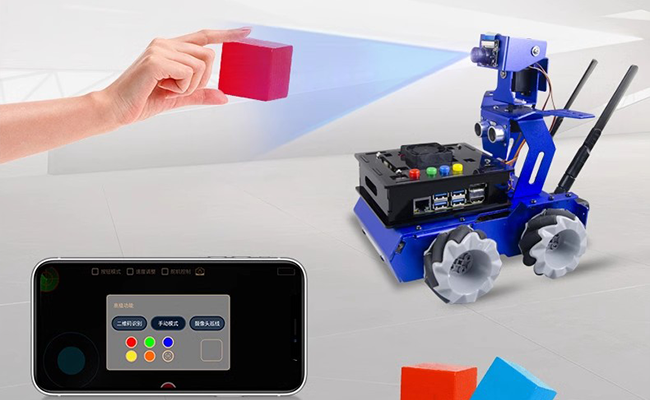

Color tracking
In the program, you can set it to only recognize objects of a "specific color", and the car will only track objects of the specified color,
not recognize objects of other colors. The program can also be set to recognize multiple colors at the same time.

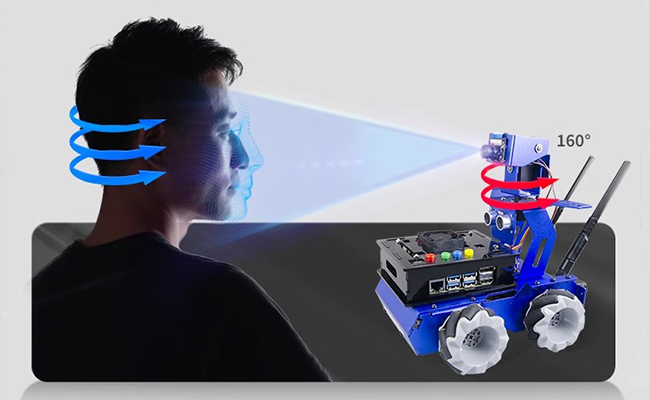

Camera - visual recognition of human face
8 million high-definition pixels, 160-degree wide-angle vision can recognize facial features, and when the face moves, the camera will move synchronously and follow the face.
Multiple control modes
The car can be controlled by a manual handle to patrol the map. The car can quickly collect patrol data and generate a learning result model. The car can automatically complete the patrol task next time without manual control, realizing the automatic driving function

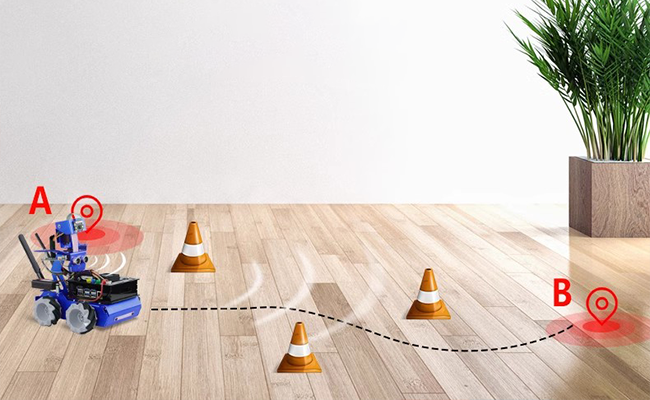

Ultrasonic obstacle avoidance
In an indoor environment, the ultrasonic wave on the car will detect the indoor layout, When the car runs from point A to point B, it will automatically avoid obstacles

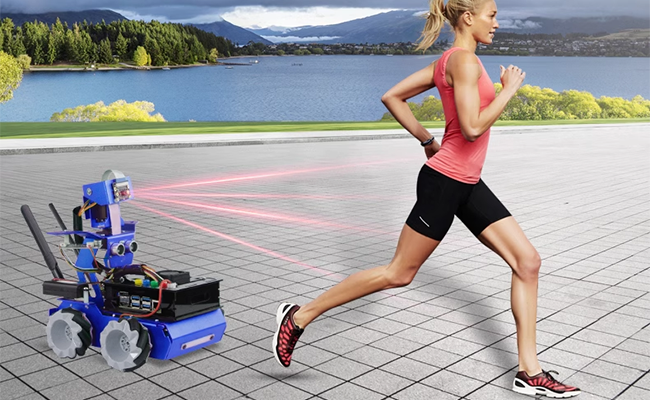

Automatically follow
Triggered by APP, after triggering, the car will automatically find obstacles and follow the moving objects ahead.

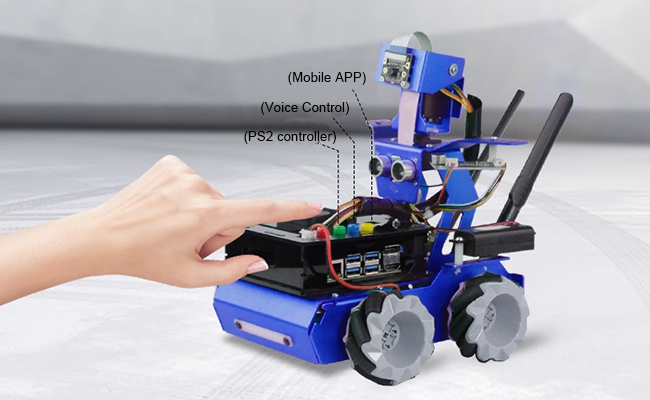

Multi-function programming button
The car has three shortcut buttons, which can quickly issue control commands to the car. Yellow is for connecting to the mobile phone APP, green is for PS2 handle control, and blue is for voice control. Users can also write programs to control the car buttons to achieve functions such as car movement, buzzer sounding, pan/tilt rotation, LED light flashing, etc.
Application Cases
Jetson Nano intelligent robot car is based on the voice and vision autonomous driving programming developed by Jetbot and can be applied in a variety of scenarios. In the field of education, it can be used as a teaching tool to help students learn AI and robotics technology and improve their practical ability; in scientific research, it provides researchers with an experimental platform for verifying new navigation strategies and perception algorithms;
Technical Parameter
| Parameter name | Parameter value | Parameter name | Parameter value |
|---|---|---|---|
| Dimensions (length, width, height) | 300x195x208mm | weight | About 1.35 kg (including battery) |

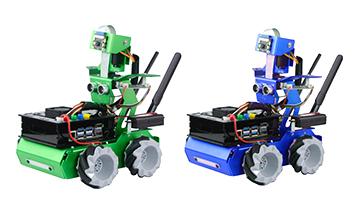

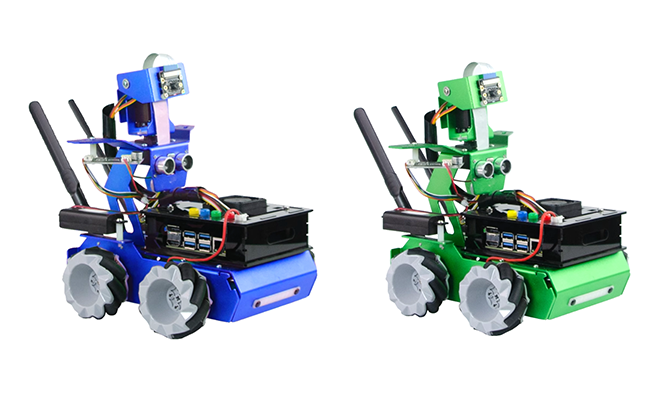

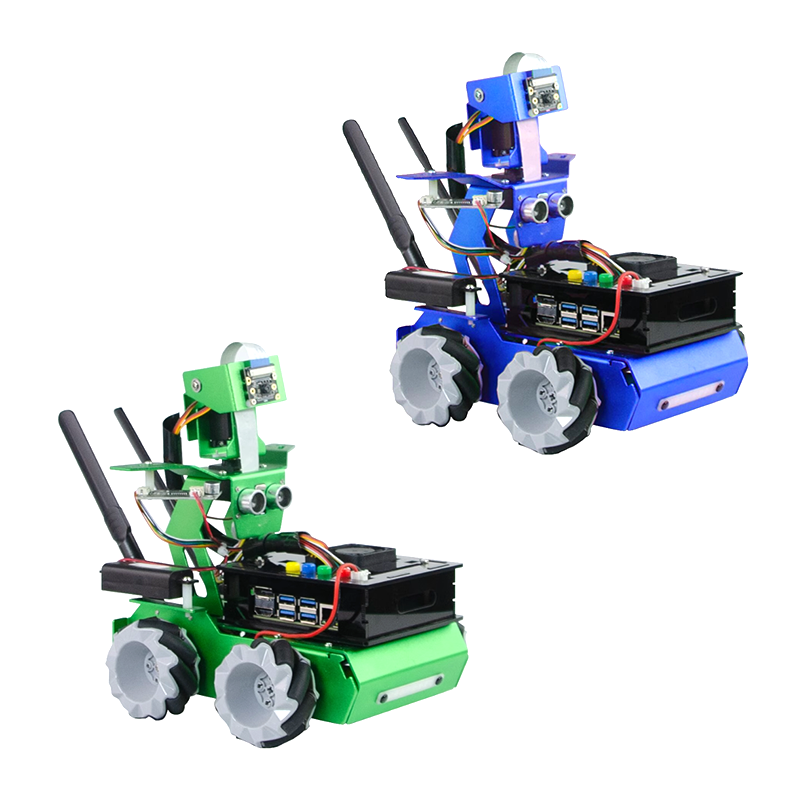

| Material | Aluminum alloy | color | Blue & green |
| Maximum climbing angle | <10° | wheels | 65mm Mecanum wheel omnidirectional rotation |
| Drive mode | Four-wheel differential system | battery | Voltage 7.4V |
| Control | Jetson Nano Mainboard | camera name | NANO dedicated camera |
| Pixels | 8 million | photosensitive chip | XRIMX219 |
| Resolution | 3280x2464 | field of view | 160 degrees (conventional lens only 72 degrees) |
| Camera size | 25mmx24mmx18mm | GPU | NVIDIA MaxwellTM architecture |
| Storage space | 16GB | programmable buttons | 3 buttons |
| OLED screen | 0.91 inch | buzzer | Active buzzer |
| Motor drive | 4 independent TT motor drive | RGB colored lights | Onboard 4 RGB plus external RGB interface |
Packing list
- Body components
- PTZ components
- Feather antenna
- PS2 controller
- Charger
- Voice module
- Card reader
- PS2 controller receiver
- Screwdriver
- Hardware bag
