Product Description
Intelligent warehouse automatic loading and unloading AGV car is a driverless automated transportation equipment, which plays a key role in modern intelligent warehousing systems. High degree of automation: can independently complete the handling of goods, loading and unloading, transportation and other tasks, without manual driving, can achieve 24 hours of continuous operation, greatly improving the efficiency of storage operations. Autonomous navigation and path planning: Equipped with advanced navigation systems and sensors, such as lidar, vision sensors, etc., it can independently plan the optimal path, safely avoid obstacles, accurately move the goods from the specified position to the specified position, and achieve high efficiency, high precision and high accuracy handling. It can also make dynamic route adjustment according to real-time traffic conditions to ensure smooth transportation.
Product Features
Suitable for a variety of space environments
It has the function of turning in place, and can also move forward and backward
Applicable to various industry application scenarios
A variety of environmental factors, a variety of driving road surface, strong adaptability
Double wheel differential drive
Speed adjustable, speed (0-30m/min)
Multi-unit linkage control
With multiple AGVs running synchronously according to scheduling instructions autonomously set control procedure
No manual intervention is required in the production process
Safety protection
It has perfect fault self-test function and remote fault diagnosis and recovery function.Equipped with radar and infrared obstacle detection sensors, mechanical collision avoidance devices and sound and light alarm system.Ensure safe operation
Product parameters
| item | Indicators/parameters | Remarks/Instructions |
|---|---|---|

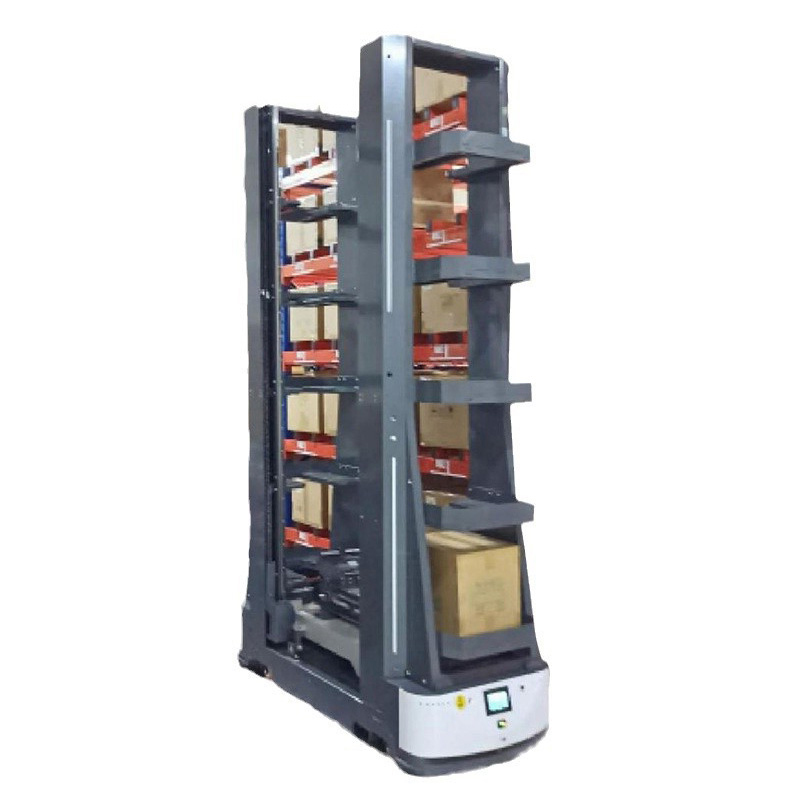

| Product model | UA32-LF6-N | Multi-box AGV/ Stacking AGV |
| AGV body size | 1700*750*3100mm | Holding rack |
| Navigation mode | Magnetic stripe navigation | The ground is clean and smooth, without oil and dust. Qr code navigation is optional |
| Control mode | Integrated controller | Uwant AGV special controller |
| Drive motor | Servo motor, 400W*2 | The motor power of Party B depends on the actual situation |
| Driving mode | Differential drive | Centrosymmetric type |
| Load mode | Automatic storage, pick-up, delivery | / |
| The repository bit | 10-bit | / |
| Maximum load | 300KG | Fork arm load is not less than 30KG |
| Fork height | The minimum effective ground lift is 400m±5mm and the maximum effective ground lift is 3600mm±5mm | / |
| Arm extension | The extension length is not less than 500mm | / |
| Running direction | Bidirectional operation | Two-way forward, backward, turn in place |
| Maximum speed | 30m/min | Straight, flat running |
| Operating environment | Allowable surface bump height :≤5mm, maximum slope :3 degrees | The height difference between the lowest point and the highest point of the ground within 1 meter shall not be greater than 5mm |
| Node identification | RFID card | affix |
| Node action | Supports more than 30 functional actions such as sports | The fork arm can be telescoped back and forth |
| Stopping accuracy | ±10mm | / |
| Communication mode | Serial port, WIFI | / |
| Safety protection | Radar + infrared + full batten + scram switch | Obstacle sensor protection |
| battery | 48V battery | Battery life is 5-6 hours |
| Replace the battery | support | The battery can be replaced manually and automatic charging is supported |
Customer Case
Our Factory
Service
About the price: Because the price of raw materials in the industry of our products fluctuates greatly, and the product models and materials are diverse, it is difficult to specify the current price, the price of our store is for reference only, if you need to place an order, please contact the business consultation.
About receiving: do not support the return of goods, one year warranty, if there is a problem, contact customer service in time, there will be technical personnel responsible for solving the goods to provide help.
Transport
We put the safety of our goods first during transportation. Each product is packaged with high-quality packaging materials, which have good cushioning, shock-proof and moisture-proof properties, and can effectively protect the product from damage in long-distance transportation and complex environments.
