Product Description

The underwater brushless motor is designed for underwater environments, it has excellent water resistance, special sealing process can resist high pressure water flow, and can work stably at different depths. Brushless construction makes it highly efficient in operation, reduces energy loss, and has strong durability and reduces maintenance frequency. The motor torque output is large, which can drive the underwater equipment to operate efficiently. At the same time, it has accurate speed regulation function, which can flexibly adjust the speed according to the operation needs, provide stable and reliable power support for underwater detection and underwater vehicles, and help all kinds of underwater operations to carry out smoothly.

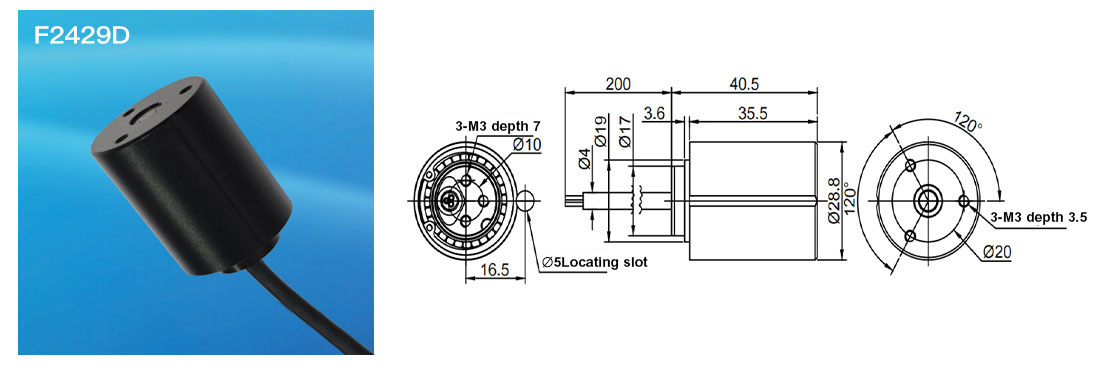

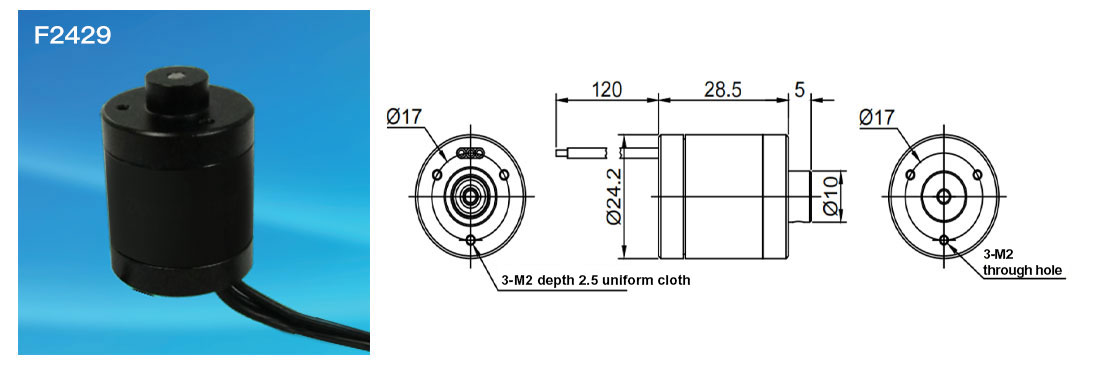

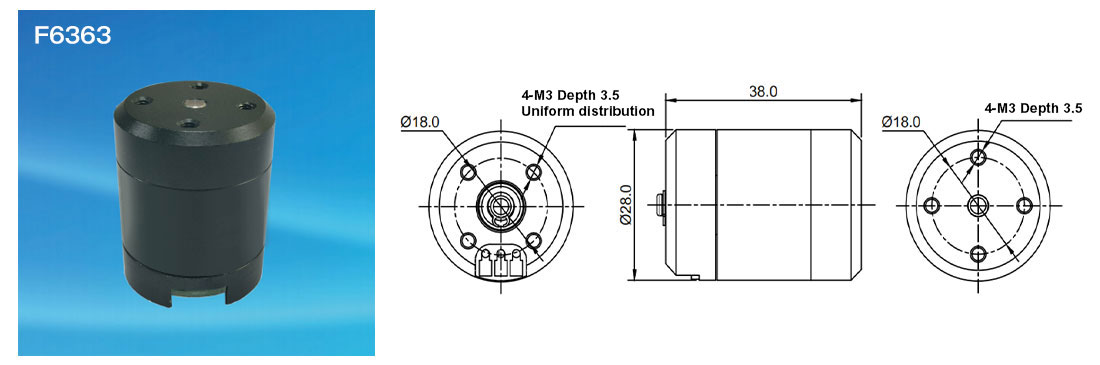

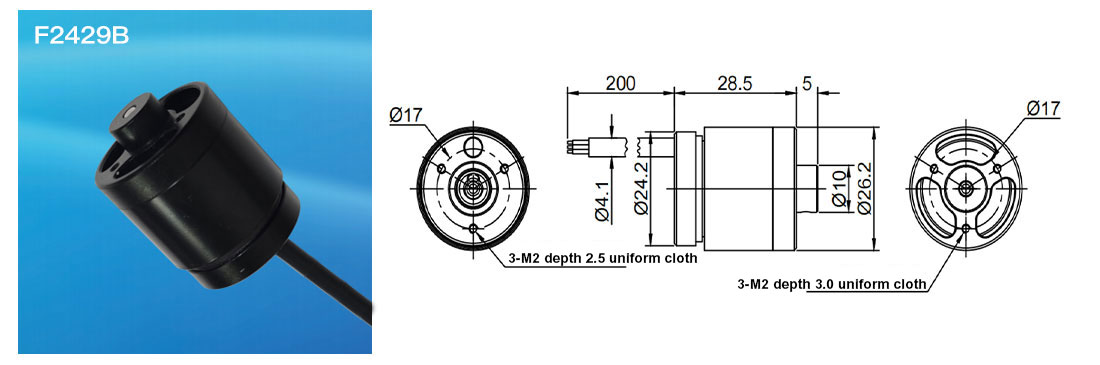

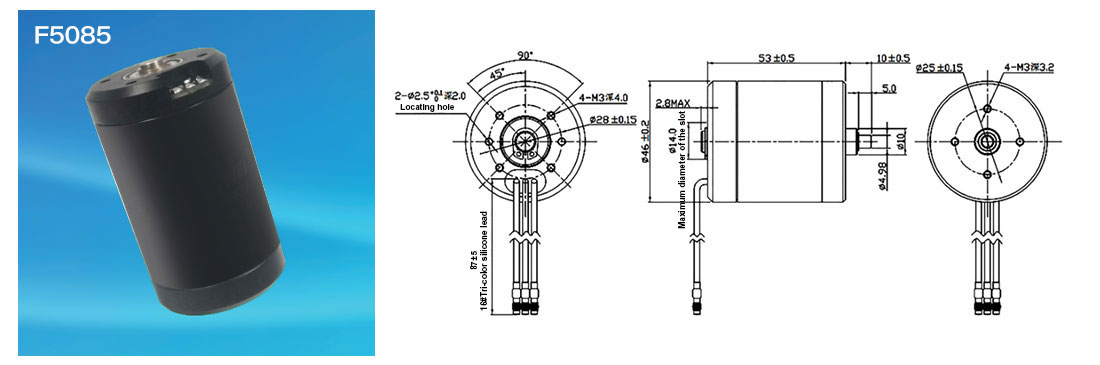

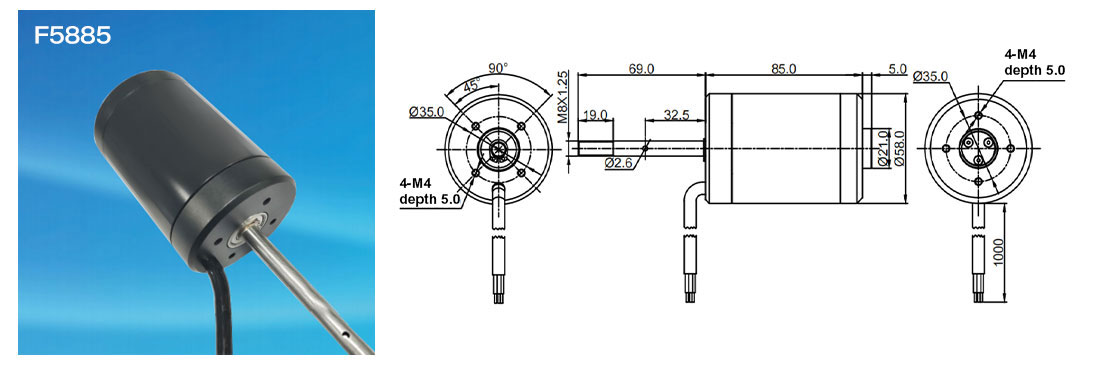

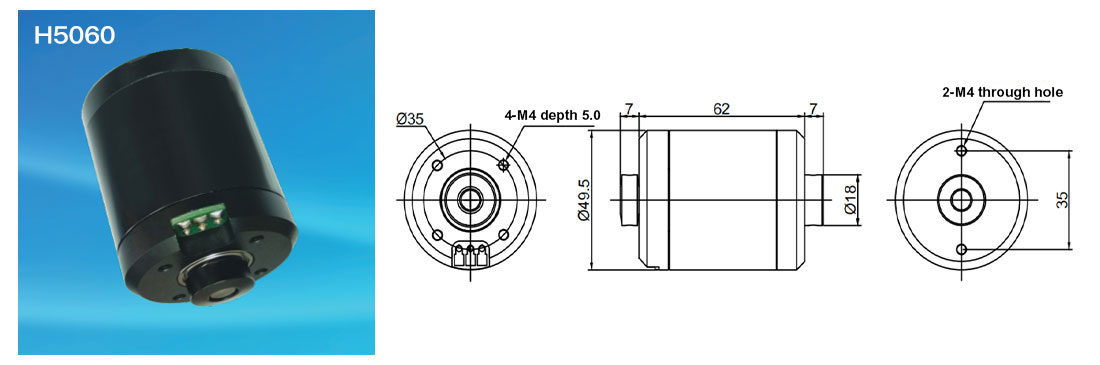

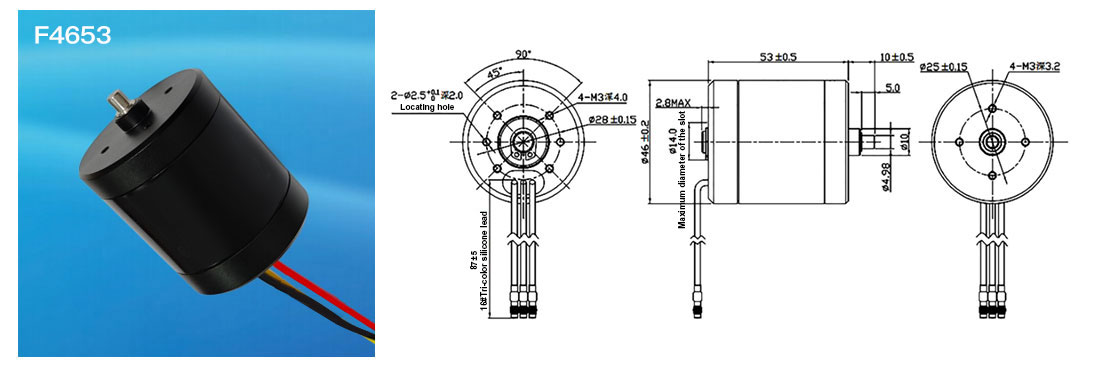

Dimensional drawing

Product parameters

MODEL	KV	Voltage	No Load Current	No Load Speed	Load Current	Power	Lipo	Weight
	(rpm/V)	(V)	(A)	(rpm)	(A)	(W)	Cell	(g)Approx
F2429	800	11.1V	0.45	8900	9	100	2-4S	49
F2429B	230	12.0V	0.05	2760	0.91	4.7	2-4S	62
F2429D	230	12.0V	0.09	2760	0.95	4.9	2-4S	82
F2838	350	11.1V	0.25	3950	7.5	83	3-6S	80
		14.8V	0.3	5200	10	150
F2838B	350	11.1V	0.22	3930	7.5	83	3-6S	82
		14.8V	0.28	5220	10	150
	500	11.1V	0.32	5540	11	120
F3130	170	14.8V	0.25	2480	10.5	136	4-10S	214
		22.2V	0.28	3600	15.2	298
	220	14.8V	0.4	3200	13.5	175
FSM3660	360	12V	0.5	4250	6.5	72	3-6S	260
		16V	0.55	5680	8.0	20
		24V	0.65	8450	11.6	265
F4125	300	14.8V	1.3	4350	30.8	323	3-6S	310
		22.2V	1.5	6480	48.2	760
	350	22.2V	1.9	7250	58.5	922
F4653	290	14.8V	1.3	4300	12.5	185	3-6S	345
		22.2V	1.5	6420	19.2	426
H5060	160	22.2V	0.55	3520	52	980	4-10S	485
	200	22.2V	0.75	4570	61	1150
F5085	100	24V	0.7	2400	25.5	550	4-10S	680
		36V	1	3620	37	1190
F5085B	140	24V	0.8	3450	31.5	750	4-10S	700
	280	24V	1.8	6720	45	1080
F5885	240	24V	1.9	5800	46	1100	4-10S	965

MODEL	KV	Voltage	No Load Speed	Load Current	Power	Max Current	Max Power	Lipo	Weight
	(rpm/V)	(V)	(rpm)	(A)	(W)	(A)	(W)	Cell	(g)Approx
F6363	170	24V	4080	25	600	63	1500	4-12S	860
		36V	6120	38	1360	82	2950

Application

Underwater brushless motor is widely used in many fields. In terms of water sports and operating equipment, it provides strong power for underwater thrusters to help ships move quickly; Provide stable output for the ship to achieve accurate delivery of nest material; Fast response for underwater lifeboats to ensure life safety. In the field of cleaning equipment, the pool cleaning robot is accurately driven to clean the pool efficiently. In the field of leisure and entertainment, it provides stable power for water amusement equipment to ensure the tourist play experience.
