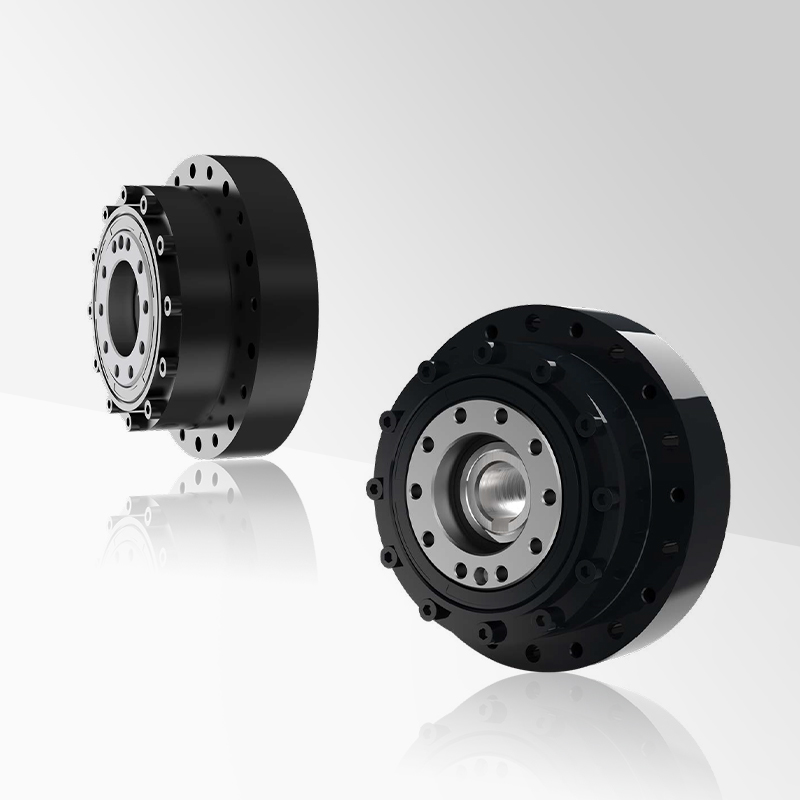

Lightweight design SG series cycloidal pin gear reducer
Small space large torque heavy load worry-free, strong impact resistance small backgap, small space to show their skills
Functional Features
Miniature cycloidal needle wheel
Small space, large torque, light weight,
Heavy load; Backspace is superior to planets,
Better shock resistance than harmonics
Customization range: Back backlash :5-10 arc minutes,
Outer diameter :20-120mm,
Deceleration ratio :13-79
Intelligent application
High intelligent pedestrian robot
Intelligent vehicle
Manned high-altitude climbing equipment
Product parameters

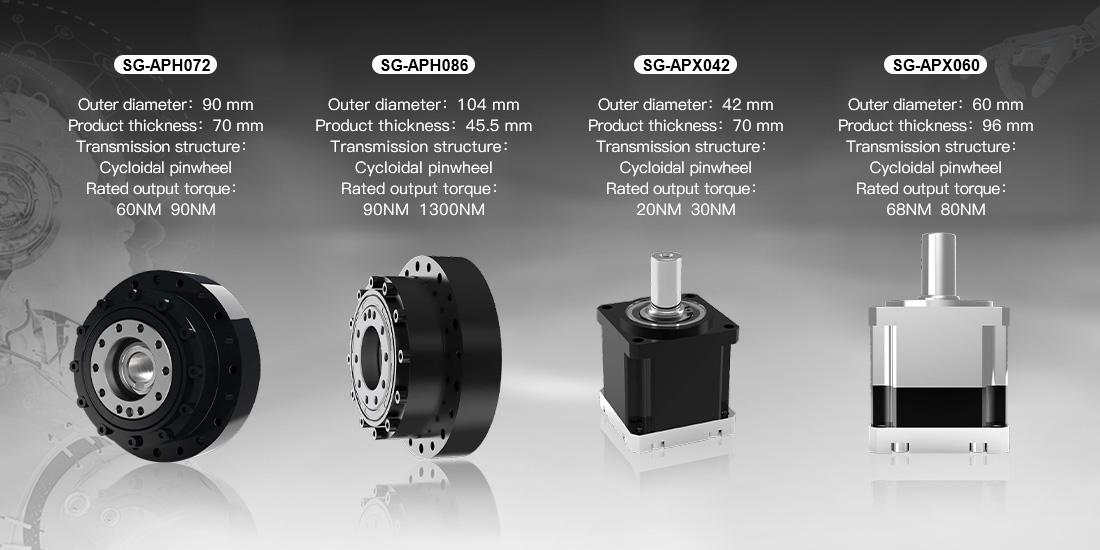

name | argument | name | argument |

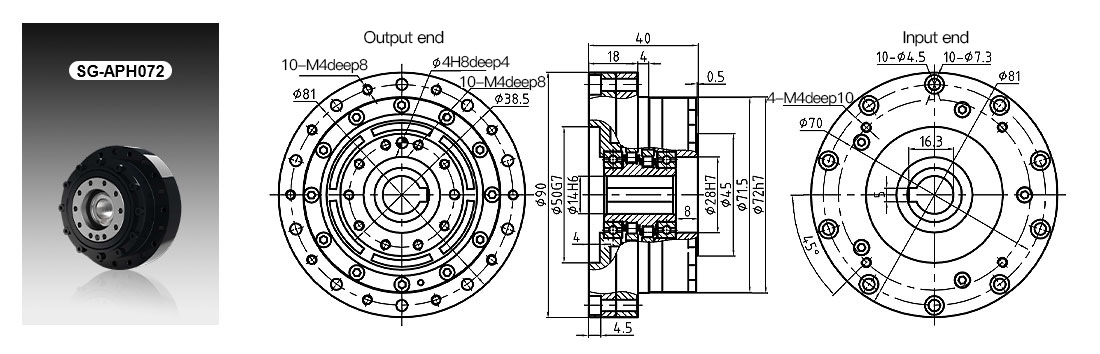

Model number | SG-APH072 | Full load efficiency | 0.8 |
Housing material | steel | IP Grade | IP65 |
Gearwhddl material | steel | Operating temperature range | -25° ~+90° |
Outer diameter | 90mm | Average lifetime | 20000h |
Thickness | 40mm | Rated input speed | 3000min-1 |
Reduction ratio | 25 49 | Maximum input speed | 5500min-1 |
Rated output torque | 60NM 90NM | Backhaul clearance | ≤ 10arcmin |
Back drive torque | 3 times rated output torque | Transmission structure | Cycloidal pinwheel |
Allowable radial load | 480N | Adapted Motor | φ14×30/φ50×3/4-φ4.5-φ70 |
Allowable axial load | 480N | Weight | 946g |
name | argument | name | argument |

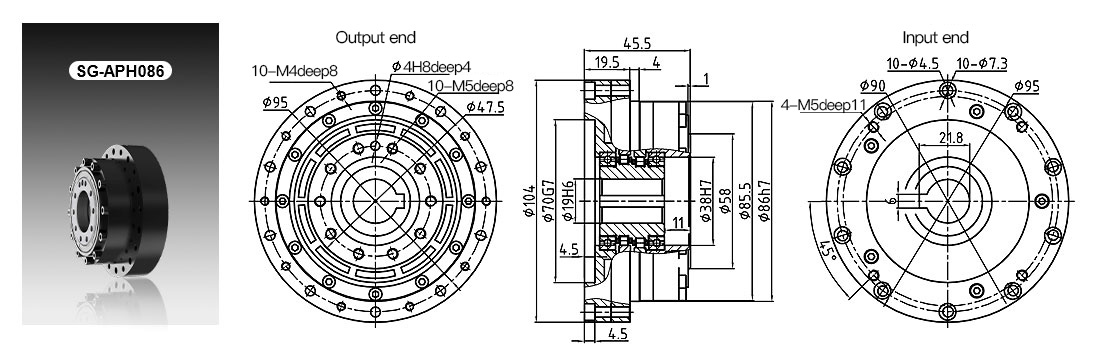

Model number | SG-APH086 | Full load efficiency | 80% |
Housing material | steel | IP Grade | IP65 |
Gearwhddl material | steel | Operating temperature range | -25° ~+90° |
Outer diameter | 104mm | Average lifetime | 20000h |
Thickness | 45.5mm | Rated input speed | 3000min-1 |
Reduction ratio | 25 49 | Maximum input speed | 5500min-1 |
Rated output torque | 90NM 130NM | Backhaul clearance | ≤ 10arcmin |
Back drive torque | 3 times rated output torque | Transmission structure | Cycloidal pinwheel |
Allowable radial load | 770N | Adapted Motor | φ19×35/φ70×3/4-φ5.5-φ90 |
Allowable axial load | 770N | Weight | 1416g |
name | argument | name | argument |

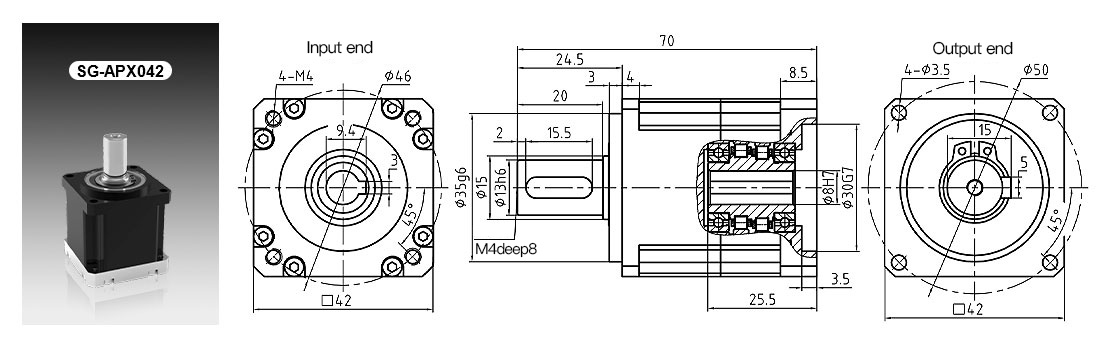

Model number | SG-APX042 | Full load efficiency | 80% |
Housing material | steel | IP Grade | IP65 |
Gearwhddl material | steel | Operating temperature range | -25°~+90° |
Outer diameter | 42mm | Average lifetime | 20000h |
Thickness | 70mm | Rated input speed | 3000min-1 |
Reduction ratio | 25 49 | Maximum input speed | 5500min-1 |
Rated output torque | 20NM 30NM | Backhaul clearance | ≤10arcmin |
Back drive torque | 3 times rated output torque | Transmission structure | Cycloidal pinwheel |
Allowable radial load | 600N | Adapted Motor | 8x25/p30x3/4-4.5-φ46 |
Allowable axial load | 400N | Weight | 351.1g |
name | argument | name | argument |

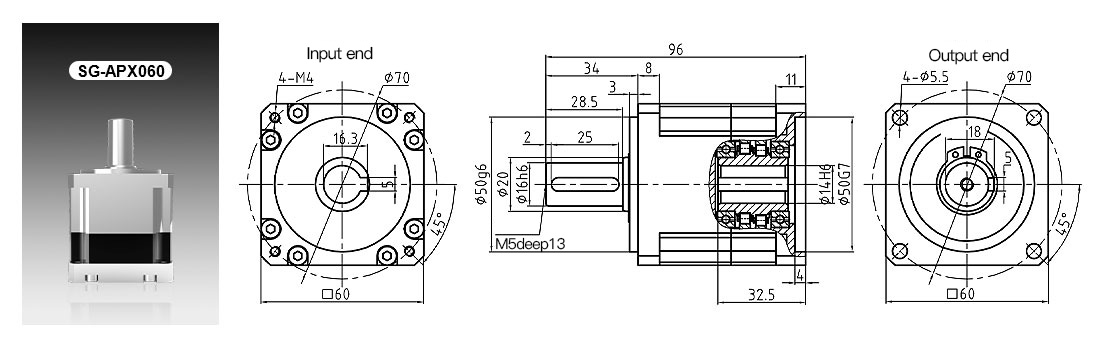

Model number | SG-APX060 | Full load efficiency | 80% |
Housing material | steel | IP Grade | IP65 |
Gearwhddl material | steel | Operating temperature range | -25°~+90° |
Outer diameter | 60mm | Average lifetime | 20000h |
Thickness | 96mm | Rated input speed | 3000min-1 |
Reduction ratio | 25 49 | Maximum input speed | 5500min-1 |
Rated output torque | 68NM 80NM | Backhaul clearance | ≤10arcmin |
Back drive torque | 3 times rated output torque | Transmission structure | Cycloidal pinwheel |
Allowable radial load | 800N | Adapted Motor | p14x30/50x3/4-4.5-70 |
Allowable axial load | 550N | Weight | 859.7g |
