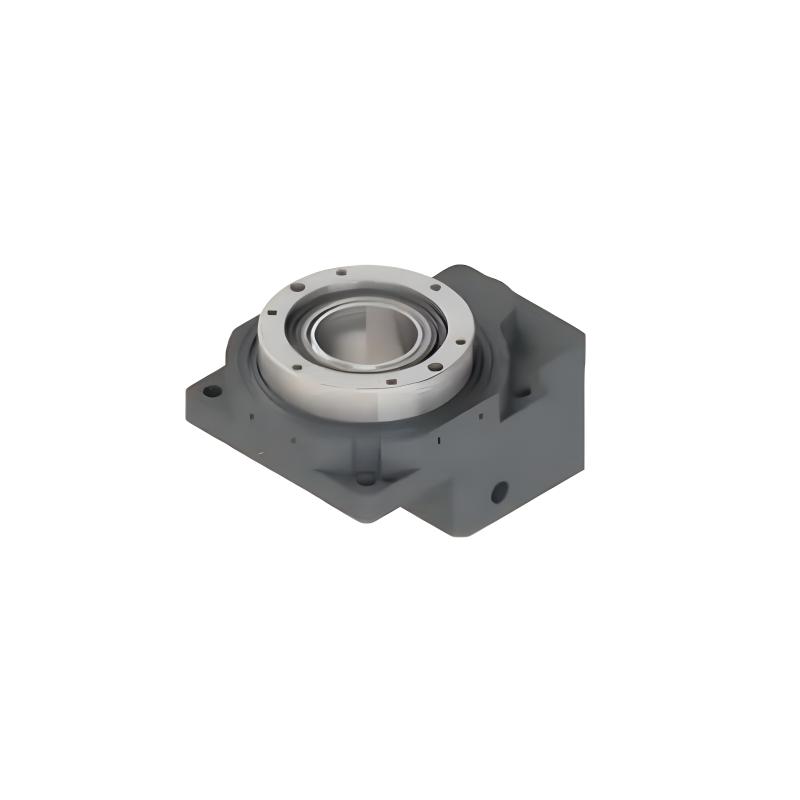

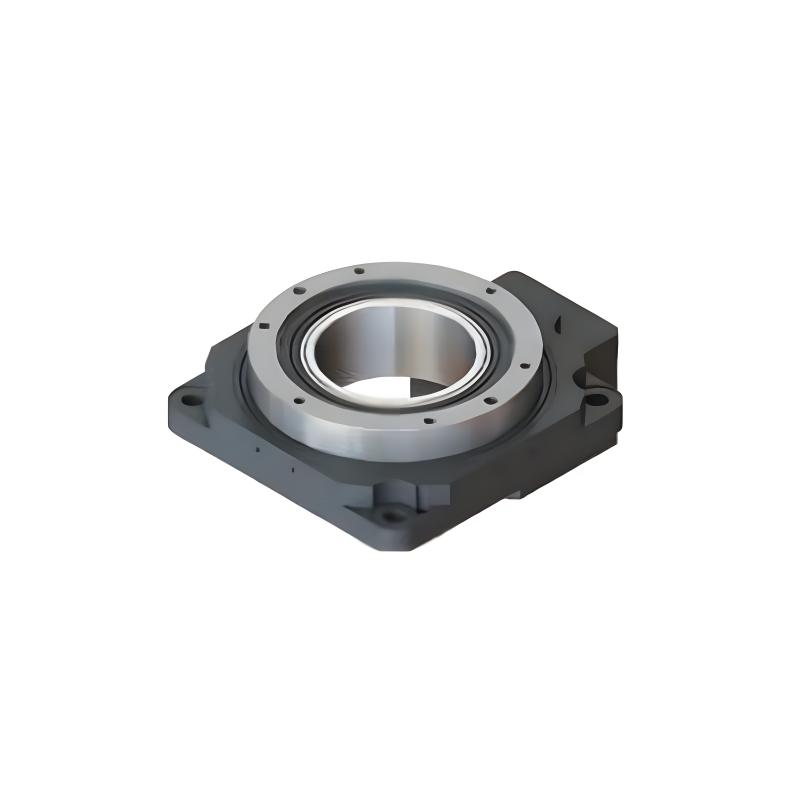

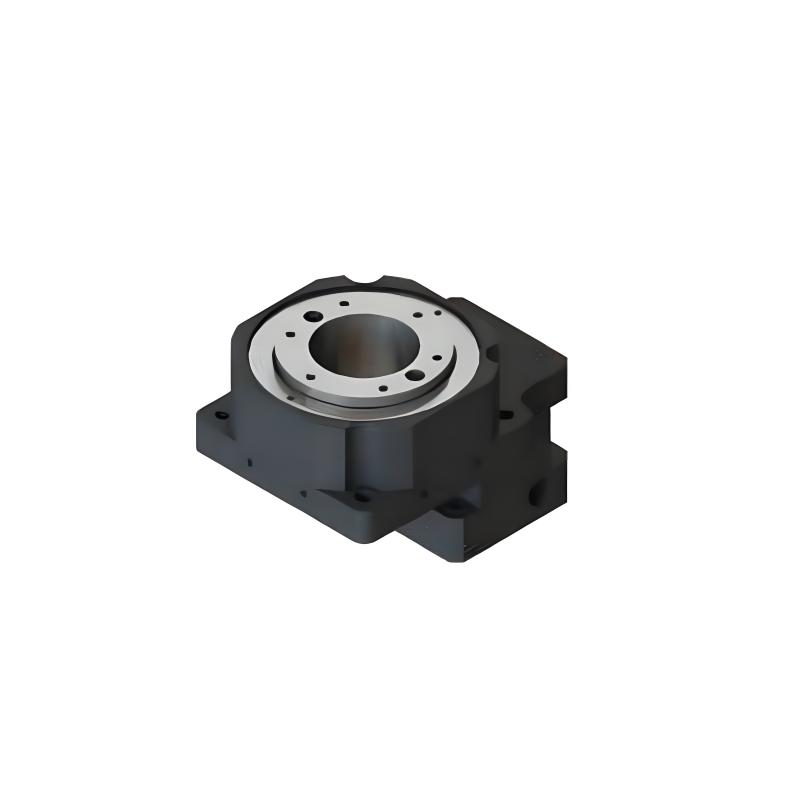

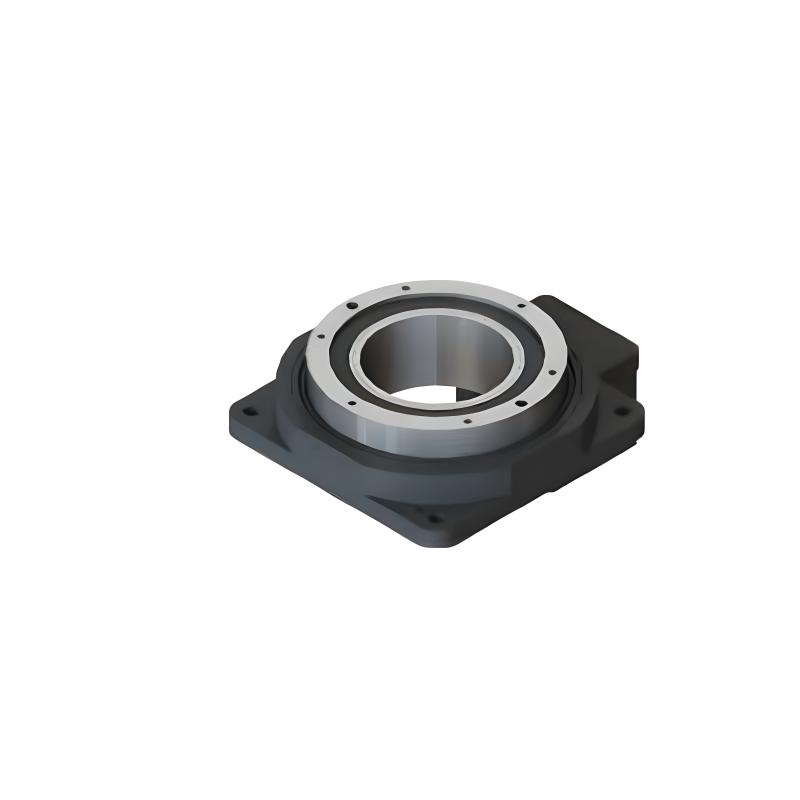

Product Description
DH series hollow rotary platform, with its exquisite design and excellent performance, has become an ideal transmission component in the field of automation. The unique hollow structure is convenient for cables and other components to pass through, optimizing the spatial layout of the equipment. With high-precision positioning capabilities, it can achieve stable and accurate rotational motion to meet the needs of various precision operations. It is suitable for scenes such as industrial robots, automated production lines, and testing equipment, providing reliable support for equipment operation and helping to improve production efficiency and accuracy.
Functional Features
Workpiece can be directly locked
The rotating disk can directly lock the workpiece, improving the convenience of workpiece loading.
Smooth rotation
The disk rotates smoothly and smoothly, and positioning is fast.
Convenient wiring
This rotating platform is a hollow design, which is convenient for wiring and piping.
Try various motors
The hollow rotating platform can be driven by servo motors or stepper motors of various brands.
High precision
Positioning accuracy is less than one minute.
Repeat accuracy can be selected as ±5 seconds.

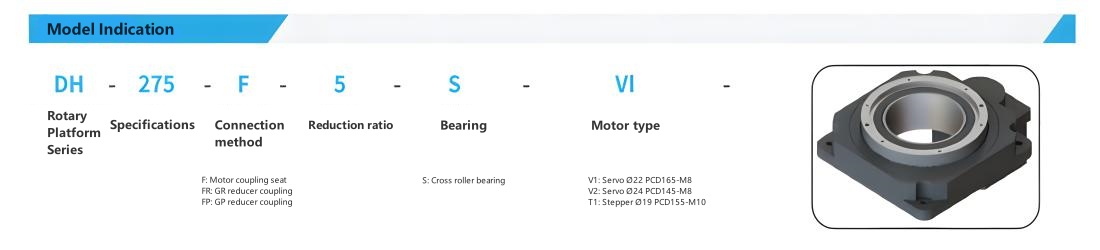

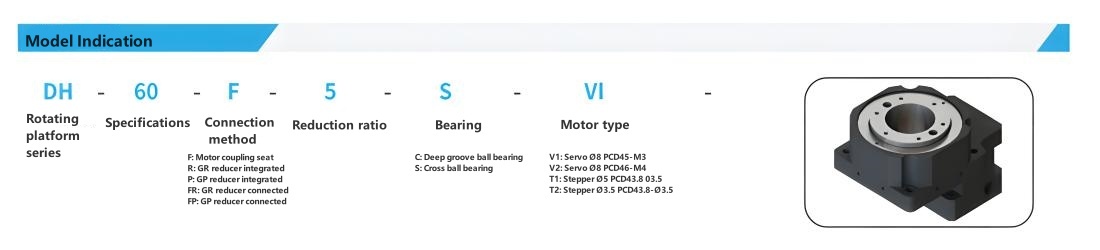

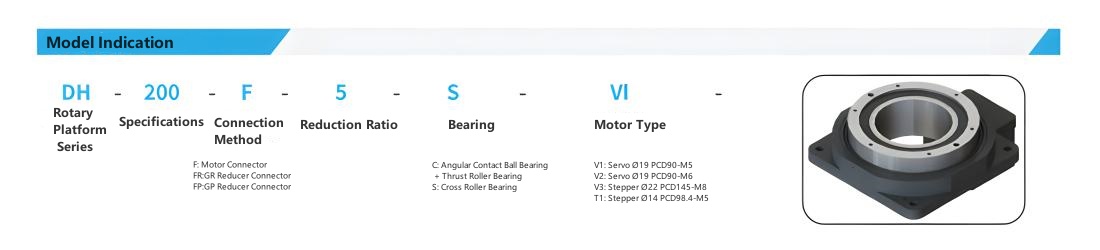

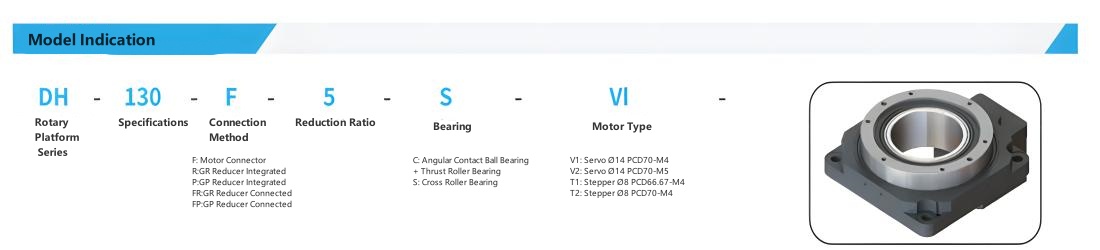

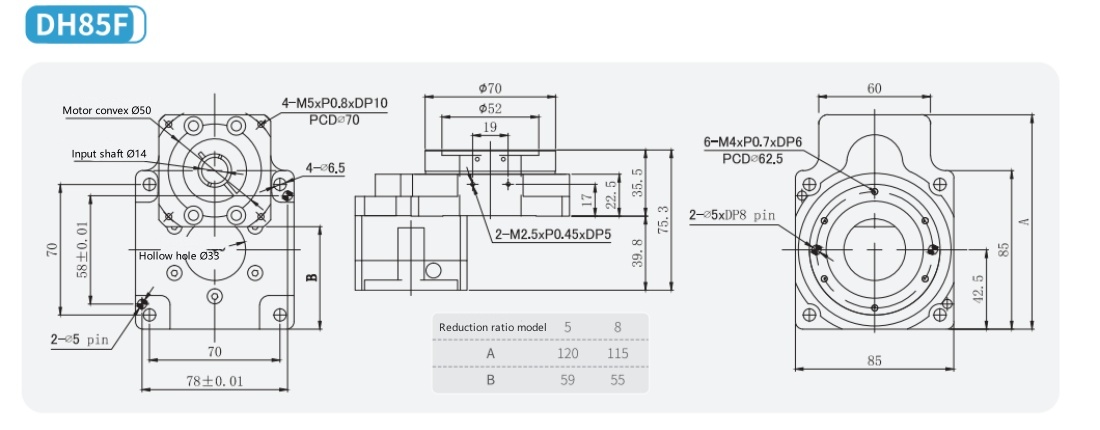

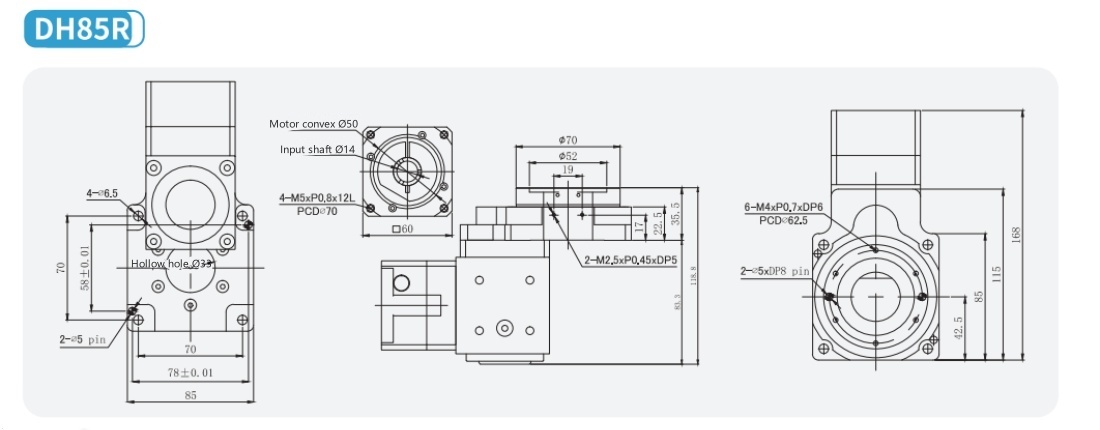

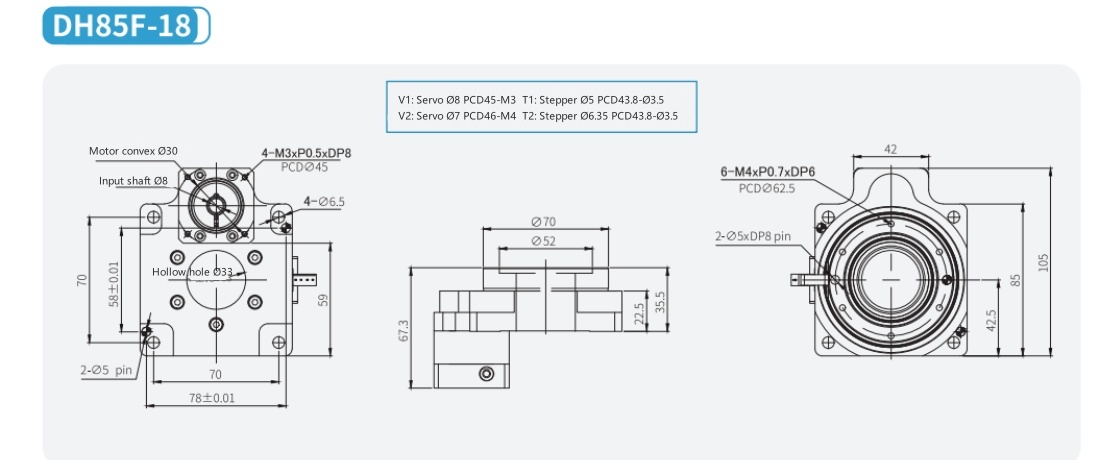

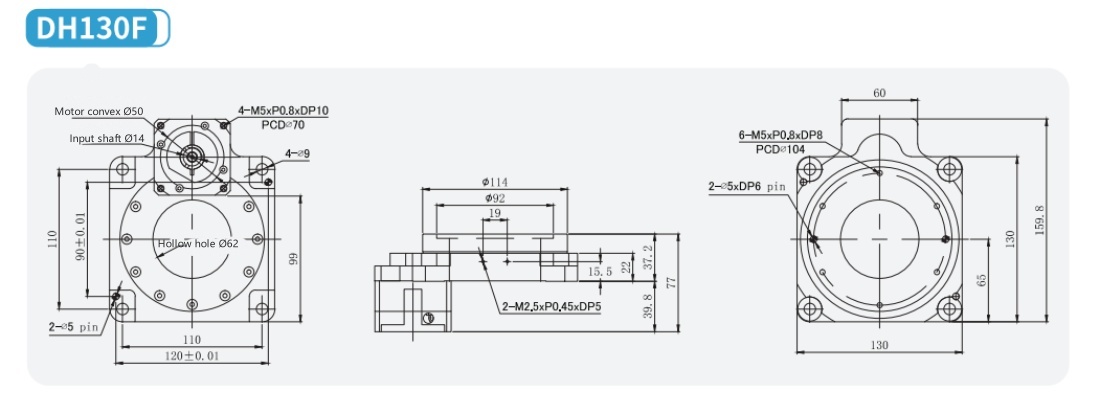

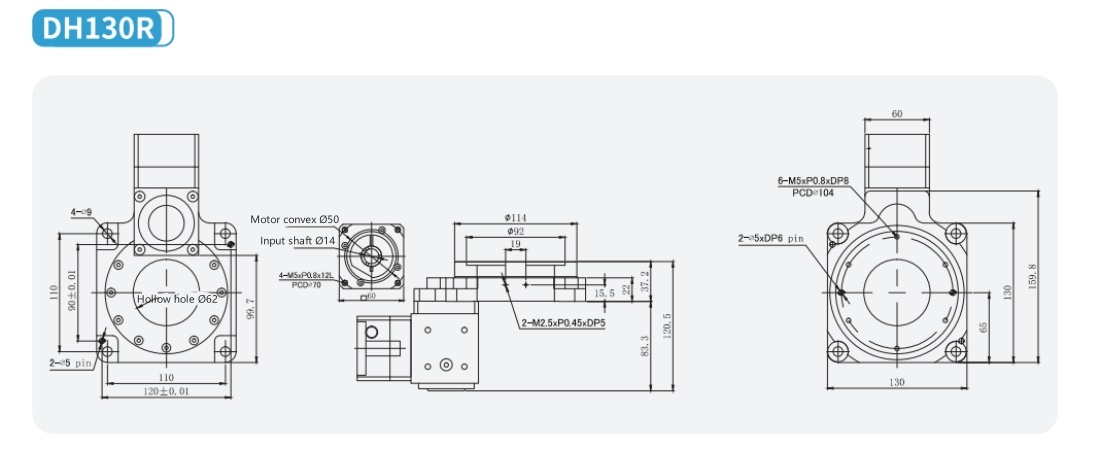

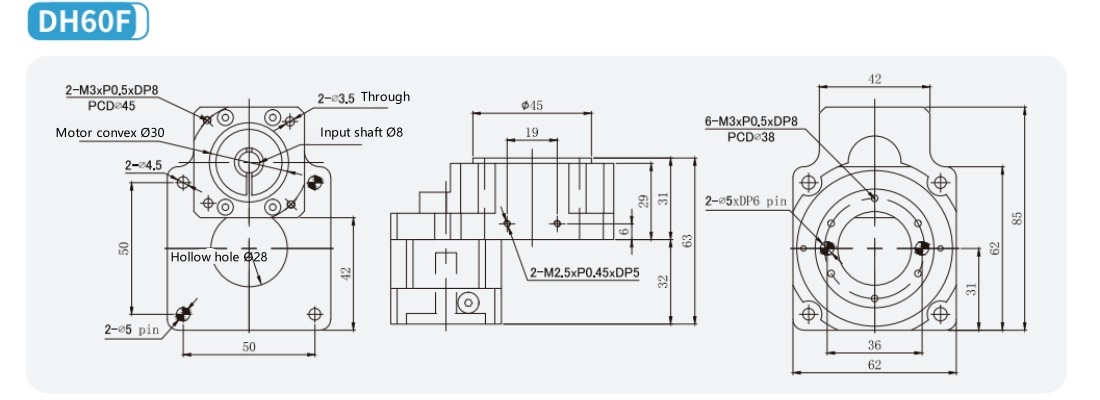

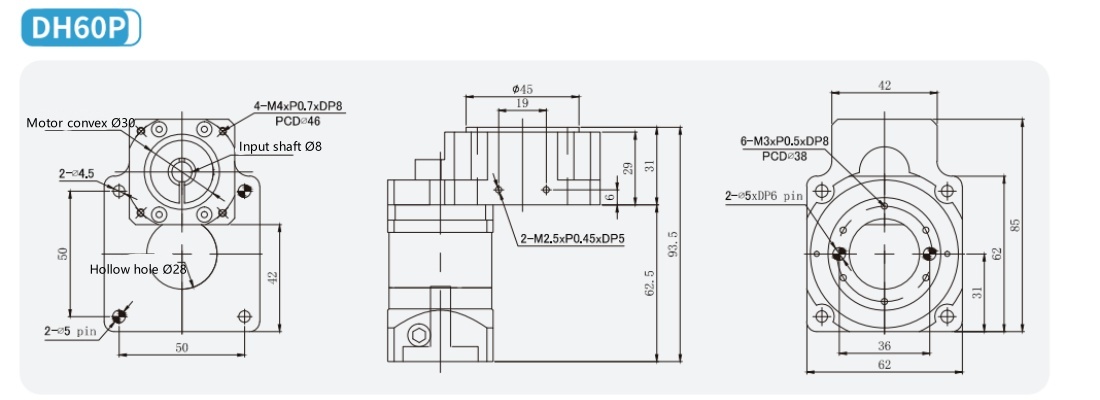

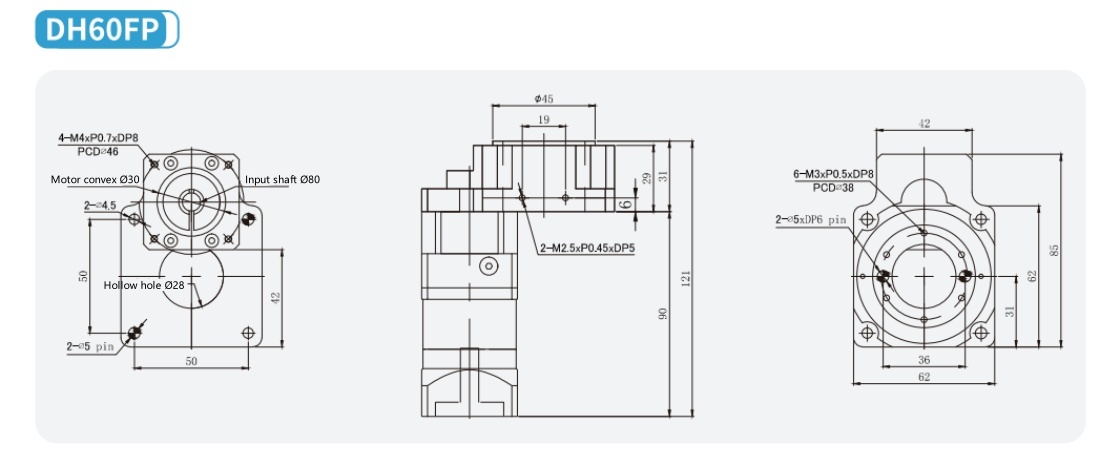

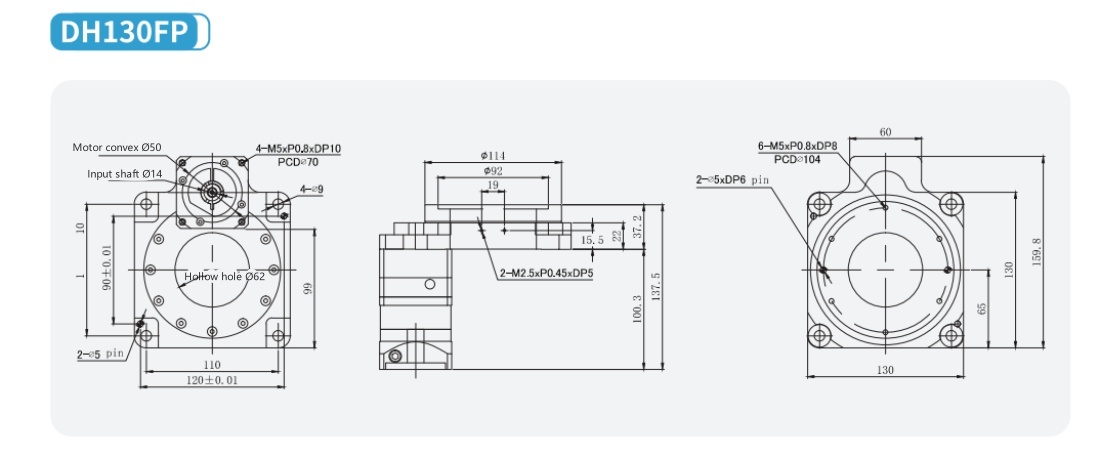

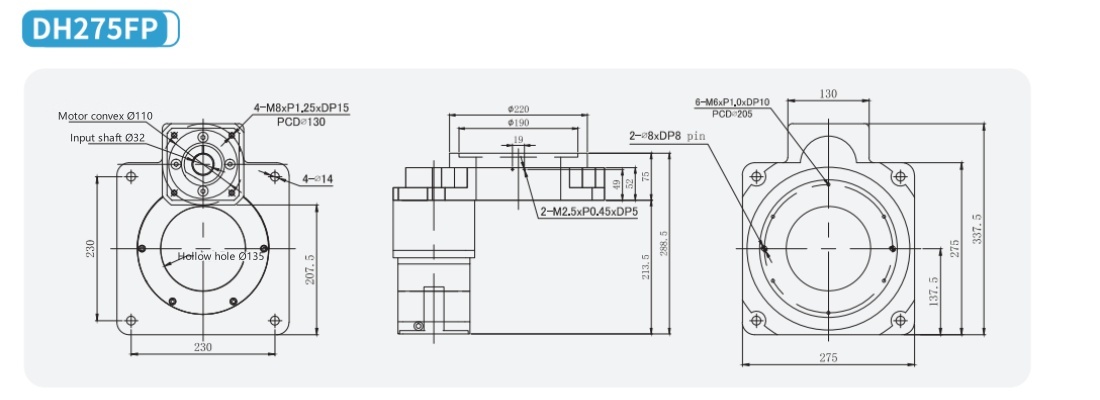

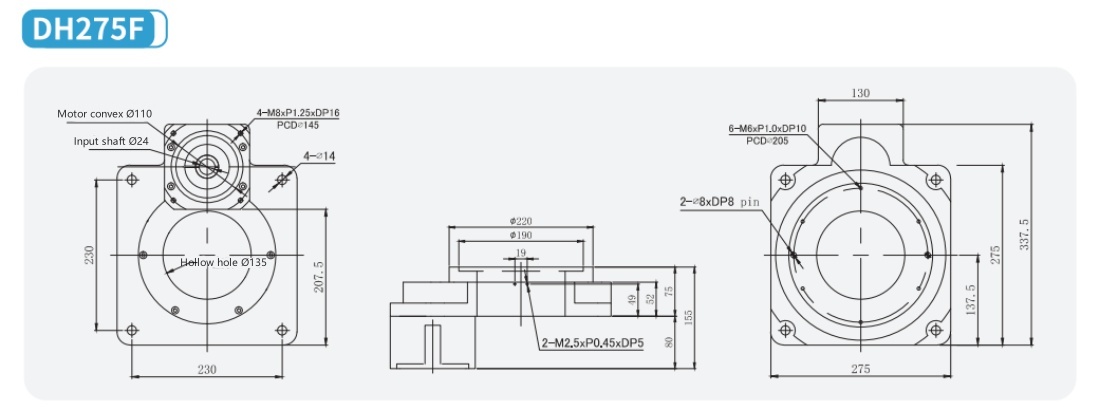

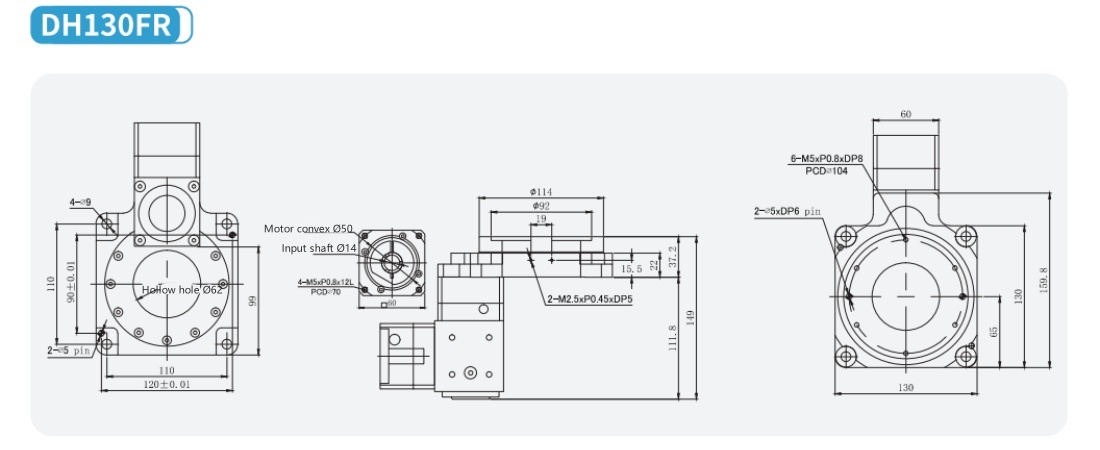

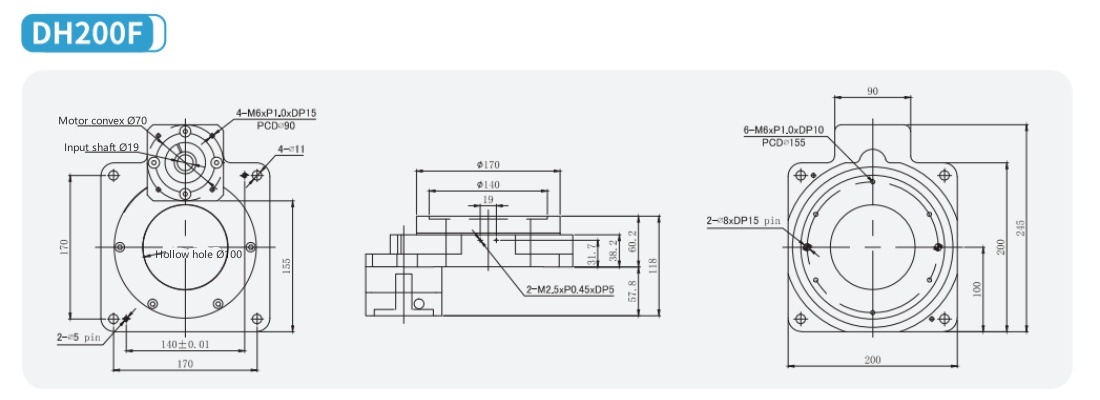

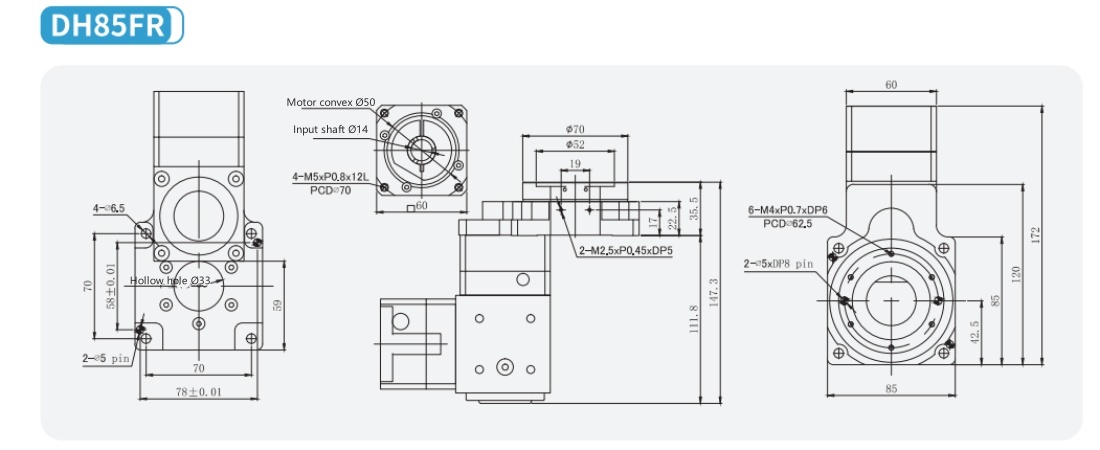

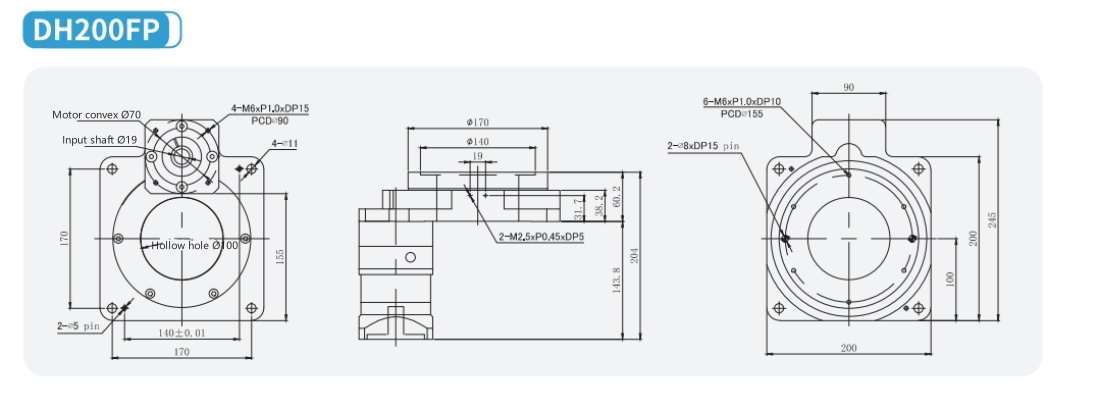

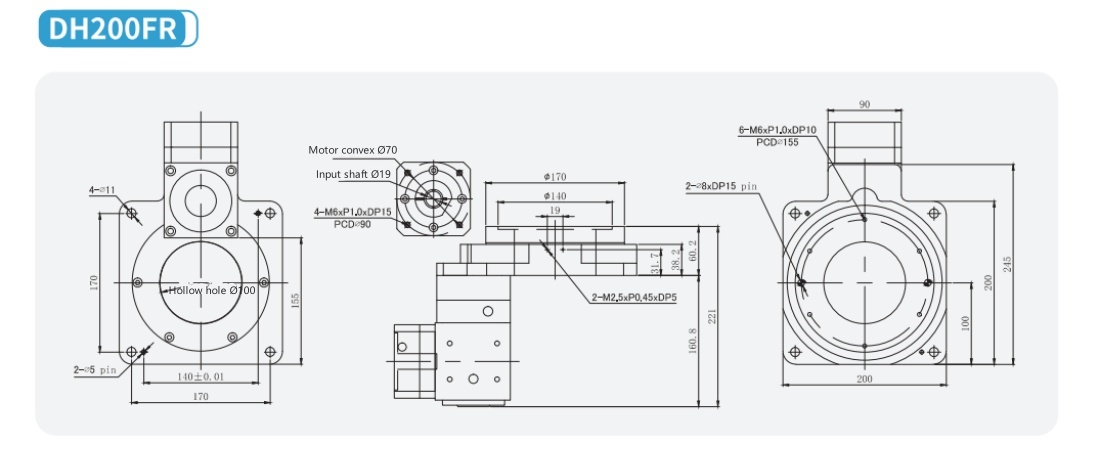

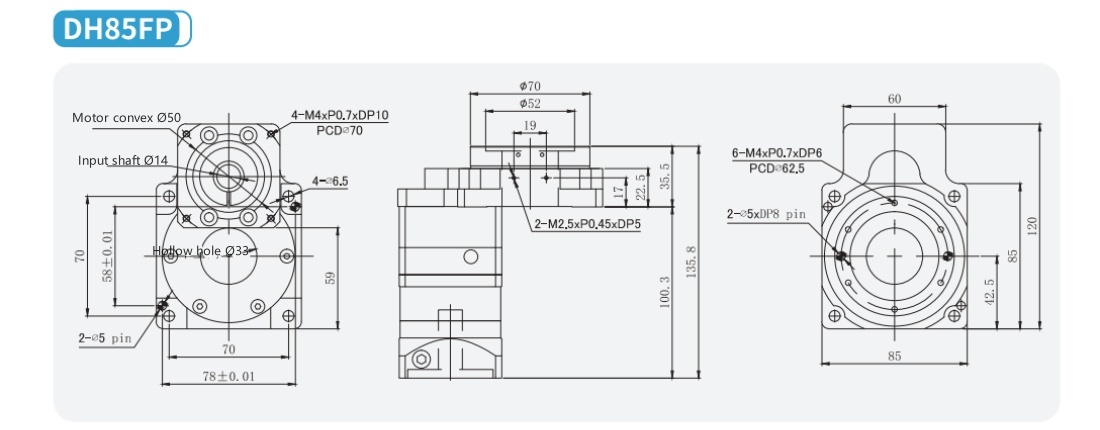

Dimensional drawing

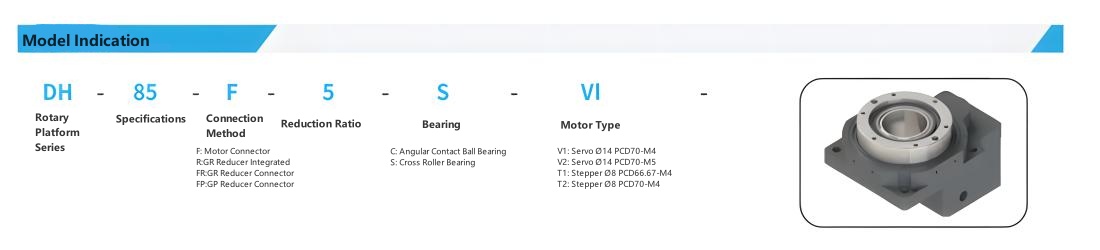

Product parameters
Parameter name | DH-60 | DH-85 | DH-130 | DH-200 | DH-275 |
Permissible torque | 5N.m | 15N.m | 45N.m | 85N.m | 110N.m |
Permissible speed (disk surface) | 200rpm | 200rpm | 200rpm | 150rpm | 150rpm |
Positioning accuracy | ≤1mins | ||||
Parallelism of rotating platform | ≤0.02mm | ||||
Concentricity of rotating platform | ≤0.02mm | ||||
Permissible axial load | N:100 | N:1200 | N:3000 | N:5000 | N:8000 |
Product Model | Parameter name | Reduction ratio | Allowable torque N.m | Precision life | Allowable speed rpm | Repeat accuracy arc-sec | Positioning accuracy arc-min | Parallelism of rotating platform mm | Concentricity of rotating platform mm | Allowable axial load N | Weight KG | Protection level |
DH60 | DH60F | 5 | 5 | 15000 Hrs | 200(Disk) | ≤15 | ≤1 | ≤0.02 | ≤0.02 | 100 | 0.65 | IP40 |
DH60P | 20 | ≤30 | 1.0 | |||||||||
DH60R | 15 | ≤30 | 1.0 | |||||||||
DH60FP | 20,25 | ≤30 | 1.1 | |||||||||
DH60FR | 15 | ≤30 | 1.1 | |||||||||
DH85 | DH85F | 5,8,18 | 15 | 20000 Hrs | 200(Disk) | ≤15 | ≤1 | ≤0.02 | ≤0.02 | 1200 | 1.4 | IP40 |
DH85R | 24 | ≤30 | 2.5 | |||||||||
DH85FP | 15,20,24,25,32,40 | ≤60 | 2.5 | |||||||||
DH85FR | 15,24 | ≤30 | 2.5 | |||||||||
DH130 | DH130F | 10,18 | 45 | 20000 Hrs | 200(Disk) | ≤15 | ≤1 | ≤0.02 | ≤0.02 | 3000 | 2.4 | IP40 |
DH130P | 30 | ≤60 | 3.4 | |||||||||
DH130R | 30 | ≤30 | 3.5 | |||||||||
DH130FP | 30,50 | ≤60 | 3.5 | |||||||||
DH130FR | 30 | ≤30 | 3.5 | |||||||||
DH200 | DH200F | 10,18 | 85 | 20000 Hrs | 150(Disk) | ≤15 | ≤1 | ≤0.02 | ≤0.02 | 5000 | 8.5 | IP40 |
DH200FP | 50,70,80,100 | ≤60 | 10.9 | |||||||||
DH200FR | 50,100 | ≤30 | 12.7 | |||||||||
DH275 | DH275F | 5,10 | 110 | 20000 Hrs | 150(Disk) | ≤15 | ≤1 | ≤0.02 | ≤0.02 | 8000 | 12 | IP40 |
DH275FP | 50,100 | ≤60 | 19.8 | |||||||||
DH275FR | 20,30,50 | ≤30 | - |
Performance Introduction
PS circumferential unit: 1rpm=360°/1°=60'1'=60"
Circumferential error converted to linear error: disk diameter x 3.14159÷(360°x60'x60") x accuracy error
Inspection equipment: Systematic management, regular inspection to ensure measurement accuracy and traceability
Motor Installation Instructions
Attachment 1:
Attachment 2:
Wrench bolt size | Motor installation Ta-8.8T | Locking ring installation Tb-12.9T | ||
（N.m） | （kgf.cm） | （N.m） | （kgf.cm） | |
M3 | 1.28 | 13 | 2.15 | 22 |
M4 | 2.9 | 30 | 4.95 | 50 |
M5 | 5.75 | 59 | 9.7 | 99 |
M6 | 9.9 | 101 | 16.5 | 168 |
M8 | 24 | 245 | 40 | 408 |
M10 | 48 | 489 | 81 | 826 |
M12 | 83 | 846 | 140 | 1428 |
M14 | 132 | 1346 | 220 | 2243 |
M16 | 200 | 2039 | 340 | 3467 |
Platform Installation Instructions
Installation Instructions for Hollow Rotating Platform
Reserve the motor outlet on the mounting plate of the hollow rotating platform to prevent the motor from interfering with the mounting plate.
Install 2 locating pin holes to position the hollow rotating platform, and then tighten the fastening bolts diagonally.
Install the load on the hollow rotating platform
The locating pin holes of the 2 loads on the hollow rotating platform are used to confirm the position of the load.
Install the load on the mounting surface of the hollow rotating platform and use the 6 threaded holes on the top to complete the tightening of the load.
Dowel pin hole size (Note 1):
Platform Specifications | Pin Hole Diameter mm | Pin Hole Depth mm | Number of Pin Holes |
DH60 | Ø5+0.0120（H7） | 10 (through) | 2 |
DH85 | Ø5+0.0120（H7） | 10.5(through) | 2 |
DH130 | Ø5+0.0120（H7） | 11.5 (through) | 2 |
DH200 | Ø5+0.0120（H7） | 15.2 (through) | 2 |
Dowel pin hole size (Note 2):
Platform Specifications | Pin Hole Diameter mm | Pin Hole Depth mm | Number of Pin Holes |
DH60 | Ø5+0.0120（H7） | 6 | 2 |
DH85 | Ø5+0.0120（H7） | 6 | 2 |
DH130 | Ø5+0.0120（H7） | 6 | 2 |
DH200 | Ø5+0.0120（H7） | 15 | 2 |
DH275 | Ø5+0.0120（H7） | 8 | 2 |
Installation Precautions
Before installation, read the following installation precautions and install according to the following conditions:
1. Indoors (areas not directly exposed to sunlight)
2. Areas without heat radiation
3. Working environment (temperature: 0~+50°℃/humidity: less than 85%)
4. Temperature below the origin sensor: 0+40°C
5. No flammable and explosive acidic gas
6. Places that can block dust, oil and splashing water
7. Places that are not subject to direct vibration and excessive impact
Selection calculation
1. Calculate the moment of inertia of the transport (load moment of inertia)
The moment of inertia of the transported object should be less than 30 times the moment of inertia of the transmission device.
2. Calculate the acceleration torque using the following formula
3. Calculate the required torque
The required torque is calculated by multiplying the sum of the load torque caused by the friction torque and the acceleration torque caused by the inertia by the safety factor.
Required torque T=(load torque (N.m)+ acceleration torque (N.m))×S
The safety factor S is greater than 1.5.
4. The torque T required for the selected motor must be within the speed-torque specification range.
5. Calculation of axial load and static moment
When applying a load to the hollow rotating platform as shown in the figure below, make sure that the axial load and static moment calculated using the following calculation formula are within the specified range.
Application
Industrial automation: In the assembly of electronic products, the circuit board is accurately rotated to different angles for welding, patching and other operations; when packaging food, it is installed under the turntable mechanism to accurately control the rotation and positioning of the packaging box, and cooperate with the filling and sealing equipment to achieve high-speed and high-precision packaging.
Robot technology: used in the joints of the robot arm to achieve flexible rotation with multiple degrees of freedom, so that the robot can complete complex actions such as grabbing and placing objects; provide passage space for cables, trachea and other pipelines to avoid interference of line entanglement on the robot movement.
CNC machine tools: As the rotating worktable of the machine tool, it realizes the precise processing of workpieces at multiple angles during milling, drilling and other processing processes; in the tool exchange system, it realizes the rapid rotation and positioning of the tool library to reduce the auxiliary processing time.
Detection and measurement equipment: In optical detection equipment, it carries the objects to be detected for multi-angle rotation, which is convenient for all-round detection of appearance, size and other parameters; in the three-coordinate measuring instrument, it assists the rotation of the workpiece to achieve precise measurement in different directions.
Medical equipment: In medical imaging equipment such as CT machines and MRI equipment, it drives the detection components or patient platforms to rotate smoothly to obtain all-round imaging data; in rehabilitation training equipment, it simulates the natural movement of human joints to help patients perform effective rehabilitation exercises.
