Product Description
TMEP series flat voice coil motors have a universal design that is suitable for multiple control methods. They are lightweight, fast-response, have a peak force of 300N, and a stroke of 20mm (shorter than the TMES series). They can be used to make small X-Y two-axis motion platforms for use in the semiconductor and micro-equipment industries.
Functional Features
TMEP Flat Voice Coil Motor
◆Lightweight actuator, short response time
◆Peak thrust: 1-300N
◆Effective stroke: 1-20mm
◆Can be made into a small X-Y two-axis motion platform
Application
TMEP series flat voice coil motors are widely used in semiconductor (wafer inspection, chip packaging) and micro-equipment industry (precision instrument manufacturing, micro-automatic production lines) fields due to their light weight, fast response and precise plane control.

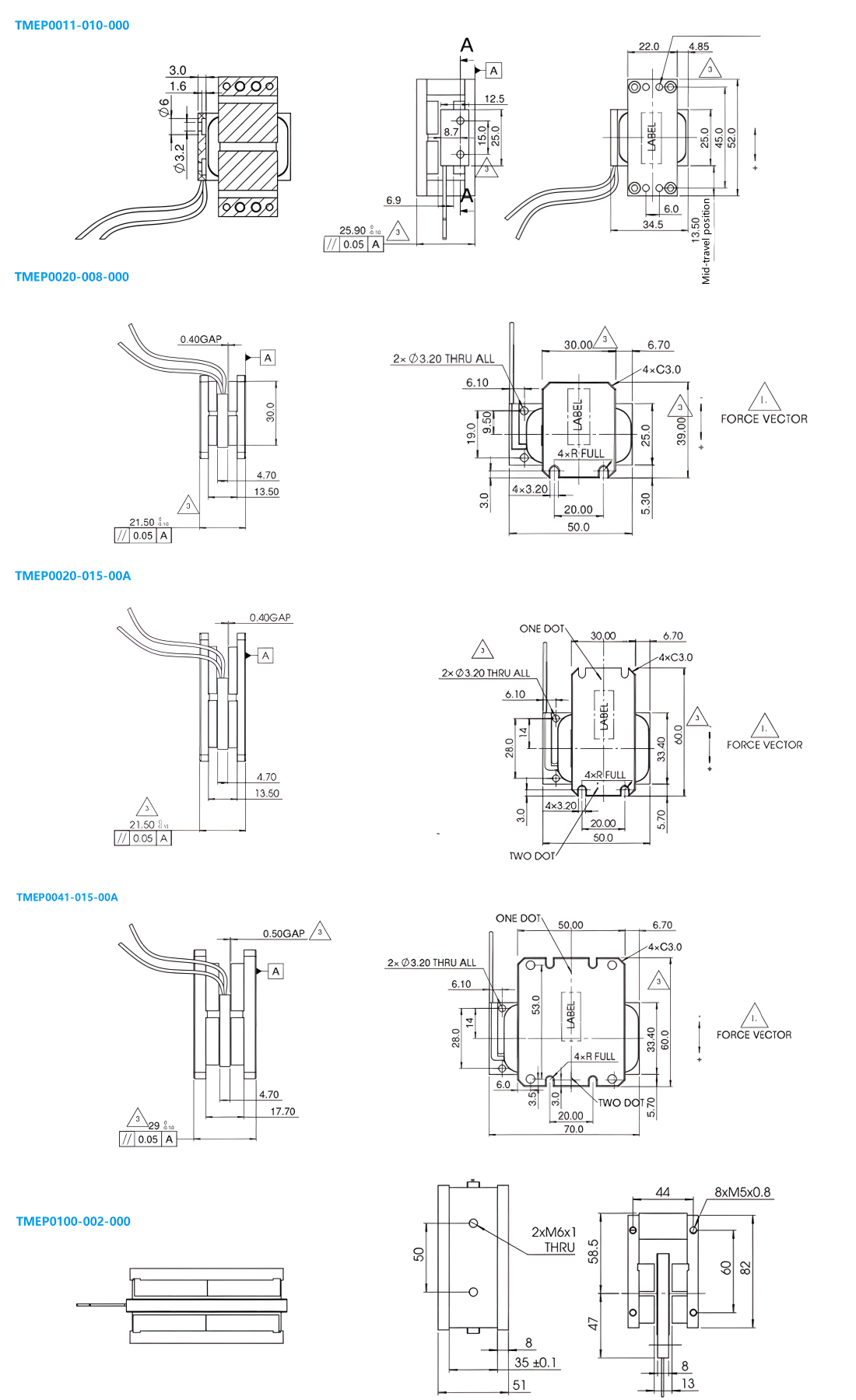

Dimensional drawing
Product parameters
Symbol | Unit | TMEP0011-010-000 | TMEP0020-008-000 | TMEP0020-015-00A | TMEP0041-015-00A | TMEP0100-002-000 | |
DC resistance | R | OHMS | 2.3 | 2.6 | 3.7 | 4.4 | 33 |
Peak voltage | Vp | VOLTS | 7.7 | 13 | 18.9 | 20.1 | 41.2 |
Peak current | Ip | AMPS | 3.4 | 5 | 5.1 | 4.6 | 1.25 |
Force constant value | Kf | N/A | 3.3 | 4 | 3.9 | 9.2 | 80.3 |
Back EMF | Kb | V/M/Sec | 3.3 | 4 | 3.9 | 9.2 | 80.3 |
Inductance | L | mH | 0.4 | 0.5 | 0.6 | 0.9 | 22 |
Peak force | Fp | N | 11.1 | 20 | 20 | 41.9 | 100 |
Continuous thrust | Fc | N | 5.1 | 5.5 | 5.2 | 11.8 | 47 |
Motor constant | Ka | N/√w | 2.2 | 2.5 | 2.1 | 4.4 | 14 |
Time constant | Te | ms | 0.17 | 0.2 | 0.16 | 0.2 | 0.7 |
Peak power | Pp | W | 26.1 | 65 | 97.3 | 91.3 | 55.2 |
Peak displacement | S | mm | 10 | 8 | 15 | 15 | 2 |
Single air gap | CL | mm | 1 | 0.4 | 0.4 | 0.5 | 2 |
Thermal resistance | θth | C/W | 23 | 25 | 16.5 | 15 | 9 |
Winding temperature | Tmax | C | 155 | 150 | 155 | 155 | 155 |
Coil weight | WTc | g | 13 | 24 | 30 | 35 | 0.25 |
Magnet weight | WTf | g | 134 | 125 | 190 | 455 | 1.9 |
Motor weight | Wta | g | 147 | 149 | 220 | 490 | 2.15 |
Total length of motor | L | mm | 52 | 39 | 60 | 60 | 105.1 |
Total width of motor | W | mm | 34.5 | 50 | 50 | 70 | 110 |
Total height of motor | H | mm | 25.9 | 21.5 | 21.5 | 29 | 44 |
Quality Control
The core materials of the common parts of voice coil motors are strictly controlled, the coils are precisely wound, and the magnetic circuit system is calibrated to ensure uniform magnetic field. The assembly follows high-precision alignment standards, passes multiple rounds of environmental and mechanical tests, and has stable dynamic response. Full inspection before leaving the factory ensures reliable quality.
Service
Voice coil motor services run through the entire product life cycle. Detailed technical consultation is provided before sales, and selection and matching are assisted based on application scenarios; real-time follow-up of production and logistics is carried out during sales to ensure efficient and accurate delivery; after sales, rapid response to needs is provided, installation guidance and troubleshooting support are provided, and the quality assurance system is linked to solve problems, ensuring the stable operation of the equipment in all aspects.
