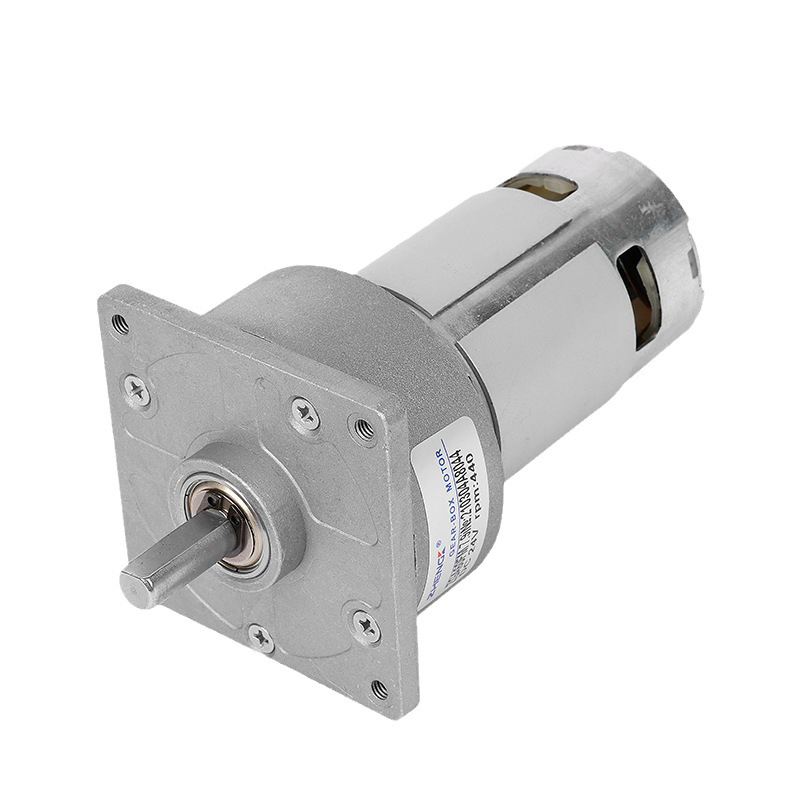

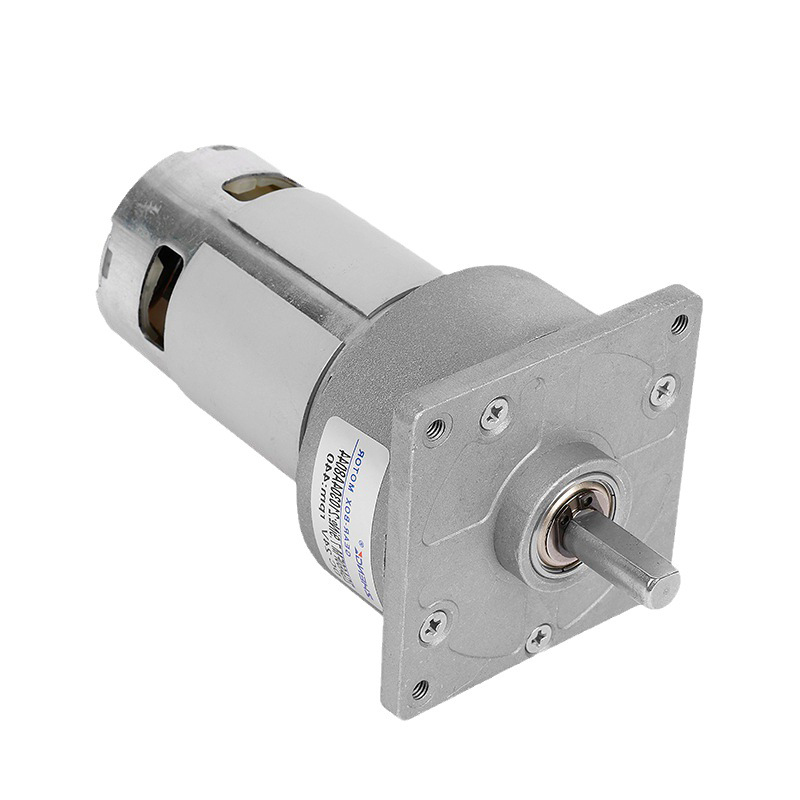

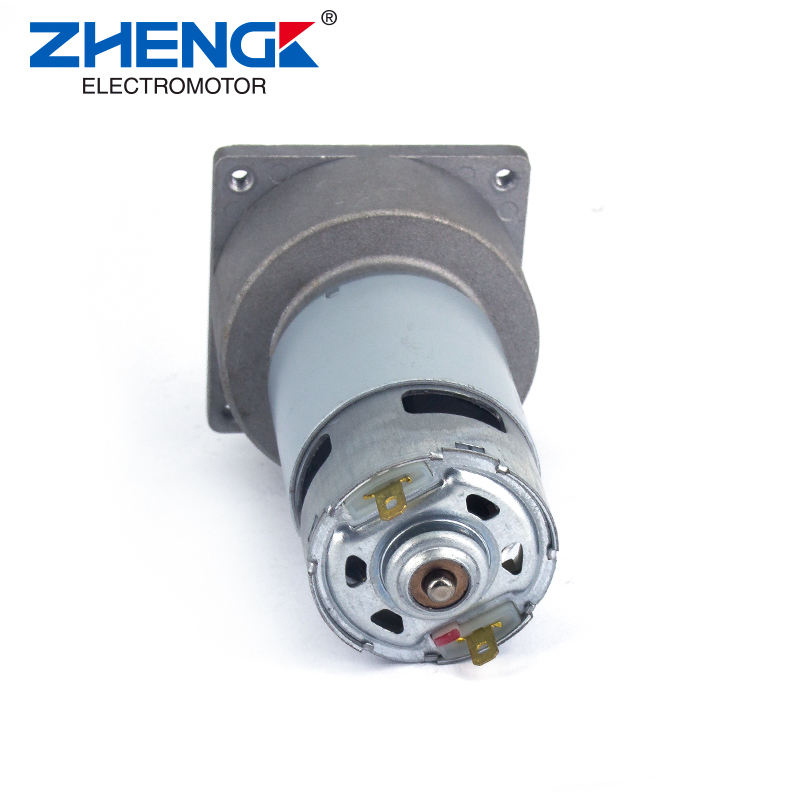

ZGA60FM permanent magnet DC reduction motor
ZHENGK ZGA60FM micro DC adjustable speed forward and reverse reduction motor center shaft 12V 24V
- Model：ZGA60FM
- Rated power：15（W）
- Product type：Brushed DC Motor
- Rated voltage：24（V）
- Rated current：190（A）
- Dimensions：60（mm）
USD 18
Monthly Output1000
- Product Description
Product Description
Permanent Magnet DC Gear Motor
ZGA60FM
Stainless steel shaft | Adjustable speed | Positive and negative adjustment |
| Metal shell | Durable gear | Quality Assurance |
Product Parameters
ZGA60FM
| Shell material | Metal |
| Output bearing type | Ball bearings |
| Radial force | ≤ 15 kgf |
| Axial force | ≤ 8 kgf |
| Maximum spindle pressure | ≤ 30 kgf |
| Radial clearance | ≤ 0.1 mm |
| Axial clearance | ≤ 0.5 mm |

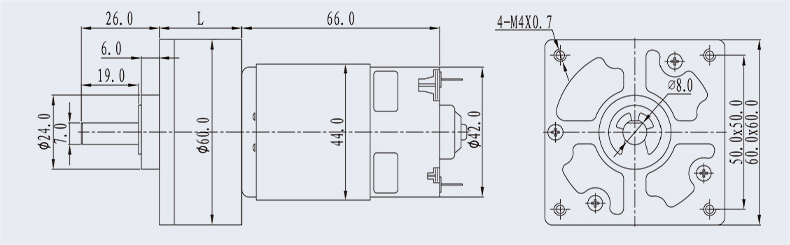

Gearbox dimensions

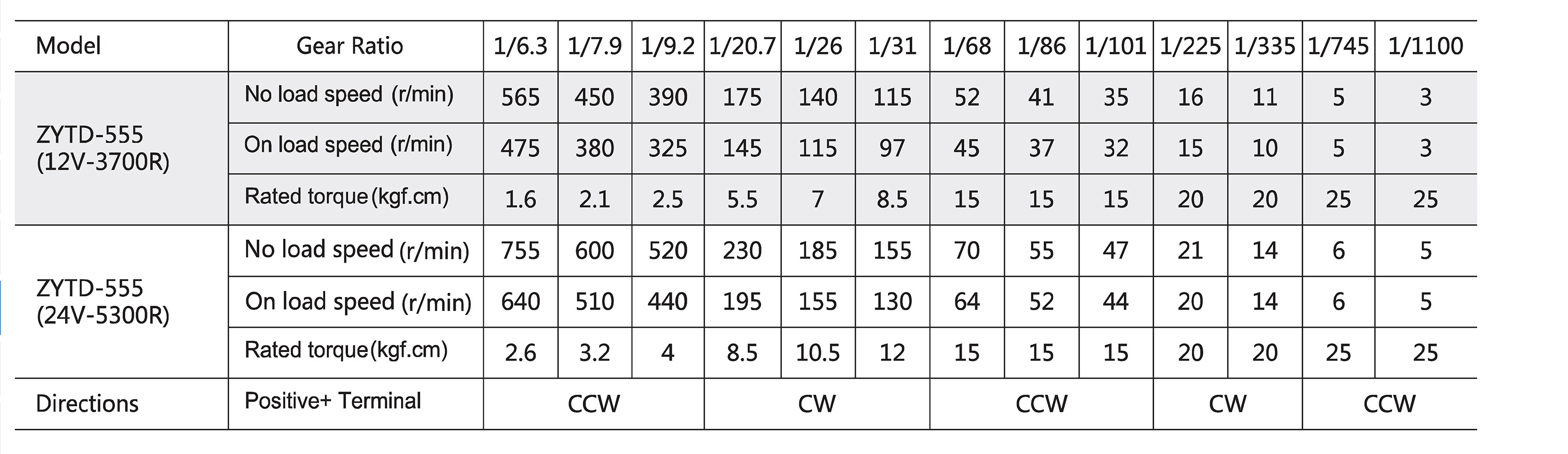

Gearbox motor (rated torque/speed list)
Gearbox specifications
| Reduction ratio | L | Number of segments | Rated torque | |
| mm | mN.m | kgf.cm | ||
| 1/6.3~1/9.2 | 31.5 | 2 | 980 | 10 |
| 1/20.7~1/31 | 34 | 3 | 1176 | 12 |
| 1/68~1/101 | 36.5 | 4 | 1470 | 15 |
| 1/225~1/335 | 40.5 | 5 | 1960 | 20 |
| 1/745~1/1100 | 45.7 | 6 | 2450 | 25 |

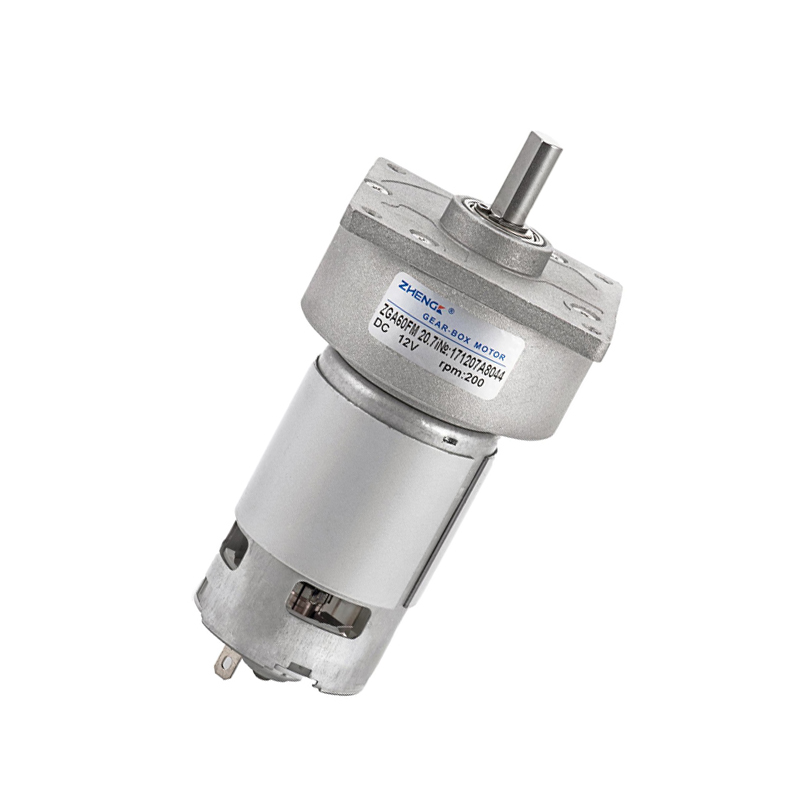

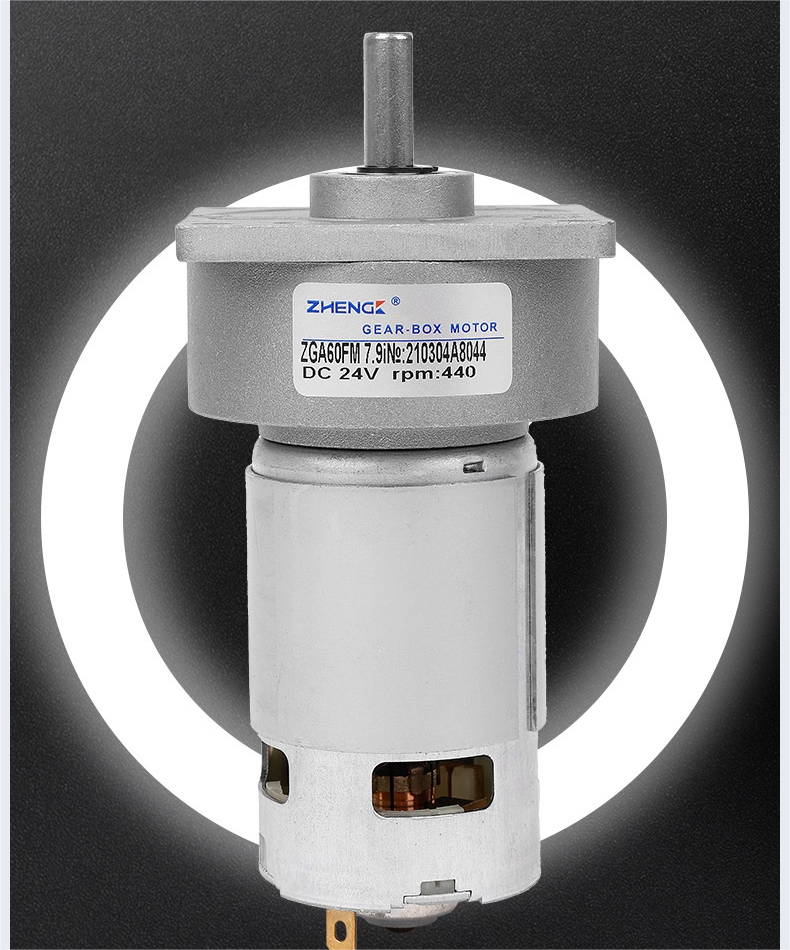

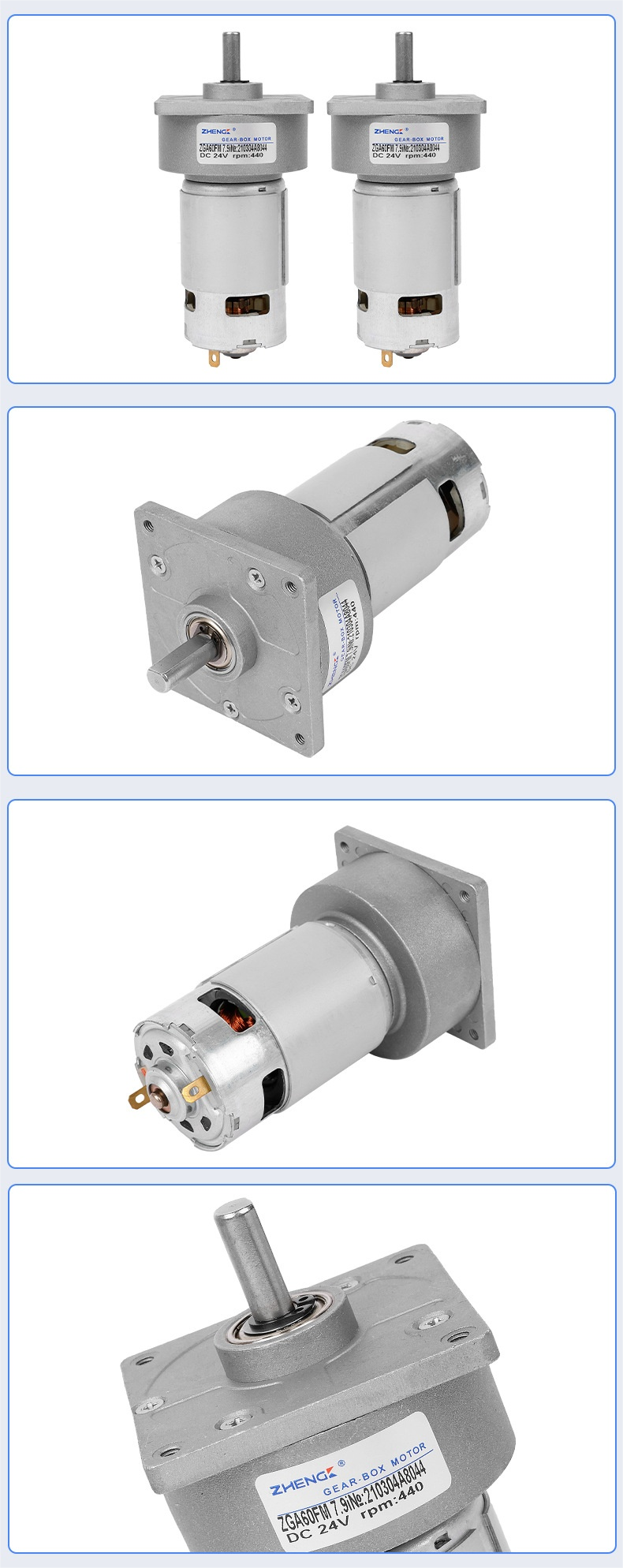

Product Showcase
Features
Made of all metal Durable, corrosion-resistant and durable |  |

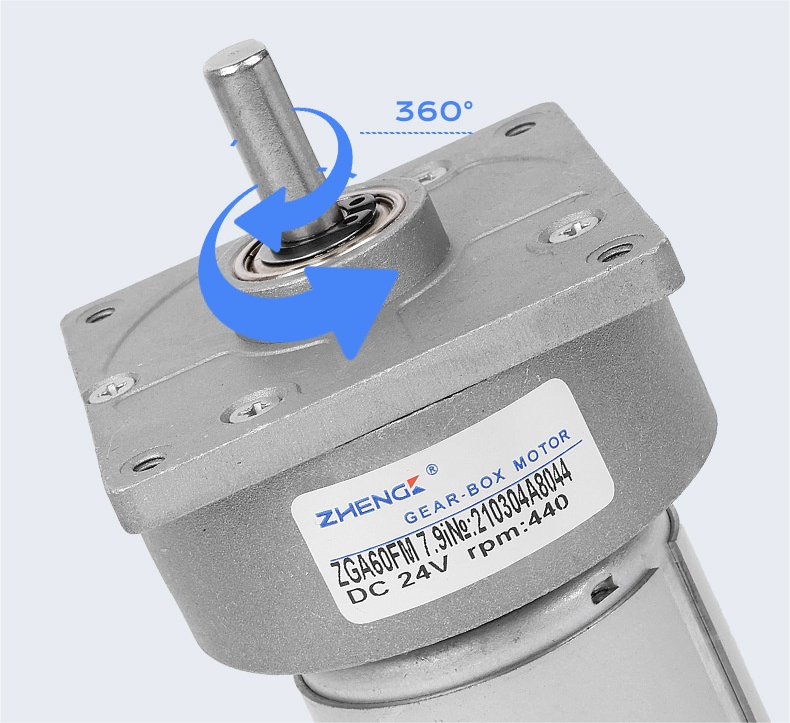

 | Positive and negative rotation 360° rotation, ingenious design |
· Pure copper wire core：Stable operation, low temperature rise, sufficient power

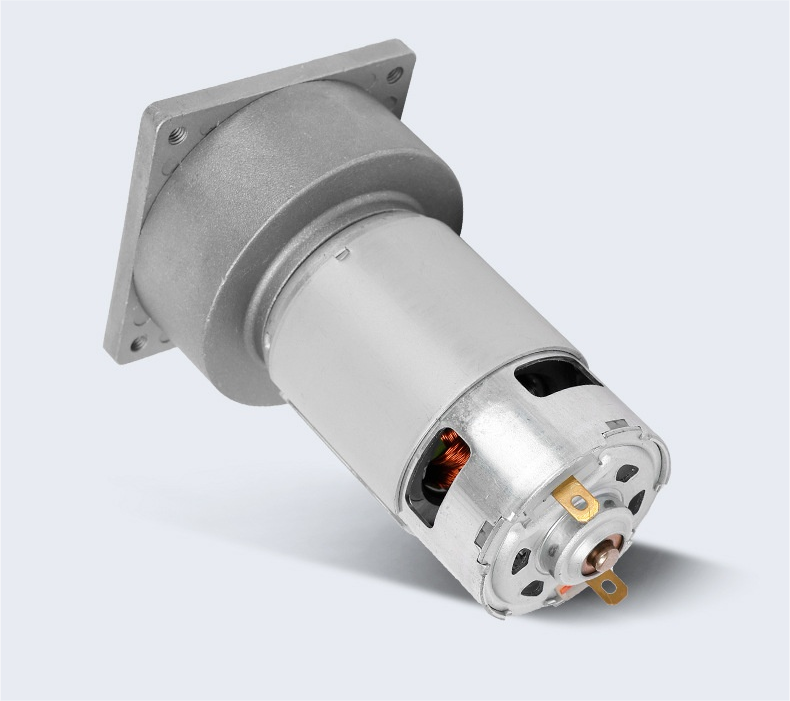

· Motor carbon brush：Higher copper content, more wear-resistant, quieter, and much longer service life
· Tile type magnet：Effectively improve the magnetic field and make it more powerful
· High quality gear：Smooth transmission, wear resistance, large transmission torque
Applicable scene
