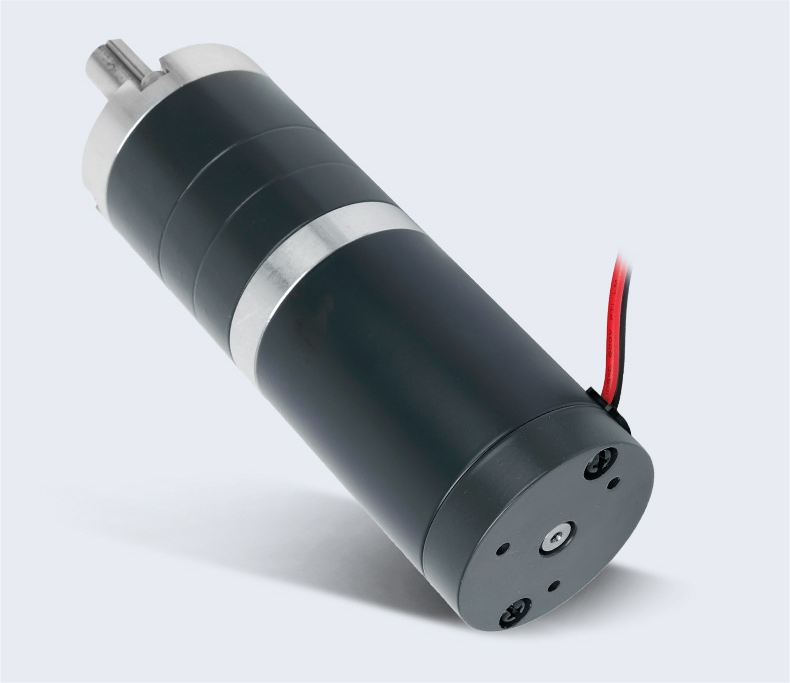

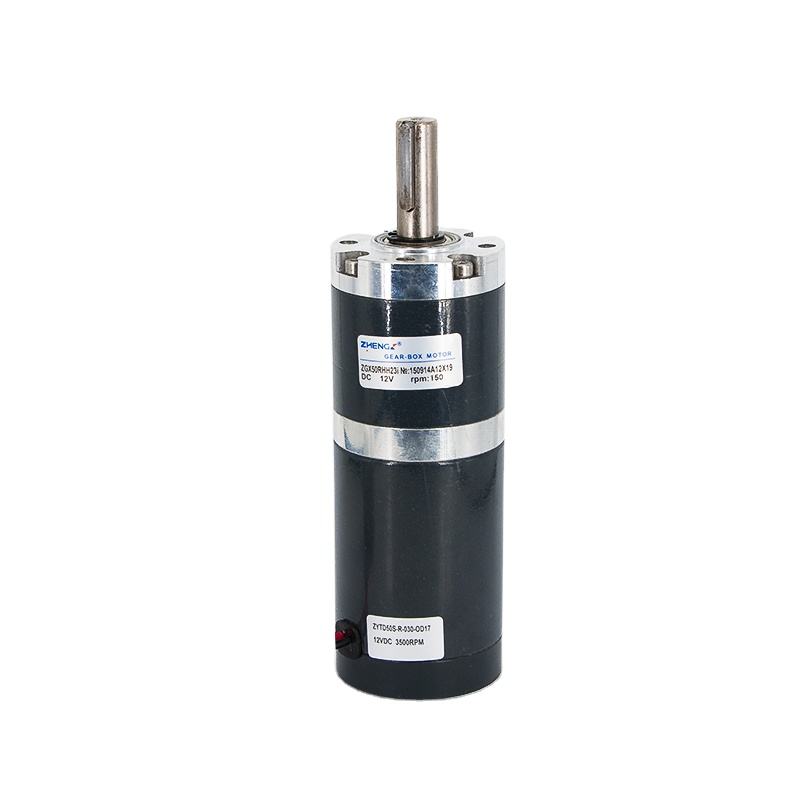

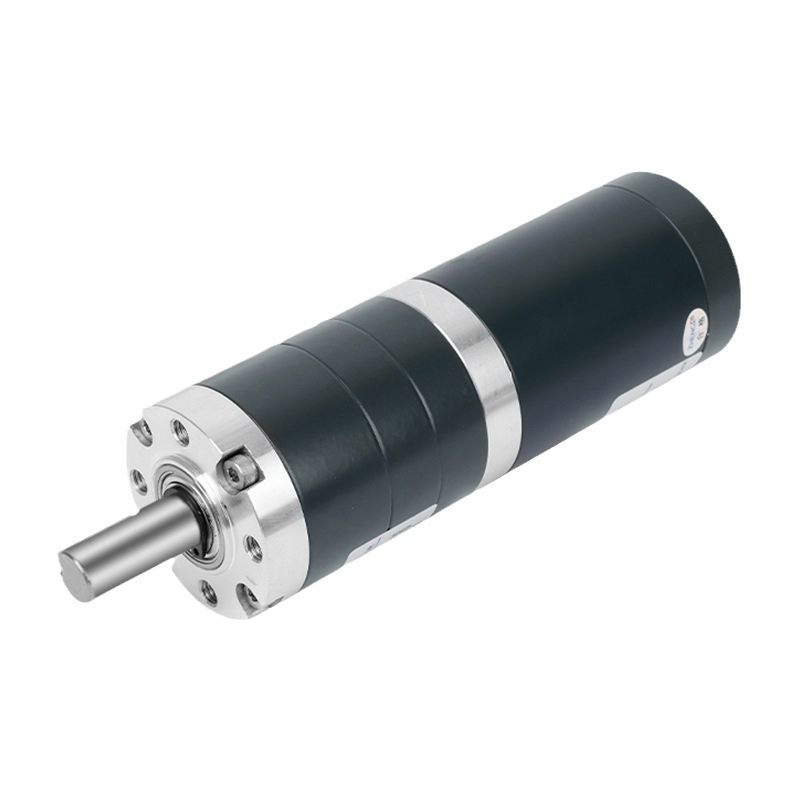

ZGX50RHH planetary reduction motor
ZHENGK ZGX50RHH adjustable speed forward and reverse planetary reduction motor with high torque center 12V24V
- model：ZGX50RHH
- rated power：15（W）
- product type：Brushed DC Motor
- Rated voltage：12-24（V）
- Rated current：5（A）
- Rated torque：540（NM）
USD 46
Monthly Output1000
- Product Description
Product Description
Planetary DC gear motor
ZGX50RHH
Stainless steel shaft | Adjustable speed | Positive and negative adjustment |
| Metal shell | Durable gear | Quality Assurance |
ZGX50RHH
| Shell material | Metal |
| Output bearing type | Ball bearings |
| Radial force | ≤ 20 kgf |
| Axial force | ≤ 10 kgf |
| Maximum spindle pressure | ≤ 30 kgf |
| Radial clearance | ≤ 0.1 mm |
| Axial clearance | ≤ 0.4 mm |

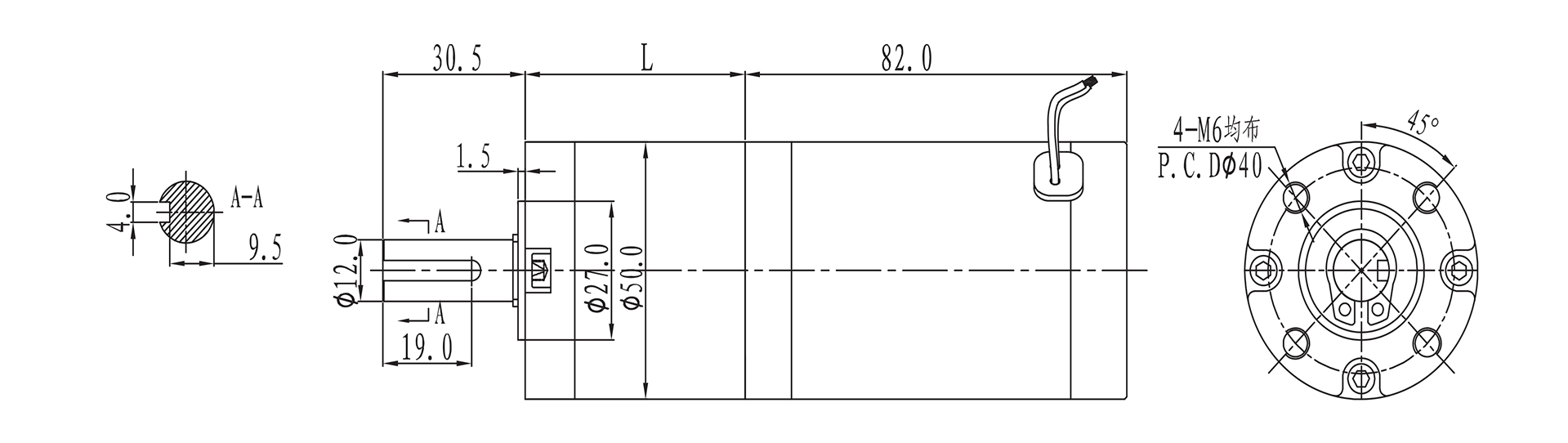

Gearbox dimensions

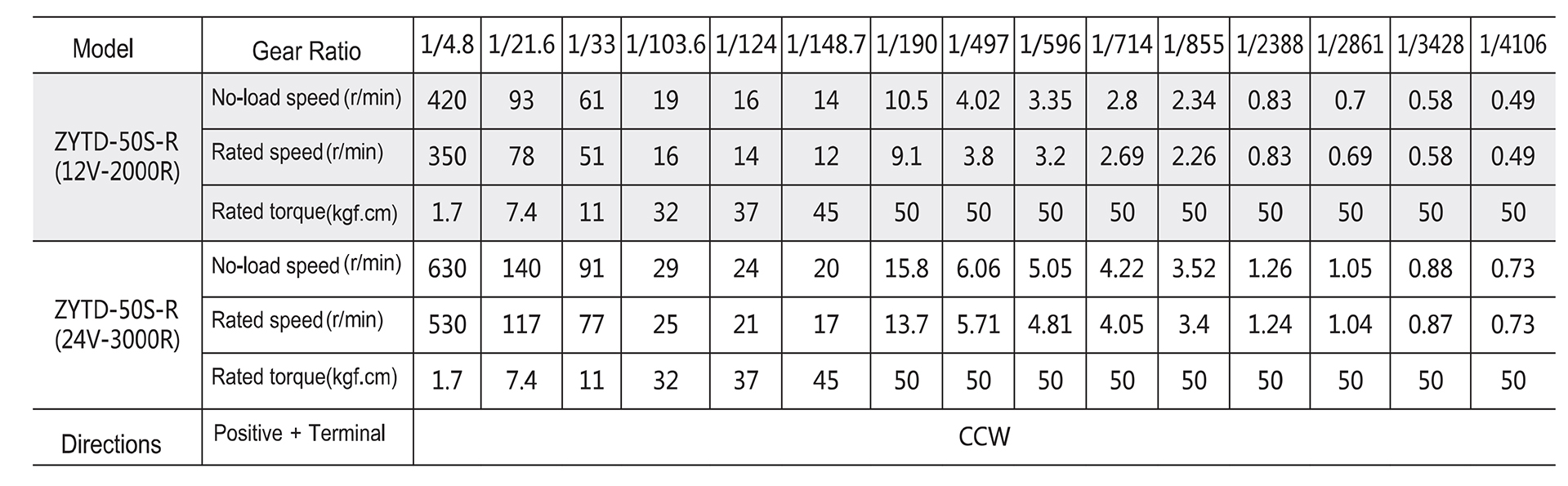

Gearbox motor (rated torque/speed list)

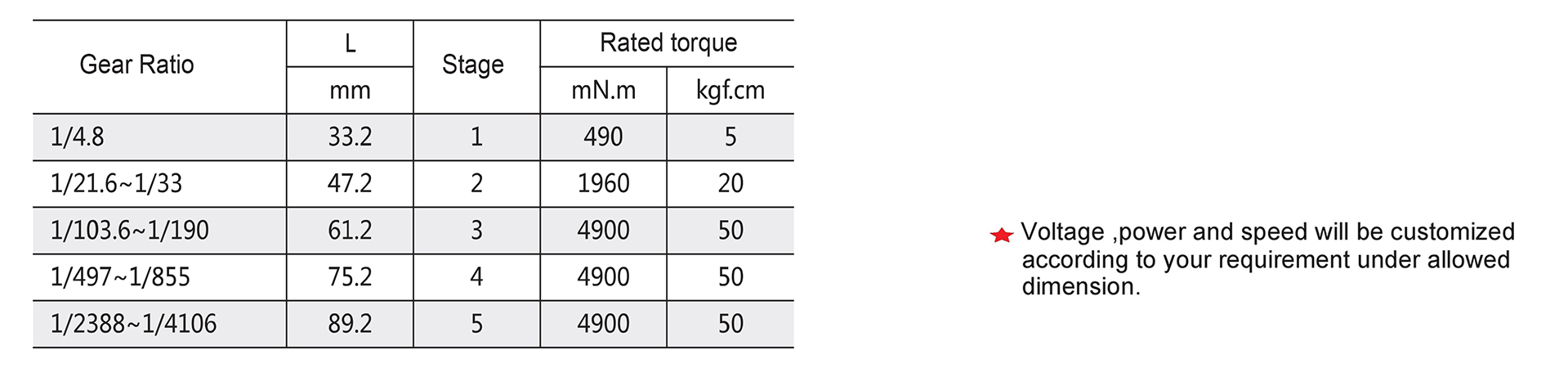

Gearbox specifications

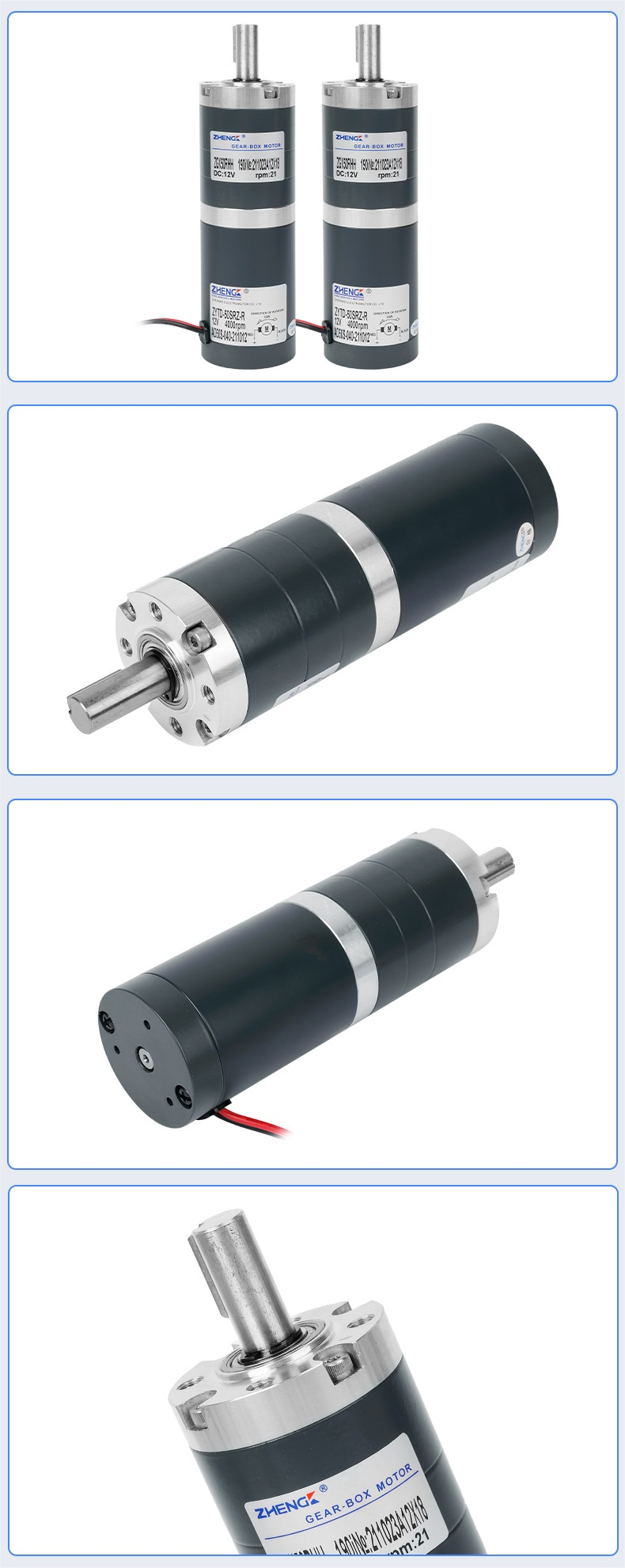

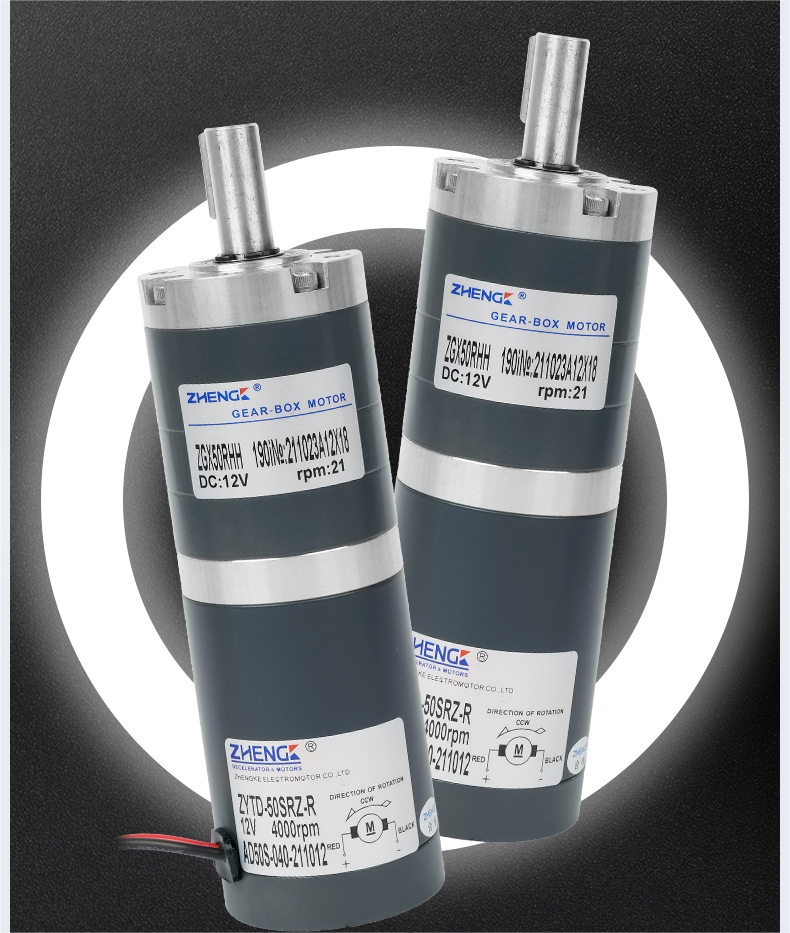

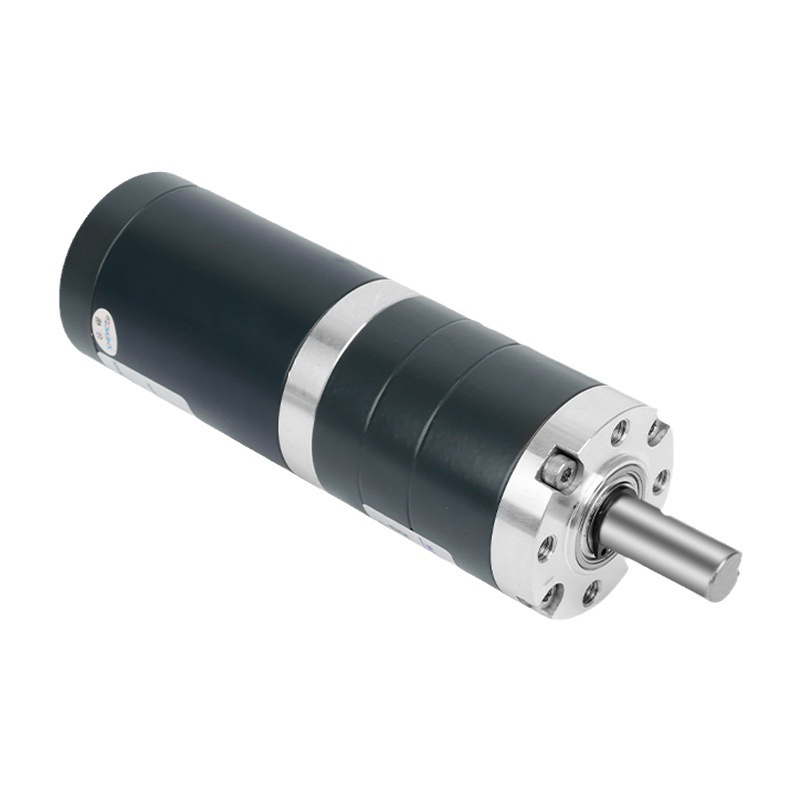

Product Showcase
Features
Made of all metal Durable, corrosion-resistant and durable |  |

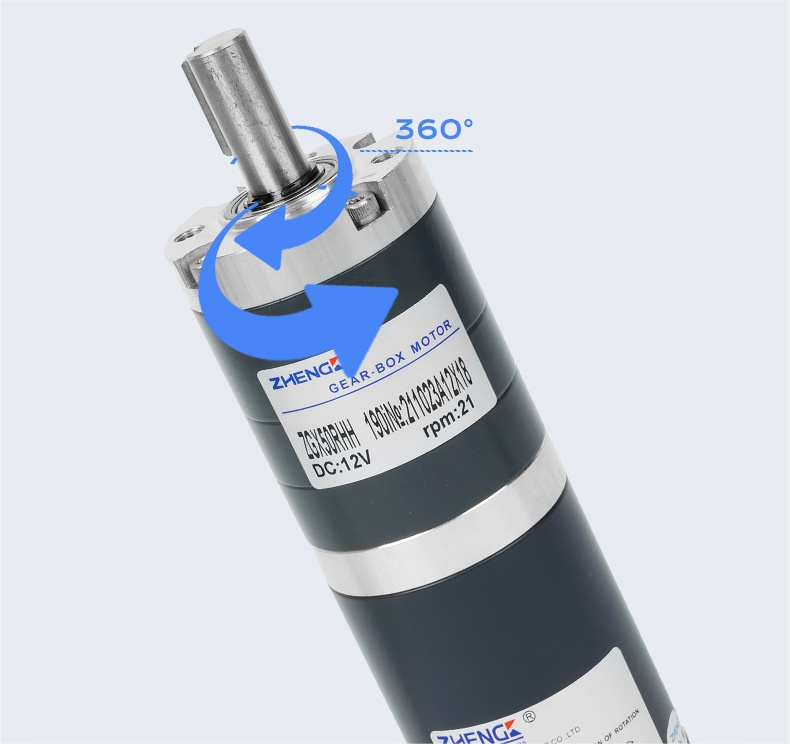

 | Positive and negative rotation 360° rotation, ingenious design |
Applicable scene
