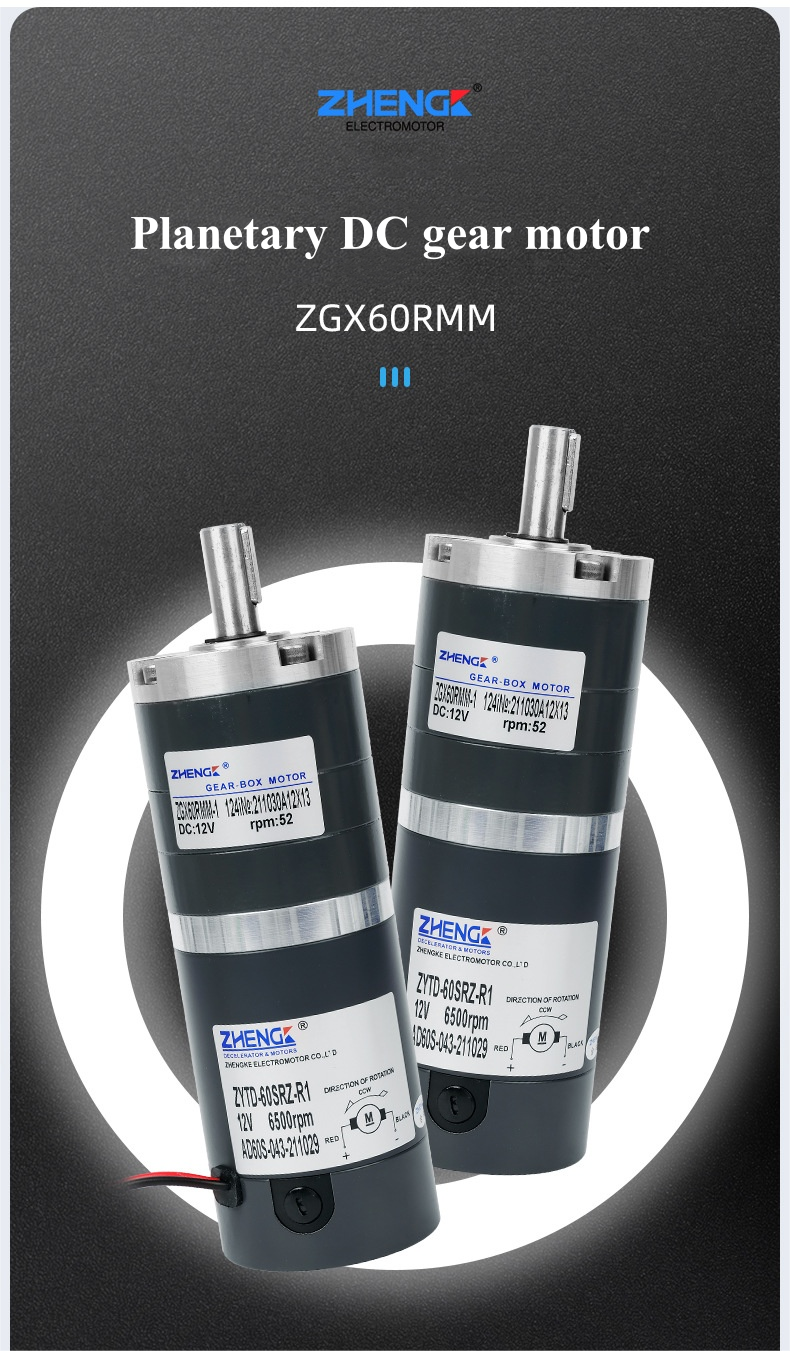

ZGX60RMM planetary reduction motor
ZHENGK ZGX60RMM adjustable speed forward and reverse planetary reduction motor sun gear torque large 12V24V
- Model：ZGX60RMM
- Rated power：8（W）
- Product type：Brushed DC Motor
- Rated voltage：12-24（V）
- Rated current：5（A）
- Rated speed：430-0.87（rpm）
USD： 66
ablity：Monthly Output1000
- Product Description
- Product Params
Product Description
Stainless steel shaft | Adjustable speed | Positive and negative adjustment |
| Metal shell | Durable gear | Quality Assurance |
Product Parameters
ZGX60RMM
| Shell material | Metal |
| Output bearing type | Ball bearings |
| Radial force | ≤ 25 kgf |
| Axial force | ≤ 10 kgf |
| Maximum spindle pressure | ≤ 50 kgf |
| Radial clearance | ≤ 0.1 mm |
| Axial clearance | ≤ 0.4 mm |
Gearbox dimensions

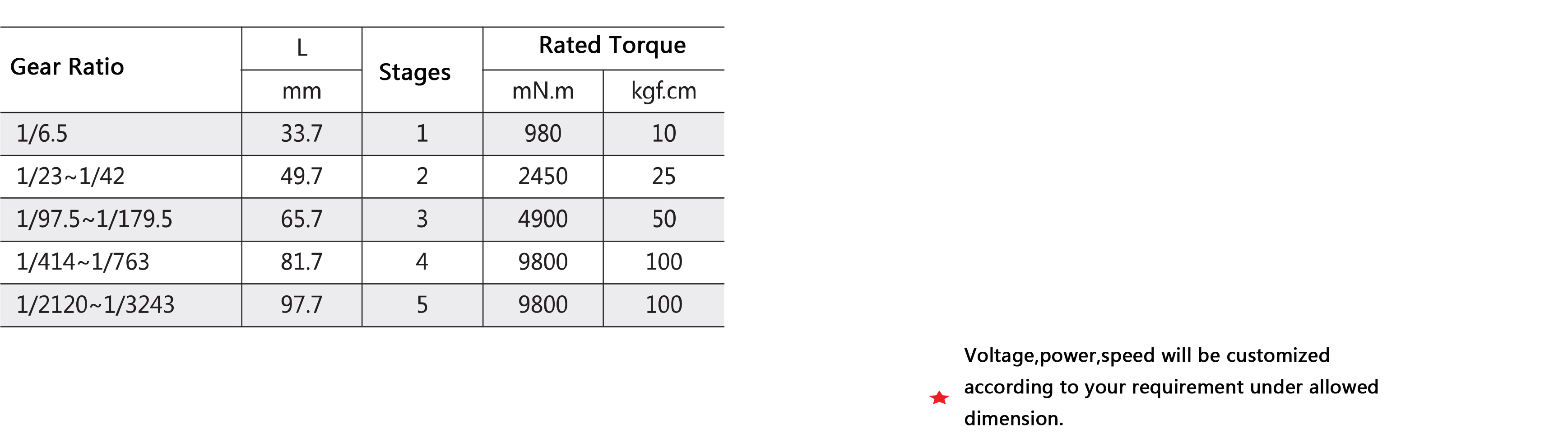

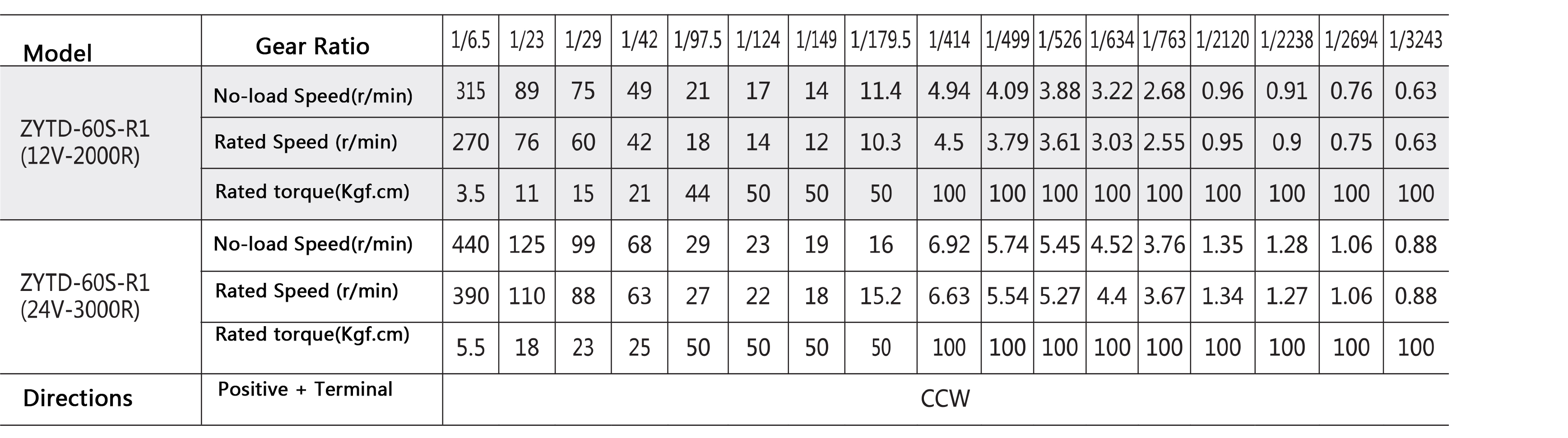

Gearbox motor (rated torque/speed list)
Gearbox specifications
Features
Made of all metal Durable, corrosion-resistant and durable |  |

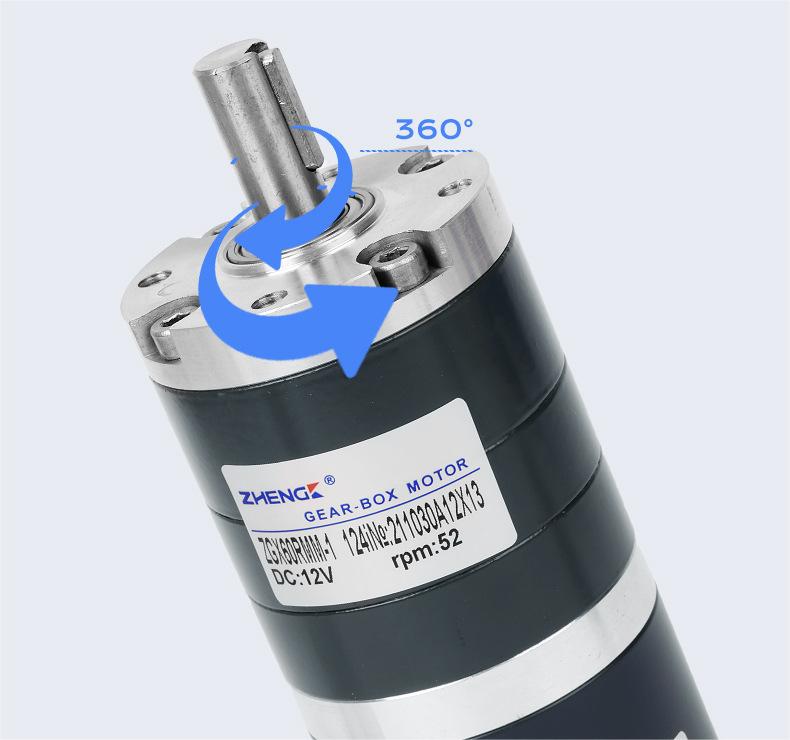

 | Positive and negative rotation 360° rotation, ingenious design |

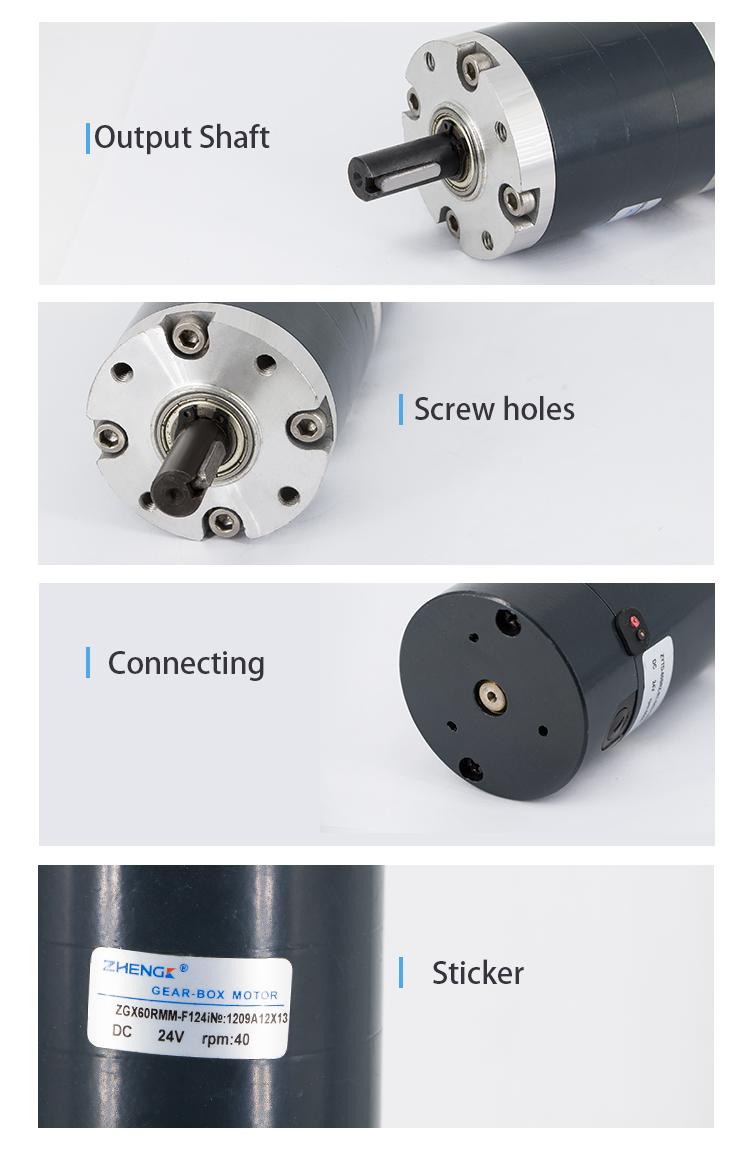

Product details
