Cooperative Supplier
23 Years
ZGX38RSS planetary brushless motor
ZHENGK ZGX38RSS adjustable speed forward and reverse planetary brushless deceleration high torque motor 12V 24V
USD 40-55
Monthly Output1000
- Product Description
Product Description
Stainless steel shaft | Adjustable speed | Positive and negative adjustment |
| Metal shell | Durable gear | Quality Assurance |
Product Parameters
ZGX38RSS
| Shell material | Metal |
| Output bearing type | Ball bearings |
| Radial force | ≤ 8 kgf |
| Axial force | ≤ 3 kgf |
| Maximum spindle pressure | ≤ 15 kgf |
| Radial clearance | ≤ 0.1 mm |
| Axial clearance | ≤ 0.4 mm |

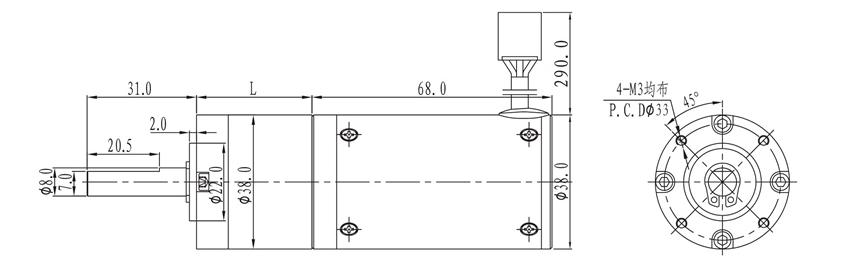

Gearbox dimensions
Gearbox specifications
| Reducer | L | Number of steps | Rated torque | |
| mm | mN.m | kgf.cm | ||
| 1/7 | 23.7 | 1 | 196 | 2 |
| 1/16-1/49 | 32.7 | 2 | 588 | 6 |
| 1/64~1/196 | 41.7 | 3 | 980 | 10 |
| 1/256~1/765 | 50.7 | 4 | 1470 | 15 |
| 1/2141~1/3125 | 59.7 | 5 | 1960 | 20 |

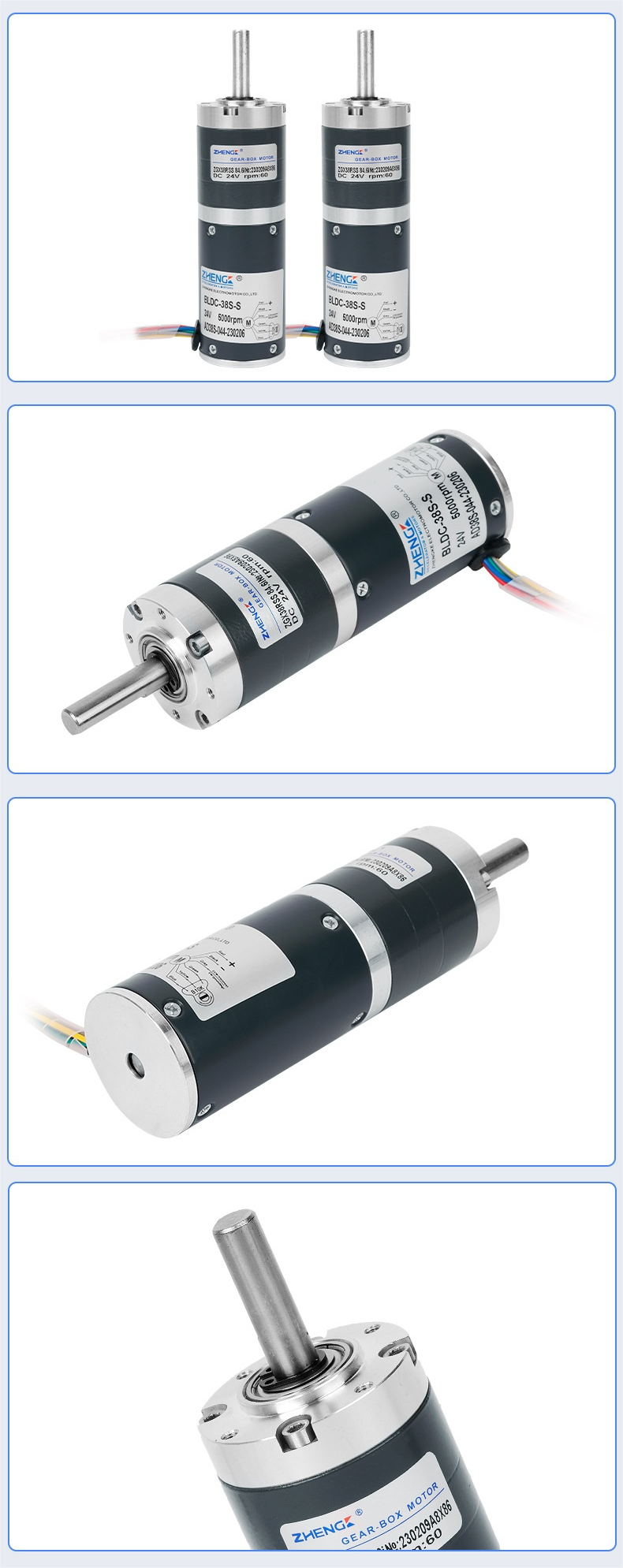

Product Showcase
Features
Made of all metal Durable, corrosion-resistant and durable |  |

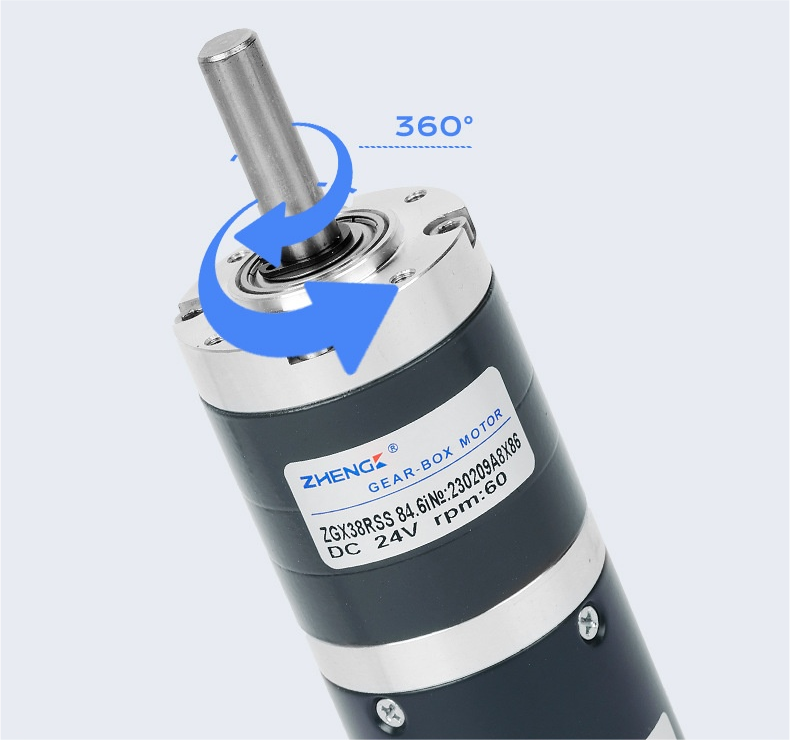

 | Positive and negative rotation 360° rotation, ingenious design |
Applicable scene
