Description
Y-100CJ-ARP Transplanting AGV is suitable for scenarios where materials need to be automatically connected to the line conveyor or production line for loading and unloading. It can replace the traditional automatic conveyor line to achieve flexible production material transportation.
Product Features
Laser navigation
Accurate positioning, no need to modify the environment.
Customizable size
Seamless docking of the loading and unloading table.
Smaller dimensions
Flexible use in narrow passages.
Automatic charging
Long endurance.

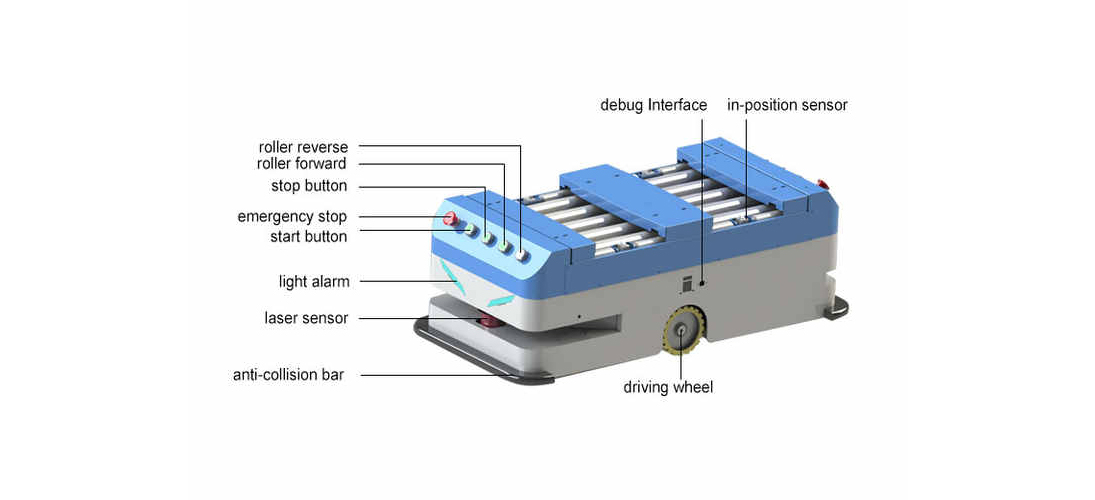

Structure Diagram
Product Params
| Dimensions (mm) | L1140*W560*H390 |
| Loading capacity (KG) | 80 |
| Speed (min/m) | 45 |
| Charging method | Automatic charging/replacement of batteries |
| Accuracy (mm) | ±10 |
| Applicable environment | Indoor |
| Battery | Lithium battery 24V 40AH |
| Communication | Wifi/433/optical communication (optional) |
| Slope | ≤3° |
| Navigation | Slam |
| Human Machine Interface | 4.3-inch touch screen |
| Safety protection | Laser+acousto-optic+edge touch |
| Endurance | 8 hours |
| Traveling mode | Forward, backward, rotate on the spot |
| Device connection method | Optical Communications |
| Connection method | Roller |
| Drive mode | Dual wheel differential |
Custom Case
Production Engineering
Textile industry manufacturing workshop
3C electronics assembly workshop
Company Introduction
Dongguan Xinghua Robot Automation Technology Co., Ltd. was established in 2018. It is a national high-tech enterprise focusing on the research, development, production and sales of AGV unmanned transport vehicles, warehouse robots, and overall logistics solutions. It has rich experience in the research and development and customization of AGV products, and is committed to providing high-end AGV automated logistics equipment and systems for the industry.
Our Factory
Certificate Honor
Partners
The company has introduced internationally advanced AGV technologies and solutions, and invested heavily in building a complete technical and R&D team. Now it has been recognized and supported by a large number of customers including Foxconn, BYD, Honda, Panasonic, China North Industries Group, FAW SAIC, Geely, etc., and has been applied in aviation, automobile, electronics, grain and oil, textile, home appliances, heavy industry, optoelectronics and other fields.
