Description
The traction AGV is suitable for transporting material vehicles when the chassis of the material vehicle is low to the ground. It can be connected with the production management system to support customers to achieve automated production management.
Product Features
Protection Multiple Security
Equipped with infrared obstacle sensor,anti-collision bar + sound and light alarm, safe operation is guaranteed.
Run Smoothly
The rail navigation technology is mature,and the AGV travel and positioning are more stable and reliable.

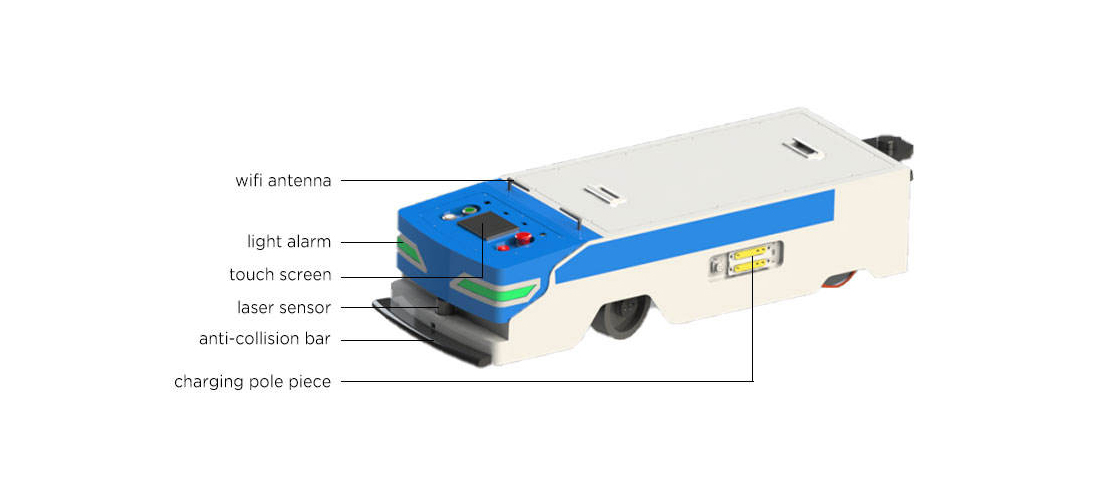

Structure Diagram
Product Params
| Dimensions (mm) | L1452*W480*H320 |
| Loading capacity (KG) | 1000 |
| Speed (min/m) | 45 |
| Charging method | Automatic charging/replacement of batteries |
| Accuracy (mm) | ±10 |
| Applicable environment | Indoor |
| Battery | lithium battery |
| Communication | Wifi/433/optical communication (optional) |
| Slope | ≤3° |
| Navigation | Magnetic navigation |
| Human Machine Interface | 4.3 inch touch screen |
| Safety protection | Laser+acousto-optic+edge touch |
| Endurance | 8 hours |
| Traveling mode | Go forward, turn |
| Driving method | Dual wheel differential |
Custom Case
Core making engineering
Logistics sorting workshop
Automotive electronics assembly workshop
