Unmanned four-wheel chassis

Oneway security patrol robot four-wheel drive security inspection indoor and outdoor patrol long battery life

Size :
830x625x620mm
Weight :
70kg
Load capacity :
70kg
Operating temperature :
-20°~60°

USD: 11764

ablity:Monthly Output500

contact shop

Product Description

Unmanned four-wheel chassis

It is suitable for use on flat roads indoors and outdoors, and can be applied to the development of robots for security, advertising, distribution, etc. It has the characteristics of stylish appearance, compact body, long battery life, and rich development interfaces. The chassis has been successfully used in various public places such as urban shopping malls, park squares, libraries, etc.

Product parameters

Basic parameters
Size830x625x620mm
Weight70kg
Load capacity70kg
Operating temperature-20°~60°
Performance parameters
Maximum climbing angle15°
Maximum obstacle clearance height40mm
Battery life8 hours
Battery capacity48V30Ah
Drive modeFour wheel drive
Turning radiusTurn in place & Turning radius is 0
Hub motor6.5 inches
Extended communication interfaceStandard CAN/RJ45/485
Autonomous navigation
Maximum short-term wading depth60mm
Maximum remote control speed2m/s


Product Display

High reliability

The robot chassis is designed with six vehicle-level independent modules and supports IP67 protection level, with stable performance and high reliability. The chassis frame is integrally welded, lightweight and stable, and can meet various harsh environment applications.

High precision control

The robot chassis uses a multi-pole hub motor and a high-power-density motor driver. The motor integrates photoelectric and Hall encoders. The precise position information of the rotor is obtained through a fusion algorithm. The driver uses advanced data fusion and interpolation algorithms to improve the position signal resolution. This enables high-precision driving control.

High flexibility

The chassis adopts a steering gear controller, four-wheel independent high-precision steering gear and adjustable suspension, which can realize turning in place and small-radius turning while walking, making the turning smooth and flexible. It can adapt to turning and passing on various narrow road sections.

Strong load-bearing capacity

The robot chassis adopts a high-power power system, integrates multiple overload protections, supports twice the rated load of its own weight, is suitable for carrying various types of equipment, and is highly expandable.

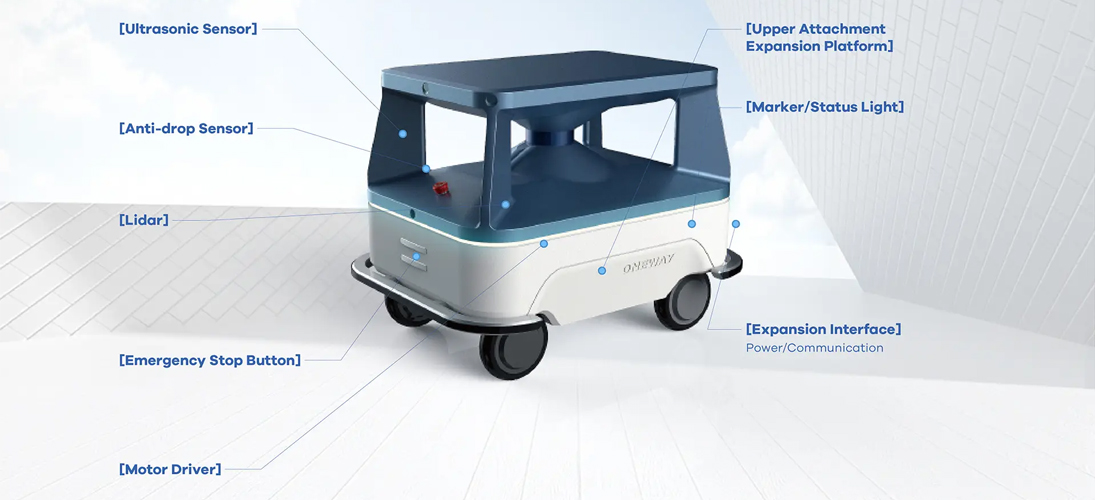

Schematic Diagram

Application Cases

In scenarios with extremely high security requirements, Wanwei's unmanned four-wheel chassis is fully demonstrated. It is equipped with a four-wheel four-wheel drive system, with strong power and no fear of various road conditions. Whether it is indoor precision places or outdoor open areas, it can efficiently perform patrol and inspection tasks. Ultra-long battery life ensures all-day duty and no blind spots in safety.
