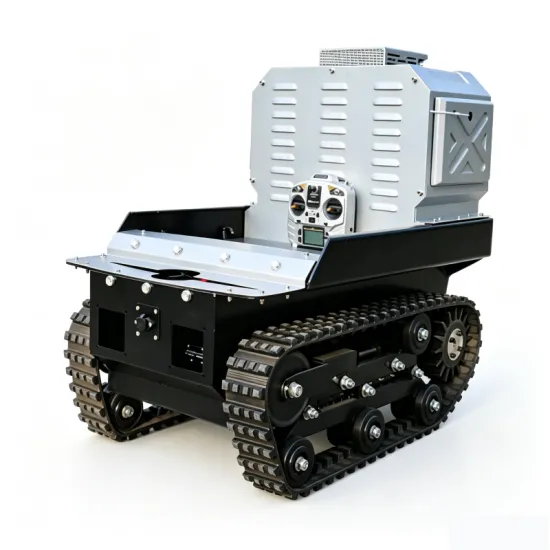

Product Description

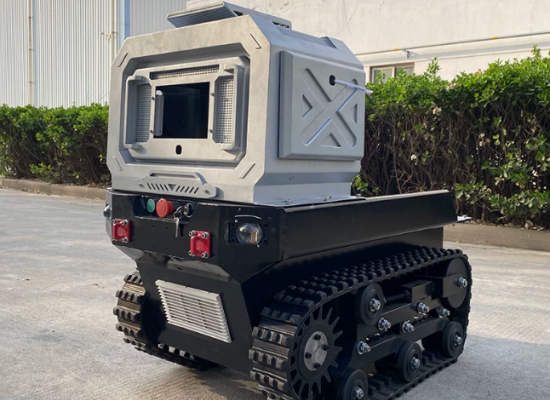

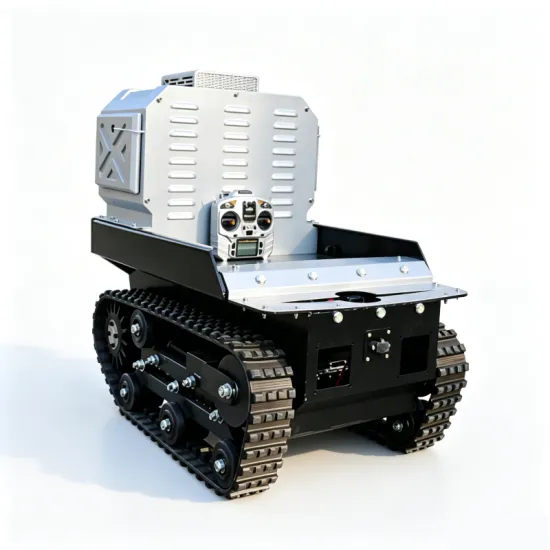

Compact electric picking tracked chassis with flexible all-terrain driving, designed for orchard picking and special inspection, stable and efficient operation, customizable upon request.
Functional Features
① Powerful Performance
Fitted with high‑torque DC brushless reduction motor for strong power output. Optimized chassis and power configuration bring low‑center‑of‑gravity, good heavy‑load shock absorption, great trafficability and stable operation on complex roads.
② All‑terrain Adaptation
General‑purpose tracked robot chassis with Christie independent suspension for heavy‑load shock absorption and smooth travel. Sufficient space for secondary development and modification to fit various terrains.
③ Thickened Material
Constructed with thickened durable materials. Serves as robot mobile base for exploration, rescue, reconnaissance and mobile shooting, compatible with multiple upper‑mount modules.

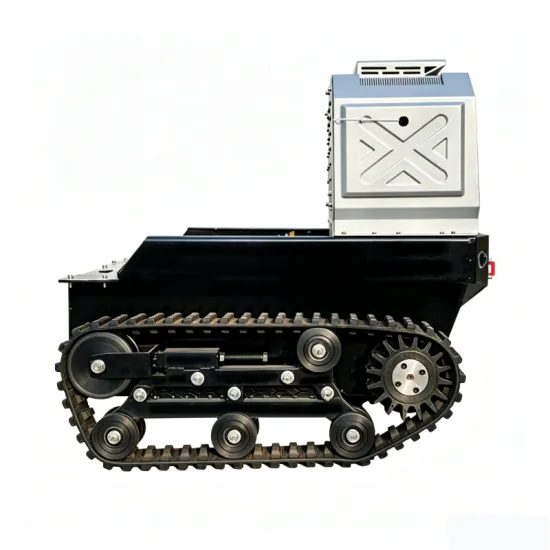

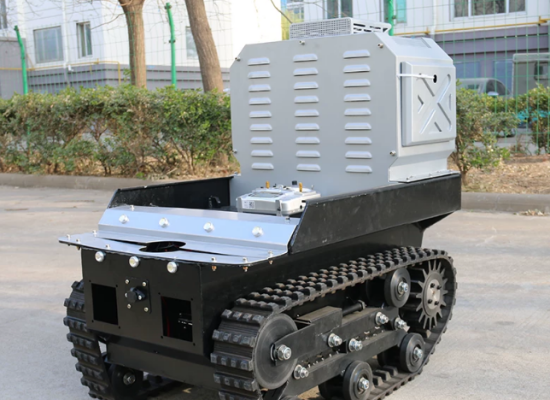

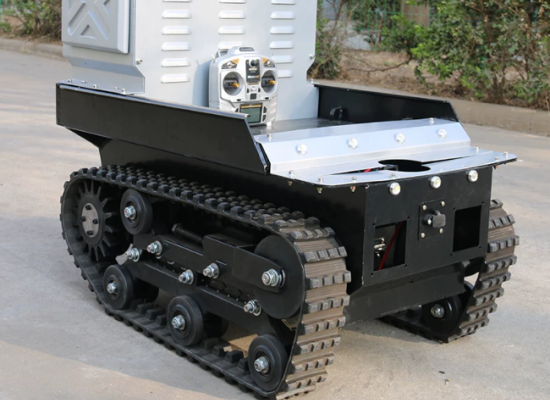

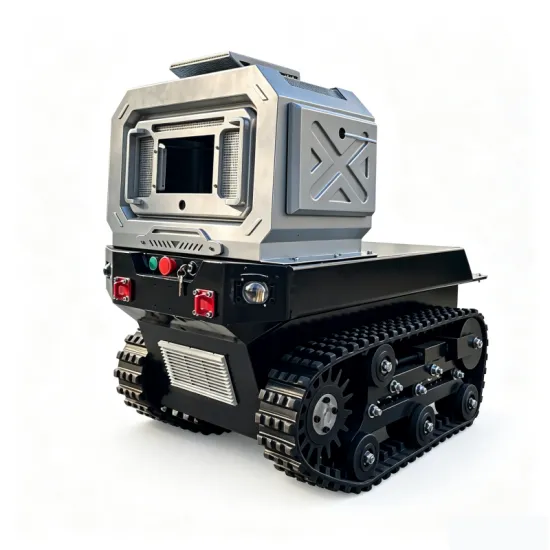

Product Views

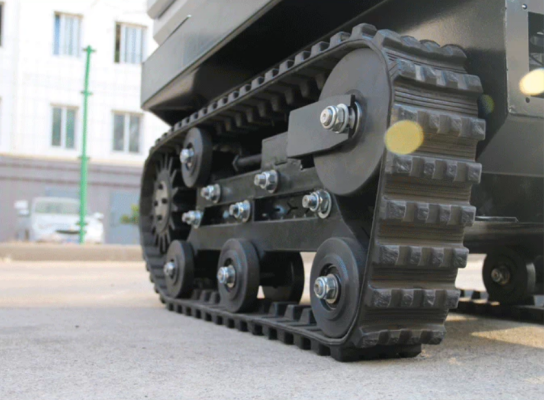

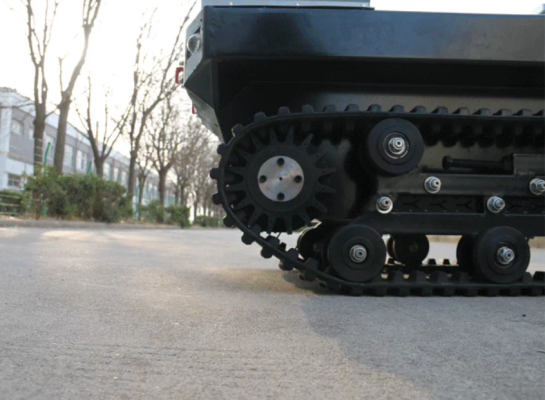

High quality rubber tracks
DC brushless motor+dual drive controller
Application
1. Snow walking
Adopting a multi suspension combination design, combined with an anti-collision structure, greatly reduces the impact of complex terrain on the chassis, making it easy to meet the requirements of heavy load, shock resistance, off-road, etc.
2.Muddy Swamp
Climbing mountains and wading through water is like walking on flat ground ", which is the best interpretation of the chassis passability of tracked robots. Compared to wheeled robot chassis, tracked chassis can continuously climb stairs, which is its significant advantage.
3. Climbing stairs and stairs
Crawler type chassis can move on various complex ground surfaces, such as sandy, muddy, mountain slopes, culverts, etc. It is often used in the field of special robots, such as exploration, firefighting, special photography, special transportation, etc.
4.muddy paddy fields
The tracked chassis can rotate in place, with full flexibility. The track structure does not generate significant vibrations when rotating in place, and can operate smoothly in paddy and muddy environments.

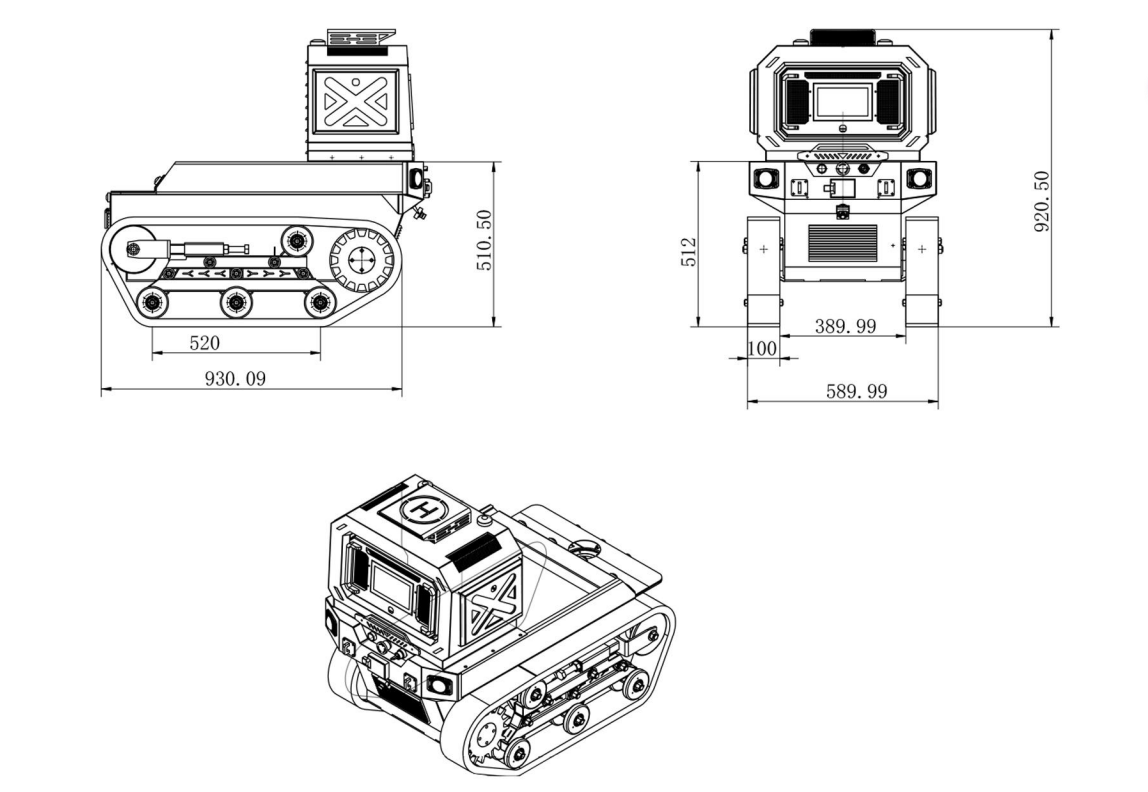

Dimensional Drawin
Product parameters
Parameter | Value |
Chassis Model | ZDDP-ZKZN-100 |
Chassis Dimensions | 1300MM*800MM*400MM (L*W*H) |
Surface | Plastic Spraying |
Main Material | Carbon Steel / Aluminum |
Braking Method | Motor Braking |
Waterproof Rating | IP55 |
Climbing Ability | 30° Slope |
Running Speed | Standard 0~3KM/H, Customizable |
Turning Radius | In-situ 360° Rotation |
Reducer Parameters | RV50-30 |
Motor Parameters | 48V1.5KW-3000 |
Control Parameters | Dual-drive Controller (Supports CAN/PWM/232/485) |
Track | Rubber Track (Grade A Natural Rubber, Kevlar Fiber Reinforced) |
Track Pitch | 40MM |
Track Width | 100MM |
Wheel Material | Special Ultra-high Molecular Weight Synthetic Material |
