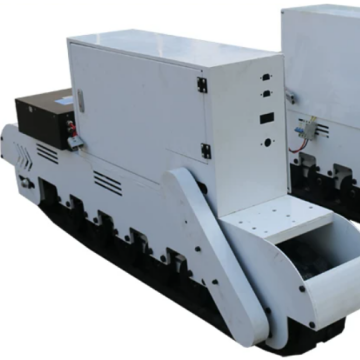

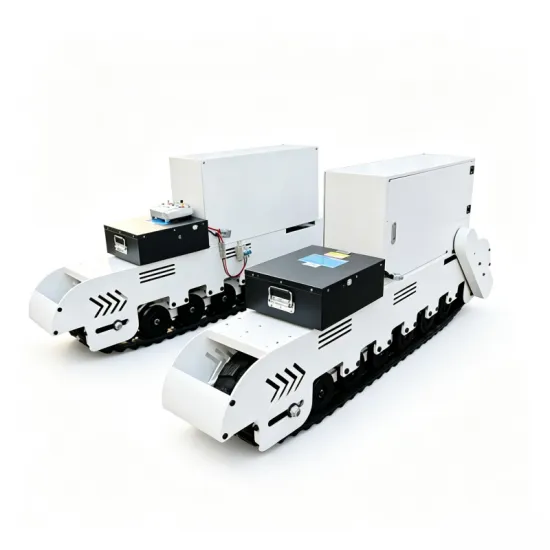

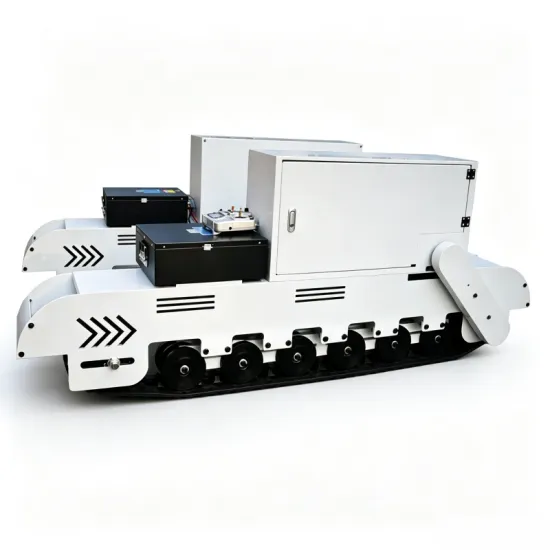

Product Description

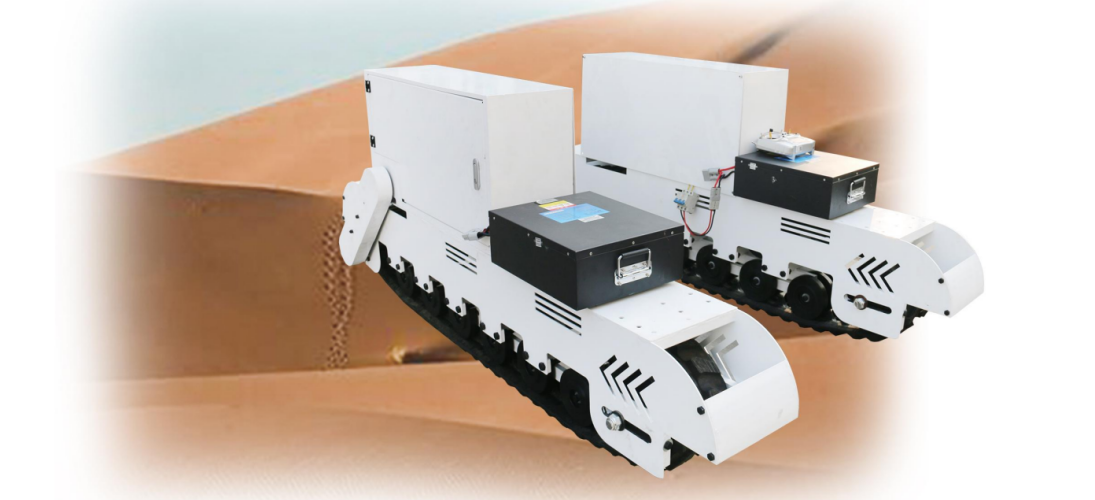

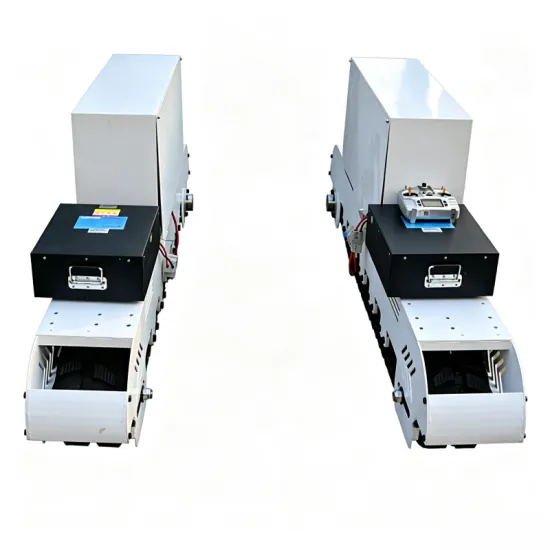

ZDDP‑NJGY‑180 remote‑controlled rubber track chassis assembly supports slope climbing and in‑situ rotation with wide wear‑resistant tracks and multi‑interfaces. Ideal for robot refitting and stable driving on complex roads.
Functional Features
Powerful driving performance：
Supports 30° slope climbing and 360° in‑situ rotation, speed 0‑3km/h adjustable for complex terrain.
Enhanced wear‑resistant track：
Grade‑A natural rubber track embedded with Kevlar fiber, 180mm wide track with IP55 protection.
Multi‑protocol controllable chassis：
Dual‑drive controller supports CAN/PWM/232/485.
Carbon steel‑aluminum frame with anti‑rust spray‑plastic treatment.

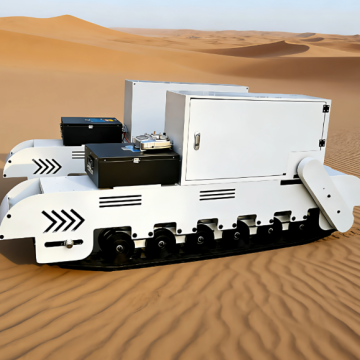

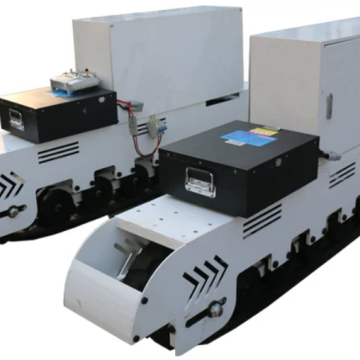

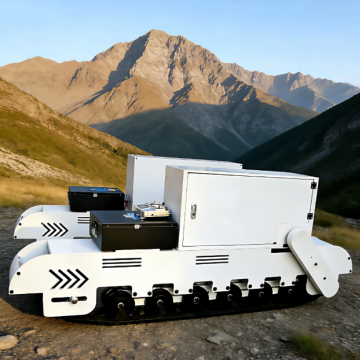

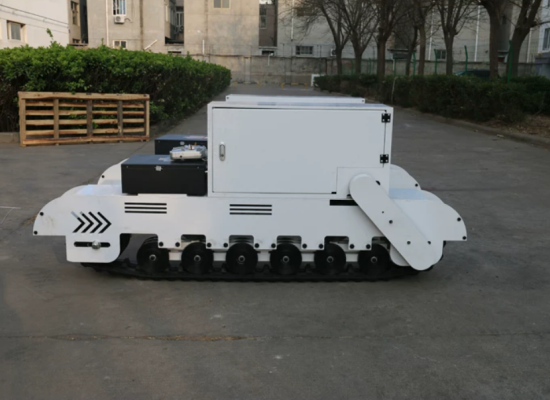

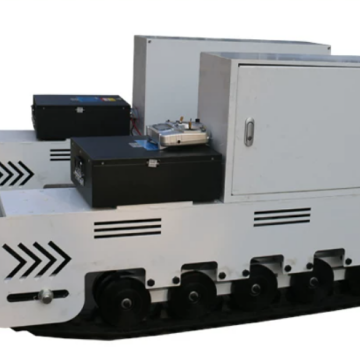

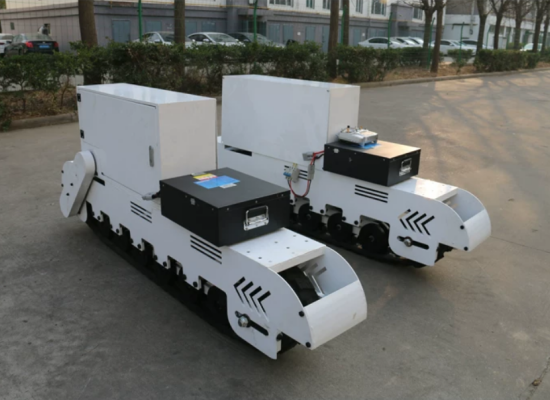

Detail display
30°Climb · 360° In‑situ Rotation
Kevlar Reinforced Track·IP55
Multi‑Interface·Anti‑Rust Frame

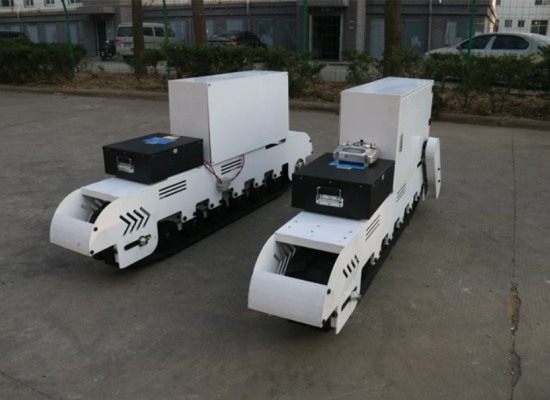

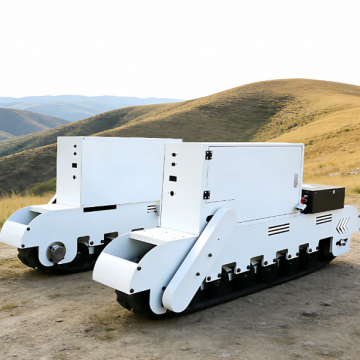

Application
Inspection Robot
Engineering Refit
Field Special Operation

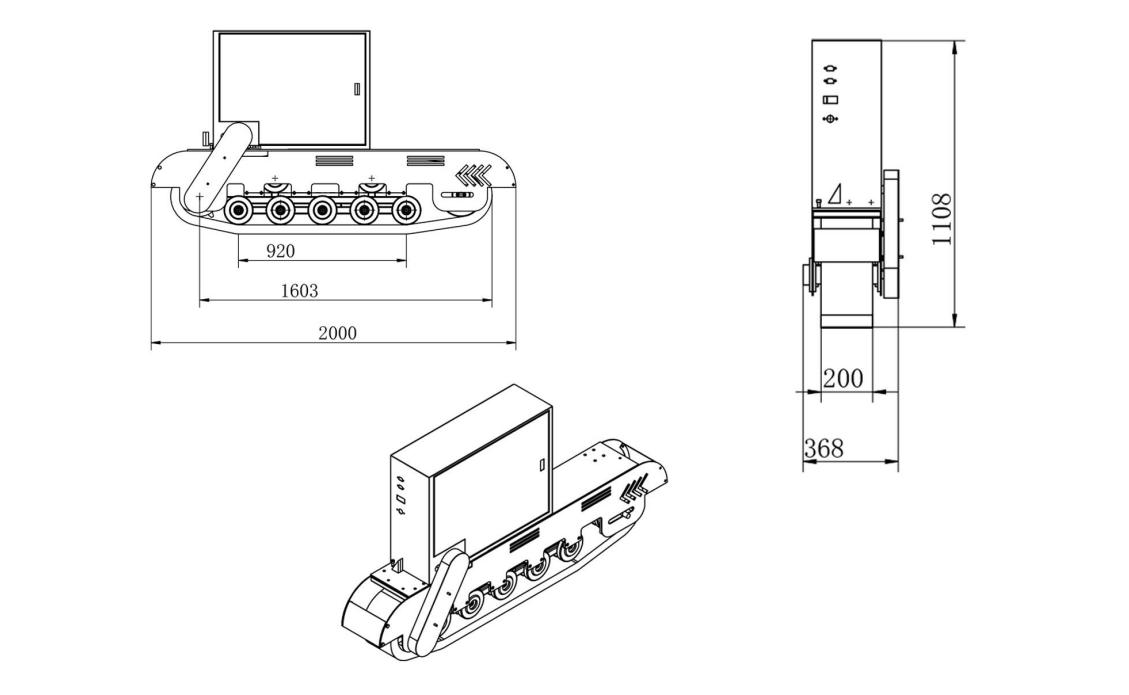

Dimensional Drawin
Product parameters
Parameter | Specification |
Chassis Model | ZDDP-NJGY-180 |
Chassis Dimensions | 1800mm × 400mm × 180mm (L×W×H) |
Surface Treatment | Spray Plastic Coating |
Main Material | Carbon Steel / Aluminum |
Braking Method | Motor Braking |
Waterproof Rating | IP55 |
Climbing Ability | 30° Slope |
Running Speed | Standard 0–3 km/h, Customizable |
Turning Radius | 360° In-Situ Rotation |
Reducer Parameters | RV60-70 |
Motor Parameters | 48V 1.5KW-1500 |
Control Parameters | Dual-Drive Controller (Supports CAN/PWM/232/485 Interfaces) |
Track | Rubber Track (Grade A Natural Rubber, Kevlar Fiber Embedded) |
Track Pitch | 72mm |
Track Width | 180mm |
Wheel System Material | Special Ultra-High-Molecular Synthetic Material |
Product Certificate
Service
We have a highly professional service team.
Team members are the elites in their respective fields, they have gone through strict selection and systematic training, have a wealth of professional knowledge and superb skills.
Whether facing complex technical problems or daily service needs, they can quickly understand your needs with keen insight and provide the perfect solution with efficient action.
Company Introduction
Zhengding Machinery Co., Ltd. in Dezhou is a leading manufacturer in the all terrain walking industry, specializing in the research and production of all terrain rubber tracks and track chassis, intelligent robot chassis, and track assemblies. It is a group style military enterprise.
The product supports customization and is sold globally with quality assurance.
