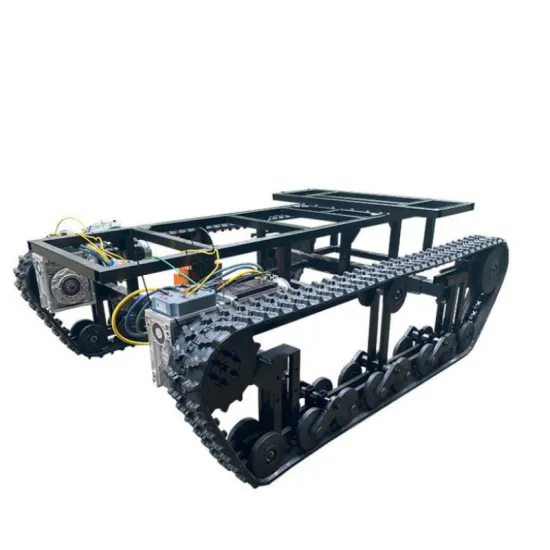

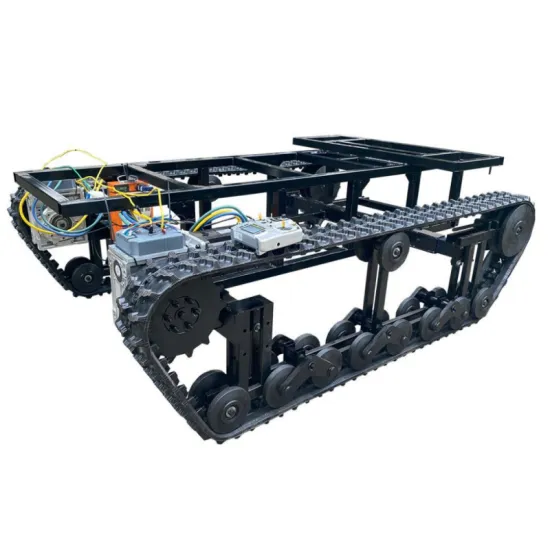

Product Description
All-terrain electric RC crawler chassis with 360° in-situ rotation and strong load capacity for orchard picking and material transport; modular platform supports secondary development.
Functional Features
1. All terrain access, climbing buildings and overcoming obstacles

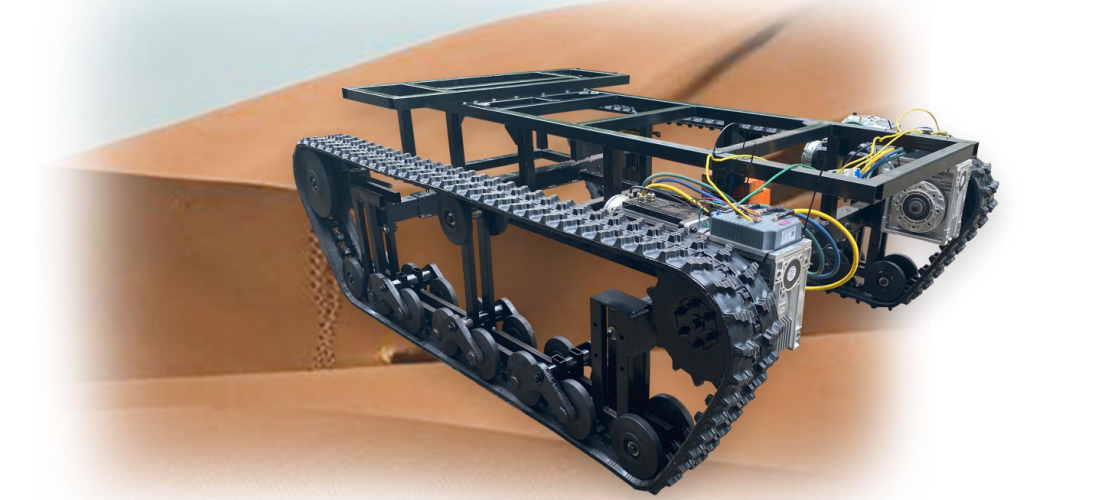

Rubber tracks have strong grip, stable driving on 30 ° slopes and muddy gravel roads, can climb stairs and overcome obstacles, and have strong adaptability to complex outdoor road conditions.
2. Flexible remote control
Dual drive controller, supports CAN/PWM/232/485 interfaces, can rotate 360 ° in place, and can operate freely in narrow spaces.
3. Strong load-bearing capacity, wide adaptability, and easy expansion
High power motor drive, strong load-bearing capacity, suitable for orchard picking and material transportation; The modular platform reserves expansion interfaces for secondary development and customization.
Product Views

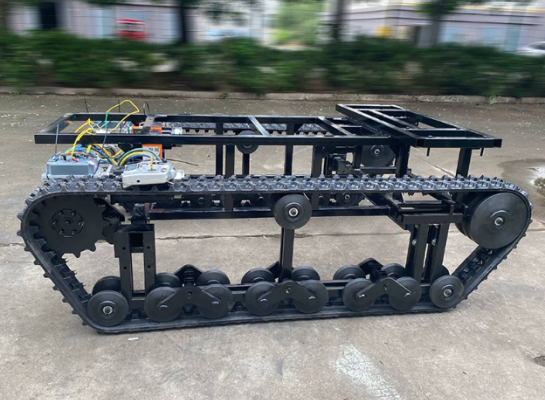

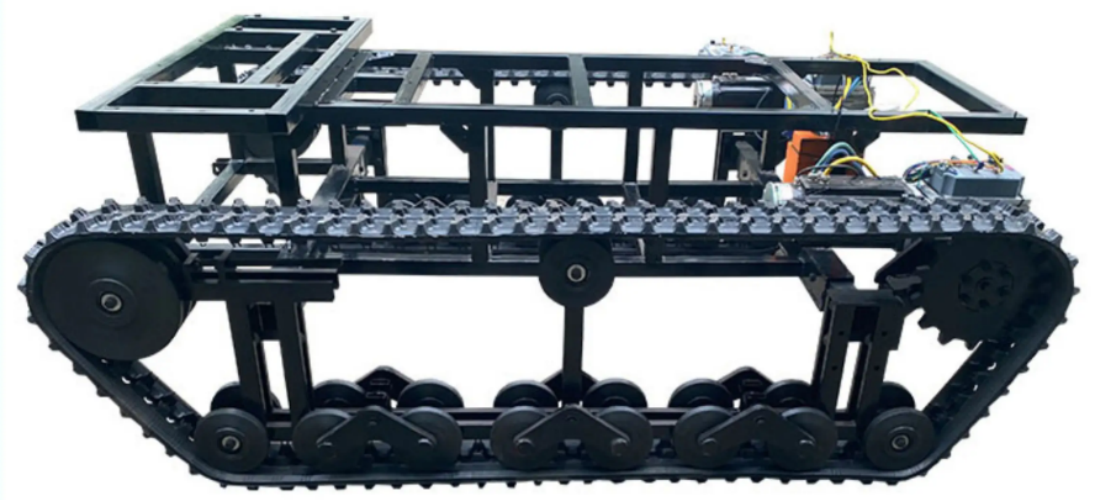

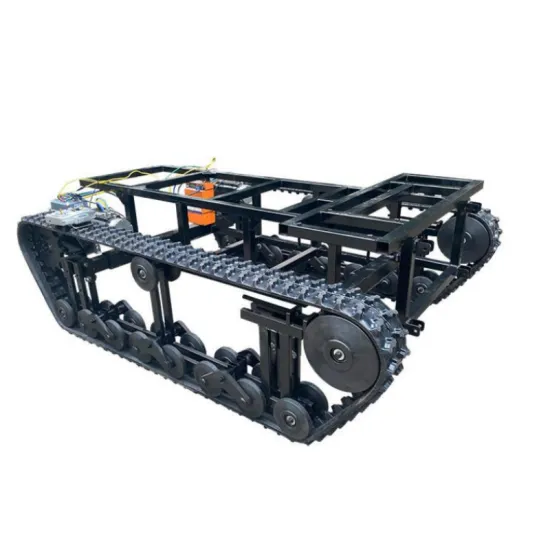

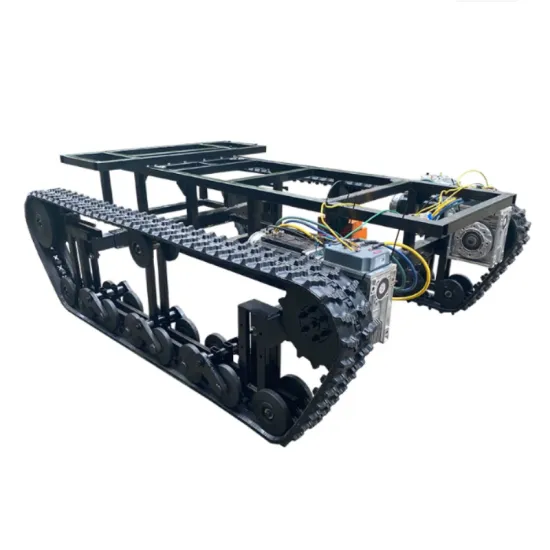

Side view of the complete chassis. Rubber track with multi-wheel system, high-power rear motor drive, robust and compact structure with good protection.

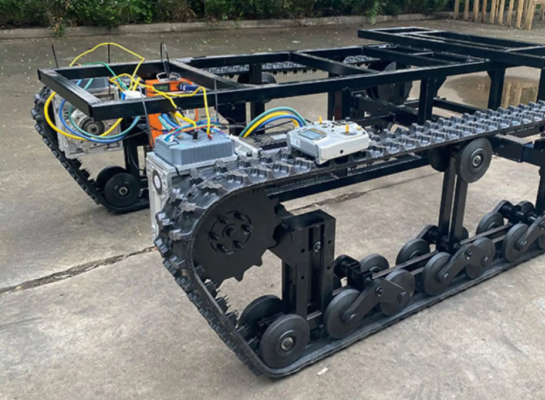

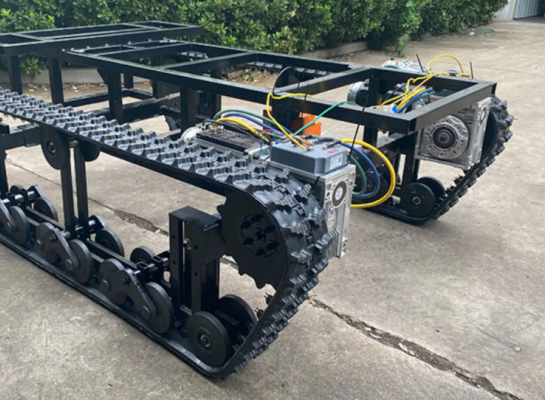

Rear power & control area. 48V high-power motor + dual-drive controller (CAN/PWM/232/485 supported), reserved expansion interfaces for secondary development.

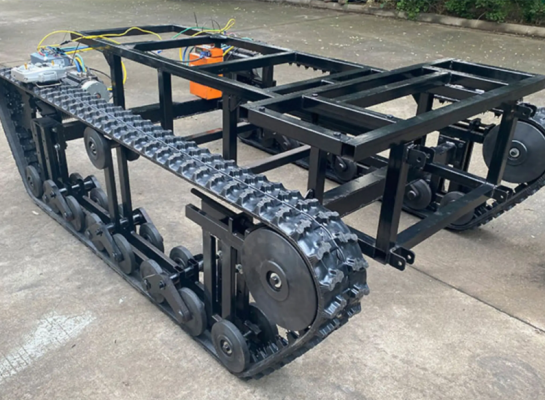

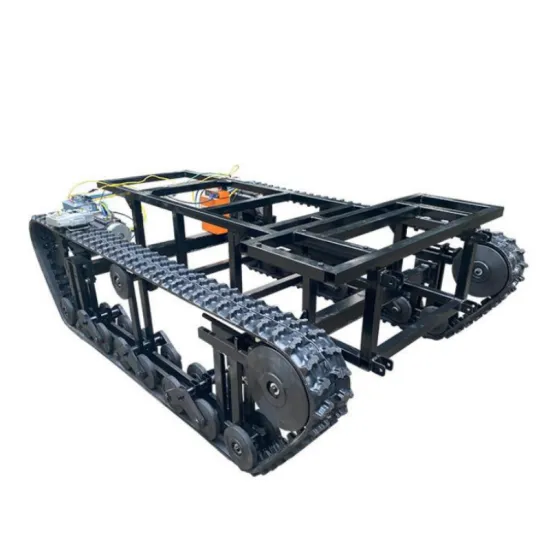

Full frame view. Carbon steel/aluminum welded frame with reserved mounting holes; modular platform supports various devices and customization.
Close-up of front drive wheel and track. Grade-A natural rubber track with Kevlar fiber, wear/tear-resistant, high grip for stable all-terrain travel.
Application

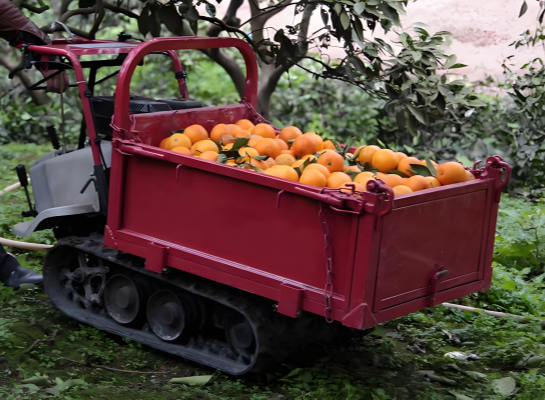

1.Orchard Picking & Transportation
Orchard picking & transfer, transport fruits and farm supplies to reduce manual labor intensity.

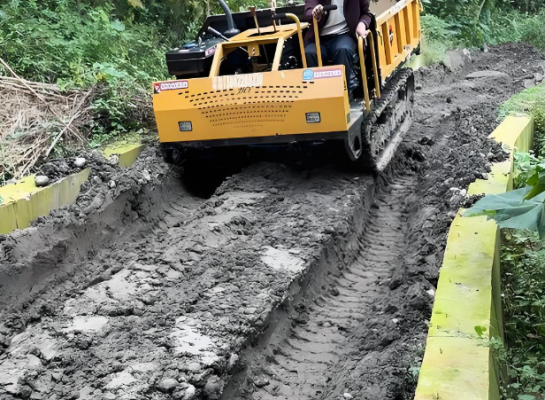

2.Mountain & Slope Operations
Material transportation on mountain, muddy and gravel all-terrain roads.

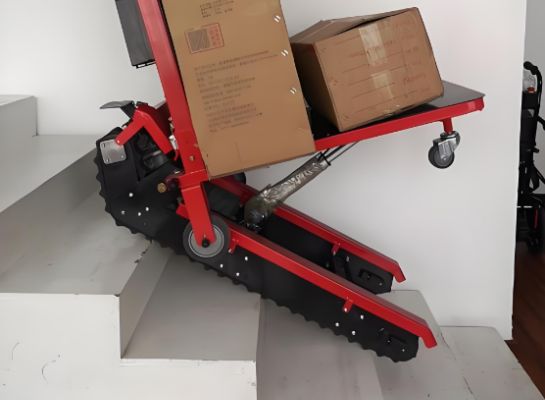

3.ladder climbing
Climb stairs, cross obstacles, transport indoor‑outdoor materials in complex environments.

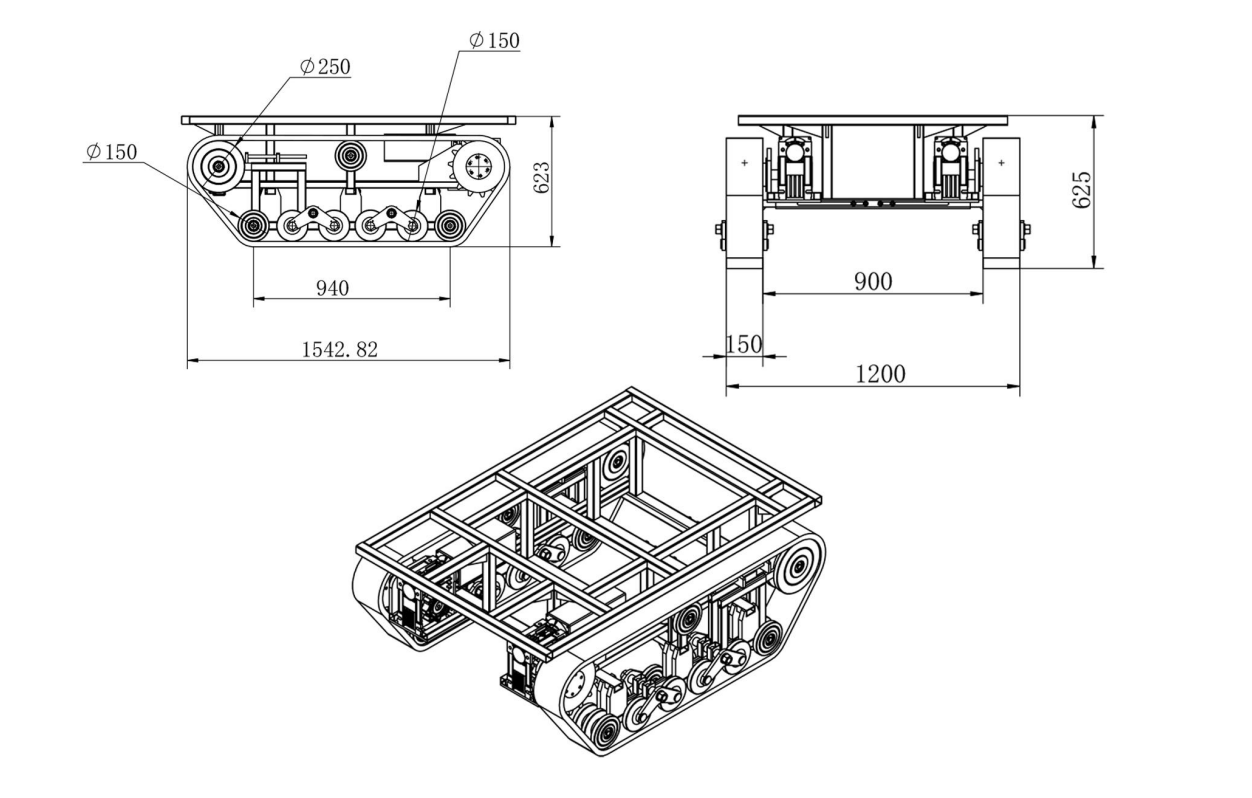

Dimensional Drawin
Certificate
Product parameters
Parameter | Specification |
Chassis Model | ZDDP-XHDX-150 |
Chassis Dimensions | 2010MM×1460MM×760MM (L×W×H) |
Surface Treatment | Powder Coating |
Main Material | Carbon Steel / Aluminum |
Braking Method | Motor Braking |
Protection Grade | IP55 |
Climbing Capacity | 30° Slope |
Travel Speed | 0~3KM/H (standard), customizable |
Turning Radius | 360° In-situ Rotation |
Reducer Model | RV90 |
Motor Spec | 48V 3.5KW-3000 |
Controller | Dual-drive Controller (CAN/PWM/232/485 supported) |
Track | Rubber Track (Grade-A Natural Rubber, Kevlar Fiber Reinforced) |
Track Pitch | 60MM |
Track Width | 150MM |
Wheel Material | Special Ultra-high Molecular Weight Synthetic Material |
Service
We have a highly professional service team.
Team members are the elites in their respective fields, they have gone through strict selection and systematic training, have a wealth of professional knowledge and superb skills.
Whether facing complex technical problems or daily service needs, they can quickly understand your needs with keen insight and provide the perfect solution with efficient action.
Company Introduction

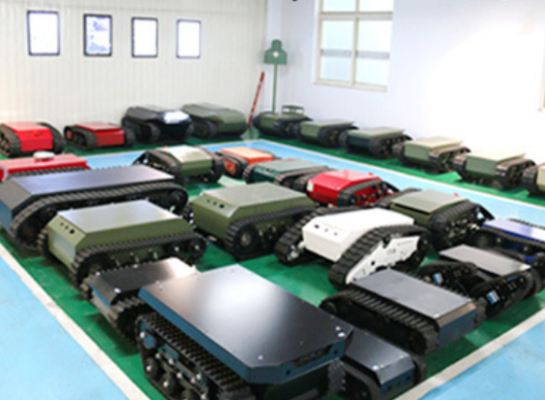

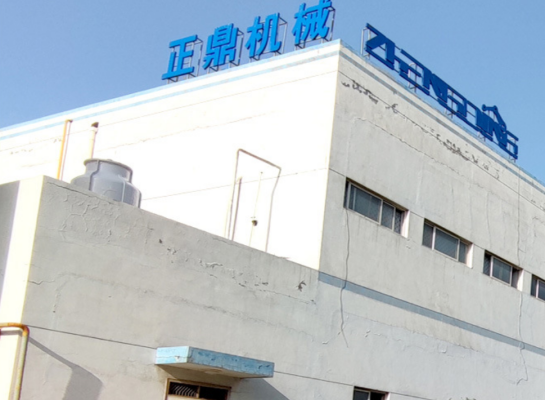

Zhengding Machinery Co., Ltd. in Dezhou is a leading manufacturer in the all terrain walking industry, specializing in the research and production of all terrain rubber tracks and track chassis, intelligent robot chassis, and track assemblies. It is a group style military enterprise.
The product supports customization and is sold globally with quality assurance.
