Product Description

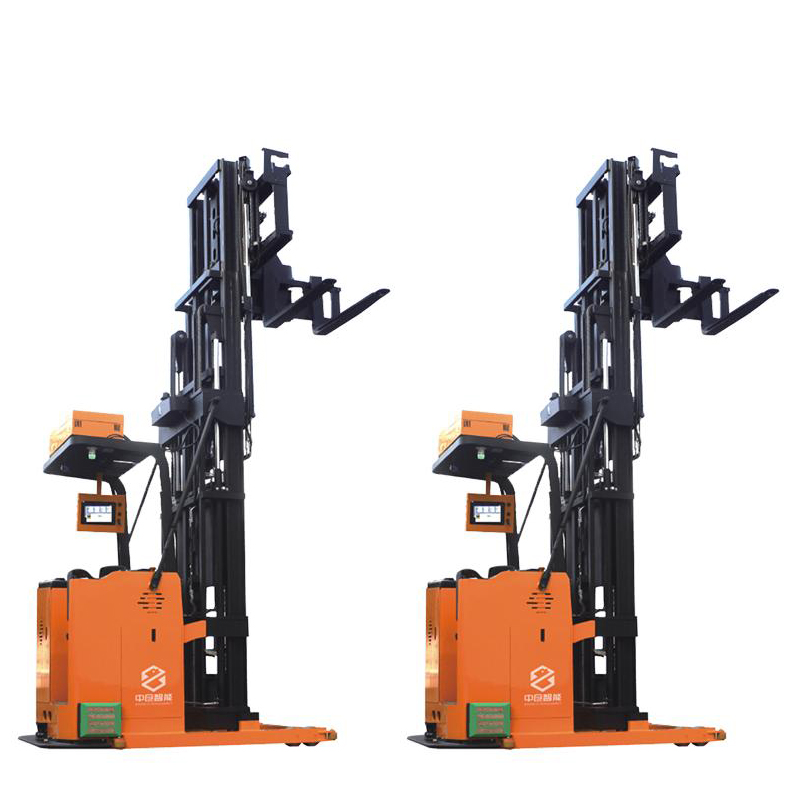

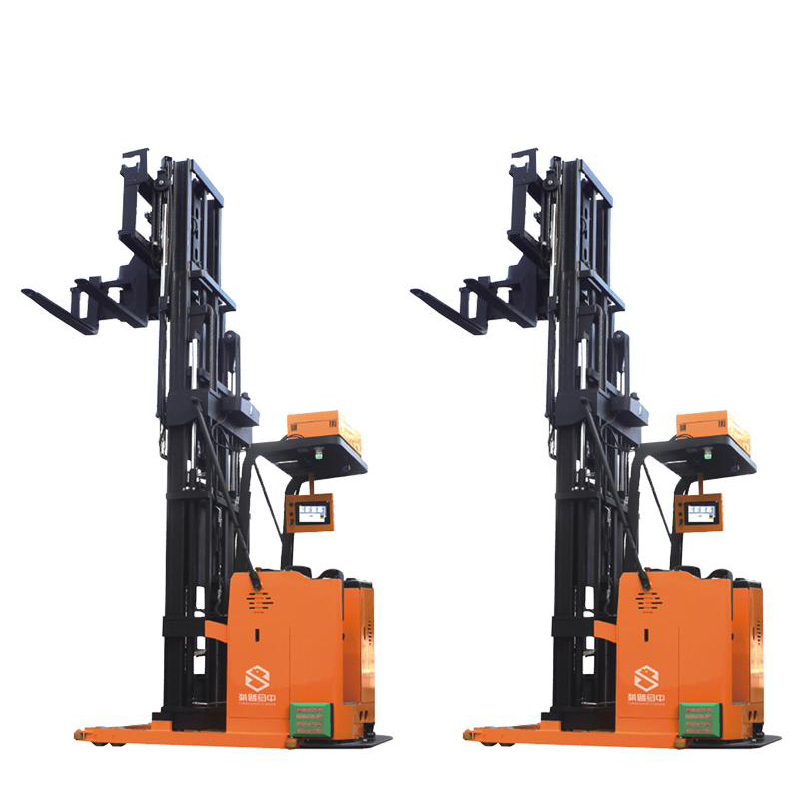

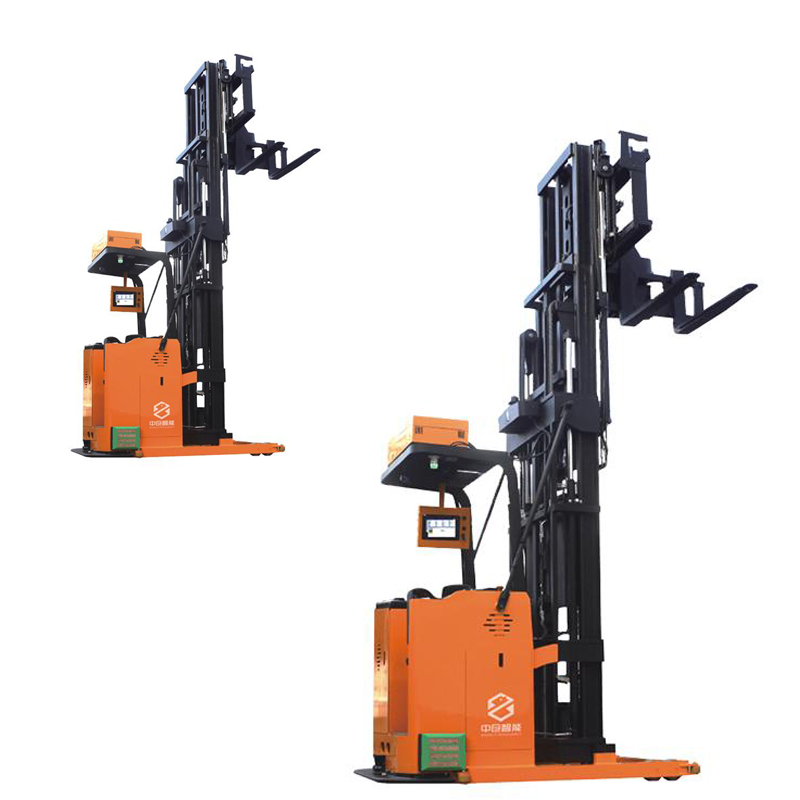

The three-way forklift AGV is suitable for working in ultra-narrow aisles. Despite its huge size, it can move around in a small space. It has a unique fork rotation and side shift mechanism. When the vehicle picks up goods, the vehicle body does not need to turn in the aisle, which effectively reduces the distance between shelves and improves storage efficiency.
Product Features
Functions: laser navigation, visual detection, obstacle detection, anti-collision edge, emergency stop button, automatic charging, voice prompt, sound and light alarm
Features: high lifting, strong power, convenient switching in the channel
Use: suitable for handling and stacking operations of various specifications of pallets and material frames such as Sichuan, Tian, and Jiujiao
AGV forklifts are commonly used in automated warehousing and logistics systems. They are usually designed to be able to move and carry materials autonomously in environments such as factories, warehouses, or distribution centers. AGV forklifts are usually equipped with forks that can be used to carry goods, and they can autonomously navigate and operate through pre-set routes or programs. This type of automated equipment can improve logistics efficiency, reduce labor costs, and improve operational safety.
Product parameters
| Parameter name | Parameter value | Parameter name | Parameter value | Parameter name | Parameter value |
|---|---|---|---|---|---|
| Drive form | Electric | Navigation | Laser | Load center | 600mm |
| Overall height (at lowest forks) | 3165mm | Overall length | 3170mm | Overall width (with touch device) | 1550mm |
| Fork outer width | 650mm (adjustable) | Lifting speed (full load/no load) | 215mm/s/275mm/s | Load rating | 1500kg |
| Number of wheels | 7 | Fork size | 1220/125/45mm | Driving style | Laser-guided automatic/remote control |
| Tyre | Polyurethane | Braking distance | 500mm | Lifting height | 7000mm(customizable) |
| Pick-up and unloading lane (1200*1200mm pallet) | 1760mm | Descent speed (full/unloaded) | 195mm/s/150mm/s | Travel speed (full/unloaded) | 0.7m/s/1m/s(可调) |
| Typical charge/run time | 2h/8h |
Customer Case
A firefighting material intelligent library
A warehousing industry project
A train depot project
Product Certificate
Service
Professional team
Core algorithm of mobile robots with independent intellectual property rights
Rich experience in unmanned projects in the automation industry
Peace of mind service
24-hour service hotline
Reasonable price of accessories, open complaint hotline, public service standards
100% free of charge for services within the scope of the three guarantees, reasonable charges for services beyond the warranty period
Time-limited guarantee for troubleshooting
Regular free inspection and maintenance during the three-guarantee period
Lifetime maintenance of products
Transport
We are committed to providing you with safe and efficient transportation services. During the transportation of products, we use professional packaging materials to ensure that the products are protected from bumps and damage. Whether it is land transportation or air transportation, we work with reliable logistics partners to monitor the transportation status in real time to ensure that the products are delivered to you on time and in good condition.
